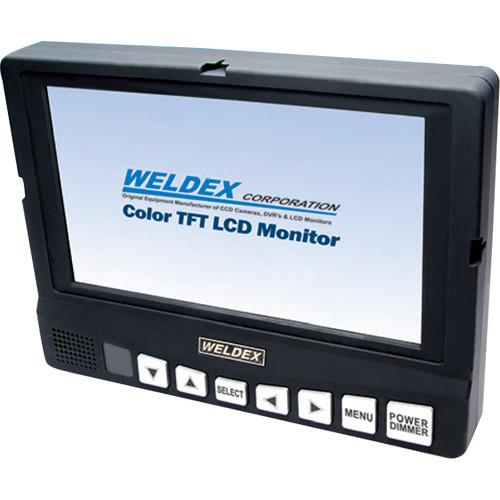

User Manual for Weldex WDL-8003M 8" Color TFT LCD Monitor with Built-In Speaker Composite and VGA Input Click to enlarge the picture
Contents of the user manual for the Weldex WDL-8003M 8" Color TFT LCD
- Product category: Surveillance Monitors Weldex
- Brand: Weldex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weldex Surveillance Monitors
|
User manual for the Weldex WDL-8003M 8" Color TFT LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weldex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weldex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weldex product will considerably shorten its lifespan!
|
Product description The 8" WDL-8003M 8" Color TFT LCD Monitor with Built-In Speaker from Weldex supports resolution of up to 800 x 480 and features Composite and VGA video inputs. This monitor displays images with contrast ratio of 300:1 and brightness of 500 cd/m2. This monitor offers viewing angles of up to 130° horizontally and 110° vertically. It also has an on-screen menu display for feature and video adjustments. The built-in speaker can be used to monitor audio from incoming video feeds. - Features Composite and VGA video inputs
- Selectable mirror-image mode
- Active matrix for picture clarity
- On-screen display menu for feature and video adjustments such as color, brightness, contrast, tint, and volume
- Features a built-in speaker
- Viewing angle of 130° horizontally and 110° vertically
In the Box Weldex WDL-8003M 8" Color TFT LCD Monitor with Built-In Speaker Composite and VGA Input Remote Control Mounting Bracket Accessories Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weldex WDL-8003M 8" Color TFT LCD Monitor with Built-In Speaker Composite and VGA Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeldex WDL-8003M Specs | Display Type | Active matrix color TFT LCD | | Diagonal Screen Size | 8.0" (20.3 cm) | | Contrast Ratio | 300:1 | | Brightness | 500 cd/m2 | | Viewing Angle | Up: 45°
Down: 65°
Right: 65°
Left: 65° | | Resolution | 800x3 (RGB) (W) x 480 (H) | | Dot Pitch | 0.0736 (W) x 0270 (H) | | Active Area | 176.64 (W) x 99.36 (H) | | Video Input | Composite and VGA Input | | Power Source | 12 to 32 VDC | | Temperature | Operating: -4 to 176°F (-20 to 80°C) | | Signal Type | NTSC | | Dimensions (W x D x H) | 8.7 x 6.2 x 1.2" (22.2 x 15.9 x 3.2 cm) | | Weight | 3.8 lb (1.7 kg) | | | | Package Weight | 4.3 lb | | Box Dimensions (LxWxH) | 10.7 x 8.1 x 6.2" |
