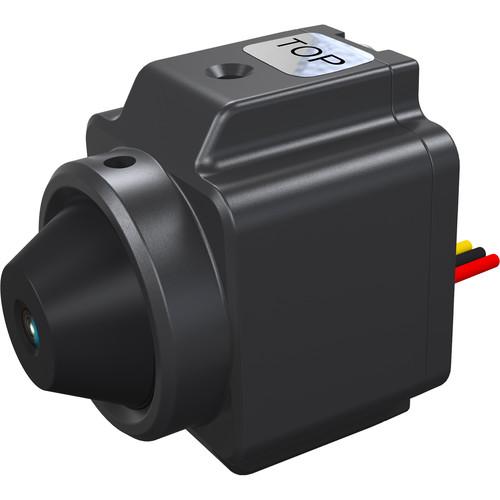

User Manual for Weldex WDP-1305M2-BB 1.2MP Network Ultra-Miniature Camera Click to enlarge the picture
Contents of the user manual for the Weldex WDP-1305M2-BB 1.2MP Network Ultra-Miniature Camera
- Product category: Wired IP Cameras Weldex
- Brand: Weldex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weldex Wired IP Cameras
|
User manual for the Weldex WDP-1305M2-BB 1.2MP Network Ultra-Miniature Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weldex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weldex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weldex product will considerably shorten its lifespan!
|
Product description The 1.2MP Network Ultra-Miniature Camera from Weldex uses a 1/2.7" progressive CMOS HD sensor and a 3.4mm lens to capture video at a maximum resolution of 1280 x 720 at 30 fps. The lens features a rear entry for wiring. It features adjustable white balance, backlight compensation, IRIS mode, and automatic gain control (AGC) for improving overall image quality. The camera can be powered via PoE, simplifying installation and minimizing cable runs. - Dual streaming: H.264 & MJPEG
- ONVIF version 2.2 supported
In the Box Weldex WDP-1305M2-BB 1.2MP Network Ultra-Miniature Camera (Rear Entry Wiring) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weldex WDP-1305M2-BB 1.2MP Network Ultra-Miniature Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeldex WDP-1305M2-BB Specs | | | Sensor | 1.2 MP 1/2.7" CMOS | | Focal Length | 3.4mm | | Maximum Aperture | f/2 | | | | Streaming Resolution | 1280 x 720 at 30 fps
1024 x 768
800 x 600
800 x 480
640 x 480 | | Supported Video Compression | H.264, MJPEG | | Automatic Gain Control | Yes | | | | Security | HTTPS, IP Address Filtering, Password Protection | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, , IPv4/v6, NTP, RTP, RTSP, SMTP, TCP, UPnP | | | | Application Programming Interface (API) | MP4 | | Event Trigger | No | | | | Recording Media | None | | Pan/Tilt | None | | Alarm I/O | None | | I/O Connections | 1 x Power
1 x RJ45 | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 4 W | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 10 to 90% | | Dimensions | H: 0.9 x W: 0.6 x L: 0.8" / H: 22.0 x W: 16.0 x L: 21.3 mm | | Weight | 1.2 lb / 550.0 g |
