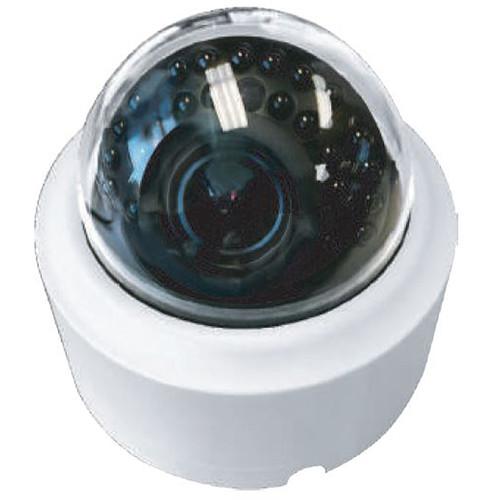

User Manual for Weldex WDP-80D2MV 2MP Network Dome Camera with 2.8-12mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Weldex WDP-80D2MV 2MP Network Dome Camera
- Product category: Wired IP Cameras Weldex
- Brand: Weldex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weldex Wired IP Cameras
|
User manual for the Weldex WDP-80D2MV 2MP Network Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weldex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weldex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weldex product will considerably shorten its lifespan!
|
Product description The WDP-80D2MV 2MP Network Dome Camera from Weldex uses a 1/3" 2.1MP progressive scan CMOS sensor and a 2.8-12mm varifocal lens to capture video at a maximum resolution of 1920 x 1080 at 30 fps using H.264 compression. It features adjustable white balance, backlight compensation, adaptive color and contrast enhancement, noise reduction (2D-DNR, 3D-DNR, and Smart NR), and automatic gain control (AGC) for improving overall image quality. The camera can be powered via PoE, simplifying installation and minimizing cable runs. - Dual streaming: H.264 & MJPEG
- Automatic or manual white balancing
In the Box Weldex WDP-80D2MV 2MP Network Dome Camera with 2.8-12mm Lens & Night Vision Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weldex WDP-80D2MV 2MP Network Dome Camera with 2.8-12mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeldex WDP-80D2MV Specs | | | Sensor | 2.1 MP 1/3" CMOS | | Focal Length | 2.8 to 12mm | | Zoom | Optical: 4.29x | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | B&W: 0 Lux | | Shutter Speed | 1/50000 to 1/30 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps
1280 x 720
640 x 480
352 x 192 | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | , 2 Streams | | Automatic Gain Control | Yes | | | | Streaming | Single | | Audio Formats | AAC, G.711 | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | | | Security | HTTPS, IP Address Filtering, Password Protection | | Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, , IPv4/v6, NTP, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | ONVIF | | Event Trigger | Yes | | Event Action | Recording, Alarm | | | | Recording Media | microSD (Up to 32 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x BNC
1 x Power
1 x RJ45
1 x 4-Pin Terminal Block | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 13 W | | Operating Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 10 to 90% | | Dimensions | H: 4.0 x W: 4.5" / H: 10.2 x W: 11.4 cm | | Weight | 15.5 oz / 440.0 g |
