User Manual for West Penn BNC Female to RJ45 IDC CCTV Miniature Balun Click to enlarge the picture
Contents of the user manual for the West Penn BNC Female to RJ45
- Product category: Cable Connectors West Penn
- Brand: West Penn
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for West Penn Cable Connectors
|
User manual for the West Penn BNC Female to RJ45 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any West Penn product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official West Penn user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a West Penn product will considerably shorten its lifespan!
|

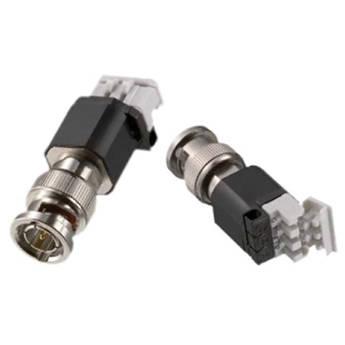

Product description The BNC Female to RJ45 IDC CCTV Miniature Balun from West Penn is a passive device that is used for CCTV over UTP video transmission. UPC: 814039015160 In the Box West Penn BNC Female to RJ45 IDC CCTV Miniature Balun Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the West Penn BNC Female to RJ45 IDC CCTV Miniature Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWest Penn CN-MTL Specs | Type | BNC female to RJ45 with IDC terminal | | UTP | Wire Gauge: 24-gauge or lower solid twisted pair wire Impedance: 100 ohms @ 1 MHz Capacitance: 20 pF/ft Attenuation: 6.6 dB / 1,000' (305 m) @ 1 MHz | BNC Connector | Impedance: 75 ohms @ 1 MHz (RG59/U) (maximum) 25.0' (7.6 m) of coaxial allowed per end to end link
Maximum Distance: Color: CAT3: 1,200' (366 m) CAT5: 2,200' (670 m)
Monochrome: CAT3: 1,500' (457 m) CAT5: 2,500' (762 m) | | Bandwidth | Video DC to 8 MHz | Maximum Input | 1.1 Vpp | Impedance | 75 to 100 ohms (or 75 to 120 ohms on request) | Insertion Loss | 2 dB (maximum) per pair over the frequency range from DC to 8 MHz | Return Loss | >15dB over the frequency range from DC to 8 MHz | Common Mode Rejection | >40 dB at 8 MHz | | Temperature | Operating: 32 to 131°F (0 to 55°C) Storage: -7.6 to 185°F (-22 to 85°C) | Humidity | Up to 95% | | Package Weight | 0.1 lb | Box Dimensions (LxWxH) | 7.0 x 6.0 x 1.0" |
