Product description

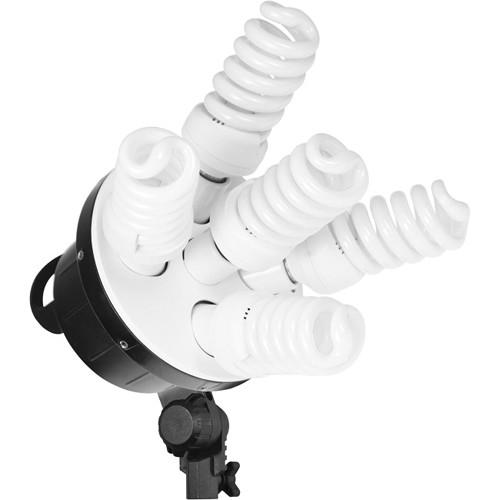

• D5 5-Socket Light Head The Westcott Basics D5 5-Socket Lamp Head is a continuous light source that features 5 heat-resistant ceramic sockets for use with 5 compact fluorescent lamps up to 85W each. The D5 is housed in a durable yet lightweight nylon head and is both CE and UL certified for safety. This housing features 5 power switches - one for each lamp, for the ultimate in output control. The D5 has an in-line power switch and a comfortable handle for effortless positioning. The fixture's tilter bracket fits on virtually all light stands and has a built-in umbrella receptacle. Optional modifiers such as a 24 x 32" Softbox, 32" Octabox, and 16 x 40" Stripbank are available, all of which come standard with a 1-stop diffusion panel. These modifiers mount quickly into the D5's rod holes and are available in a variety of kits.
  Attributes
  • Continuous light source
  • Ceramic sockets
  • UL and CE certified for safety
  • Compact and lightweight housing
  • 5 Switches control individual lamps
  • Inline cord switch
  • Built-in D5 rod receptacles
  • Standard umbrella receptacle and tilter bracket
  • Also available in kits
  UPC: 817967008167

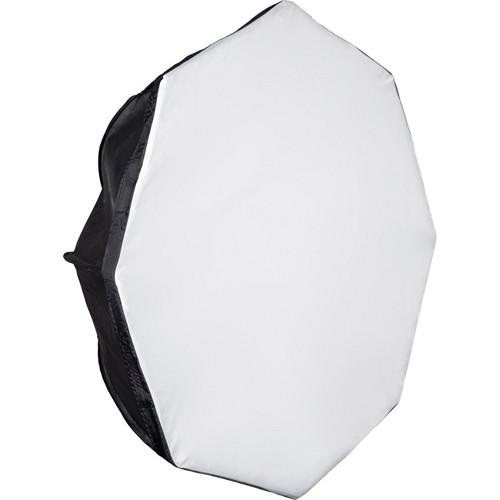

• D5 Octabox (32") Dedicated to the Westcott Basics D5 fluorescent light, this 32" Octabox is a versatile light modifier well-suited for use on a main or key light. Its octagonal shape and reflective silver interior produces a natural shape of soft, diffuse light along with rounded catch lights. Constructed from heat-resistant nylon, the front 1-stop diffuser is also removable and eight fiberglass assembly rods are included for quick, secure assembly.
• Light Stand (6.5') This 6.5' Westcott Light Stand is usually sold as part of a Photo Basics or Spiderlite lighting kit.
  • Black aluminum, with standard Baby (5/8") top
  • Rises to a maximum height of 6.5' (1.9 m)
  UPC: 017967007508

• Lamp Head

• Power Cord

• Limited 1-Year Warranty

• 8 x Assembly Rods

• Removable Front Diffusion Panel

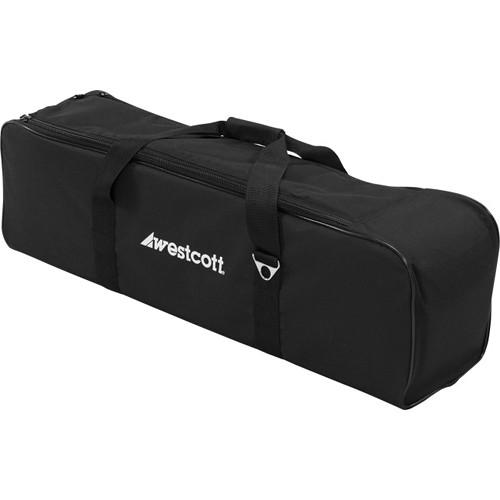

• Carry Case

• Limited 1-Year Warranty

• Limited 1-Year Warranty

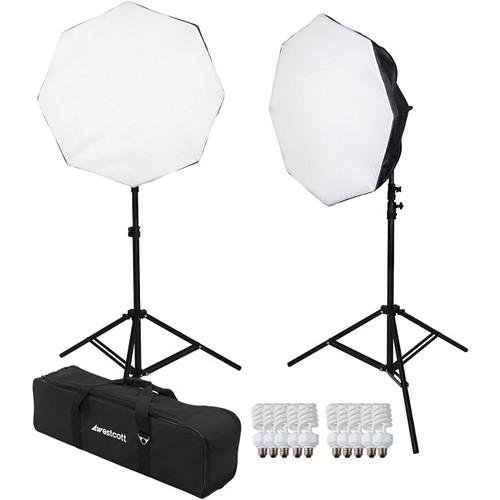

Also Includes

• 10 x 27-Watt Daylight-Fluorescent Lamps
• 2 x D5 Power Cords
• Carry Case
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• D5 5-Socket Light Head

  Material	Ceramic socket, nylon body
  Input Voltage	100-240 VAC, 50/60 Hz
  Lamps	Optional compact fluorescent
  Cooling	Passive
  Flicker Correction	Flicker-free
  Maximum Wattage	85 W each socket
  Mounting	5/8" (16 mm) Receiver
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	14.4 x 9.55 x 7.95"

• D5 Octabox (32")

  Shape	Octagon
  Interior	Silver
  Requires Speed Ring	No
  Maximum Wattage	250 W
  Removable Front Face	Yes
  Removable Interior Baffle	No
  Material	Fiberglass, Nylon
  Circular Dimensions	Rating 84% users recommend this product to others. And what about you? This product has already been rated by 12 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
