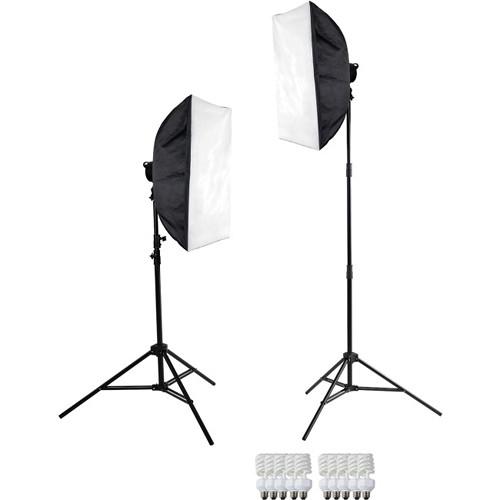

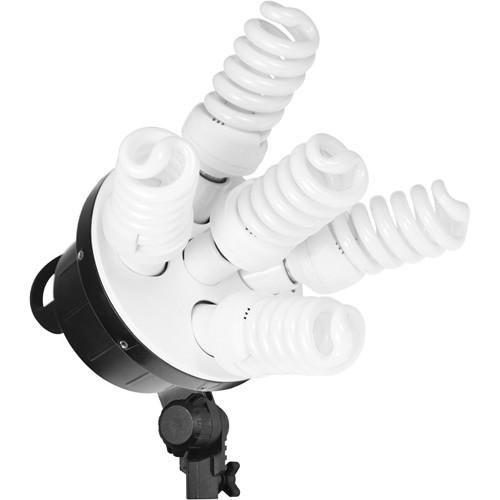

Product description The 2-Light Daylight D5 Softbox Kit from Westcott is a comprehensive kit featuring two daylight-balanced continuous light sources. Bundled with the two D5 5-socket light heads are the compatible power cords, ten 27-watt daylight fluorescent lamps, two durable 6' light stands, and two dedicated 24 x 32" softboxes that feature a reflective silver interior for maximized output and heat-resistant rods that mount exclusively to the D5's built-in rod receptacles.The D5 features five heat-resistant ceramic sockets for use with five daylight fluorescent lamps up to 50 watts each. The D5 is housed in a durable yet lightweight nylon head and is both CE and UL certified for safety. This housing features five power switches that control each lamp for the ultimate in output control. Built on a tilter bracket, the Westcott Basics D5 is designed with a comfortable handle for effortless positioning. The D5's tilter bracket fits on virtually all light stands and has a built-in umbrella receptacle. This 270W kit is effective for portraiture and its compact design allows for quick setup in home studios or small spaces. - D5 5-Socket Light Head The Westcott Basics D5 5-Socket Lamp Head is a continuous light source that features 5 heat-resistant ceramic sockets for use with 5 compact fluorescent lamps up to 85W each. The D5 is housed in a durable yet lightweight nylon head and is both CE and UL certified for safety. This housing features 5 power switches - one for each lamp, for the ultimate in output control. The D5 has an in-line power switch and a comfortable handle for effortless positioning. The fixture's tilter bracket fits on virtually all light stands and has a built-in umbrella receptacle. Optional modifiers such as a 24 x 32" Softbox, 32" Octabox, and 16 x 40" Stripbank are available, all of which come standard with a 1-stop diffusion panel. These modifiers mount quickly into the D5's rod holes and are available in a variety of kits.
- Attributes
-
- Continuous light source
- Ceramic sockets
- UL and CE certified for safety
- Compact and lightweight housing
- 5 Switches control individual lamps
- Inline cord switch
- Built-in D5 rod receptacles
- Standard umbrella receptacle and tilter bracket
- Also available in kits

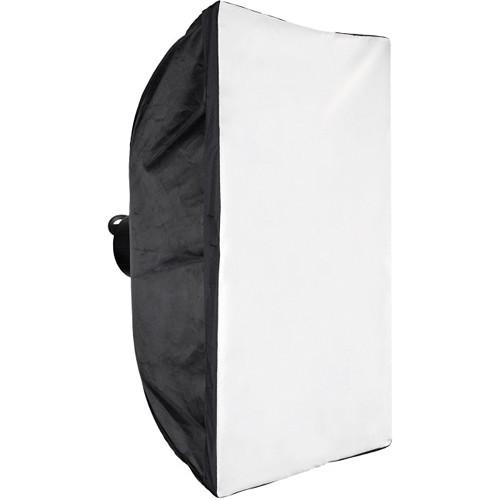

UPC: 817967008167 - Standard Softbox for Westcott D5 (24 x 32") The 24 x 32" Standard Softbox for Westcott D5 from Westcott features a silver interior for maximum reflective output and a removable 1-stop front diffusion panel for flattering illumination as a main or key light. This standard rectangular softbox pairs exclusively with the Westcott D5 fluorescent continuous light source and comes with four heat-resistant rods that mount quickly and securely to the D5's built-in rod receptacles. The softbox itself is made from heat-resistant nylon.
- Light Stand (6.5') This 6.5' Westcott Light Stand is usually sold as part of a Photo Basics or Spiderlite lighting kit.
- Black aluminum, with standard Baby (5/8") top
- Rises to a maximum height of 6.5' (1.9 m)
UPC: 017967007508 In the Box Bundle Items 2 x D5 5-Socket Light Head dqfzvzdvxvwzreaqvsbdsxxszuzcyzequtsxar 2 x Standard Softbox for Westcott D5 (24 x 32") - Removable Front Diffusion Panel
2 x Light Stand (6.5') dqfzvzdvxvwzreaqvsbdsxxszuzcyzequtsxar
Also Includes - 10 x 27-Watt Daylight-Fluorescent Lamps
- 2 x D5 Power Cords
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Westcott 2-Light Daylight D5 Softbox Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - D5 5-Socket Light Head
| Material | Ceramic socket, nylon body | | Input Voltage | 100-240 VAC, 50/60 Hz | | Lamps | Optional compact fluorescent | | Cooling | Passive | | Flicker Correction | Flicker-free | | Maximum Wattage | 85 W each socket | | Mounting | 5/8" (16 mm) Receiver | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 14.4 x 9.55 x 7.95" | - Standard Softbox for Westcott D5 (24 x 32")
| Shape | Rectangular | | Interior | Silver | | Requires Speed Ring | No | | Maximum Wattage | 250 W | | Removable Front Face | Yes | | Removable Interior Baffle | No | | Light Loss | 1 Stop | | Material | Fiberglass, Nylon | | Rectangular Dimensions | W: 24.0 x H: 32.0" / W: 61.0 x H: 81.0 cm | | | | Box Dimensions (LxWxH) | 25.5 x 8.8 x 1.9" | - Light Stand (6.5')
| Load Capacity | 6.6 lb / 3 kg | | Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Maximum Working Height | 6.5' / 1.9 m | | Minimum Working Height | 29" / 73.5 cm | | Collapsed Height | 29" / 73.5 cm | | Footprint Diameter | 25" / 63.5 cm | | Accepts Wheels | No | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 2.2 lb / 1.0 kg | | | | Box Dimensions (LxWxH) | 28.2 x 3.55 x 3.15" |
