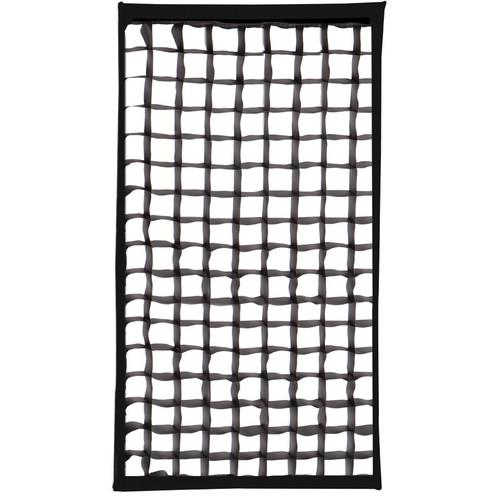

User Manual for Westcott 40° Fabric Grid for the Apollo Strip Click to enlarge the picture
Contents of the user manual for the Westcott 40° Fabric Grid for the
- Product category: Softbox Grids & Eggcrates Westcott
- Brand: Westcott
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Westcott Softbox Grids & Eggcrates
|
User manual for the Westcott 40° Fabric Grid for the contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Westcott product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Westcott user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Westcott product will considerably shorten its lifespan!
|
Product description This is a Westcott 40° Fabric Grid for the Apollo Strip. This grid narrows the beam spread from your Apollo softbox to control spill light, soften contrast, and add directionality to this soft source. It attaches to the recessed front through the use of hook-and-loop tape. A grid is an essential accessory for any lighting system. - Create Separation and Depth
- Grids are made up of cells that control off axis light in four directions while maintaining the soft quality inherent in a large light source. Use as a portrait source to keep light off your background. Or use the grid's control qualities to turn the orb into a large hairlight for groups. You can even clip gels to it.
- Eliminates Spill and Flare
- As light is focused into a forward direction through use of a grid, it can help to eliminate spill light or lens flare
- 40° Spread of Light
- The off axis portion of the light is controlled by the cell size. The cell size (measured in degrees) describes the maximum cutoff angle of the off axis light. A 40-degree grid is the most popular degree used
- Light Loss
- Light loss at the center axis is minimal at a distance of up to 3 to 4 times the diagonal dimension of the light source. On most models it is less than a 1/4 of stop of light
- Perfect for Travel
- Soft grids collapse down for easy transport and travel
- Included Travel Case
- Each unit comes with a soft nylon carry case
- Easy Attachment
- Grids easily attach through the use of hook-and-loop tape. When attaching, place your diffusion panel about 1/2 way in on the hook tape. This will leave enough room for the eggcrate to attach directly in front of the diffusion panel
- Perfect Fit
- Grid corners are left unattached in order to provide the perfect fit. This allows you to stretch the grid taught and avoid sagging or drooping
UPC: 817967024730 In the Box Westcott 40° Fabric Grid for the Apollo Strip Storage Sack Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Westcott 40° Fabric Grid for the Apollo Strip in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWestcott 2473 Specs | Material | 100% nylon | | Beam Angle | 40° | | Dimensions | Open: 16 x 30 x 1.25" / 40.6 x 76.2 x 3.1 cm
Folded: 14 x 4.0 x 3.8" / 35.6 x 10.2 x 9.5 cm | | Weight | 0.7 lb / 0.3 kg | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 19.7 x 5.9 x 2.3" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
