Westcott Flex Bi-Color LED Mat 2-Light

User Manual for Westcott Flex Bi-Color LED Mat 2-Light Cine Travel Kit

• Product category: LED Lights Westcott
• Brand: Westcott
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Westcott LED Lights

Product description

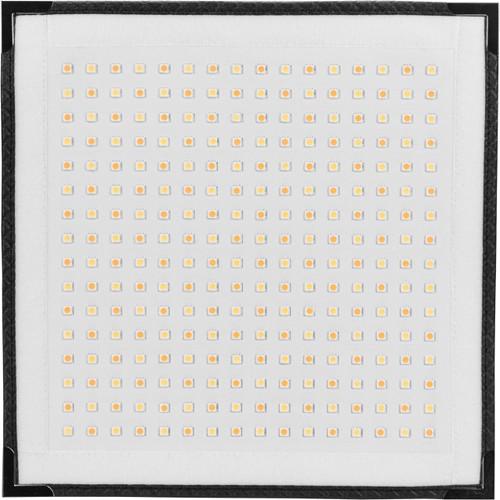

• Flex Bi-Color LED Mat (1 x 1') Compatible with and complimentary to any kind of image making, the Flex Bi-Color LED Mat from Westcott is a unique 1 x 1' array of LEDs that are housed within a 0.25"-thick pliable mat-like casing. Mold it into an arc for product photography for true "wrap-around" lighting or shape it into a cylinder for long thin highlights in reflective objects. The Flex will hold its form however you twist it thanks to integrated pliable wire in the frame, and its thin profile and lightweight design allows it to fit where most light sources simply can't, opening up a world of creative possibilities for car, plane or boat interiors. This specific light has a bi-color, 2800-6000K balanced design along with a high variable CRI rating of 95-98.

  In addition to the unique bendable design, the Flex LED Mat also has an IP 64 rating that deems it both dust and splash proof for use in inclement conditions. Included with the light is a 100-240 VAC power supply along with an external dimmer for 0-100% dimming control. The dimmer also features a 3/8"-16 mount for compatibility with the Scrim Jim Cine frame system. The Flex Mat itself is also compatible with Scrim Jim Cine frames, allowing you to effectively create your own LED panel.
  Powerful LEDs
  • The Flex packs a punch with 55W of continuous power.
  Flexible Frame
  • The Flex is very pliable, thanks to a built-in wire framework which allows the unit to maintain its shape once formed.
  Sleek Design
  • Measuring just 0.25" thick, this light can be placed in situations where many other lights simply cannot fit.
  High CRI
  • LEDs have a high CRI of 95-98.
  Shooting in the Rain - Not a Problem
  • With a splashproof rating of IP 64, photographers and videographers can shoot with the Flex panel and optional power cord extender in the rain without issues.
  Included Dimmer
  • Each Flex panel includes a power dimmer ranging from 0-100% for precise light output adjustment.
  Slim Jim Cine Compatibility
  • The Slim Jim Cine frame system can be used to build a matching 1 x 1' frame for holding the Flex in place atop a stand or in other remote ways. The included dimmer also features a 3/8"-16 mount for attaching to the Slim Jim Cine frame in a seamless manner.
  UPC: 817967012799

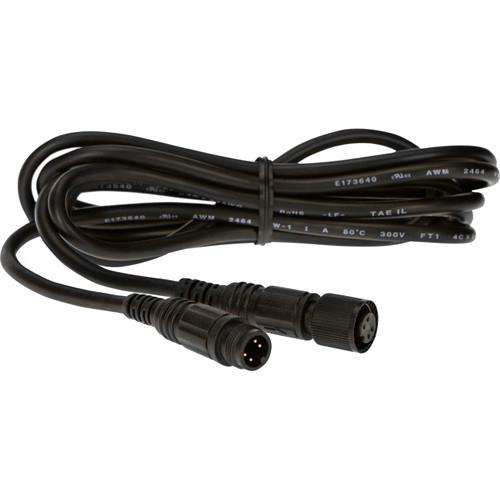

• 16' Dimmer Extension Cable for Flex LED Mats up to 1 x 2' This 16' water-resistant Dimmer Extension Cable from Westcott provides extra distance from a Flex LED Mats up to 1 x 2' to the power source, allowing the mat to be used in wet environments while the power supply is sheltered in a dry area. UPC: 817967009874

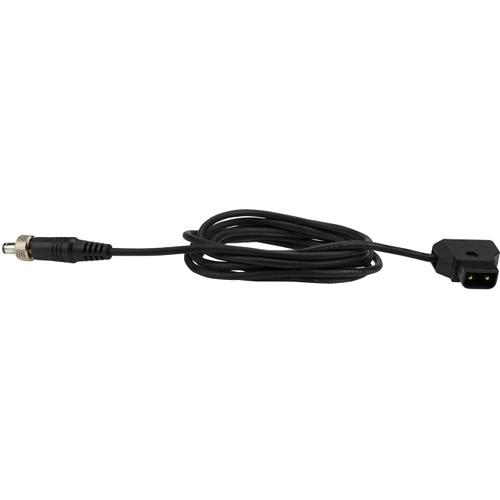

• Flex D-Tap Cable The Flex D-Tap Cable from Westcott is an essential accessory for pairing select Flex LED mats with a portable power source. The 40" cable uses an industry standard D-Tap for connection to a power source and a threaded metal connector for secure attachment to the Flex LED mat.
  Compatibility
  • • Flex 10" x 3"
    • Flex 10" x 10"
    • Flex 1' x 1'
    UPC: 817967011679

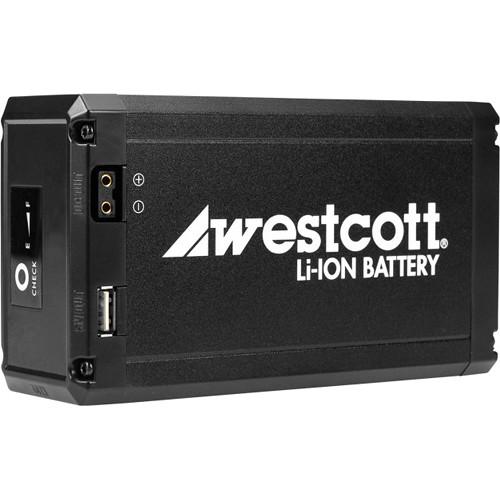

  • 14.8V Portable D-Tap Li-Ion Battery for Flex LED Mat Power your Flex LED Mat while on the move with this14.8V Portable D-Tap Li-Ion Battery for Flex LED Mat from Westcott. This pack will recharge in just 3.5 hours and provides up to 8 hours of runtime with the 10 x 3" mat or 2.75 hours with the 10 x 10" and 1 x 1' mats. Also, it has a 14.8 VDC output with charge indicator lights so you can check how much power you have left. A standard D-Tap output works with the included 5' Flex to D-Tap power cable for quickly connecting your light and a USB port is available for users to charge a phone or other mobile device. UPC: 817967011686

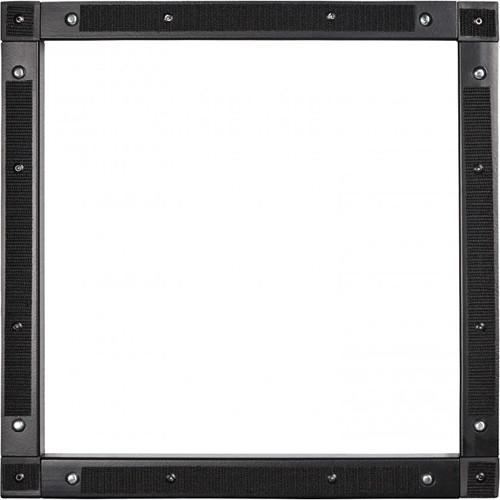

  • Scrim Jim Cine Frame Tube (10") The integral component within a modular system, this 10" long Scrim Jim Cine Frame Tube from Westcott is used to construct customized panels in sizes ranging from 1 x 1' to 8 x 8'. When paired with optional fabrics, such as silks or diffusers, frame tubes form the rigid support from which fabrics are attached to create flags, diffusion panels, book lights, v-flats, or numerous other light controlling tools.

    This tube is constructed from anodized aluminum alloy and heavy-duty hook-and-loop tape is riveted to two sides of the tube for attaching fabrics. A 3/8"-16 threaded mount is incorporated into the tube for mounting atop stands and additional dedicated self-locking connectors are used to combine several pieces of tube to create flat 2D frames or dynamic 3D light shaping tools.
    • Tube measures 10" long and can be added to additional tubes through the use of dedicated, self-locking connectors.
    • Anodized aluminum-alloy construction and self-locking connectors both help to maintain rigid, reliable frame configurations in various sizes up to 8 x 8'.
    • Hook-and-loop tape is riveted onto two sides of the tube and is used for attaching a variety of fabric types to the frame system.
    • A 3/8"-16 mount is incorporated into the tube's design for mounting to stands or other accessories.
    UPC: 817967011877
  • Scrim Jim Cine 2D Corner Frame Connector Integral to the versatile and modular system design, this Scrim Jim Cine 2D Corner Frame Connector from Westcott is used to connect any two Scrim Jim Cine frame tubes at a corner for making a 2D panel, reflector, flag, or other flat light modifier. A built-in positive locking button ensures a secure connection with the frame tube and its durable construction helps to maintain rigidity throughout long shoots and day-to-day use. UPC: 817967011914

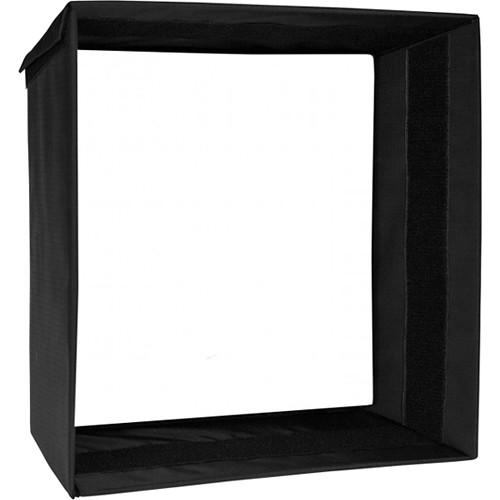

  • Portable Softbox for 1 x 1' Flex LED Mat Paired with the 1 x 1' Flex LED Mat, this Portable Softbox from Westcott offers a soft, even light output with a compact size that collapses to store flat for travel. It will mount directly to the mat or Scrim Jim Cine frames and the included 1/4-stop silk diffusion panel. Also, it attaches quickly and securely using hook-and-loop fasteners and the coated nylon construction is soft, yet durable. UPC: 817967013291

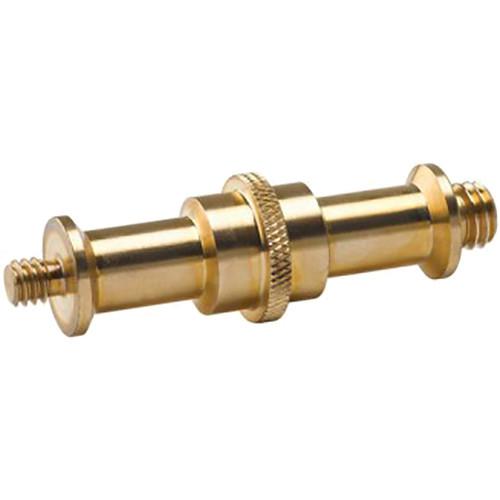

  • Universal Stud The Universal Stud from Westcott is a double-sided brass connector with both 1/4"-20 and 3/8"-16 male mounting threads. The two thread sizes allow the stud to be used with most industry standard lighting and grip equipment including; light stands, clamps, grip heads and most 1/4"-20 and 3/8"-16 female threaded studs. UPC: 817967013079
  • Dual-Joint Tilter Bracket The Dual-Joint Tilter Bracket from Westcott is designed to facilitate articulating mounting of lights or accessories on a light stand. The Tilter Bracket has an industry-standard "Baby" 5/8" receiver attached to 2 swiveling ball joints that offer 180°+ tilting. The bracket is locked down by and oversized T-handle. At the top of the bracket is a 1/4"-20 male thread with an included 3/8"-16 bushing that will support gear weighing up to 20 lb. The threads will also accept adapters such as a 5/8" stud. UPC: 812735023922

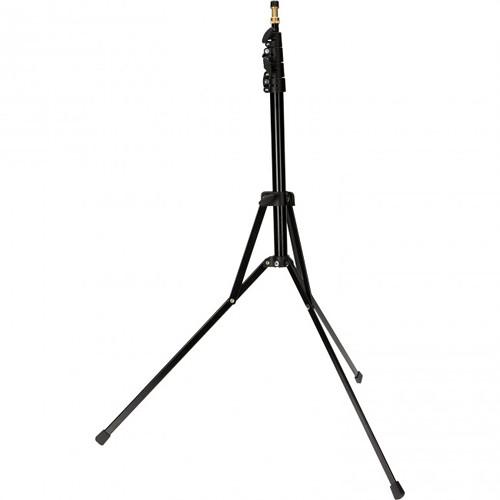

  • Compact Light Stand (7') A sleek, portable stand well-matched to Westcott's Flex LED and Scrim Jim Cine lines, this Compact Light Stand has a maximum height of 7.4', collapses down to 19.3", and weighs 2.5 lb. The legs feature a reverse folding design that pairs with the 5 section profile to maintain the compact form factor that is ideal for location lighting applications. It is constructed from black coated aluminum alloy, features a brass head with 3/8"-16 threaded mount, and the legs have rubber grip feet for added stability. UPC: 817967011693
  • Cable Wrap The Cable Wrap from Westcott is a durable wrap lined with touch fastener for quick placement. It can be used as a simple way to keep power cords, extension cords, and cables wrapped in gear bags and cases. The wraps are black and are 15" long and feature a Westcott logo allowing for easy cable and cord identification.

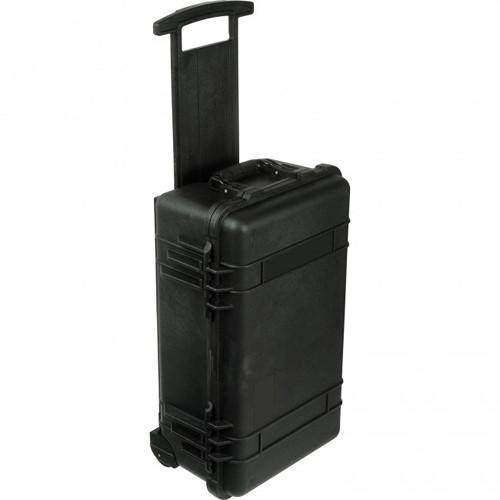

  • Flex Wheeled Travel Hard Case (Black) Store, protect, and transport your 1' x 1' Flex LED mats, Scrim Jim Cine Frames, compact stands, and other items with the black Flex Wheeled Travel Hard Case from Westcott. A sturdy, injection-molded, and waterproof case with a built-in purge valve, it closes with four easy-sealing latches and has two openings for user-supplied padlocks. Interior hard foam inserts, and egg-crate foam underneath the lid efficiently protect and organize gear. Ample handles on the side and bottom make carrying and loading the case in and out of vehicles a straightforward and simple affair. And the retractable tow handle on top in combination with the built-in wheels at the bottom are ideal for transporting the case over level ground.

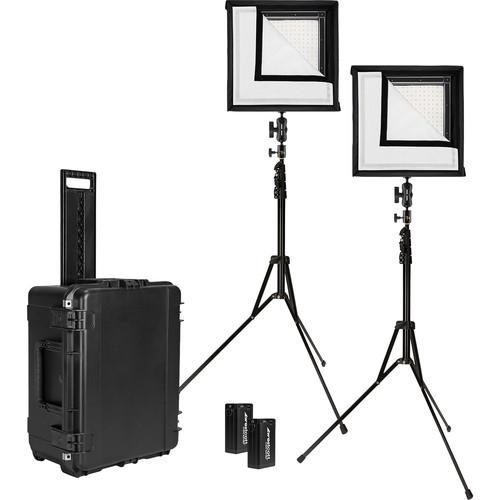

  In the Box Bundle Items 2 x Flex Bi-Color LED Mat (1 x 1') bwtfrwbruczbtewrday
  • Digital Dimmer and Power Supply Module
  • Cable Wrap
  • Limited Lifetime Warranty
  2 x 16' Dimmer Extension Cable for Flex LED Mats up to 1 x 2'
  • Limited 1-Year Warranty
  2 x Flex D-Tap Cable
  • Limited 1-Year Warranty
  2 x 14.8V Portable D-Tap Li-Ion Battery for Flex LED Mat
  • 5' Flex to D-Tap Power Cable
  • Charger
  • Limited 1-Year Warranty
  8 x Scrim Jim Cine Frame Tube (10")
  • Limited 2-Year Warranty
  8 x Scrim Jim Cine 2D Corner Frame Connector
  • Limited 2-Year Warranty
  2 x Portable Softbox for 1 x 1' Flex LED Mat
  • 1/4-Stop Diffusion Panel
  • Limited 1-Year Warranty
  2 x Universal Stud
  • Limited 1-Year Warranty
  2 x Dual-Joint Tilter Bracket
  • 3/8"-16 Thread Adapter
  • Limited 1-Year Warranty
  2 x Compact Light Stand (7')
  • Limited 1-Year Warranty
  2 x Cable Wrap
  • Limited 1-Year Warranty
  Flex Wheeled Travel Hard Case (Black)
  • Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Flex Bi-Color LED Mat (1 x 1')

  Beam Angle	140 to 360°
  Color Temperature	2800 to 6000K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes, 0 to 100%
  Display	None
  Expected Lamp Life	50,000 Hours
  Fixture Dimensions	12.0 x 12.0 x 0.2" / 30.5 x 30.5 x 0.6 cm
  Fixture Weight	7 oz / 198.4 g

  Fixture Mount	None
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	13 to 28 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	55 W

  Certifications	UL, as per Manufacturer
  IP Rating	IP64
  Operating Temperature	5 to 104°F / -15 to 40°C

  Box Dimensions (LxWxH)	19.5 x 16.3 x 3.6"

• 16' Dimmer Extension Cable for Flex LED Mats up to 1 x 2'

  Connector 1	Proprietary
  Connector 2	Proprietary
  Cable Length	16' / 4.9 m

  Box Dimensions (LxWxH)	5.827 x 2.756 x 0.945"

• Flex D-Tap Cable

  Connector 1	Proprietary
  Connector 2	D-Tap
  Cable Length	3' / 0.9 m
  Dimensions	41 x 1.3 x 0.5" / 104.1 x 3.2 x 1.3 cm
  Weight	1.6 oz / 45.3 g

  Box Dimensions (LxWxH)	5.25 x 3.78 x 0.787"

• 14.8V Portable D-Tap Li-Ion Battery for Flex LED Mat

  Battery Runtime	2.75 to 8 Hours
  Charging Time	3.5 Hours
  Dimensions	6.2 x 3.5 x 2" / 15.75 x 8.89 x 5.08 cm
  Weight	2.4 lb / 1.1 kg

  Amp-Hours	10.4 Ah
  Capacity (Wh)	154 Wh
  Chemistry	Lithium-Ion
  Output Voltage	14.8 VDC

  Box Dimensions (LxWxH)	16.8 x 10.55 x 2.25"

• Scrim Jim Cine Frame Tube (10")

  Construction	Anodized aluminum, hook-and-loop tape on two sides
  Attachment Method	Integrated 3/8"-16 threaded mount Compatible with self-locking connectors for building complete frame
  Dimensions	10 x 1 x 1" / 25.4 x 2.5 x 2.5 cm
  Weight	3.5 oz / 100 g

  Box Dimensions (LxWxH)	10.0 x 1.3 x 0.9"

• Scrim Jim Cine 2D Corner Frame Connector

  Dimensions	2.75 x 2.75 x 1.1" / 7.0 x 7.0 x 2.9 cm
  Weight	1.6 oz / 45.4 g

  Box Dimensions (LxWxH)	8.7 x 1.25 x 1.2"

• Portable Softbox for 1 x 1' Flex LED Mat

  Shape	Square
  Requires Speed Ring	No
  Removable Front Face	No
  Rectangular Dimensions	W: 1.0 x H: 1.0' / W: 30.5 x H: 30.5 cm
  Weight	10.6 oz / 300.0 g

  Box Dimensions (LxWxH)	15.45 x 13.55 x 1.55"

• Universal Stud

  Mounting	1/4"-20 Male, 5/8" / 16 mm Stud (Connector 1) 3/8"-16 Male, 5/8" / 16 mm Stud (Connector 2)
  Material	Brass
