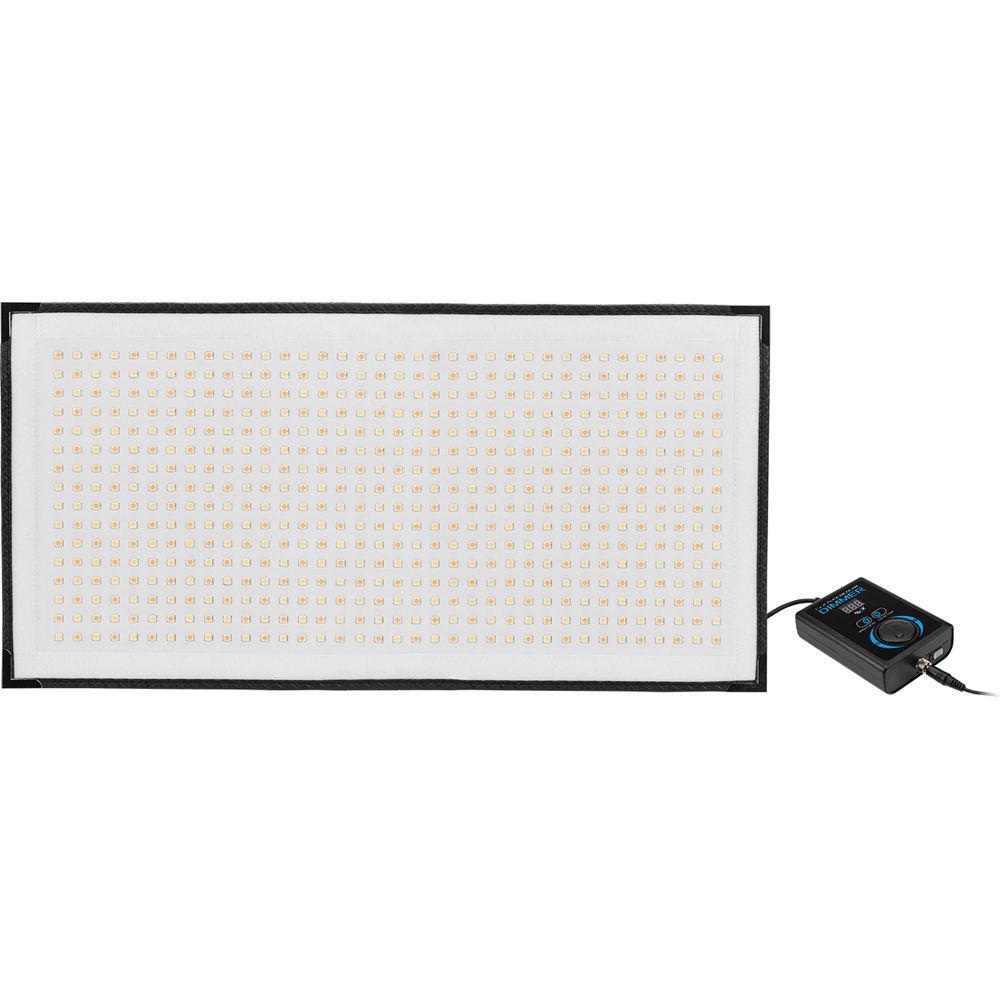

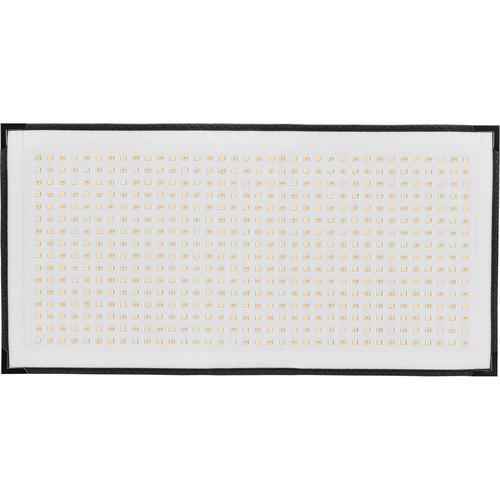

Product description Compatible with and complimentary to any kind of image making, the Flex Bi-Color LED Mat from Westcott is a unique 1 x 2' array of LEDs that are housed within a 0.25"-thick pliable mat-like casing. Mold it into an arc for product photography for true "wrap-around" lighting or shape it into a cylinder for long thin highlights in reflective objects. The Flex will hold its form however you twist it thanks to integrated pliable wire in the frame, and its thin profile and lightweight design allows it to fit where most light sources simply can't, opening up a world of creative possibilities for car, plane or boat interiors. This specific light has a bi-color, 2800-6000K balanced design along with a high variable CRI rating of 95-98.
In addition to the unique bendable design, the Flex LED Mat also has an IP 64 rating that deems it both dust and splash proof for use in inclement conditions. Included with the light is a 100-240 VAC power supply along with an external dimmer for 0-100% dimming control. The dimmer also features a 3/8"-16 mount for compatibility with the Scrim Jim Cine frame system. The Flex Mat itself is also compatible with Scrim Jim Cine frames, allowing you to effectively create your own LED panel. - Powerful LEDs
- The Flex packs a punch with 100W of continuous power.
- Flexible Frame
- The Flex is very pliable, thanks to a built-in wire framework which allows the unit to maintain its shape once formed.
- Sleek Design
- Measuring just 0.25" thick, this light can be placed in situations where many other lights simply cannot fit.
- High CRI
- LEDs have a high CRI of 95-98.
- Shooting in the Rain - Not a Problem
- With a splashproof rating of IP 64, photographers and videographers can shoot with the Flex panel and optional power cord extender in the rain without issues.

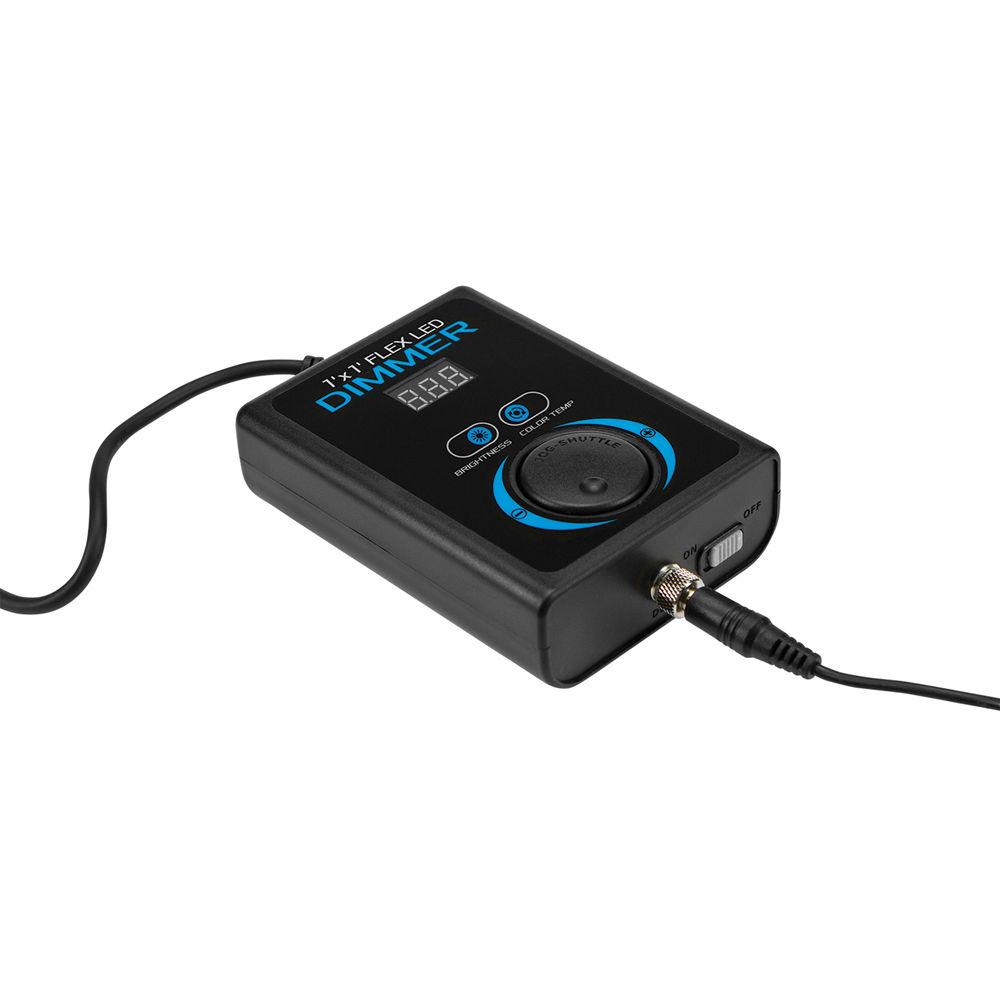

- Included Dimmer
- Each Flex panel includes a power dimmer ranging from 0-100% for precise light output adjustment.
- Slim Jim Cine Compatibility
- The Slim Jim Cine frame system can be used to build a matching 1 x 2' frame for holding the Flex in place atop a stand or in other remote ways. The included dimmer also features a 3/8"-16 mount for attaching to the Slim Jim Cine frame in a seamless manner.
UPC: 817967013284 In the Box Westcott Flex Bi-Color LED Mat (1 x 2') Digital Dimmer and Power Supply Module Cable Wrap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Westcott Flex Bi-Color LED Mat in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWestcott Flex Bi-Color Specs | | | Beam Angle | 140 to 360° | | Color Temperature | 2800 to 6000K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 12.0 x 24.0 x 0.2" / 30.5 x 61.0 x 0.6 cm | | Fixture Weight | 1.25 lb / 567.0 g | | | | Fixture Mount | None | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 to 30 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 100 W | | | | Certifications | UL, as per Manufacturer | | IP Rating | IP64 | | Operating Temperature | 5 to 104°F / -15 to 40°C | | | | Package Weight | 5.65 lb | | Box Dimensions (LxWxH) | 25.5 x 15.7 x 3.6" |
