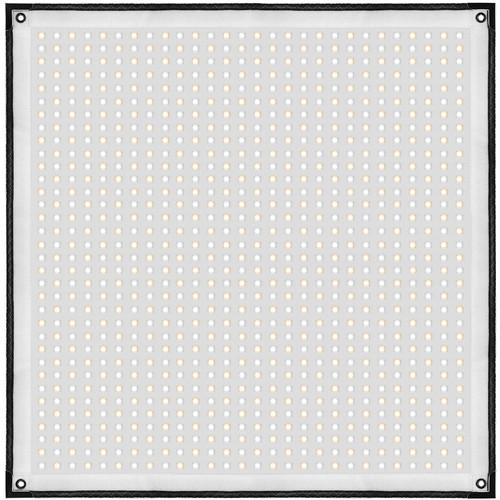

User Manual for Westcott Flex Cine Bi-Color Mat Click to enlarge the picture
Contents of the user manual for the Westcott Flex Cine Bi-Color Mat
- Product category: LED Lights Westcott
- Brand: Westcott
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Westcott LED Lights
|
User manual for the Westcott Flex Cine Bi-Color Mat contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Westcott product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Westcott user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Westcott product will considerably shorten its lifespan!
|
Product description Truly Flexible LED Lighting from Westcott: The Flex Cine Read More This 2 x 2' Westcott Flex Cine Bi-Color Mat produces 7400 lux of daylight-balanced light with a nominal beam angle of 140°. This flexible mat features hook-and-loop fabric edging, as well as grommits for mounting, and it incorporates magnetic metal-capped corners allowing you to easily mount it on virtually any metallic surface. The flexible design enables you to shape the mat so that it produces a beam angle from 360° when rolled into a cylinder, to 140° when laid out flat.
The color temperature of the light's output is variable from 2800 to 6000K which makes it a good match when shooting exteriors, while the high CRI and TLCI provides excellent color reproduction. The mat is capable of producing flicker-free output from 1 to 100% of its brightness when connected to a Flex Cine Wireless Dimmer (not included). For the mat to function you will need to connect it to a Flex Cine Wireless Dimmer, and power it with a 26V V-mount battery or power supply. - The Flex Cine Mat features hook-and-loop fabric, grommets, and metal-capped corners that are magnetic, which can all be used for mounting (Optionally a yoke and flex mount are available separately)
- Reinforced mounting points and a reinforced cable mount compared to previous Westcott flexible LED mats extend the life of the Flex Cine Mat
- This flexible mat can be shapped to fit into tight spaces
- It features an IP64 rating
UPC: 812735028705 In the Box Westcott Flex Cine Bi-Color Mat (2 x 2') Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Westcott Flex Cine Bi-Color Mat in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWestcott Flex Cine Bi-Color Specs | | | Beam Angle | 360 to 140° | | Color Temperature | 2800 to 6000K | | Color Accuracy Standard | CRI 97
TLCI 98 | | Cooling System | Passive | | Dimming | Yes, 1 to 100% (Continuous) | | Photometrics | 687.5 fc / 7400 lux at 3.28' / 1 m | | Expected Lamp Life | 50000 Hours | | Rectangular Panel Size | 24 x 24" / 60.96 x 60.96 cm | | Fixture Dimensions | 24.0 x 24.0 x 0.5" / 61.0 x 61.0 x 1.3 cm | | Fixture Weight | 2.85 lb / 1.29 kg | | | | Battery Plate | None | | Power Input Connector | 9-PIN TE | | Yoke Mount | None | | Fixture Mount | None | | | | DC Input Power | 26 VDC | | Max Power Consumption | 200 W | | | | Package Weight | 5.9 lb | | Box Dimensions (LxWxH) | 28.0 x 26.8 x 3.0" |
