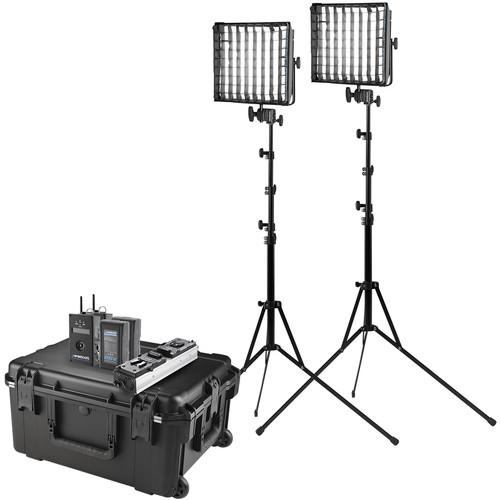

User Manual for Westcott Flex Cine DMX RGBW LED Mat Two-Light Fixture Travel Kit with Batteries and Stands

• Product category: LED Lights Westcott
• Brand: Westcott
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Westcott LED Lights

Product description

• Flex Cine RGBW Mat (1 x 1') This Westcott Flex Cine RGBW Mat is a versatile LED system designed for professional filmmakers. This 1 x 1' fixture features an adjustable beam spread of 140 to 360° and features RGBW LEDs that allow you to select virtually any color in the color spectrum, and it has a CRI rating of 97 and TLCI of 98.6 for excellent color reproduction. It emits up to 1800 lux at 3', and it is flicker free up to 960 frames per second.

  At 1/4" thin and weighing less than 2 pounds, this pliable LED mat is ideal for travel, storage, lighting in compact spaces, and concealing on set. This LED mat boasts an IP64 water-resistance rating up to the connector for use in a variety of locations. Magnetic, metal-capped corners allow for quickly and temporarily attaching this fixture to most metal surfaces. Flex Cine mats also feature built-in metal grommets and hook-and-loop edging for even further mounting and possibilities.
  • 1 x 1' flexible LED panel light fixture
  • The RGBW LEDs enable the fixture to output virtually any color in the spectrum of visible light
  • Requires Westcott Flex Wireless DMX Dimmer, which is controlled locally or wirelessly and attaches to the fixture via a cable with a TE-9 pin connector
  • The fixture's cable attachment to the fixture is reinforced to help prevent damage
  • The fixture features magnetic corners for easy mounting to most metal surfaces
  • Integrated hook-and-loop fabric enables easy mounting to surfaces treated with hook-and-loop fabric (not included)
  UPC: 812735028651
• Flex Cine Wireless DMX Dimmer The Westcott Flex Cine Wireless DMX Dimmer enables you to power and control Westcott Flex Cine LED Mats. It features an integrated V-mount battery plate that provides power to the dimmer and to the LED mat. The dimmer provides local, remote, and wireless control over brightness, color temperature, and effects. You can dim your fixture from 100 to 1% brightness from the dimmer, without causing your fixture's output to flicker.

  Built-in gel mode provides over 100 gel effects that can be applied to your LED mat's output, and these effects can be applied in either daylight or tungsten mode (providing your fixture is a bi-color source). It also comes preloaded with presets you can access, as well as customize or create and save your own. In addition to the local control available on the unit itself, the dimmer supports DMX in and out via 5-pin connectors or wireless DMX via Art-Net. You can also use available apps such as Luminair and control the dimmer wirelessly via your mobile device. Connect the dimmer to your Flex Cine Mat and the dimmer's autosensing technology will automatically adjust the dimmer's power output and options to match your fixture.
  • The dimmer supports the various Flex Cine LED Mats and is equipped with unique Mat Sensing Technology, which automatically reads whichever LED Mat it is connected to. This allows the dimmer to customize its controls and specify the exact voltage needed to operate the light.
  • The dimmer's onboard controls include more than 100 preloaded color gel presets with daylight or tungsten backing, source-matching presets, user-defined presets, as well as CCT controls.
  • Compatible with Luminair app (not included) to create advanced effects and controls wirelessly.
  • Each dimmer can power and control only one mat at a time.
  • This dimmer is equipped with Hybrid Pulse Width Modulation, allowing Flex LED mats to be dimmed to 1% while maintaining a flicker-free output.
  • The Flex Cine Wireless DMX Dimmer supports DMX512 input and output ports and wireless DMX over Art-Net.
  • The built-in V-mount enables you to power the dimmer and the light fixture from a single battery. Please note that you can power a 1 x 1' mat with a 14.8 VC battery, but larger LED mats require a 26 VC battery. Batteries are not included and must be sourced separately.
  • Built-in USB port for firmware upgrades with 5V 1A output.
  UPC: 812735028644
• 26V Lithium-Ion Battery for Flex Cine Mats The Westcott 26V Lithium-Ion Battery for Flex Cine Mats is designed specifically to power Westcott Flex Cine LED fixtures. The 26V battery provides enough power to run the 1 x 1' and 2 x 1' Flex LED fixtures. The 150Wh capacity can easily run the 1 x 1' Flex Cine Mat (not included) for over two hours. Built-in intelligent IC circuit control protects the battery and helps it maintain its lifespan. An integrated LED battery gauge allows you to see how much charge remains in the battery.
  • This battery is not compatible with 14.8V chargers and must be charged on a separately available Westcott 26V charger, either single or dual bay.
  • This 26V, 150Wh battery will power a 1 x 1' Flex Cine Mat for approximately 2.4 hours.
  UPC: 812735028620
• Scrim Jim Cine Frame Set (1 x 1') This Scrim Jim Cine Frame Set from Westcott includes all of the necessary frame tubes and connectors to construct your own 1 x 1' frame for attaching fabrics in order to create diffusion panels, flags, or other light control tools. This specific kit includes four 10" tubes and four 2D frame connectors, as well as a transport strap for carrying the set. Each tube is constructed from anodized aluminum alloy, features riveted heavy-duty hook-and-loop tape on two sides for attaching fabrics, and incorporates a 3/8"-16 threaded mount for mounting atop stands. The included self-locking connectors are used to combine the individual tube pieces in order to create a flat 2D frame. UPC: 817967011389
• Flex Yoke (1') For longer-term applications of a 1' Flex LED Mat, Westcott has developed a Flex Yoke that is designed to work with a 1 x 1', 1 x 2' or 1 x 3' Scrim Jim Cine Frame to provide the necessary framework and mounting points for mounting to standard grip equipment. The yoke mounts directly to the frame's 5/8"-16 threads and features heavy-duty hardware for ensuring longevity and ease of use. The yoke then offers a 5/8" baby pin that can be mounted into a standard grip head with ease. Additionally, the all-metal construction ensures durability on set and on location. UPC: 812735027364
• Flex Cine Softbox 1 x 1' The Flex Cine Softbox 1 x 1' from Westcott attaches to the optional Westcott 1 x 1' Scrim Jim Cine Frame to let you direct and diffuse Flex 1 x 1' LED mats. It secures to the Scrim Jim using integrated industrial-grade hook-and-loop strips, and it also supports an included diffuser or optional Westcot softbox eggcrate grid via hook-and-loop strips on the front. Designed to collapse flat for transport, the softbox can be carried in bags, cases, and luggage.
  Materials
  • • Flexible plastic plating
    • Finished with a smooth nylon exterior
    • Lined with a taut and reflective silver interior that maximizes light output
    • Heavy-duty hook-and-loop strips for securing to 1 x 1' Scrim Jim Cine frames
    • Heavy-duty hook-and-loop strips on the front for attaching the included diffuser or optional eggcrate grid
  UPC: 812735029061
• Flex Cine Softbox Eggcrate Grid (1 x 1') The 1 x 1' Flex Cine Softbox Eggcrate Grid from Westcott is a 40° grid that helps contain light spill and narrow the beam angle for your Westcott Flex LED mats. It's designed to attach to Westcott 1 x 1' Scrim Jim Cine Frames or 1 x 1' Flex Cine Softboxes via integrated industrial-grade hook-and-loop strips. Made of heavy-duty nylon, unlike hard grids, this grid is collapsible and easily packs away into the included travel case for comfortable transport. UPC: 812735029108
• 26V V-Mount Dual Bay Battery Charger The Westcott 26V V-Mount Dual Bay Battery Charger features a metal housing and fan cooling, allowing it to simultaneously charge two Westcott 26V lithium-ion batteries in approximately 75 minutes. The charger integrates two V-mount battery plates for charging. However, it is only designed to be used to charge Westcott 26V lithium-ion batteries and should not be used with other batteries. Built-in LED indicators provide charging information.
  • This dual bay charger for 26V lithium-ion batteries should only be used to charge the Westcott #7583 26V lithium-ion battery. It is not compatible with 14.8 volt batteries.
  • Simultaneously charges two 26V batteries in approximately 75 minutes.
  • Fan-cooled charger in a metal housing.
  UPC: 812735028637
• Flex Cine Waterproof Wheeled Case The Flex Cine Waterproof Wheeled Case from Westcott is a watertight and dustproof hard case that fits up to 100 lb of Flex LED mats and accessories, including dimmers, batteries, modifiers, and more. Inside the lid of the case is a custom-designed mat area for easily storing and accessing your Flex LED mats. The case features heavy-duty wheels and a collapsible pull handle that allows for easy traveling, and it includes customizable foam inserts and four lockable trigger latches for organizing and securing your gear.
  Key Features
  • • Watertight and dustproof hard case for Flex LED mats, modifiers, and more
    • Heavy-duty wheels and collapsible pull handle for effortless travel
    • Customizable interior dividers
    • Four durable trigger latches and padlock receptacles
    • Multiple handles for quickly lifting gear in and out of vehicles
  UPC: 812735028934

• Limited Lifetime Warranty

• Flex Cine Dimmer Lanyard

• Flex Cine DMX Dimmer Case

• Limited 1-Year Warranty

• Limited 1-Year Warranty

4 x
• Scrim Jim Cine Frame Tube (10")

4 x
• Scrim Jim Cine 2D Corner Frame Connector

• Scrim Jim Transport Strap

• Limited 2-Year Warranty

• 1-Stop Diffuser

• Limited 1-Year Warranty

• Travel Case

• Limited 1-Year Warranty

• Power Cord

• Limited 1-Year Warranty

• Lid Organizer

• Limited 1-Year Warranty

Also Includes

• 2 x Grip Heads
• 2 x 7' Compact Light Stands

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Flex Cine RGBW Mat (1 x 1')

  Beam Angle	140 to 360°
  Color Accuracy Standard	CRI 97 TLCI 98.6
  Cooling System	Passive
  Dimming	Yes
  Display	None
  Photometrics	167.2 fc / 1800 lux at 3.28' / 1 m
  Rectangular Panel Size	1 x 1' / 0.30 x 0.30 m
  Fixture Dimensions	Mat: 1.0 x 1.0 x 0.5' / 30.5 x 30.5 x 15.2 cm
  Fixture Weight	1.26 lb / 0.57 kg

  Battery Plate	None
  Power Input Connector	9-PIN TE

  Fixture Mount	None

  Remote Control Type	Wired Remote

  DC Input Power	24 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	55 W

  IP Rating	IP64
  Operating Temperature	140°F / 60°C

  Box Dimensions (LxWxH)	17.6 x 15.6 x 2.9"

• Flex Cine Wireless DMX Dimmer

  Interface	DMX Input: 5-pin XLR Output: 5-pin XLR Wi-Fi DMX over Art-Net USB Yes
  Dimming	1 to 100% flicker-free brightness
  Mounting	1 x 3/8"-16 female threads 1 x 1/4"-20 female threads
  Battery Plate	V-mount
  Voltage Range	14.4 to 14.8 VDC 26 VDC
  Dimensions	3.25 x 3.75 x 6.75" / 8.26 x 9.53 x 17.15 cm
  Weight	1.9 lb / 0.9 kg

  Box Dimensions (LxWxH)	9.6 x 6.1 x 4.0"

• 26V Lithium-Ion Battery for Flex Cine Mats

  Battery Plate	1 x V-Mount
  Operating Temperature	-22 to 122°F / -30 to 50°C
  Dimensions	6.4 x 3.5 x 2" / 16.26 x 8.89 x 5.08 cm
  Weight	2 lb / 0.9 kg

  Capacity (Wh)	150 Wh
  Chemistry	Lithium-Ion
  Output Voltage	26 VDC

  Box Dimensions (LxWxH)	7.7 x 4.5 x 2.6"

• Scrim Jim Cine Frame Set (1 x 1')

  Box Dimensions (LxWxH)	14.1 x 3.9 x 3.7"

• Flex Yoke (1')

  Size	1' / 0.3 m
  Mounting	5/8" baby pin

  Box Dimensions (LxWxH)	16.35 x 13.6 x 1.65"

• Flex Cine Softbox 1 x 1'

  Shape	Cube
  Accepts Grids	Yes
  Rectangular Dimensions	W: 16.0 x H: 7.8 x D: 15.0" / W: 40.6 x H: 19.7 x D: 38.1 cm (Open)
  Weight	1 lb / 0.45 kg

  Box Dimensions (LxWxH)	15.0 x 10.0 x 1.2"

• Flex Cine Softbox Eggcrate Grid (1 x 1')

  Dimensions	15 x 15 x 2" / 38 x 38 x 5 cm
  Weight	0.4 lb / 181 g

  Box Dimensions (LxWxH)	13.05 x 7.1 x 3.0"

• 26V V-Mount Dual Bay Battery Charger

  Number of Battery Bays	2

  Mount	V-Mount
  Certifications	CE, as per Manufacturer
  Operating Temperature	14 to 104°F / -10 to 40°C
  Dimensions	12.4 x 3.5 x 2.8" / 31.5 x 8.89 x 7.11 cm
  Weight	4 lb / 1.8 kg

  Box Dimensions (LxWxH)	14.6 x 5.8 x 3.8"

• Flex Cine Waterproof Wheeled Case

  Load Capacity	100 lb / 45 kg

  Exterior Dimensions (W x H x D)	25 x 20 x 13" / 64 x 51 x 33 cm
  Weight	20.5 lb / 9.3 kg

  Box Dimensions (LxWxH)	19.7 x 13.3 x 7.6"
