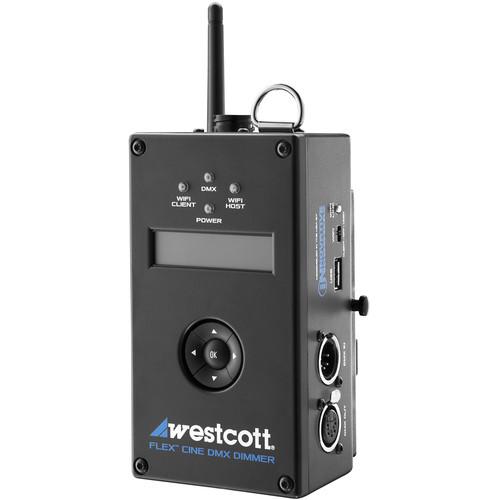

User Manual for Westcott Flex Cine Wireless DMX Dimmer Click to enlarge the picture
Contents of the user manual for the Westcott Flex Cine Wireless DMX Dimmer
- Product category: Dimmers Westcott
- Brand: Westcott
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Westcott Dimmers
 |
User manual for the Westcott Flex Cine Wireless DMX Dimmer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Westcott product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Westcott user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Westcott product will considerably shorten its lifespan!
|
Product description Truly Flexible LED Lighting from Westcott: The Flex Cine Read More rvuberyyvatryebwy The Westcott Flex Cine Wireless DMX Dimmer enables you to power and control Westcott Flex Cine LED Mats. It features an integrated V-mount battery plate that provides power to the dimmer and to the LED mat. The dimmer provides local, remote, and wireless control over brightness, color temperature, and effects. You can dim your fixture from 100 to 1% brightness from the dimmer, without causing your fixture's output to flicker.
Built-in gel mode provides over 100 gel effects that can be applied to your LED mat's output, and these effects can be applied in either daylight or tungsten mode (providing your fixture is a bi-color source). It also comes preloaded with presets you can access, as well as customize or create and save your own. In addition to the local control available on the unit itself, the dimmer supports DMX in and out via 5-pin connectors or wireless DMX via Art-Net. You can also use available apps such as Luminair and control the dimmer wirelessly via your mobile device. Connect the dimmer to your Flex Cine Mat and the dimmer's autosensing technology will automatically adjust the dimmer's power output and options to match your fixture. - The dimmer supports the various Flex Cine LED Mats and is equipped with unique Mat Sensing Technology, which automatically reads whichever LED Mat it is connected to. This allows the dimmer to customize its controls and specify the exact voltage needed to operate the light.
- The dimmer's onboard controls include more than 100 preloaded color gel presets with daylight or tungsten backing, source-matching presets, user-defined presets, as well as CCT controls.
- Compatible with Luminair app (not included) to create advanced effects and controls wirelessly.
- Each dimmer can power and control only one mat at a time.
- This dimmer is equipped with Hybrid Pulse Width Modulation, allowing Flex LED mats to be dimmed to 1% while maintaining a flicker-free output.

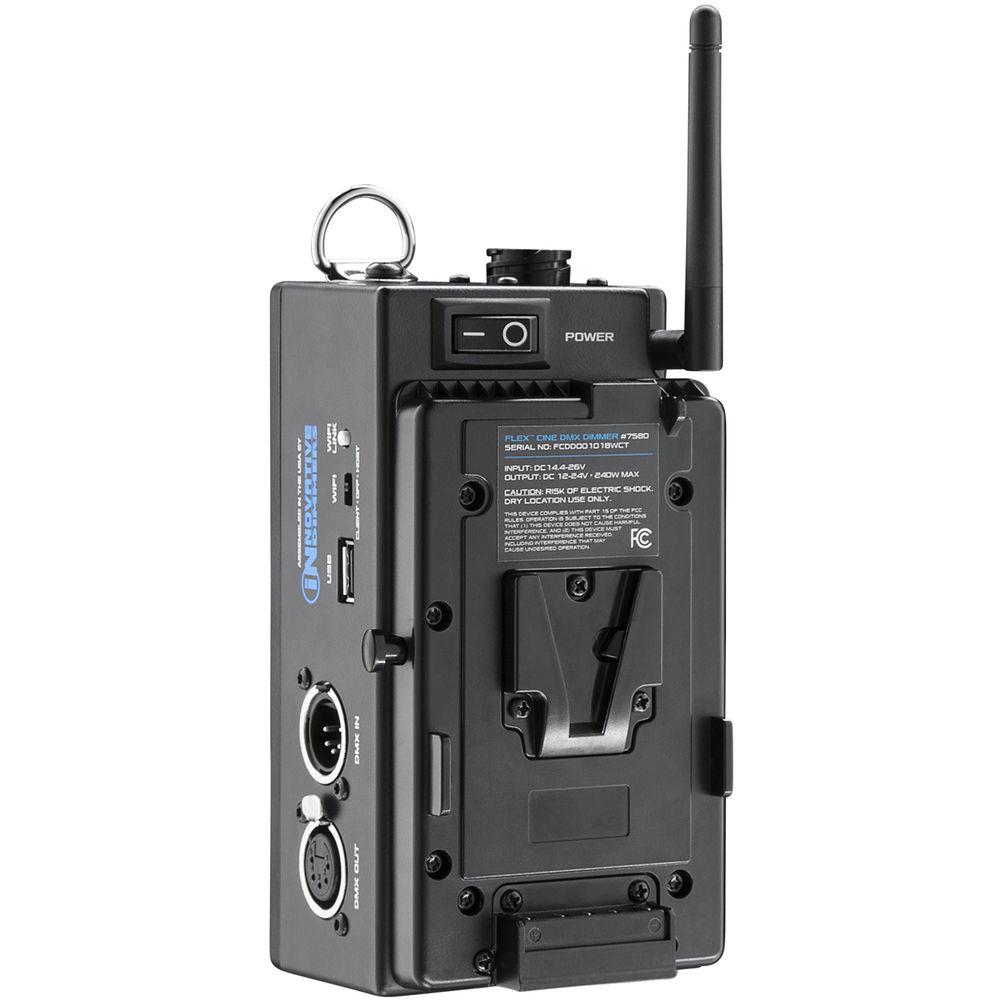

- The Flex Cine Wireless DMX Dimmer supports DMX512 input and output ports and wireless DMX over Art-Net.

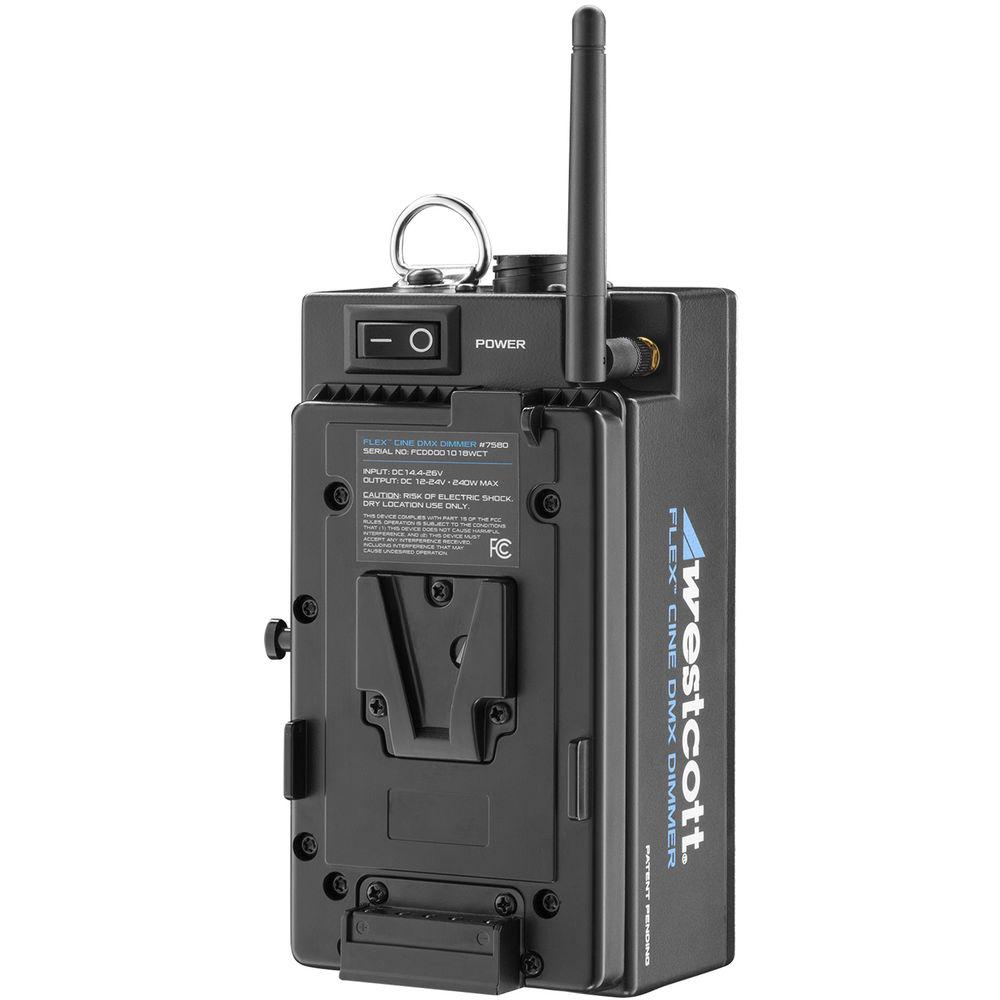

- The built-in V-mount enables you to power the dimmer and the light fixture from a single battery. Please note that you can power a 1 x 1' mat with a 14.8 VC battery, but larger LED mats require a 26 VC battery. Batteries are not included and must be sourced separately.
- Built-in USB port for firmware upgrades with 5V 1A output.

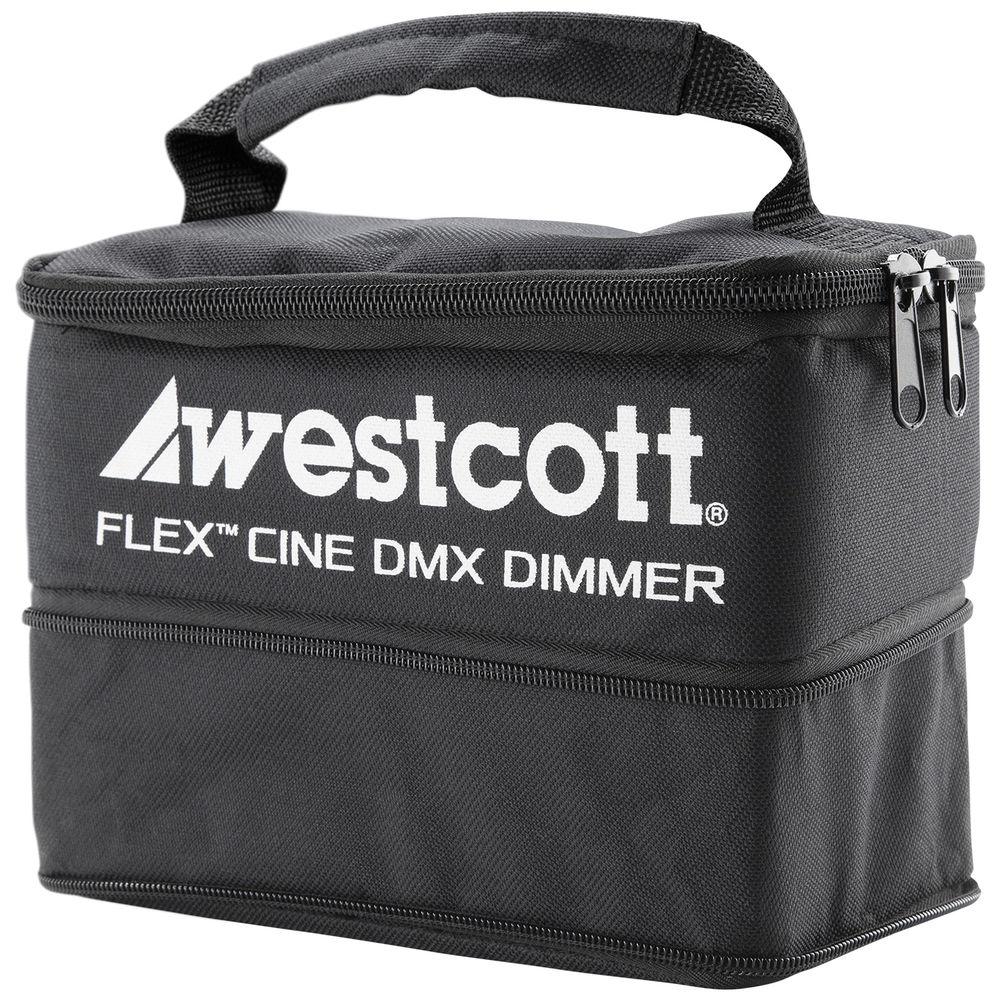

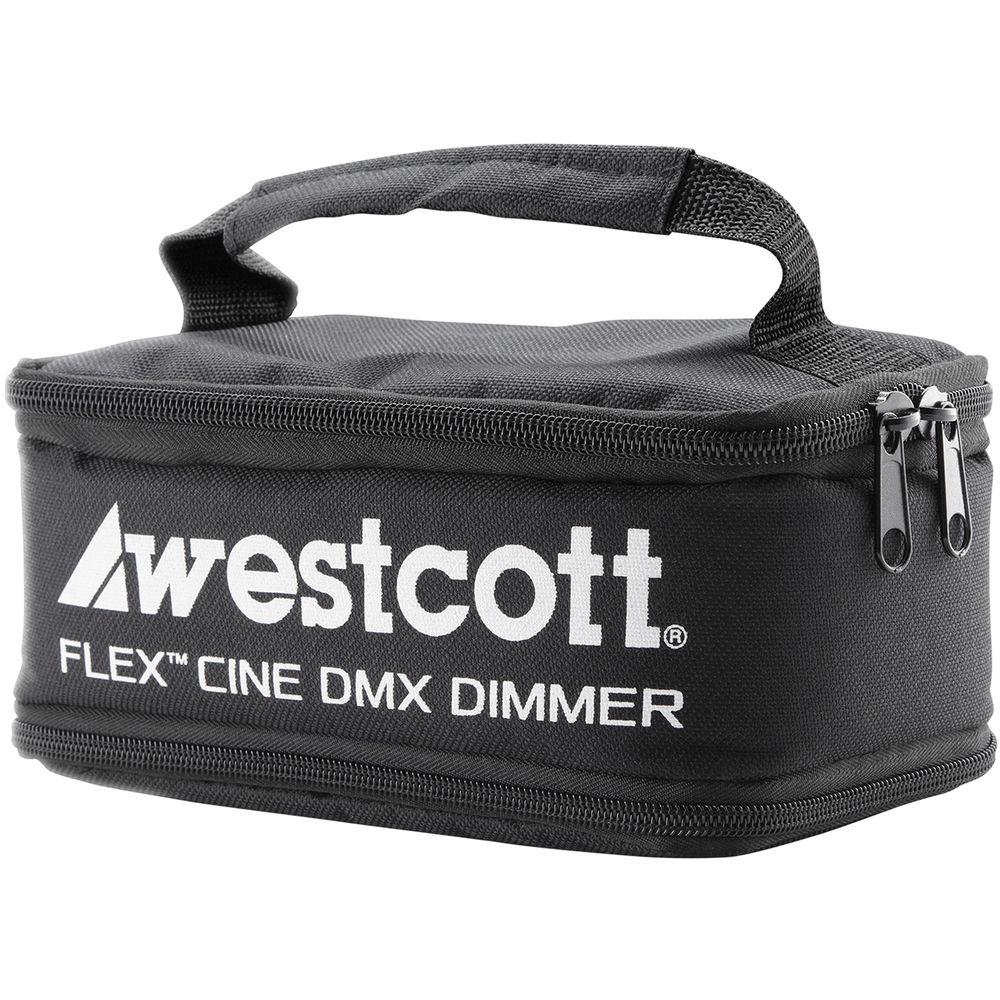

UPC: 812735028644 In the Box Westcott Flex Cine Wireless DMX Dimmer Flex Cine Dimmer Lanyard Flex Cine DMX Dimmer Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Westcott Flex Cine Wireless DMX Dimmer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWestcott 7580 Specs | Interface | DMX
Input: 5-pin XLR
Output: 5-pin XLR
Wi-Fi
DMX over Art-Net
USB
Yes | | Dimming | 1 to 100% flicker-free brightness | | Mounting | 1 x 3/8"-16 female threads
1 x 1/4"-20 female threads | | Battery Plate | V-mount | | Voltage Range | 14.4 to 14.8 VDC
26 VDC | | Dimensions | 3.25 x 3.75 x 6.75" / 8.26 x 9.53 x 17.15 cm | | Weight | 1.9 lb / 0.9 kg | | | | Package Weight | 2.945 lb | | Box Dimensions (LxWxH) | 9.6 x 6.1 x 4.0" |
