User Manual for Westcott Flex Daylight LED Mat Click to enlarge the picture
Contents of the user manual for the Westcott Flex Daylight LED Mat
- Product category: LED Lights Westcott
- Brand: Westcott
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Westcott LED Lights
 |
User manual for the Westcott Flex Daylight LED Mat contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Westcott product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Westcott user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Westcott product will considerably shorten its lifespan!
|

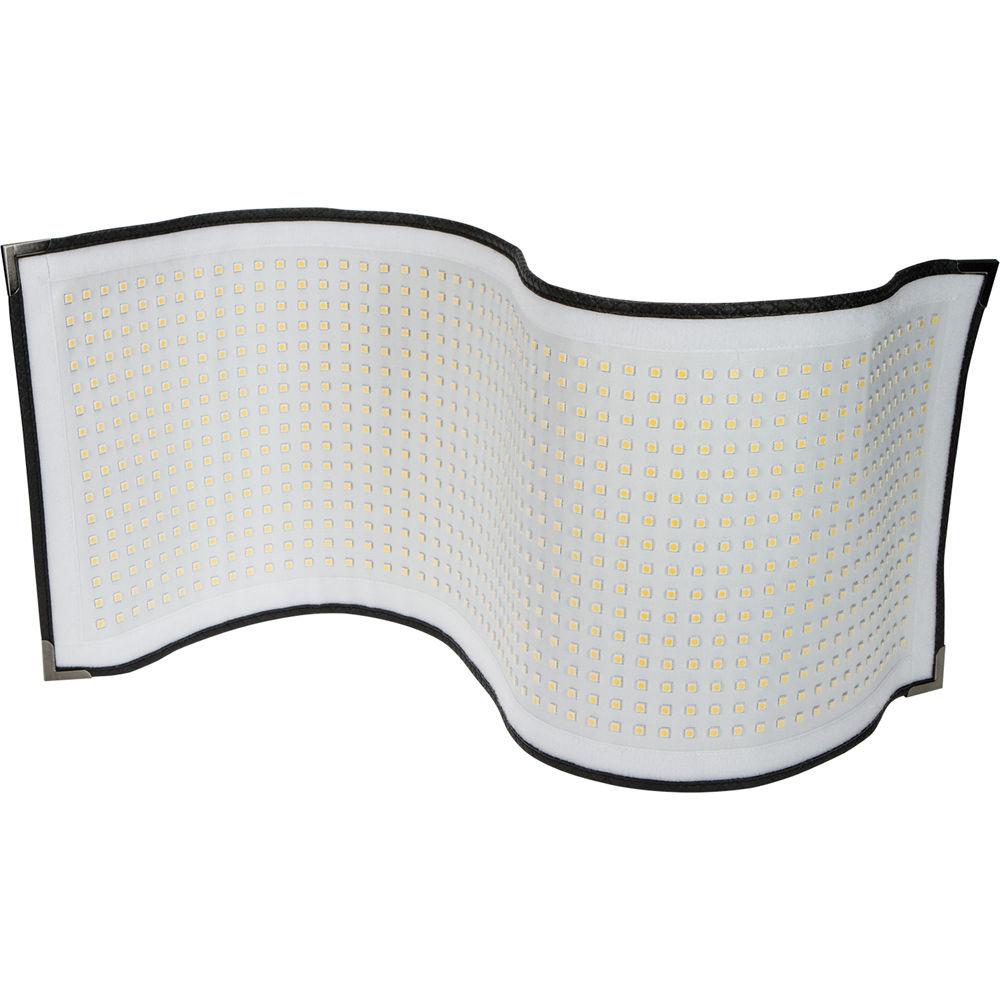

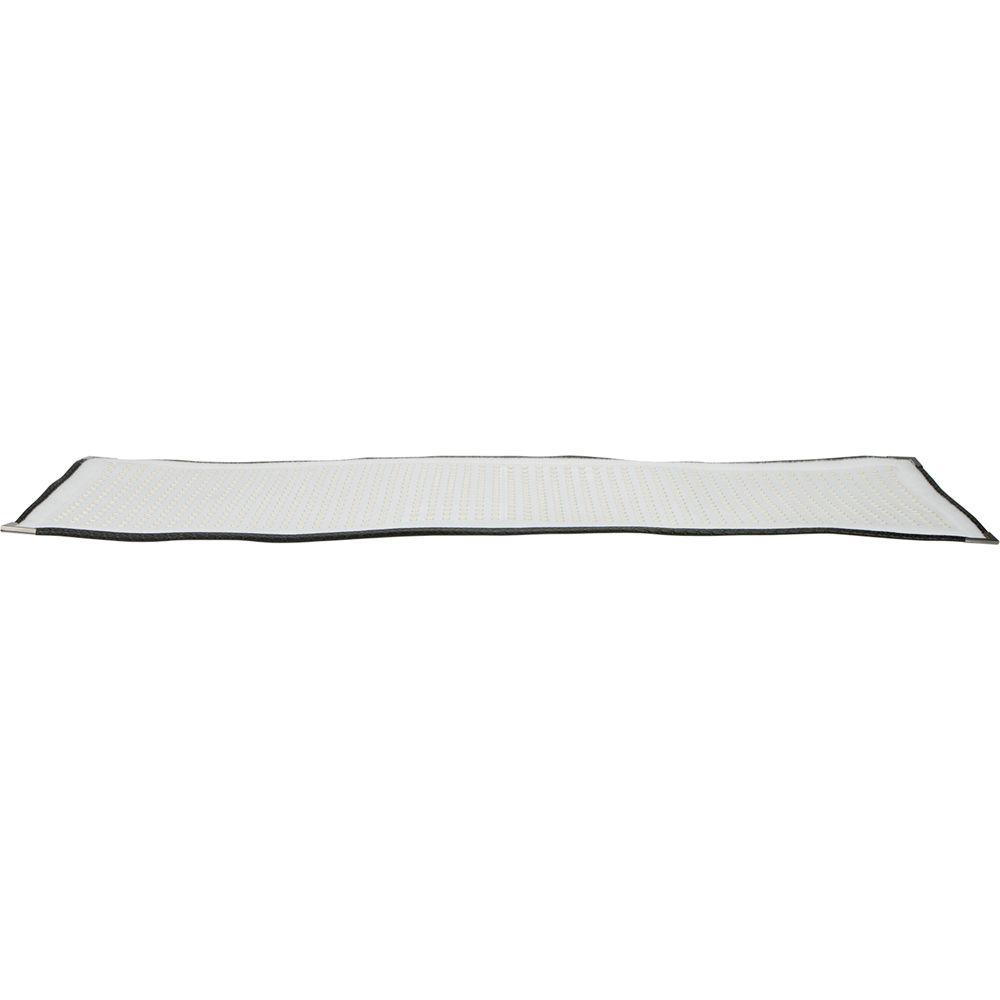

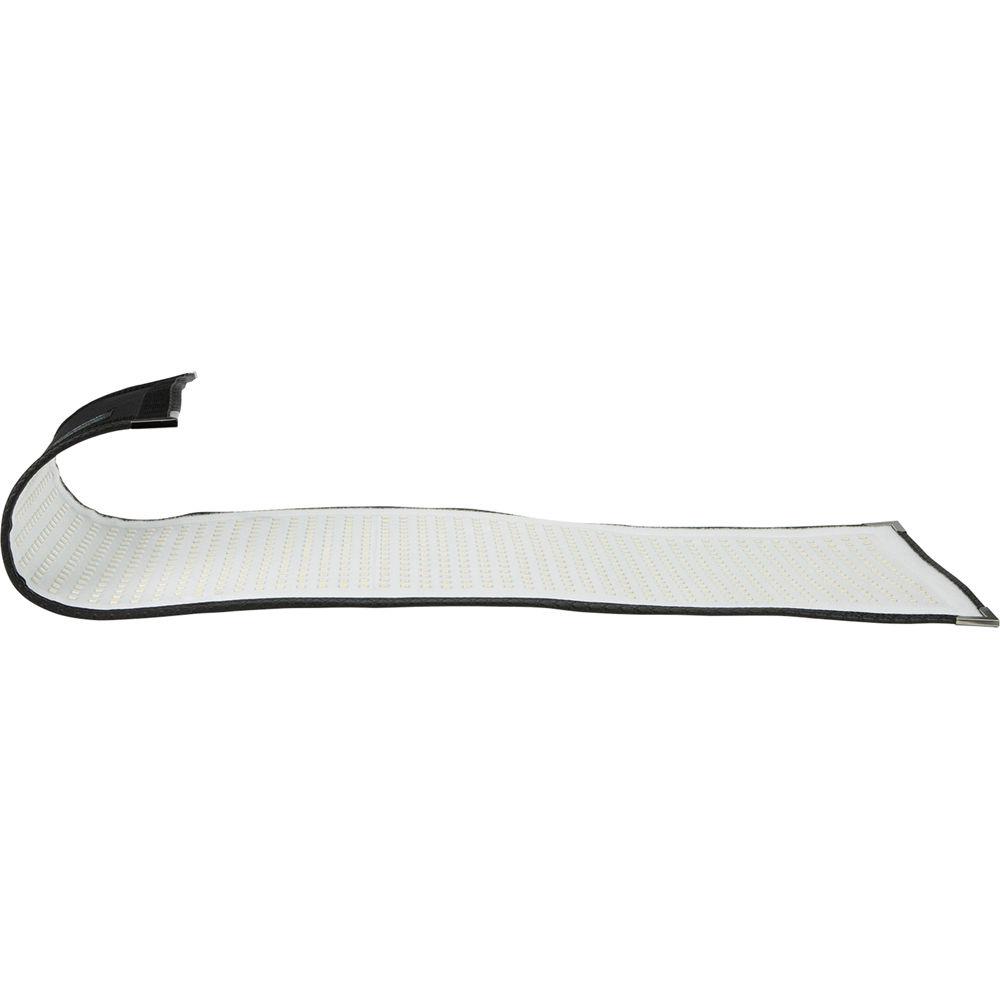

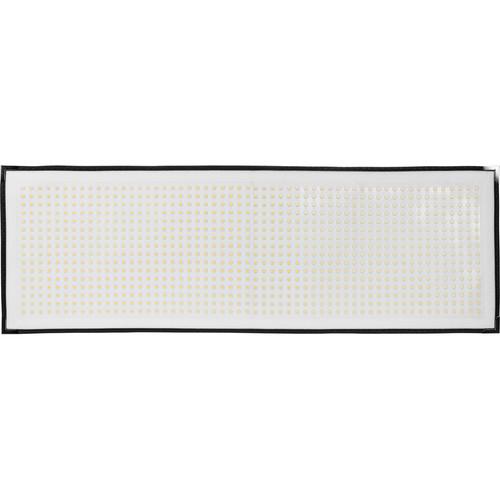

Product description Compatible with and complimentary to any kind of image making, the Flex Daylight LED Mat from Westcott is a unique 1 x 3' array of LEDs that are housed within a 0.25"-thick pliable mat-like casing. Mold it into an arc for product photography for true "wrap-around" lighting or shape it into a cylinder for long thin highlights in reflective objects. The Flex will hold its form however you twist it thanks to integrated pliable wire in the frame, and its thin profile and lightweight design allows it to fit where most light sources simply can't, opening up a world of creative possibilities for car, plane or boat interiors. This specific light is 5600K daylight-balanced and has a high CRI rating of 95.
In addition to the unique bendable design, the Flex LED Mat also has an IP 64 rating that deems it both dust and splash proof for use in inclement conditions. Included with the light is a 100-240 VAC power supply along with an external dimmer for 5-100% dimming control. The dimmer also features a 3/8"-16 mount for compatibility with the Scrim Jim Cine frame system. The Flex Mat itself is also compatible with Scrim Jim Cine frames, allowing you to effectively create your own LED panel. - Powerful LEDs
- The Flex packs a punch with 150W of continuous power.
- Flexible Frame
- The Flex is very pliable, thanks to a built-in wire framework which allows the unit to maintain its shape once formed.
- Sleek Design
- Measuring just 0.25" thick, this light can be placed in situations where many other lights simply cannot fit.
- High CRI
- LEDs have a high CRI of 95.
- Shooting in the Rain - Not a Problem
- With a splashproof rating of IP 64, photographers and videographers can shoot with the Flex panel and optional power cord extender in the rain without issues.
- Included Dimmer
- Each Flex panel includes a power dimmer ranging from 5-100% for precise light output adjustment.
- Slim Jim Cine Compatibility
- The Slim Jim Cine frame system can be used to build a matching 1 x 3' frame for holding the Flex in place atop a stand or in other remote ways. The included dimmer also features a 3/8"-16 mount for attaching to the Slim Jim Cine frame in a seamless manner.
UPC: 817967011303 In the Box Westcott Flex Daylight LED Mat (1 x 3') Digital Dimmer and Power Supply Module 16' Dimmer Extension Cable for 1 x 3' and 2 x 2' Flex LED Mats Cable Wrap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Westcott Flex Daylight LED Mat in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWestcott Flex Daylight Specs | | | Beam Angle | 140 to 360° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 5 to 100% | | Display | None | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 12.0 x 36.0 x 0.2" / 30.5 x 91.4 x 0.6 cm | | Fixture Weight | 1.9 lb / 850.5 g | | | | Fixture Mount | None | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 to 30 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 150 W | | | | Certifications | UL, as per Manufacturer | | IP Rating | IP64 | | Operating Temperature | 5 to 104°F / -15 to 40°C | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 38.0 x 15.0 x 3.5" |
