Product description

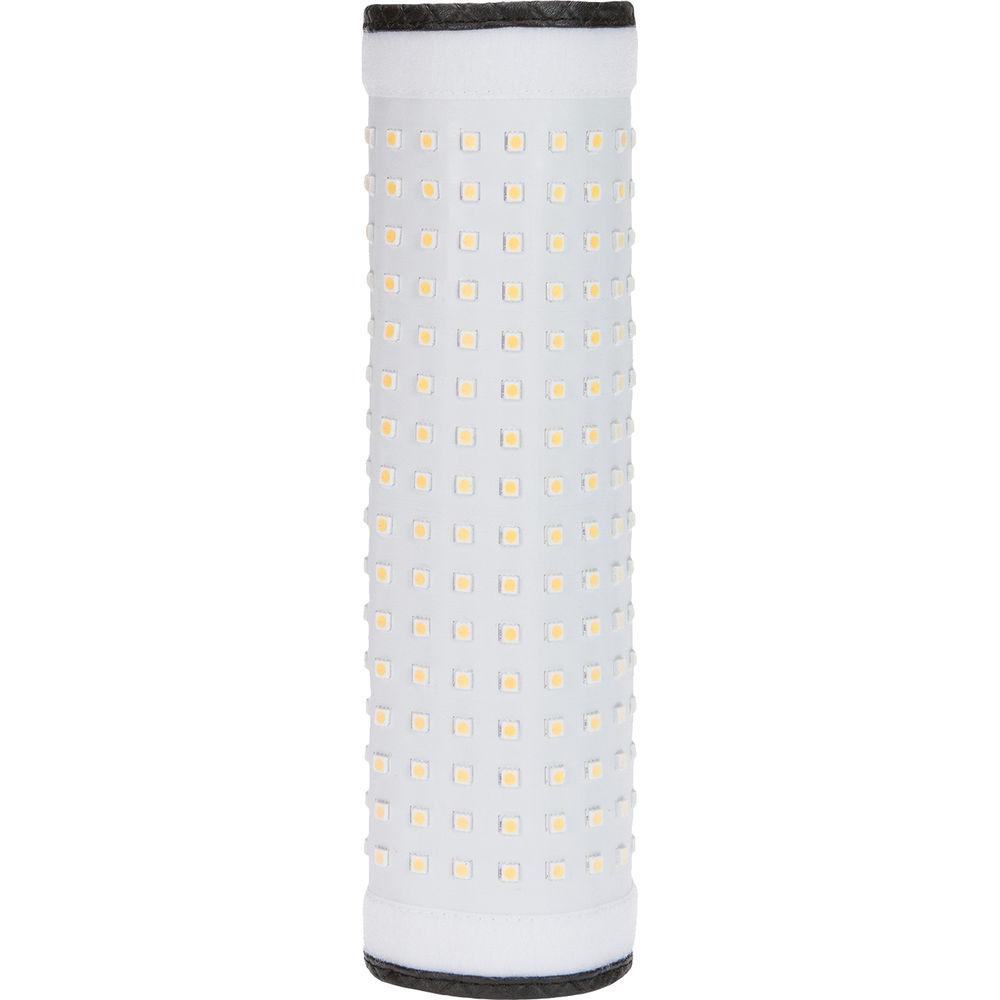

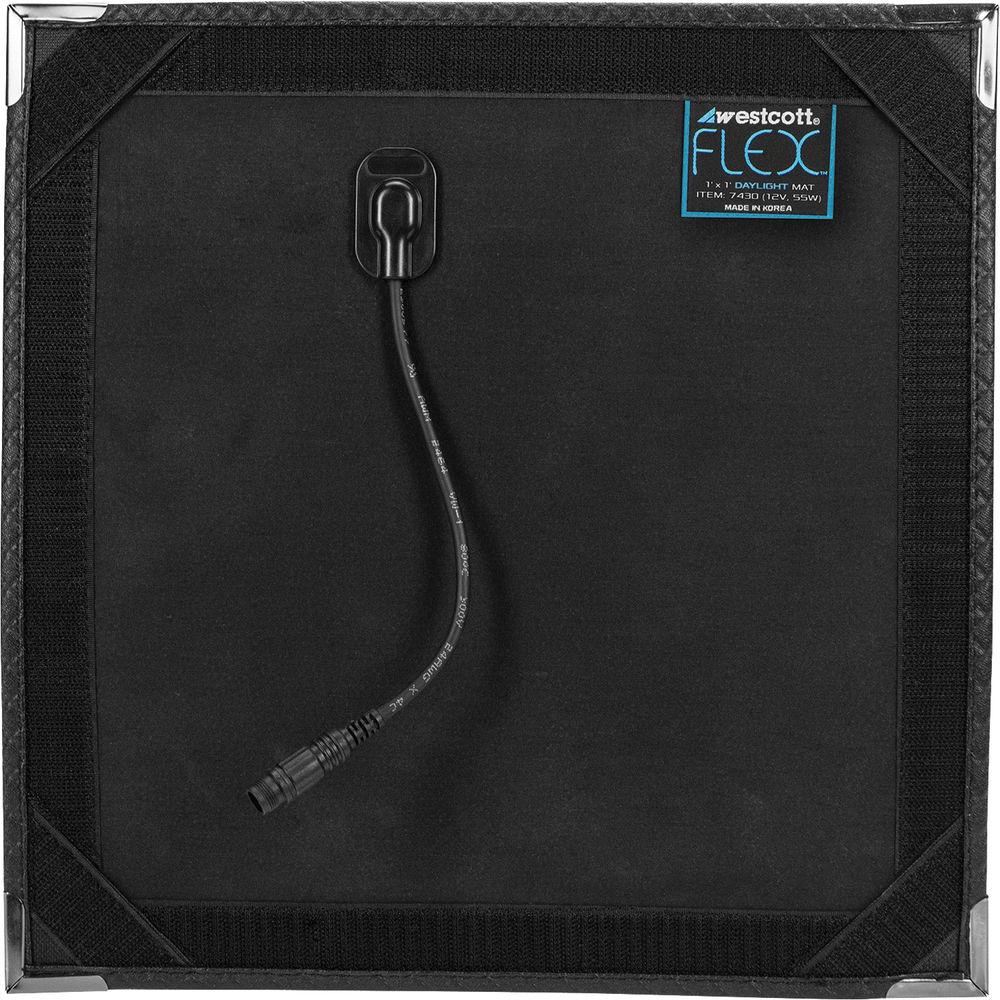

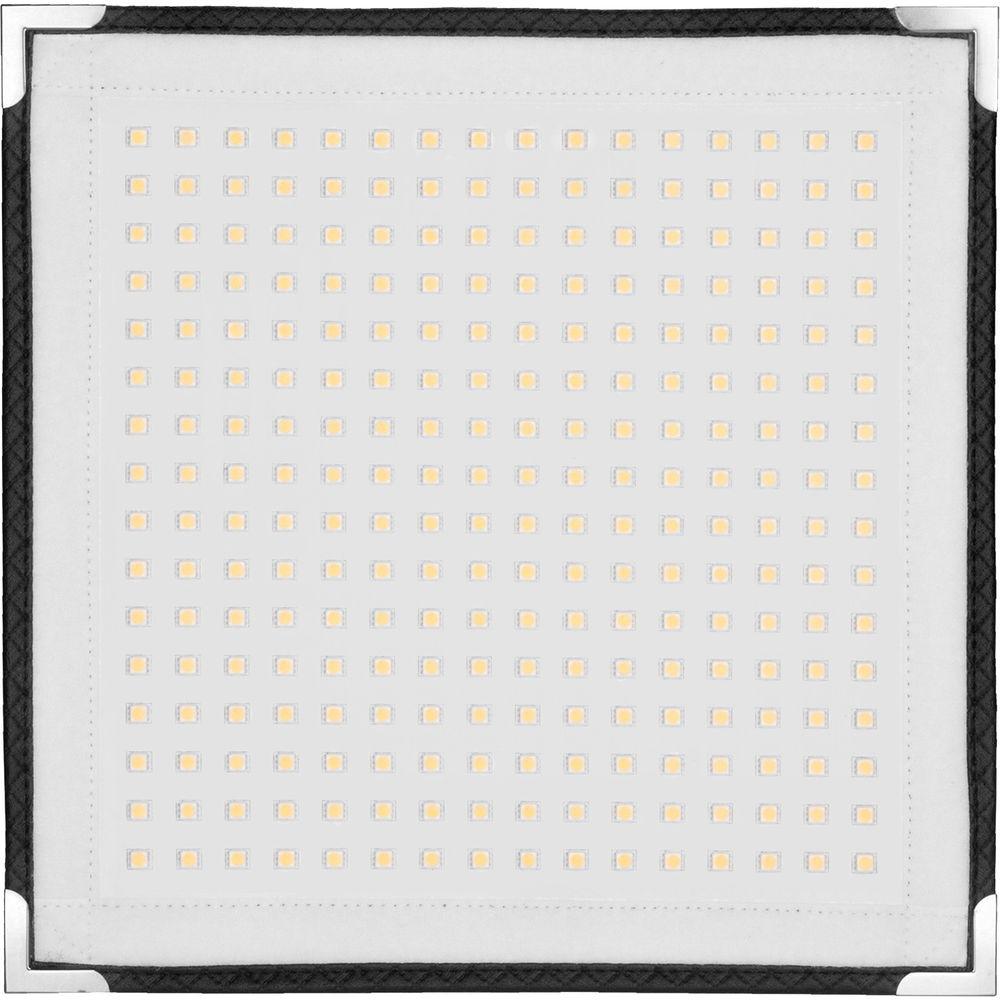

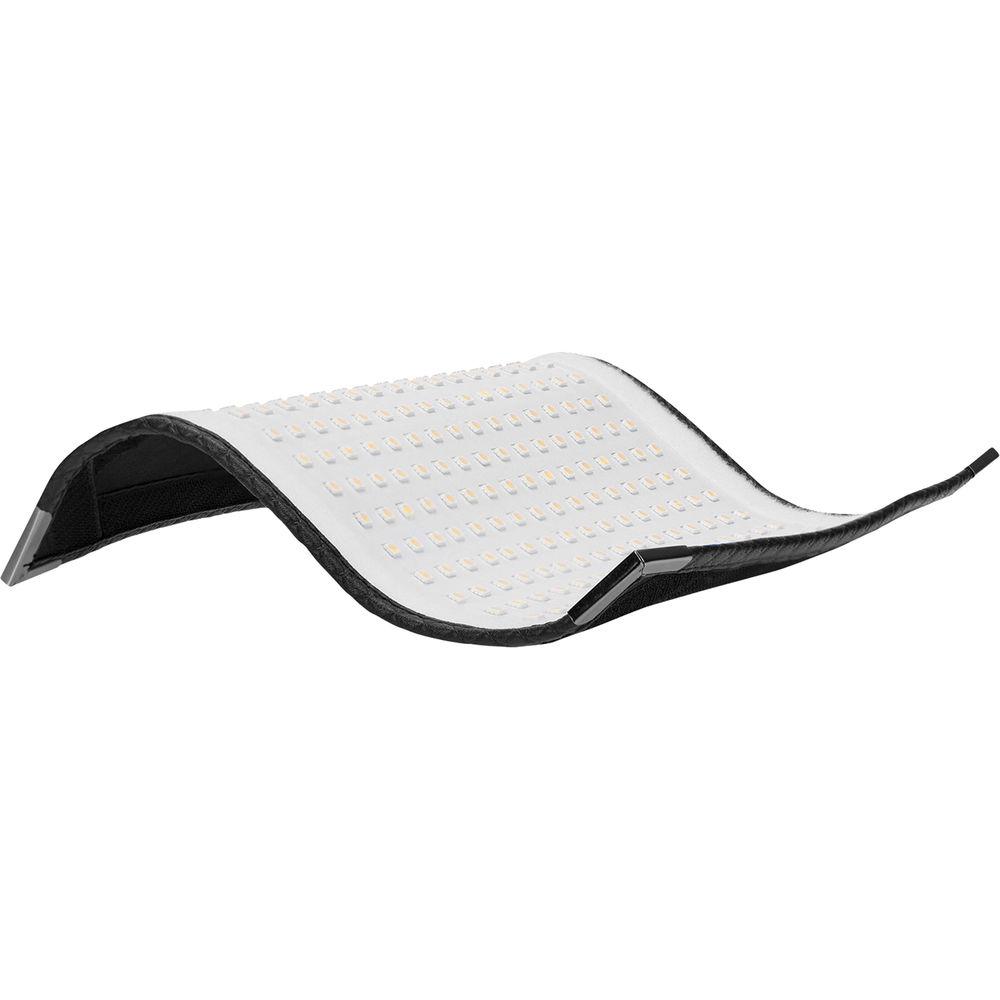

• Flex Daylight LED Mat (1 x 1') Compatible with and complimentary to any kind of image making, the Flex Daylight LED Mat from Westcott is a unique 1 x 1' array of LEDs that are housed within a 0.25"-thick pliable mat-like casing. Mold it into an arc for product photography for true "wrap-around" lighting or shape it into a cylinder for long thin highlights in reflective objects. The Flex will hold its form however you twist it thanks to integrated pliable wire in the frame, and its thin profile and lightweight design allows it to fit where most light sources simply can't, opening up a world of creative possibilities for car, plane or boat interiors. This specific light is 5600K daylight-balanced and has a high CRI rating of 95.

  In addition to the unique bendable design, the Flex LED Mat also has an IP 64 rating that deems it both dust and splash proof for use in inclement conditions. Included with the light is a 100-240 VAC power supply along with an external dimmer for 0-100% dimming control. The dimmer also features a 3/8"-16 mount for compatibility with the Scrim Jim Cine frame system. The Flex Mat itself is also compatible with Scrim Jim Cine frames, allowing you to effectively create your own LED panel.
  Powerful LEDs
  • The Flex packs a punch with 55W of continuous power.
  Flexible Frame
  • The Flex is very pliable, thanks to a built-in wire framework which allows the unit to maintain its shape once formed.
  Sleek Design
  • Measuring just 0.25" thick, this light can be placed in situations where many other lights simply cannot fit.
  High CRI
  • LEDs have a high CRI of 95.
  Shooting in the Rain - Not a Problem
  • With a splashproof rating of IP 64, photographers and videographers can shoot with the Flex panel and optional power cord extender in the rain without issues.

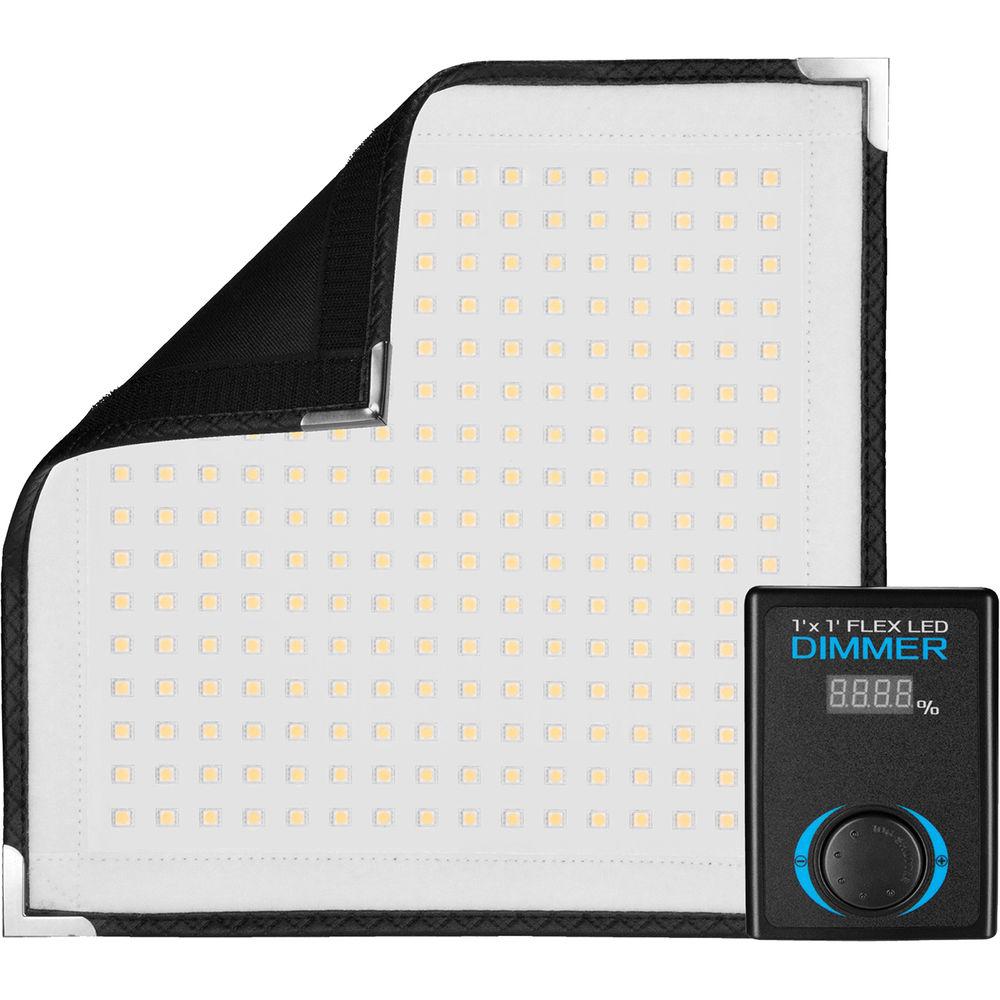

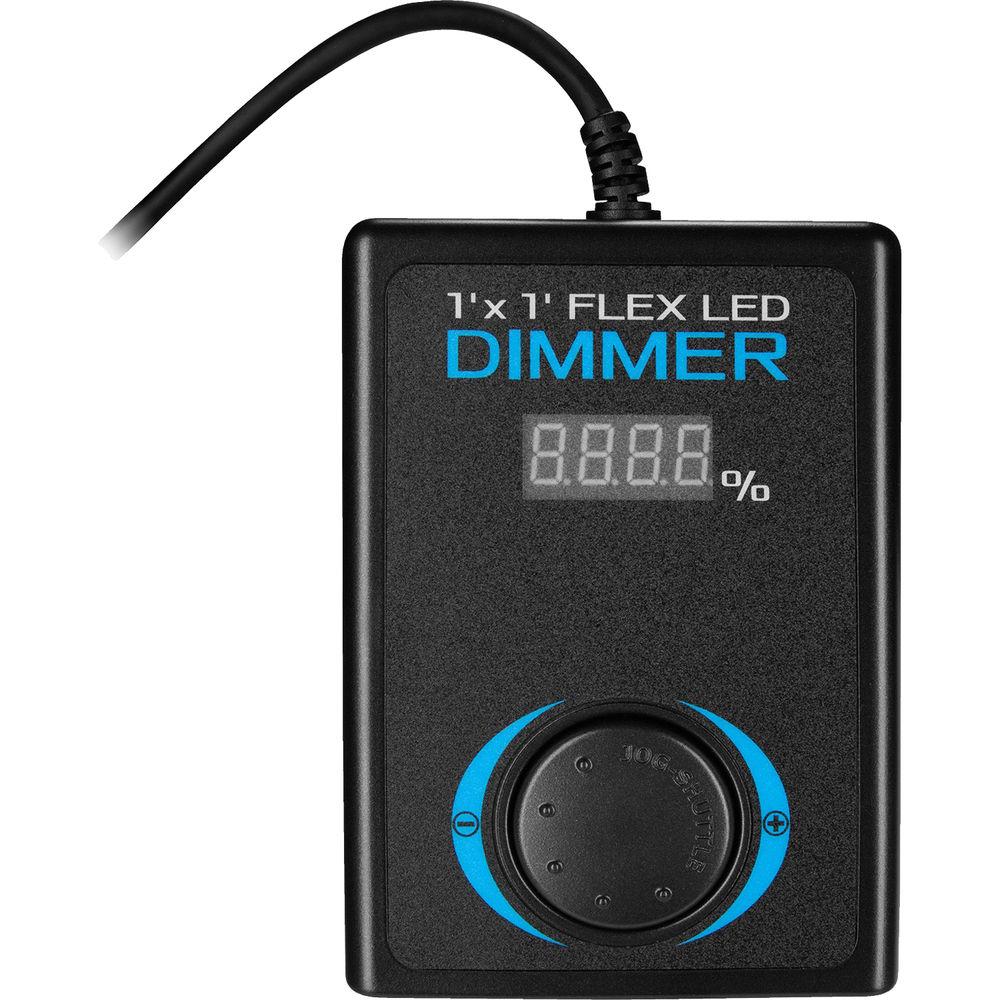

  Included Dimmer
  • Each Flex panel includes a power dimmer ranging from 0-100% for precise light output adjustment.

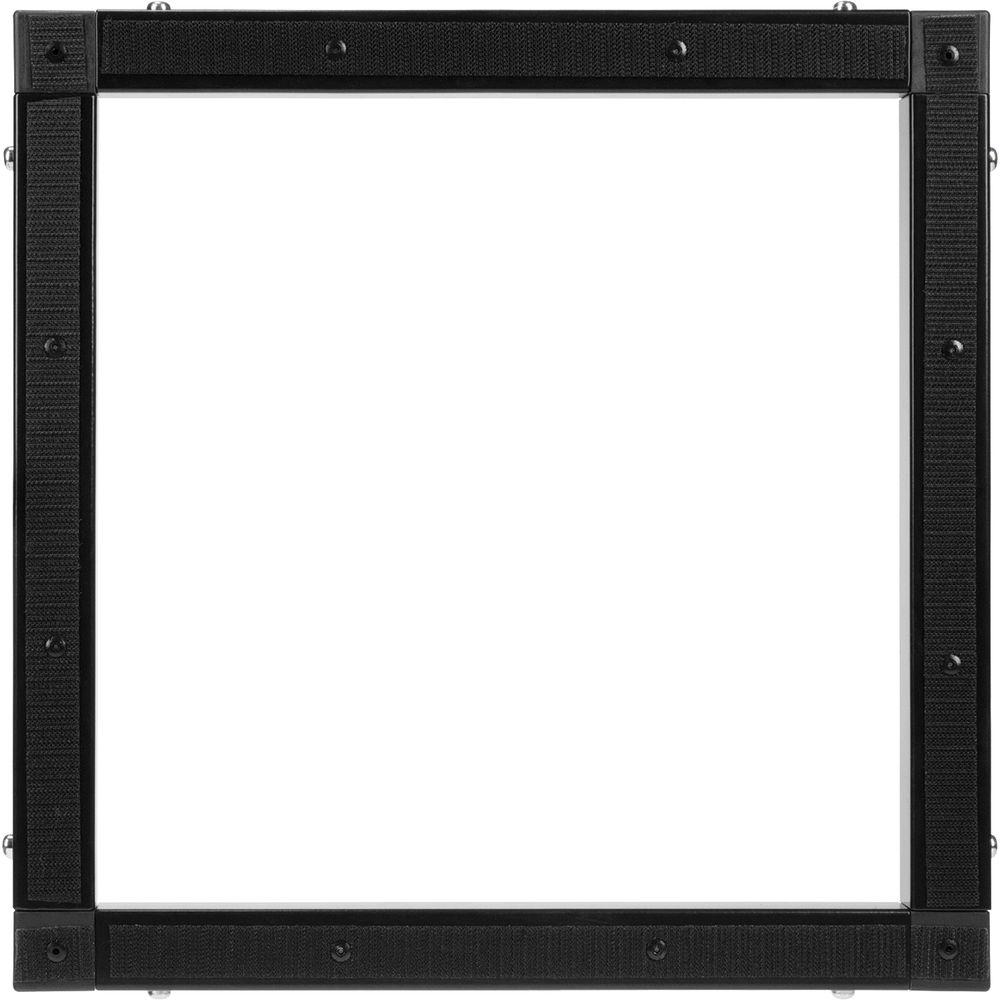

  Slim Jim Cine Compatibility
  • The Slim Jim Cine frame system can be used to build a matching 1 x 1' frame for holding the Flex in place atop a stand or in other remote ways. The included dimmer also features a 3/8"-16 mount for attaching to the Slim Jim Cine frame in a seamless manner.
  UPC: 817967010153

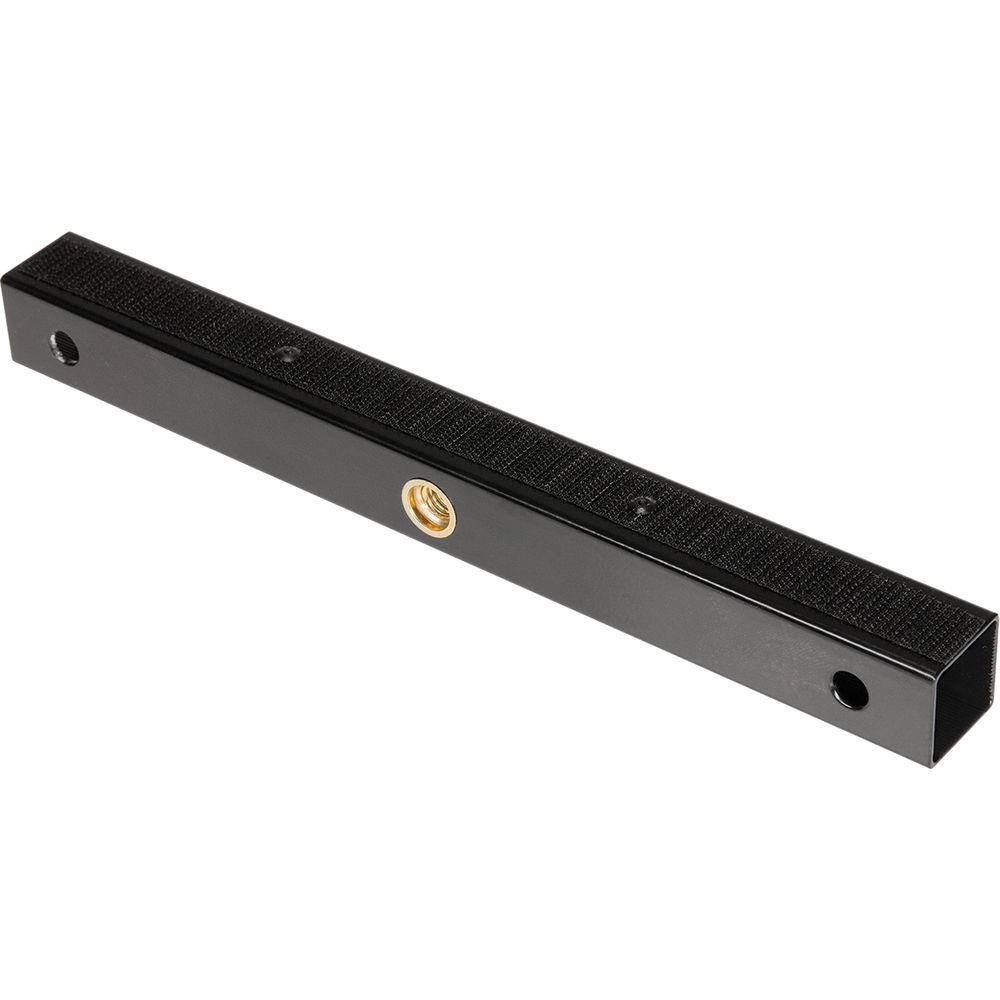

• Scrim Jim Cine Frame Tube (10") The integral component within a modular system, this 10" long Scrim Jim Cine Frame Tube from Westcott is used to construct customized panels in sizes ranging from 1 x 1' to 8 x 8'. When paired with optional fabrics, such as silks or diffusers, frame tubes form the rigid support from which fabrics are attached to create flags, diffusion panels, book lights, v-flats, or numerous other light controlling tools.

  This tube is constructed from anodized aluminum alloy and heavy-duty hook-and-loop tape is riveted to two sides of the tube for attaching fabrics. A 3/8"-16 threaded mount is incorporated into the tube for mounting atop stands and additional dedicated self-locking connectors are used to combine several pieces of tube to create flat 2D frames or dynamic 3D light shaping tools.
  • Tube measures 10" long and can be added to additional tubes through the use of dedicated, self-locking connectors.
  • Anodized aluminum-alloy construction and self-locking connectors both help to maintain rigid, reliable frame configurations in various sizes up to 8 x 8'.
  • Hook-and-loop tape is riveted onto two sides of the tube and is used for attaching a variety of fabric types to the frame system.
  • A 3/8"-16 mount is incorporated into the tube's design for mounting to stands or other accessories.
  UPC: 817967011877
• Scrim Jim Cine 2D Corner Frame Connector Integral to the versatile and modular system design, this Scrim Jim Cine 2D Corner Frame Connector from Westcott is used to connect any two Scrim Jim Cine frame tubes at a corner for making a 2D panel, reflector, flag, or other flat light modifier. A built-in positive locking button ensures a secure connection with the frame tube and its durable construction helps to maintain rigidity throughout long shoots and day-to-day use. UPC: 817967011914
• Universal Stud The Universal Stud from Westcott is a double-sided brass connector with both 1/4"-20 and 3/8"-16 male mounting threads. The two thread sizes allow the stud to be used with most industry standard lighting and grip equipment including; light stands, clamps, grip heads and most 1/4"-20 and 3/8"-16 female threaded studs. UPC: 817967013079

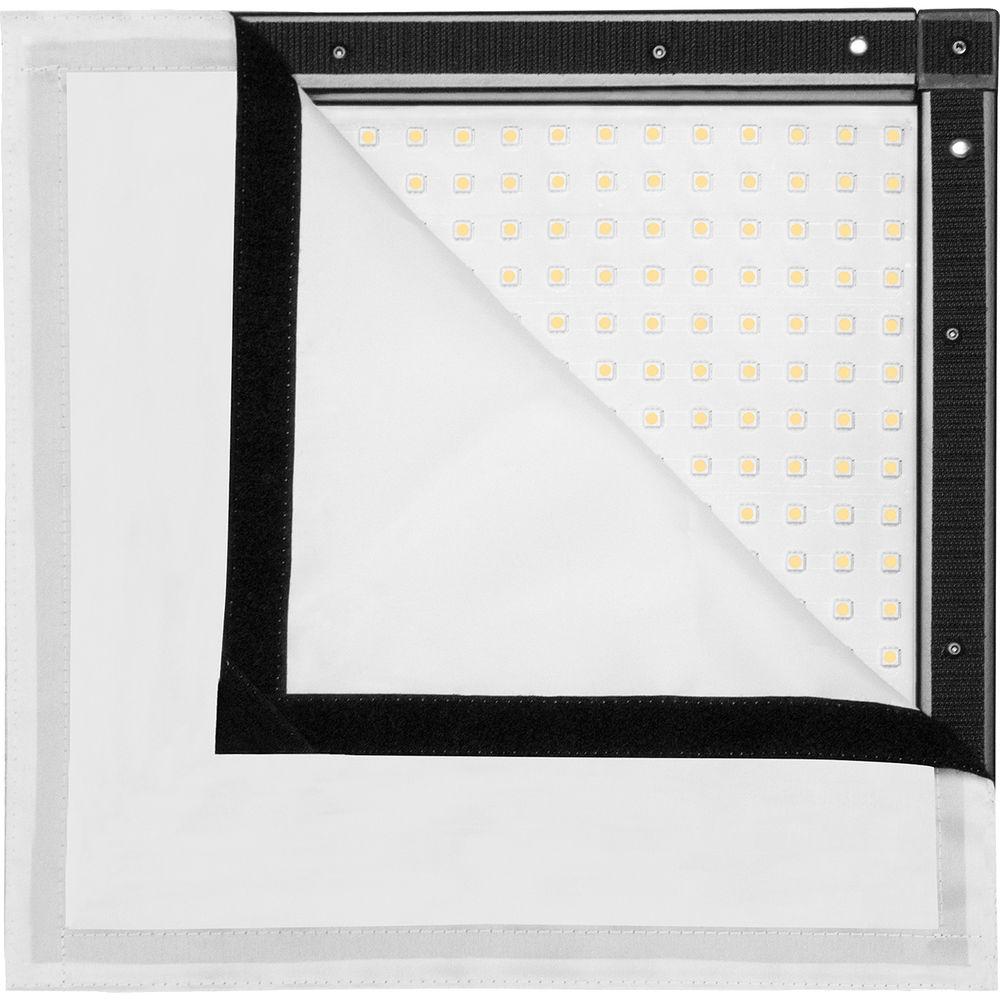

• Scrim Jim Cine Full-Stop Diffuser Fabric (1 x 1') Allowing you to soften ambient and artificial light sources, this Scrim Jim Cine Full-Stop Diffuser Fabric from Westcott is compatible with 1 x 1' Scrim Jim Cine frames and features a heavy-duty touch fastener lining for quick setup and convenient portability. Constructed from nylon and silk fabrics, this diffusion does not affect the color temperature of light sources and helps to maintain natural-looking skin tones. As part of a modular system, this fabric is an ideal light control tool for a variety of both studio and on-location applications.
  • This plain diffuser cloth is suitable for both artificial and ambient light sources and is ideal for overhead use, to soften harsh sunlight, or to place in front of a main light source for broad diffusion.
  • Provides a full stop reduction in light output.
  • Touch fastener lining permits quick installation and removal from 1 x 1' Scrim Jim Cine frames.
  UPC: 817967011426
• Dual-Joint Tilter Bracket The Dual-Joint Tilter Bracket from Westcott is designed to facilitate articulating mounting of lights or accessories on a light stand. The Tilter Bracket has an industry-standard "Baby" 5/8" receiver attached to 2 swiveling ball joints that offer 180°+ tilting. The bracket is locked down by and oversized T-handle. At the top of the bracket is a 1/4"-20 male thread with an included 3/8"-16 bushing that will support gear weighing up to 20 lb. The threads will also accept adapters such as a 5/8" stud. UPC: 812735023922
• 16' Dimmer Extension Cable for Flex LED Mats up to 1 x 2' This 16' water-resistant Dimmer Extension Cable from Westcott provides extra distance from a Flex LED Mats up to 1 x 2' to the power source, allowing the mat to be used in wet environments while the power supply is sheltered in a dry area. UPC: 817967009874
• Cable Wrap The Cable Wrap from Westcott is a durable wrap lined with touch fastener for quick placement. It can be used as a simple way to keep power cords, extension cords, and cables wrapped in gear bags and cases. The wraps are black and are 15" long and feature a Westcott logo allowing for easy cable and cord identification.

• Digital Dimmer and Power Supply Module

• Cable Wrap

• Limited Lifetime Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• Limited 2-Year Warranty

• 3/8"-16 Thread Adapter

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Flex Daylight LED Mat (1 x 1')

  Beam Angle	140 to 360°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes, 0 to 100%
  Display	None
  Expected Lamp Life	50,000 Hours
  Fixture Dimensions	12.0 x 12.0 x 0.2" / 30.5 x 30.5 x 0.6 cm
  Fixture Weight	7 oz / 198.4 g

  Fixture Mount	None
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	13 to 28 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	55 W

  Certifications	UL, as per Manufacturer
  IP Rating	IP64
  Operating Temperature	5 to 104°F / -15 to 40°C

  Box Dimensions (LxWxH)	19.4 x 16.3 x 4.3"

• Scrim Jim Cine Frame Tube (10")

  Construction	Anodized aluminum, hook-and-loop tape on two sides
  Attachment Method	Integrated 3/8"-16 threaded mount Compatible with self-locking connectors for building complete frame
  Dimensions	10 x 1 x 1" / 25.4 x 2.5 x 2.5 cm
  Weight	3.5 oz / 100 g

  Box Dimensions (LxWxH)	10.0 x 1.3 x 0.9"

• Scrim Jim Cine 2D Corner Frame Connector

  Dimensions	2.75 x 2.75 x 1.1" / 7.0 x 7.0 x 2.9 cm
  Weight	1.6 oz / 45.4 g

  Box Dimensions (LxWxH)	8.7 x 1.25 x 1.2"

• Universal Stud

  Mounting	1/4"-20 Male, 5/8" / 16 mm Stud (Connector 1) 3/8"-16 Male, 5/8" / 16 mm Stud (Connector 2)
  Material	Brass
