Product description

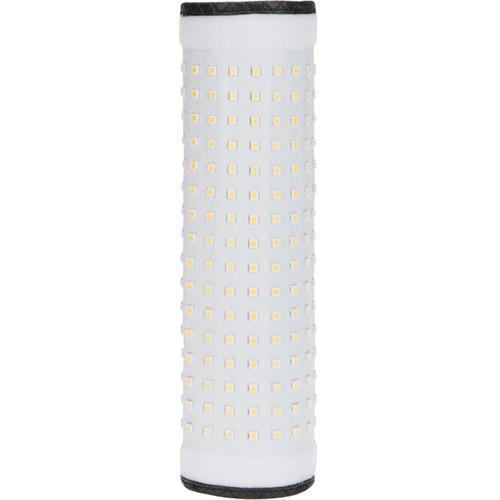

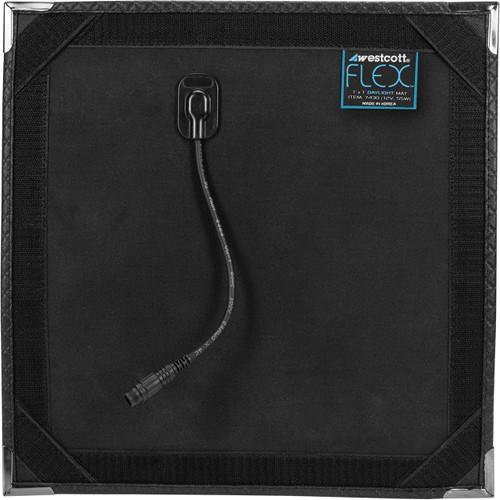

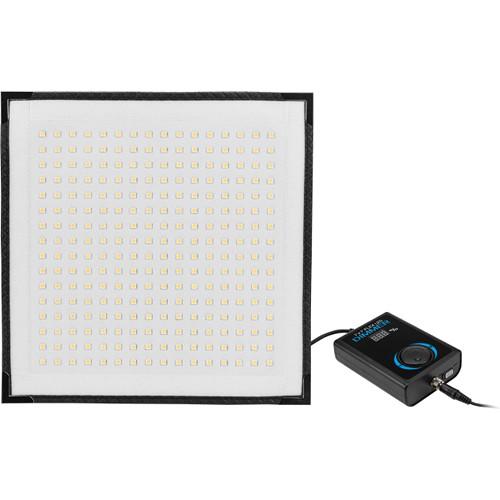

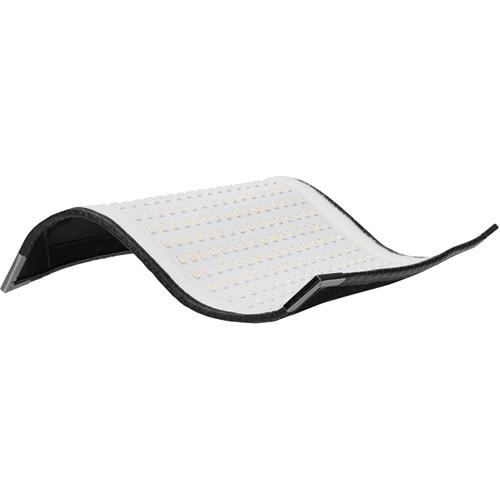

• Flex Daylight LED Mat (1 x 1') Compatible with and complimentary to any kind of image making, the Flex Daylight LED Mat from Westcott is a unique 1 x 1' array of LEDs that are housed within a 0.25"-thick pliable mat-like casing. Mold it into an arc for product photography for true "wrap-around" lighting or shape it into a cylinder for long thin highlights in reflective objects. The Flex will hold its form however you twist it thanks to integrated pliable wire in the frame, and its thin profile and lightweight design allows it to fit where most light sources simply can't, opening up a world of creative possibilities for car, plane or boat interiors. This specific light is 5600K daylight-balanced and has a high CRI rating of 95.

  In addition to the unique bendable design, the Flex LED Mat also has an IP 64 rating that deems it both dust and splash proof for use in inclement conditions. Included with the light is a 100-240 VAC power supply along with an external dimmer for 0-100% dimming control. The dimmer also features a 3/8"-16 mount for compatibility with the Scrim Jim Cine frame system. The Flex Mat itself is also compatible with Scrim Jim Cine frames, allowing you to effectively create your own LED panel.
  Powerful LEDs
  • The Flex packs a punch with 55W of continuous power.
  Flexible Frame
  • The Flex is very pliable, thanks to a built-in wire framework which allows the unit to maintain its shape once formed.
  Sleek Design
  • Measuring just 0.25" thick, this light can be placed in situations where many other lights simply cannot fit.
  High CRI
  • LEDs have a high CRI of 95.
  Shooting in the Rain - Not a Problem
  • With a splashproof rating of IP 64, photographers and videographers can shoot with the Flex panel and optional power cord extender in the rain without issues.
  Included Dimmer

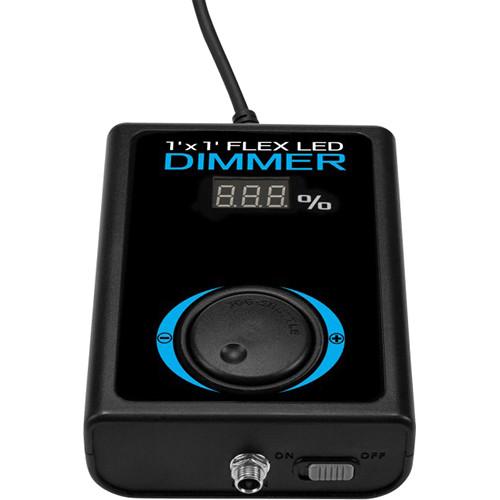

  • Each Flex panel includes a power dimmer ranging from 0-100% for precise light output adjustment.
  Slim Jim Cine Compatibility
  • The Slim Jim Cine frame system can be used to build a matching 1 x 1' frame for holding the Flex in place atop a stand or in other remote ways. The included dimmer also features a 3/8"-16 mount for attaching to the Slim Jim Cine frame in a seamless manner.
  UPC: 817967010153

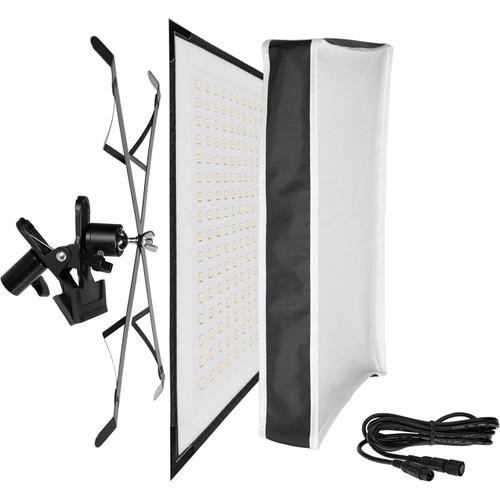

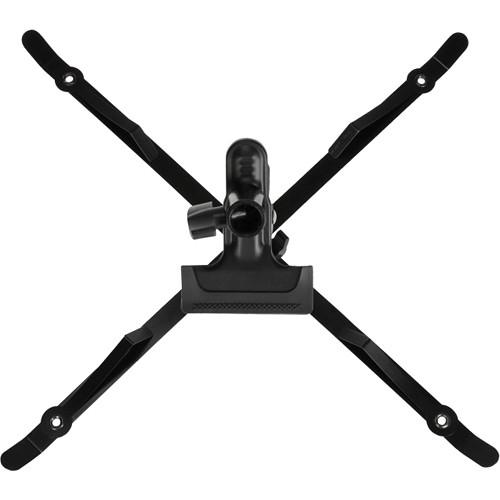

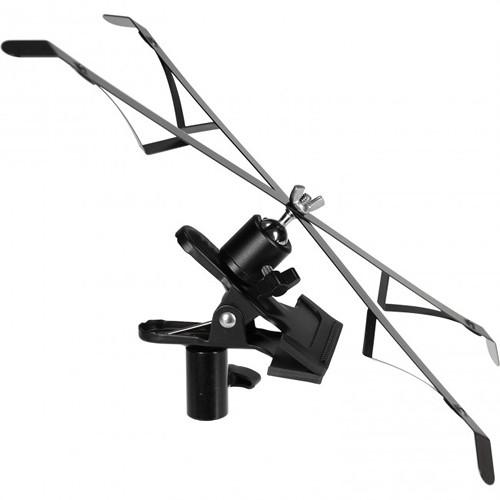

• Flex X-Bracket Mount for Flex 1x1' Mat Easily mount your Flex 1x1' LED Mat to available surfaces like a chair, table, or shelves with the Flex X-Bracket Mount from Westcott. This mount features an easy-to-use mounting clip, light stand adapter, an attachable bracket, and adjustable diffusion arms. Durable and flexible, the aluminum construction provides secure mounting that you won't have to worry about during a long shoot. UPC: 817967045599
• 16' Dimmer Extension Cable for Flex LED Mats up to 1 x 2' This 16' water-resistant Dimmer Extension Cable from Westcott provides extra distance from a Flex LED Mats up to 1 x 2' to the power source, allowing the mat to be used in wet environments while the power supply is sheltered in a dry area. UPC: 817967009874
• Cable Wrap The Cable Wrap from Westcott is a durable wrap lined with touch fastener for quick placement. It can be used as a simple way to keep power cords, extension cords, and cables wrapped in gear bags and cases. The wraps are black and are 15" long and feature a Westcott logo allowing for easy cable and cord identification.

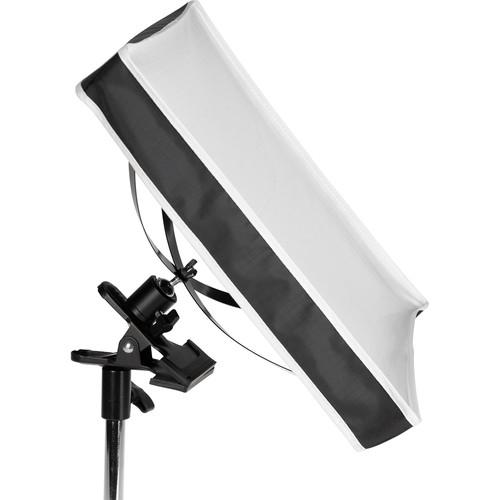

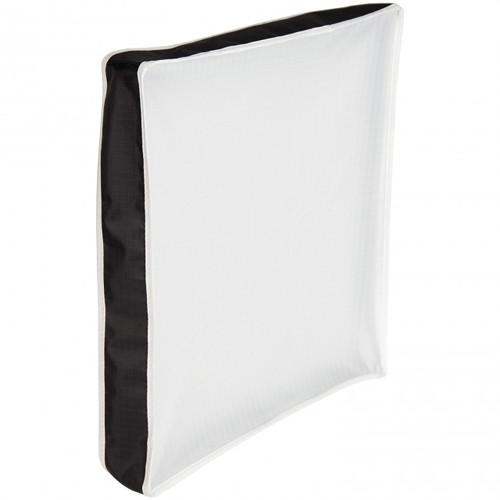

• 1/4-Stop Front Diffusion Cloth for Flex 1x1' X-Bracket Mount Soften your 1x1' Flex LED's output with this 1/4-Stop Front Diffusion Cloth from Westcott. This diffusion cloth mounts quickly to the front of your Flex X-Bracket, does not alter color temperatures, and will make the LED pattern less visible. High-quality construction will withstand multiple use over time. UPC: 817967045605

• Digital Dimmer and Power Supply Module

• Cable Wrap

• Limited Lifetime Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Flex Daylight LED Mat (1 x 1')

  Beam Angle	140 to 360°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes, 0 to 100%
  Display	None
  Expected Lamp Life	50,000 Hours
  Fixture Dimensions	12.0 x 12.0 x 0.2" / 30.5 x 30.5 x 0.6 cm
  Fixture Weight	7 oz / 198.4 g

  Fixture Mount	None
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	13 to 28 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	55 W

  Certifications	UL, as per Manufacturer
  IP Rating	IP64
  Operating Temperature	5 to 104°F / -15 to 40°C

  Box Dimensions (LxWxH)	19.4 x 16.3 x 4.3"

• Flex X-Bracket Mount for Flex 1x1' Mat

  Material	Aluminum
  Dimensions	17.0 x 1.0 x 1.5" (43.2 x 2.5 x 3.8 cm)
  Weight	1.0 lb (0.4 kg)

  Box Dimensions (LxWxH)	15.9 x 7.6 x 3.25"

• 16' Dimmer Extension Cable for Flex LED Mats up to 1 x 2'

  Connector 1	Proprietary
  Connector 2	Proprietary
  Cable Length	16' / 4.9 m

  Box Dimensions (LxWxH)	5.827 x 2.756 x 0.945"

• Cable Wrap

  Dimensions (L x W x H)	15.3 x 1.25 x 0.13" (38.4 x 3.18 x 0.32 cm)
  Weight	0.1 lb (45 g)

  Box Dimensions (LxWxH)	7.2 x 1.3 x 0.8"

• 1/4-Stop Front Diffusion Cloth for Flex 1x1' X-Bracket Mount

  Material	Not specified by manufacturer
  Dimensions	12.0 x 12.0 x 0.1" (30.5 x 30.5 x 0.2 cm)
  Weight	1.0 lb (0.45 kg)

  Box Dimensions (LxWxH)	7.05 x 6.05 x 0.4"
