User Manual for Westcott Scrim Jim Cine Frame Set Click to enlarge the picture
Contents of the user manual for the Westcott Scrim Jim Cine Frame Set
- Product category: Butterfly & Panel Reflector Frames Westcott
- Brand: Westcott
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Westcott Butterfly & Panel Reflector Frames
 |
User manual for the Westcott Scrim Jim Cine Frame Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Westcott product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Westcott user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Westcott product will considerably shorten its lifespan!
|

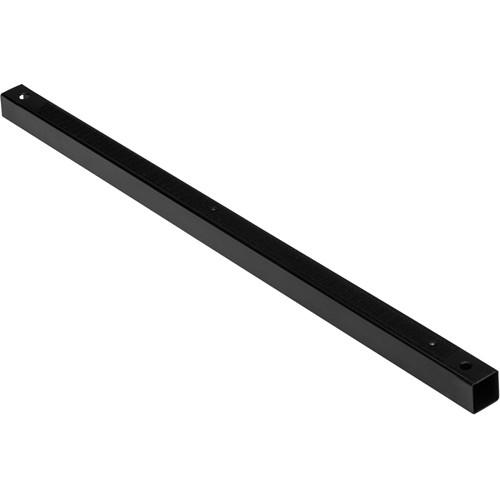

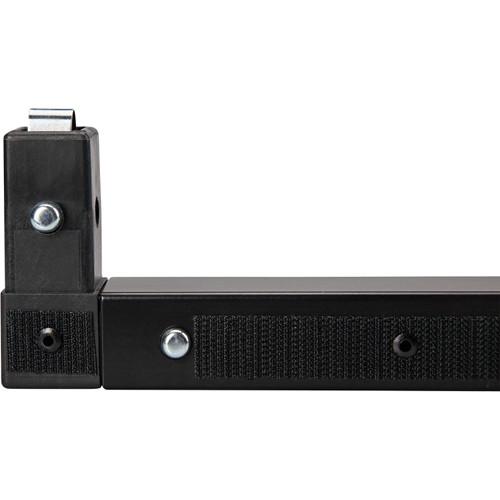

Product description This Scrim Jim Cine Frame Set from Westcott includes all of the necessary frame tubes and connectors to construct your own 2 x 2' frame for attaching fabrics in order to create diffusion panels, flags, or other light control tools. This specific kit includes four 22" tubes and four 2D frame connectors, as well as a transport strap for carrying the set. Each tube is constructed from anodized aluminum alloy, features riveted heavy-duty hook-and-loop tape on two sides for attaching fabrics, and incorporates a 3/8"-16 threaded mount for mounting atop stands. The included self-locking connectors are used to combine the individual tube pieces in order to create a flat 2D frame. - Scrim Jim Cine Frame Tube (22") The integral component within a modular system, this 22" long Scrim Jim Cine Frame Tube from Westcott is used to construct customized panels in sizes ranging from 1 x 1' to 8 x 8'. When paired with optional fabrics, such as silks or diffusers, frame tubes form the rigid support from which fabrics are attached to create flags, diffusion panels, book lights, v-flats, or numerous other light controlling tools.
This tube is constructed from anodized aluminum alloy and heavy-duty hook-and-loop tape is riveted to two sides of the tube for attaching fabrics. A 3/8"-16 threaded mount is incorporated into the tube for mounting atop stands and additional dedicated self-locking connectors are used to combine several pieces of tube to create flat 2D frames or dynamic 3D light shaping tools. - Tube measures 22" long and can be added to additional tubes through the use of dedicated, self-locking connectors.
- Anodized aluminum-alloy construction and self-locking connectors both help to maintain rigid, reliable frame configurations in various sizes up to 8 x 8'.
- Hook-and-loop tape is riveted onto two sides of the tube and is used for attaching a variety of fabric types to the frame system.
- A 3/8"-16 mount is incorporated into the tube's design for mounting to stands or other accessories.

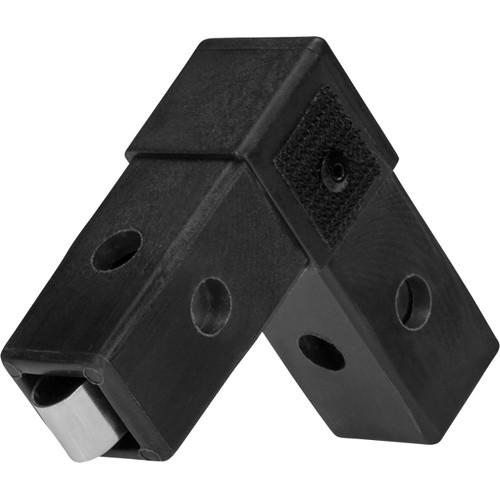

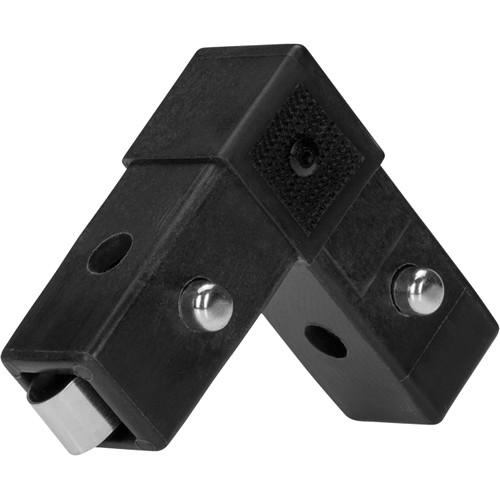

UPC: 817967011884 - Scrim Jim Cine 2D Corner Frame Connector Integral to the versatile and modular system design, this Scrim Jim Cine 2D Corner Frame Connector from Westcott is used to connect any two Scrim Jim Cine frame tubes at a corner for making a 2D panel, reflector, flag, or other flat light modifier. A built-in positive locking button ensures a secure connection with the frame tube and its durable construction helps to maintain rigidity throughout long shoots and day-to-day use. UPC: 817967011914
In the Box Bundle Items 4 x Scrim Jim Cine Frame Tube (22") rddbeywydvyywfwcqetfwyfsbrxwytqwzcezs 4 x Scrim Jim Cine 2D Corner Frame Connector rddbeywydvyywfwcqetfwyfsbrxwytqwzcezs
Also Includes - Scrim Jim Transport Strap
Table of Contents
|
Upload User Manual
Have you got an user manual for the Westcott Scrim Jim Cine Frame Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Scrim Jim Cine Frame Tube (22")
| Construction | Anodized aluminum, hook-and-loop tape on two sides | | Attachment Method | Integrated 3/8"-16 threaded mount
Compatible with self-locking connectors for building complete frame | | Dimensions | 22 x 1 x 1" / 55.9 x 2.5 x 2.5 cm | | Weight | 7.1 oz / 200 g | | | | Box Dimensions (LxWxH) | 21.6 x 1.4 x 1.2" | - Scrim Jim Cine 2D Corner Frame Connector
| Dimensions | 2.75 x 2.75 x 1.1" / 7.0 x 7.0 x 2.9 cm | | Weight | 1.6 oz / 45.4 g | | | | Box Dimensions (LxWxH) | 8.7 x 1.25 x 1.2" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
