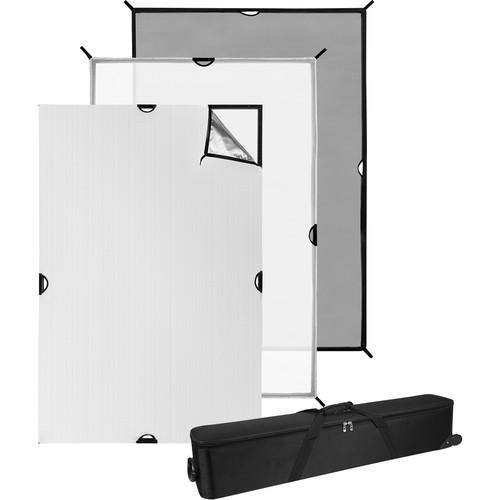

User Manual for Westcott Scrim Jim Cine Video Kit Click to enlarge the picture
Contents of the user manual for the Westcott Scrim Jim Cine Video Kit
- Product category: Butterfly & Panel Reflector Kits Westcott
- Brand: Westcott
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Westcott Butterfly & Panel Reflector Kits
|
User manual for the Westcott Scrim Jim Cine Video Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Westcott product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Westcott user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Westcott product will considerably shorten its lifespan!
|
Product description Designed to be modular, the 4 x 6' Scrim Jim Cine Video Kit from Westcott will supply you with everything you need to construct a frame and start using it. This includes various fabrics, including a full-stop diffusion, a 2-in-1 silver/white bounce, and a single net, each with their own unique characteristics for controlling light in your scene. Additionally, it comes with a cable wrap for cord management and a Scrim Jim Deluxe Wheeled Travel Case for storage and transport. - Scrim Jim Cine Frame Tube (46") The integral component within a modular system, this 46" long Scrim Jim Cine Frame Tube from Westcott is used to construct customized panels in sizes ranging from 1 x 1' to 8 x 8'. When paired with optional fabrics, such as silks or diffusers, frame tubes form the rigid support from which fabrics are attached to create flags, diffusion panels, book lights, v-flats, or numerous other light controlling tools.
This tube is constructed from anodized aluminum alloy and heavy-duty hook-and-loop tape is riveted to two sides of the tube for attaching fabrics. A 3/8"-16 threaded mount is incorporated into the tube for mounting atop stands and additional dedicated self-locking connectors are used to combine several pieces of tube to create flat 2D frames or dynamic 3D light shaping tools. - Tube measures 46" long and can be added to additional tubes through the use of dedicated, self-locking connectors.
- Anodized aluminum-alloy construction and self-locking connectors both help to maintain rigid, reliable frame configurations in various sizes up to 8 x 8'.
- Hook-and-loop tape is riveted onto two sides of the tube and is used for attaching a variety of fabric types to the frame system.
- A 3/8"-16 mount is incorporated into the tube's design for mounting to stands or other accessories.
UPC: 817967013352 - Scrim Jim Cine Frame Tube (22") The integral component within a modular system, this 22" long Scrim Jim Cine Frame Tube from Westcott is used to construct customized panels in sizes ranging from 1 x 1' to 8 x 8'. When paired with optional fabrics, such as silks or diffusers, frame tubes form the rigid support from which fabrics are attached to create flags, diffusion panels, book lights, v-flats, or numerous other light controlling tools.
This tube is constructed from anodized aluminum alloy and heavy-duty hook-and-loop tape is riveted to two sides of the tube for attaching fabrics. A 3/8"-16 threaded mount is incorporated into the tube for mounting atop stands and additional dedicated self-locking connectors are used to combine several pieces of tube to create flat 2D frames or dynamic 3D light shaping tools. - Tube measures 22" long and can be added to additional tubes through the use of dedicated, self-locking connectors.
- Anodized aluminum-alloy construction and self-locking connectors both help to maintain rigid, reliable frame configurations in various sizes up to 8 x 8'.
- Hook-and-loop tape is riveted onto two sides of the tube and is used for attaching a variety of fabric types to the frame system.
- A 3/8"-16 mount is incorporated into the tube's design for mounting to stands or other accessories.
UPC: 817967011884 - Scrim Jim Cine 2" Straight Frame Connector Integral to the versatile and modular system design, this Scrim Jim Cine 2" Straight Frame Connector from Westcott is used to connect any two Scrim Jim Cine frame tubes for creating a longer straight frame tube segment. A built-in positive locking button ensures a secure connection with the frame tube and its durable construction helps to maintain rigidity throughout long shoots and day-to-day use. UPC: 817967011907
- Scrim Jim Cine 2D Corner Frame Connector Integral to the versatile and modular system design, this Scrim Jim Cine 2D Corner Frame Connector from Westcott is used to connect any two Scrim Jim Cine frame tubes at a corner for making a 2D panel, reflector, flag, or other flat light modifier. A built-in positive locking button ensures a secure connection with the frame tube and its durable construction helps to maintain rigidity throughout long shoots and day-to-day use. UPC: 817967011914
- Scrim Jim Cine Full-Stop Diffuser Fabric (4 x 6') Allowing you to soften ambient and artificial light sources, this Scrim Jim Cine Full-Stop Diffuser Fabric from Westcott is compatible with 4 x 6' Scrim Jim Cine frames and features a heavy-duty touch fastener lining for quick setup and convenient portability. Constructed from nylon and silk fabrics, this diffusion does not affect the color temperature of light sources and helps to maintain natural-looking skin tones. As part of a modular system, this fabric is an ideal light control tool for a variety of both studio and on-location applications.
- This plain diffuser cloth is suitable for both artificial and ambient light sources and is ideal for overhead use, to soften harsh sunlight, or to place in front of a main light source for broad diffusion.
- Provides a full stop reduction in light output.
- Touch fastener lining permits quick installation and removal from 4 x 6' Scrim Jim Cine frames.
UPC: 817967012126 - Scrim Jim Cine Silver/White Bounce Fabric (4 x 6') A versatile two-sided reflective fabric, the Scrim Jim Cine Silver/White Bounce Fabric from Westcott is compatible with 4 x 6' Scrim Jim Cine frames and features a heavy-duty touch fastener lining for quick setup and convenient portability. This reversible fabric has both bright, cool silver and neutral white reflective sides, allowing you to quickly switch between applications. The silver bounce side adds bright, specular highlights and an overall cooling quality while the white side produces soft, natural looking highlights.
- Reversible fabric features a reflective silver side and a neutral white side.
- Silver side produces cool, bright highlights with a distinct specular quality.
- White side offers natural color rendition with bright, clean highlights.
- Touch fastener lining permits quick installation and removal from 4 x 6' Scrim Jim Cine frames.
UPC: 817967012522 - Scrim Jim Cine Single Net Fabric (4 x 6') Reduce the brightness of your background for an even, more balanced exposure with the 4 x 6' Scrim Jim Cine Single Net Fabric from Westcott. Designed to mount immediately to your Scrim Jim Cine Frame via hook-and-loop fastener edging, this single net fabric is incredibly easy and fast to setup. It will then cut down light by approximately 1 stop for added control over the scene and your exposure. Additionally, it is designed to be durable and withstand normal environmental conditions with ease. UPC: 817967011952
- Cable Wrap The Cable Wrap from Westcott is a durable wrap lined with touch fastener for quick placement. It can be used as a simple way to keep power cords, extension cords, and cables wrapped in gear bags and cases. The wraps are black and are 15" long and feature a Westcott logo allowing for easy cable and cord identification.
- Scrim Jim Deluxe Wheeled Travel Case Store and transport your Scrim Jim Cine frame system in the dedicated Scrim Jim Deluxe Wheeled Travel Case from Westcott. Scrim Jim Cine frame tubes, connectors, fabrics, and mounts can be safely and conveniently stored in this travel case. Additional fabrics and mounting hardware can fit within the case as well. Durable construction ensures your equipment is well protected as you commute from one location to the next. Padded straps and heavy-duty built-in wheels make transporting your equipment easy and convenient. UPC: 817967045759
In the Box Bundle Items 4 x Scrim Jim Cine Frame Tube (46") etfcteyfu 2 x Scrim Jim Cine Frame Tube (22") 2 x Scrim Jim Cine 2" Straight Frame Connector 4 x Scrim Jim Cine 2D Corner Frame Connector Scrim Jim Cine Full-Stop Diffuser Fabric (4 x 6') Scrim Jim Cine Silver/White Bounce Fabric (4 x 6') Scrim Jim Cine Single Net Fabric (4 x 6') Cable Wrap etfcteyfu Scrim Jim Deluxe Wheeled Travel Case Table of Contents
|
Upload User Manual
Have you got an user manual for the Westcott Scrim Jim Cine Video Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Scrim Jim Cine Frame Tube (46")
Construction | Anodized aluminum, hook-and-loop tape on two sides | Attachment Method | Integrated 3/8"-16 threaded mount Compatible with self-locking connectors for building complete frame | Dimensions | 46 x 1 x 1" / 116.8 x 2.5 x 2.5 cm | Weight | 1.1 lb / 500 g | | Box Dimensions (LxWxH) | 48.0 x 4.5 x 4.5" | - Scrim Jim Cine Frame Tube (22")
Construction | Anodized aluminum, hook-and-loop tape on two sides | Attachment Method | Integrated 3/8"-16 threaded mount Compatible with self-locking connectors for building complete frame | Dimensions | 22 x 1 x 1" / 55.9 x 2.5 x 2.5 cm | Weight | 7.1 oz / 200 g | | Box Dimensions (LxWxH) | 21.6 x 1.4 x 1.2" | - Scrim Jim Cine 2" Straight Frame Connector
Dimensions | 5.1 x 1 x 1" / 12.9 x 2.5 x 2.5 cm | Weight | 3.5 oz / 100 g | | Box Dimensions (LxWxH) | 8.2 x 3.55 x 2.25" | - Scrim Jim Cine 2D Corner Frame Connector
Dimensions | 2.75 x 2.75 x 1.1" / 7.0 x 7.0 x 2.9 cm | Weight | 1.6 oz / 45.4 g | | Box Dimensions (LxWxH) | 8.7 x 1.25 x 1.2" | - Scrim Jim Cine Full-Stop Diffuser Fabric (4 x 6')
Type | Plain diffusion | Diffusion Strength | Full-Stop | Material | Nylon and silk fabrics | Care & Cleaning | Spot clean by hand with non-bleach laundry detergent | Dimensions | 4 x 6' / 1.2 x 1.8 m | Weight | 7.1 oz / 200 g | | Box Dimensions (LxWxH) | 9.6 x 1.6 x 0.01" | - Scrim Jim Cine Silver/White Bounce Fabric (4 x 6')
Type | Reversible; silver and white sides | Material | Double-laminated cloth | Care & Cleaning | Spot clean by hand with non-bleach laundry detergent | Dimensions | 4 x 6' / 1.2 x 1.8 m | Weight | 7.1 oz / 200 g | | Box Dimensions (LxWxH) | 10.1 x 7.9 x 1.4" | - Scrim Jim Cine Single Net Fabric (4 x 6')
Density | Single net, 1-stop | Material | Net fabric | Care & Cleaning | Spot clean by hand with non-bleach laundry detergent | Dimensions | 4 x 6' / 1.2 x 1.8 m | Weight | 7.1 oz / 200 g | | Box Dimensions (LxWxH) | 10.0 x 9.3 x 1.8" | - Cable Wrap
Dimensions (L x W x H) | 15.3 x 1.25 x 0.13" (38.4 x 3.18 x 0.32 cm) | Weight | 0.1 lb (45 g) | | Box Dimensions (LxWxH) | 7.2 x 1.3 x 0.8" | - Scrim Jim Deluxe Wheeled Travel Case
Accommodates | Scrim Jim Cine frame system | Material | Nylon | Closure Method | Zippers | Carrying/Transport Options | Padded straps Built-in wheels | Dimensions | 53.5 x 9.5 x 10.5" (135.9 x 24.1 x 26.7 cm) | Weight | 11.7 lb (5.3 kg) | | Box Dimensions (LxWxH) | 54.0 x 11.0 x 11.0" |
