User Manual for Westcott Strobelite 2 Light Educational Kit Click to enlarge the picture
Contents of the user manual for the Westcott Strobelite 2 Light Educational Kit
- Product category: Monolights Westcott
- Brand: Westcott
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Westcott Monolights
 |
User manual for the Westcott Strobelite 2 Light Educational Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Westcott product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Westcott user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Westcott product will considerably shorten its lifespan!
|

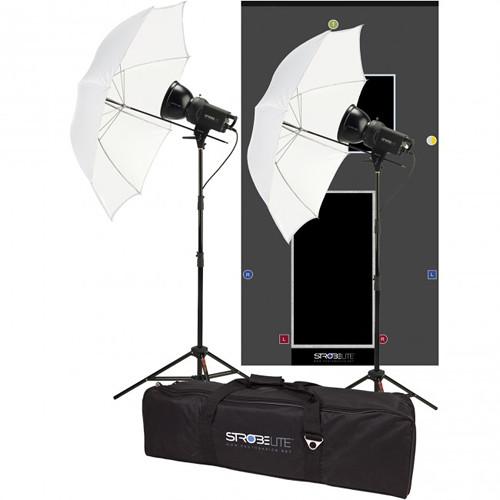

Product description Wescott's Strobelite 2 Light Educational Kit is a great way to take studio quality lighting on the road. With a combined 600 effective watt/seconds, you have more than enough power for portraits, groups or product work. The kit is built around the Strobelite flash head which offers 300 effective watt/seconds of power with stepless variability from 25% to full power, as well as fast, 2.5 second recycle times and built-in optical slaves to avoid a tangle of PC cords. The 100W modeling lamp allows you to pre-visualize the light falling on your subject before triggering your Strobelite. Convenience features include a ready light and audible beep to insure that your lights are powered up and ready for action. The kit includes two 43" white translucent umbrellas, two 6.5' light stands and a carry case. A unique aspect of this kit is the inclusion of a light-placement floor mat and dedicated Educational DVD that walks you through lighting techniques and setups. For complete specs on the Strobelite Plus Flash Heads and umbrellas included in this kit please click on the link below: Strobelite Flash Head

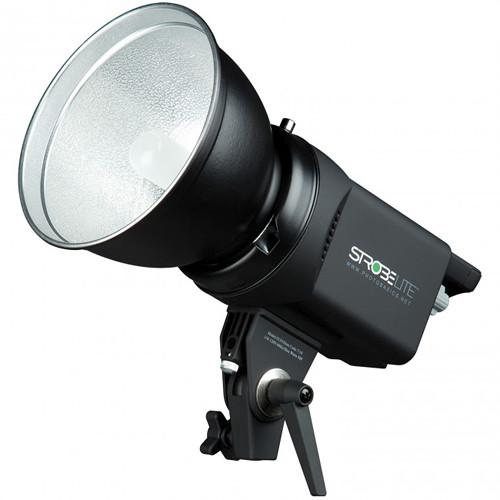

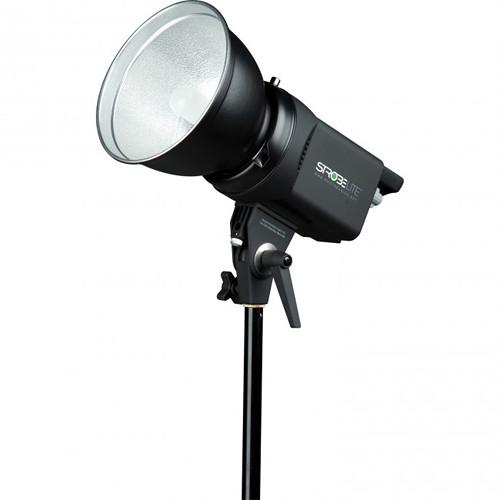

43" White Umbrella - Strobelite Monolight The Westcott Strobelite is a 150Ws lightweight, inexpensive monolight which includes a modeling light for ease of composition as well as a reflector and mini to PC sync cord. The Strobelite recycles to full power in 2.5 seconds with action-stopping flash durations of 1 - 3 ms. The high-impact polycarbonate housing includes an integral grip handle which is especially useful with large softboxes or umbrellas.
- Optical Slave
- Built-in optical slave "sees" the light fired from other strobes, fires the unit instantly.
- Adjustable
- Infinitely adjustable from 1/4 power to full power.
- Lightweight
- Polycarbonate housing -- monolight weighs less than 3.5 lb (1.6kg).
- Reflector
- Gathers and intensifies the light output.
- User Friendly
- User replaceable flash tube.
- Preview
- 100-watt modeling lamp helps you set the light and preview the effect.

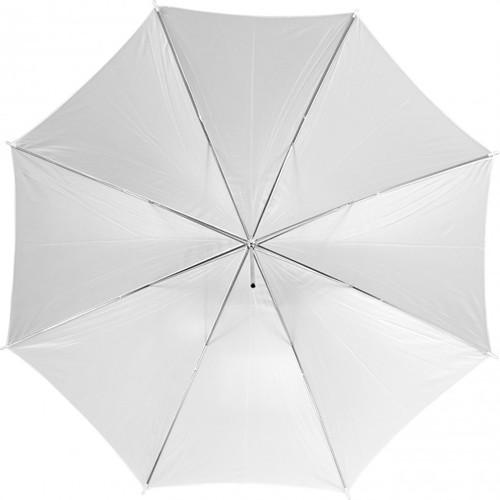

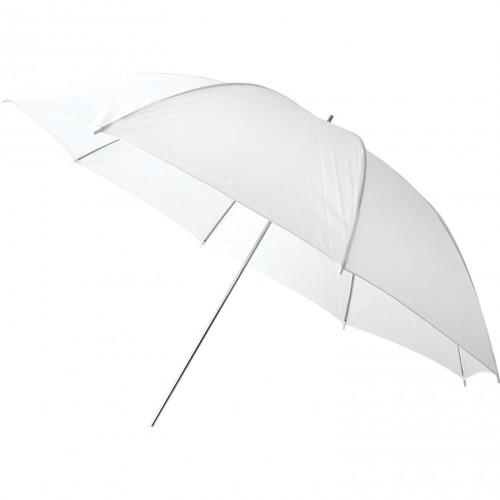

UPC: 017967011505 - Optical White Satin Diffusion Umbrella (43") The 43" Optical White Satin Diffusion Umbrella from Westcott is a light modifier that exhibits wide coverage, low contrast and a substantial boost in the ambient light level. Sturdily built with fiberglass rods and a metal shaft, this umbrella is well-suited to group shots, providing fill light and high key effects. It also has the ability to become a shoot-through modifier. Instead of traditionally bouncing your light source inside the umbrella, turn it around and aim the convex side of the umbrella toward your subject. While still diffused, you'll get wide coverage and a snappy look with more contrast.
- Easy to Mount
- Most studio lights include a built-in umbrella receptacle for instant mounting. There are also a variety of mounting brackets available for speedlights with adjustable and tiltable options for precise positioning.
- Modify any Light
- The umbrella can soften, reflect, and shape whatever light source that you use.
UPC: 817967020015 In the Box Bundle Items 2 x Strobelite Monolight xwfxrqebrzfyszxxdsqye - Mini (1/8") to PC Sync Cord
2 x Optical White Satin Diffusion Umbrella (43")

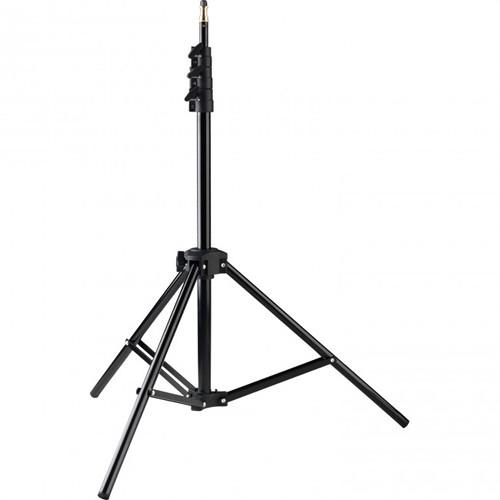

Also Includes - 2 x 6.5' Light Stands
- Educational DVD
- Floor Positioning Mat
- Floor Mat Guide Card

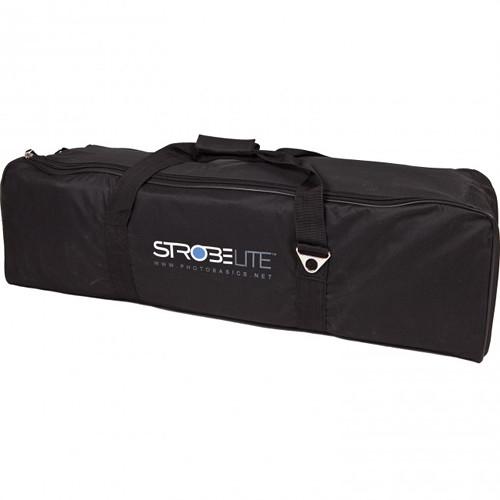

- Carrying Case
Table of Contents
|
Upload User Manual
Have you got an user manual for the Westcott Strobelite 2 Light Educational Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Strobelite Monolight
| | | Maximum Power | 150 Ws | | Guide Number | 117' / 39 m at | | Flash Duration | 1/3000 to 1/1000 Sec | | Recycle Time | 2.5 Sec (Full Power) | | Color Temperature | 5600K ± 100K | | Flash Ready Indicator | Audio, Visual | | Reflector | Changeable | | Accessory Fitting Type | Bowens S Type | | | | Type | Tungsten | | Wattage | 100 W | | | | Sync Type | Optical | | Interface | PC Sync (3.5 mm) | | Sync Voltage | 4.3 V | | | | AC Input Voltage | 110to120 VAC, 60 Hz | | | | Display | None | | Auto Dump | No | | Fan Cooled | No | | Dimensions | H: 8.0 x W: 5.0 x L: 9.0" / H: 20.3 x W: 12.7 x L: 22.8 cm | | Weight | 3.2 lb / 1.4 kg | | | | Box Dimensions (LxWxH) | 21.8 x 10.7 x 6.6" | - Optical White Satin Diffusion Umbrella (43")
| Interior | White (Translucent) | | Shaft Diameter | 8 mm | | Light Loss | 1 Stop | | Maximum Wattage Supported | 300 W | | Material of Construction | Fiberglass, Nylon, Steel | | Weight | 0.9 lb / 0.4 kg | | | | Box Dimensions (LxWxH) | 15.7 x 1.4 x 1.4" |
