User Manual for Westcott Strobelite Plus Monolight Click to enlarge the picture
Contents of the user manual for the Westcott Strobelite Plus Monolight
- Product category: Monolights Westcott
- Brand: Westcott
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Westcott Monolights
 |
User manual for the Westcott Strobelite Plus Monolight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Westcott product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Westcott user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Westcott product will considerably shorten its lifespan!
|

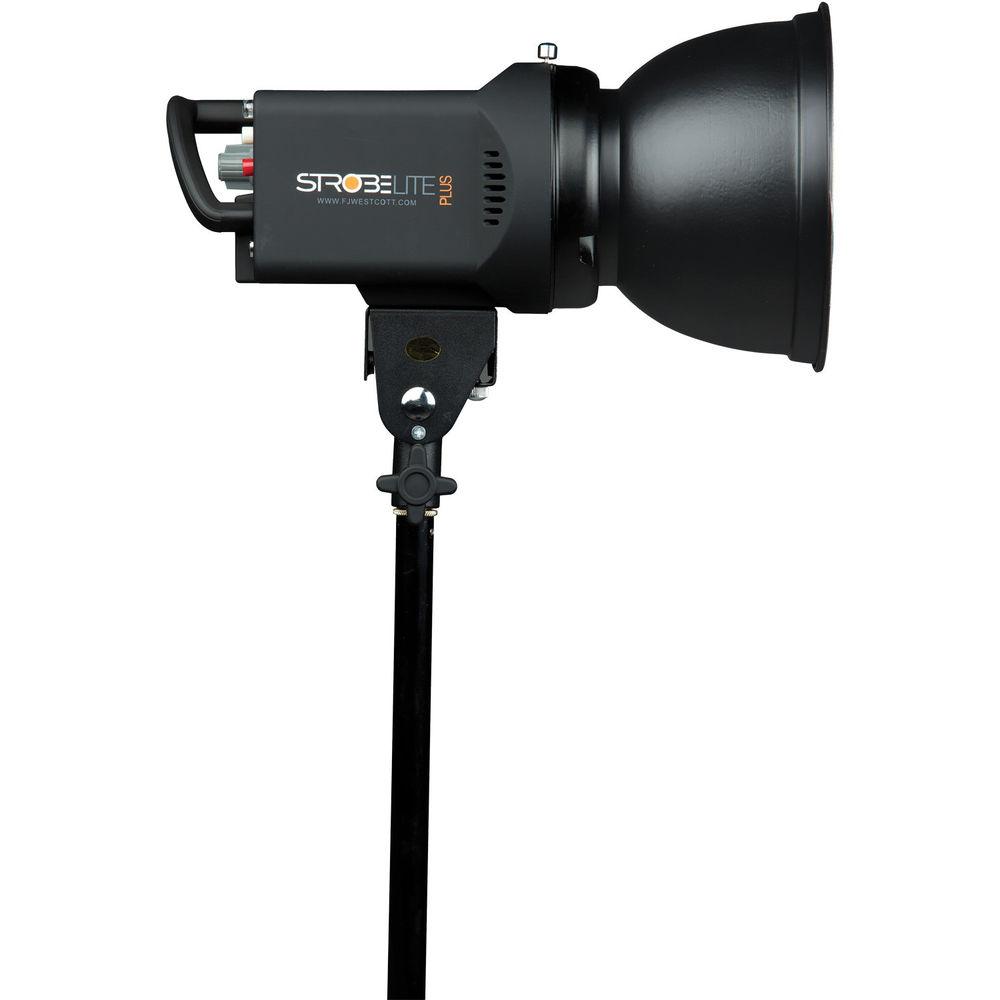

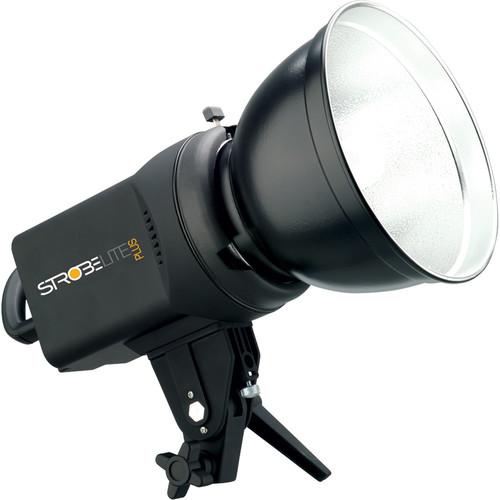

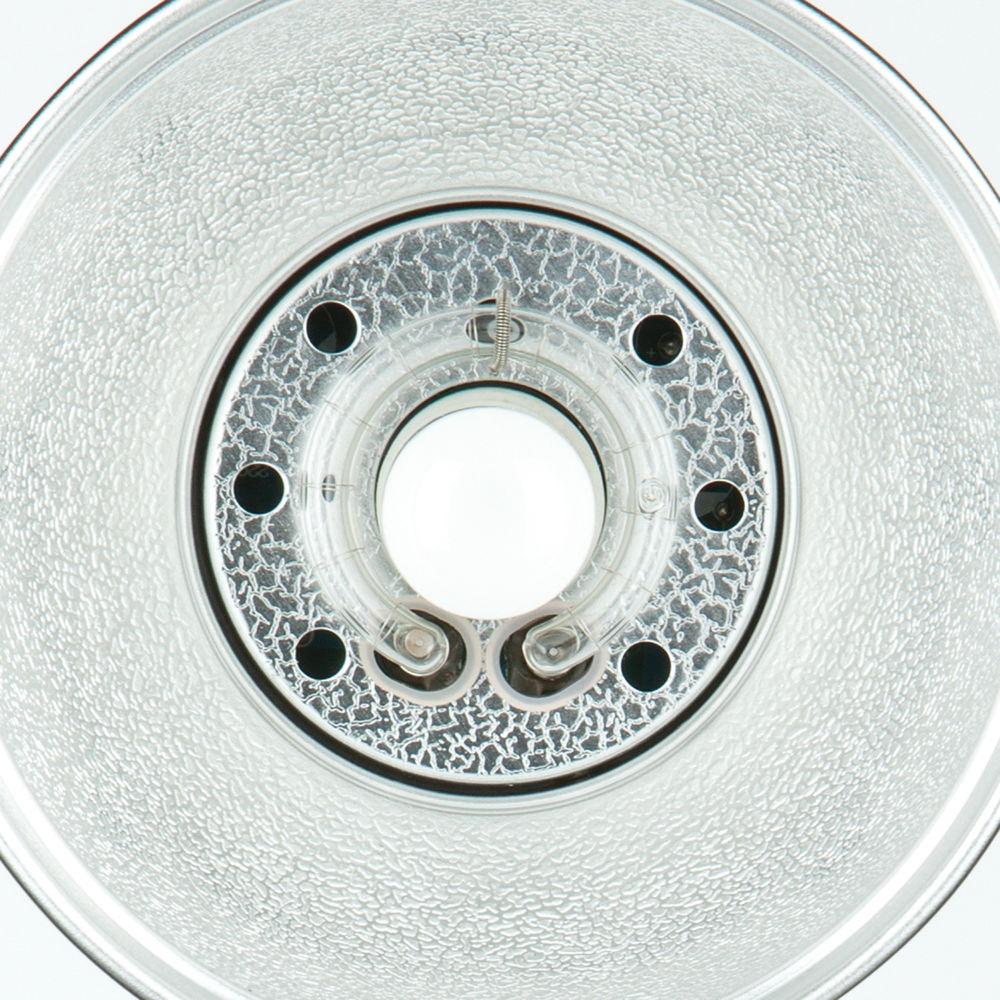

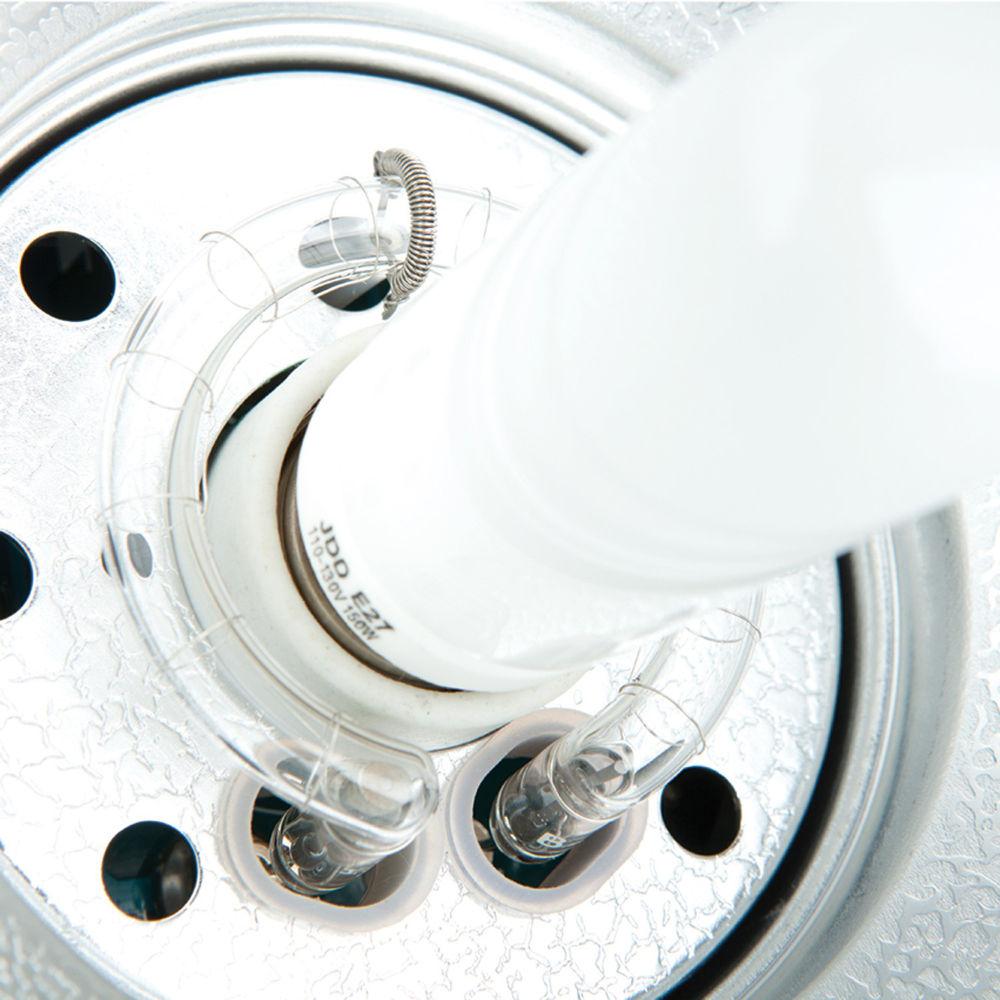

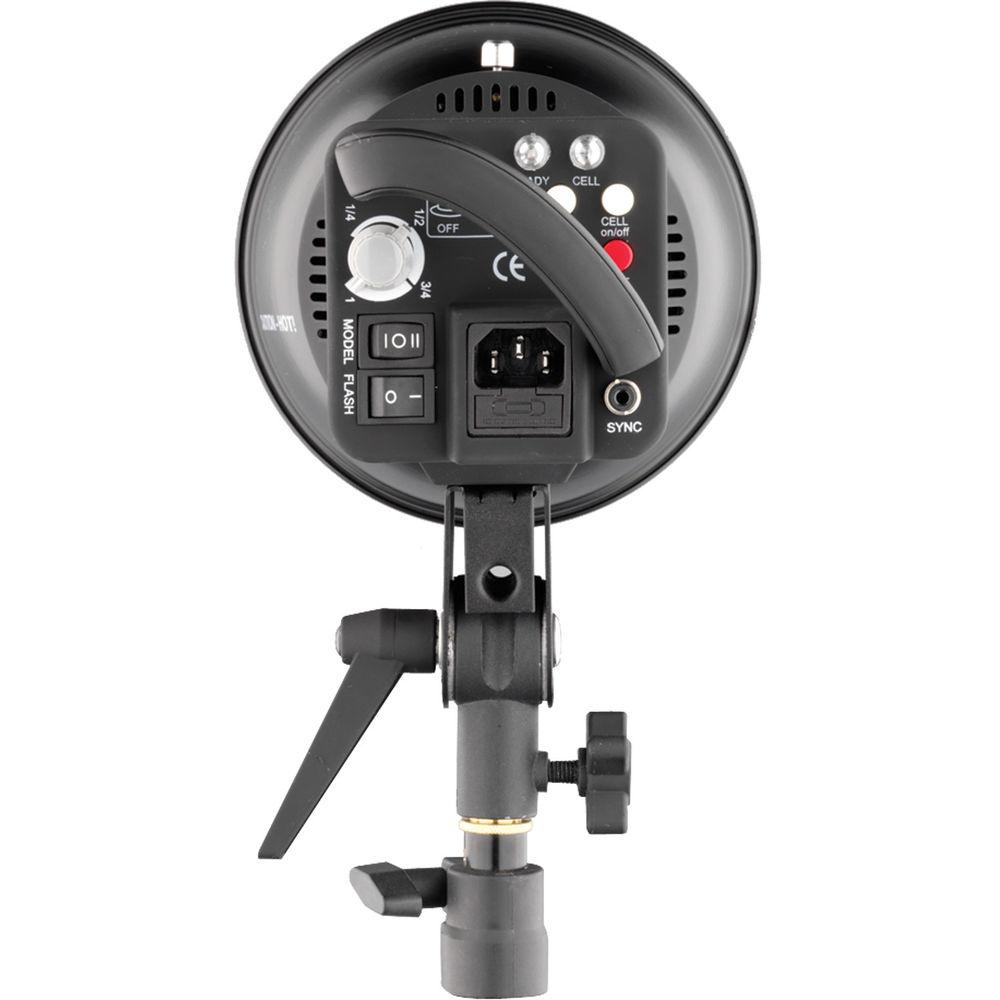

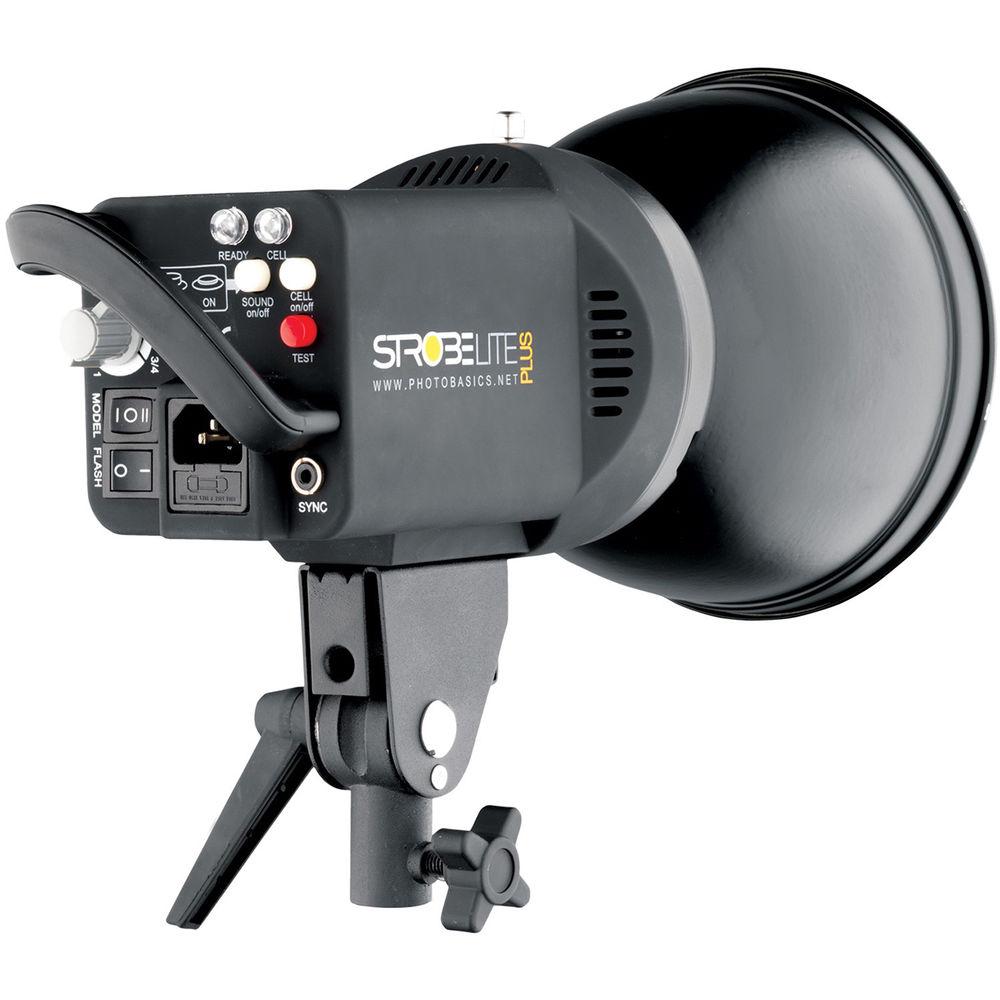

Product description The 200Ws Strobelite Plus Monolight from Westcott is a highly effective light source with core and convenience features usually found in flash heads twice its price. The flash recycles in 2 - 2.5 sec to offset waiting between shots, while flash duration is an action-stopping 1/3000 sec. Flash power is variable from 25 to 100% and the 150W modeling can be set to proportional to match the strobe power in use and allow you to preview the finished shot.The Strobelite Plus Monolight has a heavy-duty tilt bracket that not only supports umbrellas but can handle even the largest softboxes and light modifiers. An additional benefit is the Bowens S-Type front accessory mount, making the light compatible with reflectors and light modifiers available from the many manufacturers that employ this mount. The 15' power cord is removable from the body of the flash head making packing more space efficient. The Strobelite Plus Monolight ships with a reflector, protective cap and a sync cord. UPC: 017967112004 In the Box Westcott Strobelite Plus Monolight 200 W/s Flashtube (220 VAC) 150 W Modeling Lamp (220 VAC) Strobelite Plus Reflector Protective Cap Power Cord Sync Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Westcott Strobelite Plus Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWestcott Strobelite Plus Specs | | | Maximum Power | 200 Ws | | Flash Duration | 1/3000 Sec | | Recycle Time | 2.0 to 2.5 Sec () | | Flash Ready Indicator | Audio, Visual | | Reflector | Changeable | | Accessory Fitting Type | Bowens S Type | | | | Type | Tungsten | | Wattage | 150 W | | | | Sync Type | Infrared, Optical | | Interface | PC Sync (3.5 mm) | | | | AC Input Voltage | 220 VAC50 Hz | | | | Display | None | | Mount | 5/8" / 16 mm Receptacle | | Auto Dump | Yes | | Fan Cooled | No | | Dimensions | H: 15.0 x W: 4.5 x L: 12.5" / H: 38.0 x W: 11.4 x L: 31.8 cm | | Weight | 4.0 lb / 1.8 kg | | | | Package Weight | 7.05 lb | | Box Dimensions (LxWxH) | 21.8 x 10.7 x 6.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
