User Manual for Westcott Strobelite Plus Three Monolight Kit Click to enlarge the picture
Contents of the user manual for the Westcott Strobelite Plus Three Monolight Kit
- Product category: Monolights Westcott
- Brand: Westcott
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Westcott Monolights
 |
User manual for the Westcott Strobelite Plus Three Monolight Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Westcott product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Westcott user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Westcott product will considerably shorten its lifespan!
|

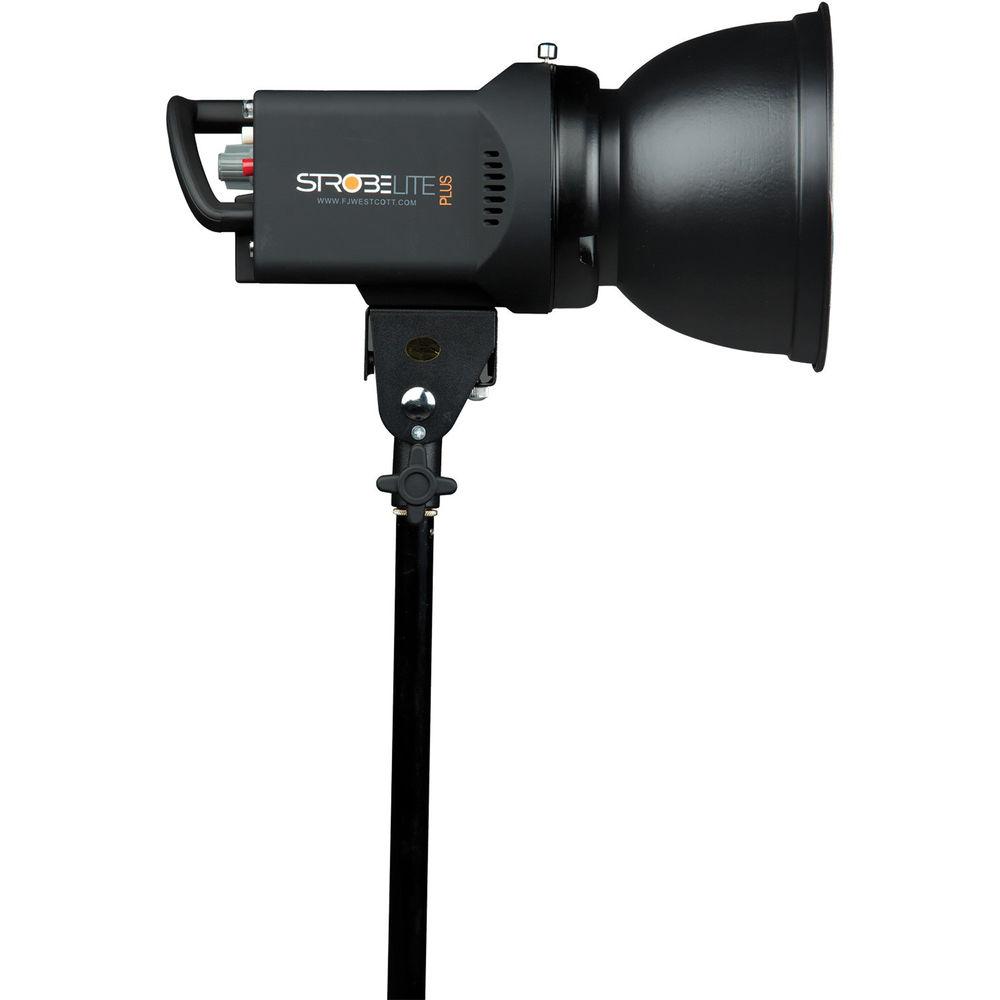

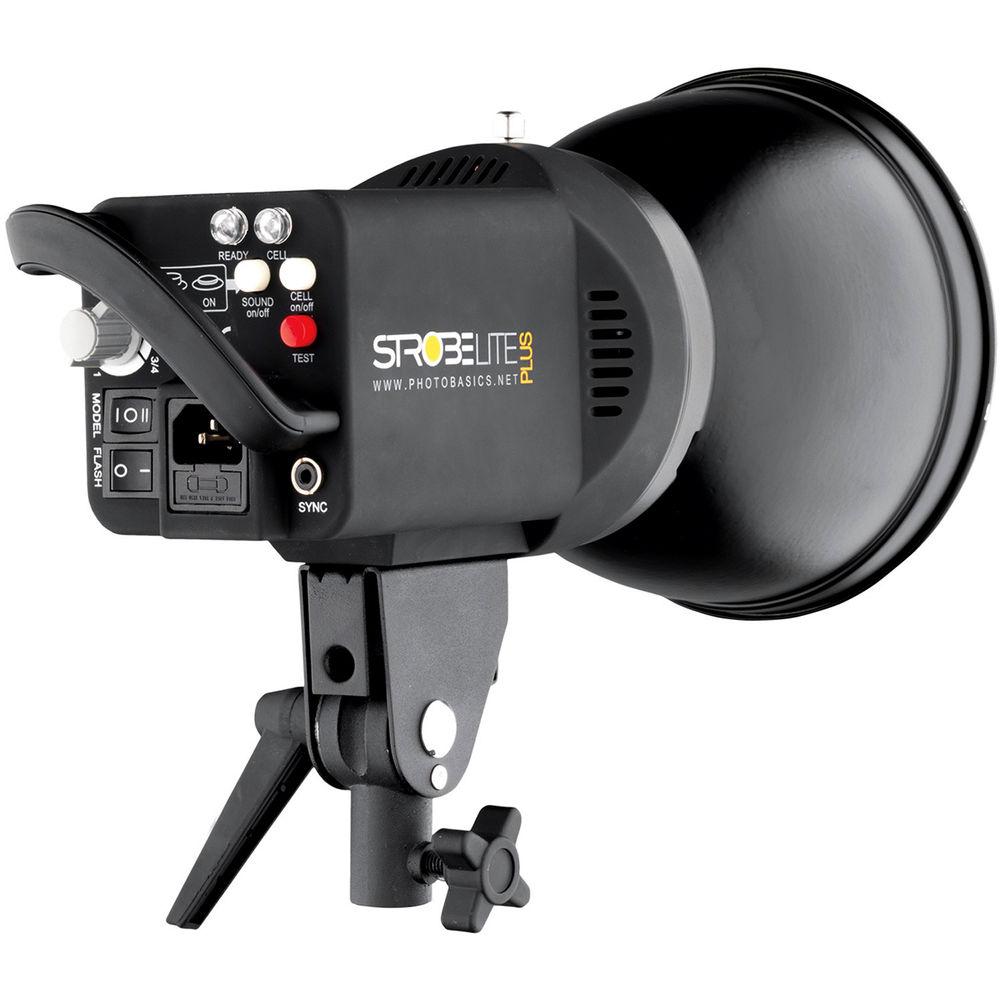

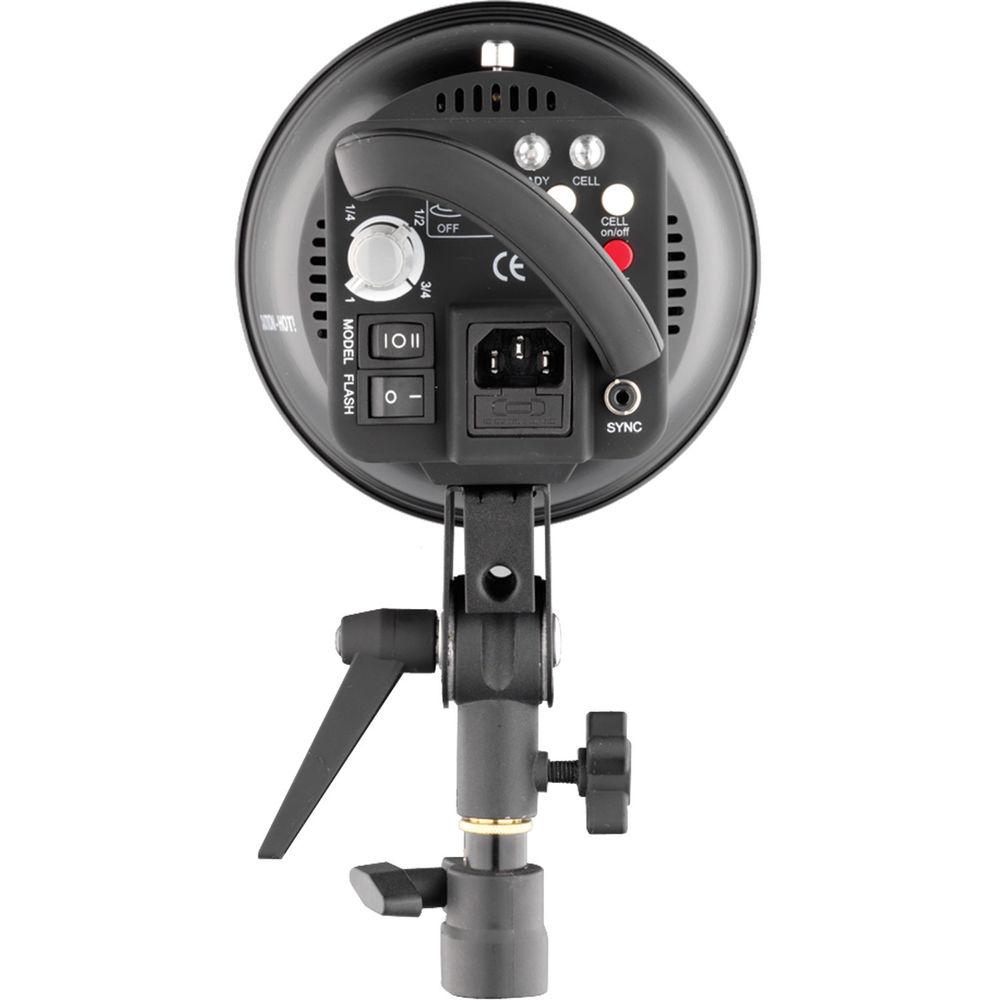

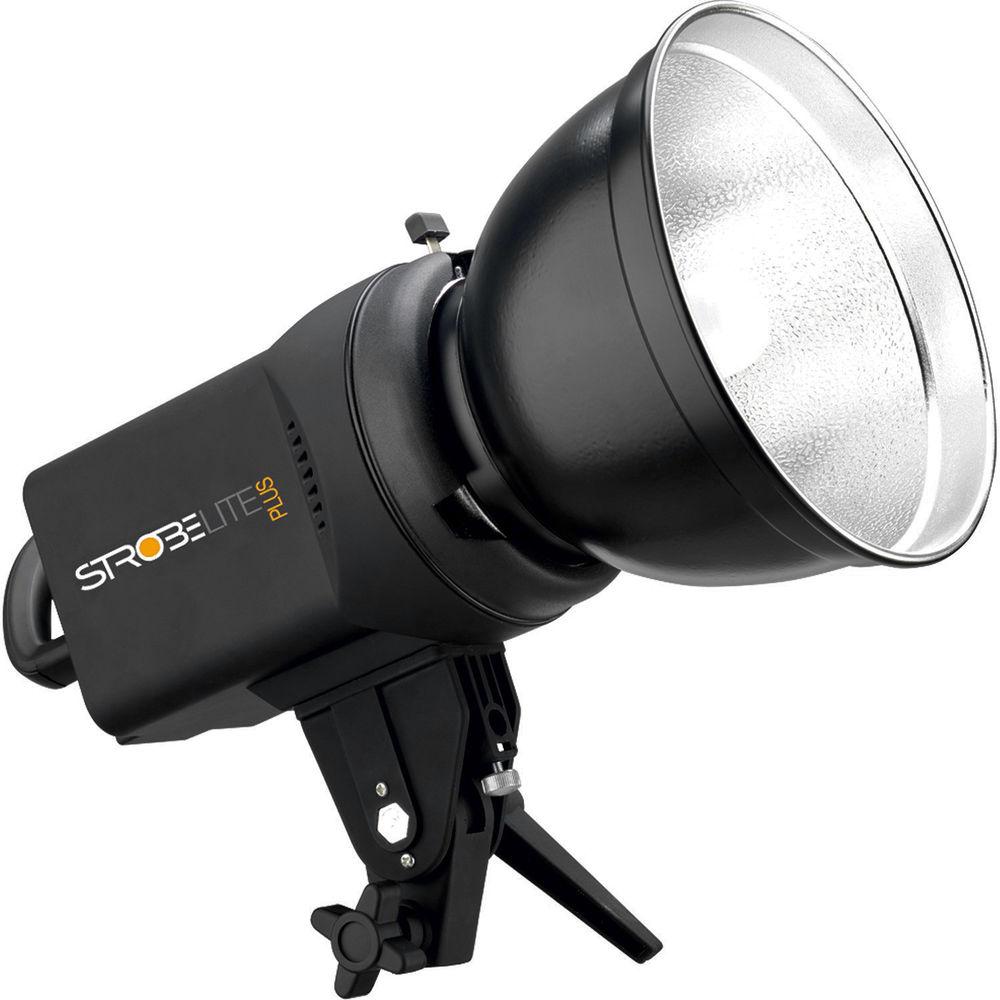

Product description This is a Westcott Strobelite Plus Three Monolight Kit. The Strobelite Plus is a 200Ws monolight. It is lightweight, inexpensive, and includes a modeling light for ease of composition. This 600Ws kit is supplied with two 24 x 32" softboxes with adapter rings, 8.5' light stands, a wheeled kit case, mini to PC sync cord, floor-positioning mat, and educational DVD. Strobelite Plus - Optical Slave
-
- Built-in optical slave "sees" the light fired from other strobes, fires the unit instantly.
- This feature may be switched off.
- Auto Dump
- Saves you from firing the strobe to discharge energy when switching to a lower power setting.
- Lightweight
- Polycarbonate housing -- each monolight weighs less than 3.5 lb / 1.6 kg.

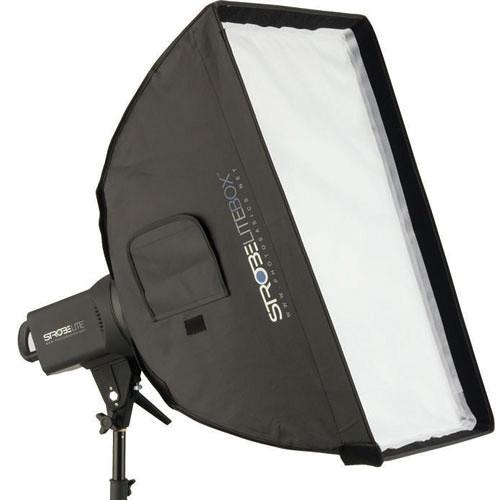

Accessories - Softboxes
- Two 24 x 32" / 61 x 81cm silver-interior softboxes with adapter rings make the most efficient use of the light emitted from each monolight, providing soft, intense, yet even light.
- Light Stands
-
- Support the monolights to a maximum height of 8.5' / 2.5 m
- Fold to 27.5" / 70 cm.
- Kit Case
-
- Deluxe Wheeled Case is easy to maneuver
- Padded, with interior dividers
- Includes hand and shoulder straps
- Guide
-
- DVD has how-to instructions for lighting

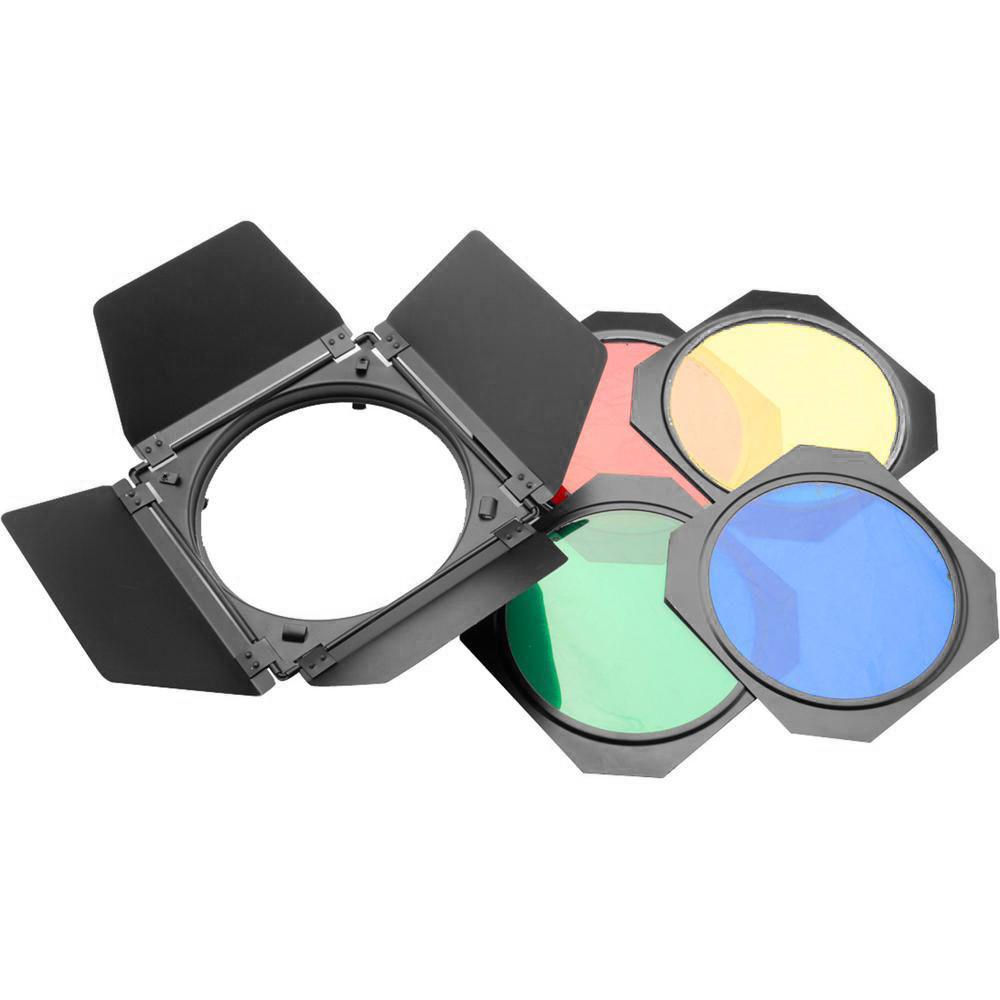

UPC: 817967002318 In the Box Westcott Strobelite Plus Three Monolight Kit (120VAC) 3 x Strobelite Plus Monolight Deluxe Carry Case with Wheels (Black) Barndoor, Grid, and Gel Set for Strobelite 2 x Photo Basics Softbox - 24x32" (61x81cm) DVD: Digital Lighting Series (Volume 1) by Claude Jodoin 2 x 8.5' Light Stands Backlight Stand (#751) Mini (1/8") to PC Sync Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Westcott Strobelite Plus Three Monolight Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

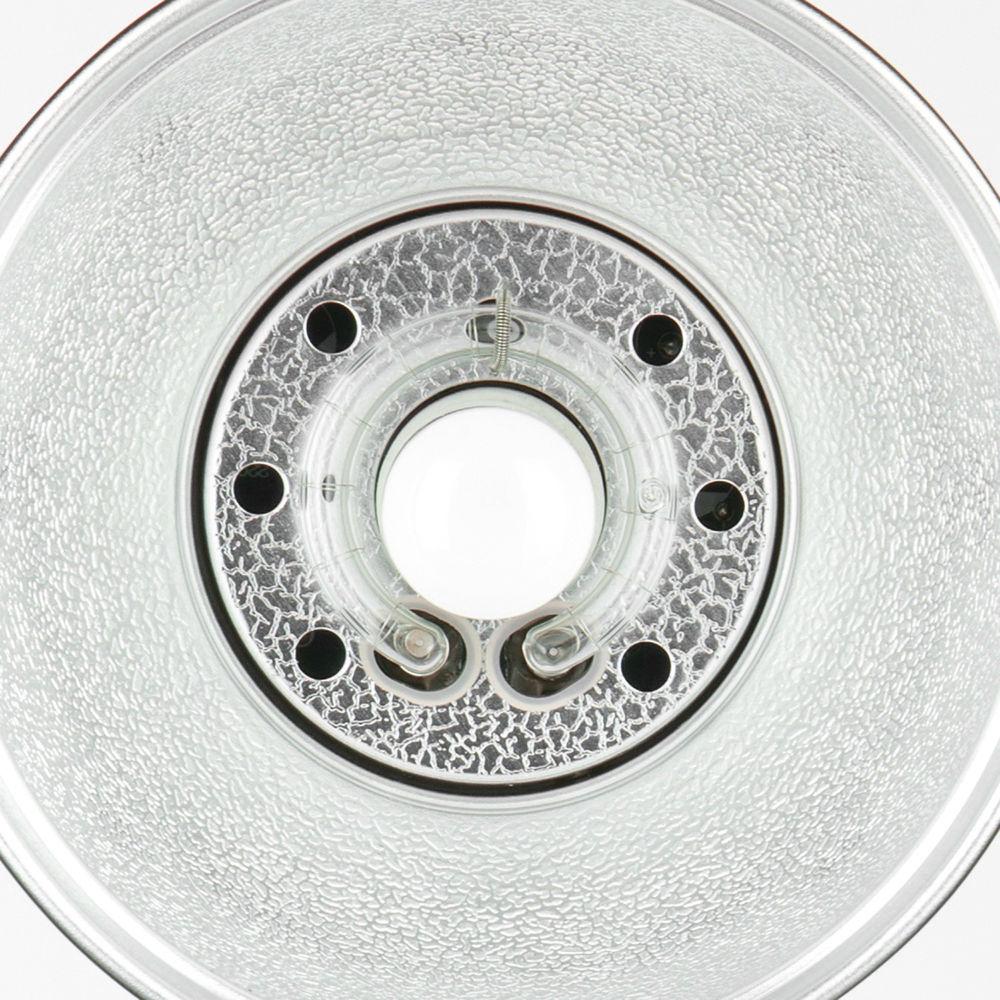

Technical parametersWestcott Strobelite Plus Specs | | | Maximum Power | 200 Ws | | Power Control | 3 Stops | | Guide Number | 135' / 41.1 m at | | Flash Duration | 1/3000 to 1/1000 Sec | | Recycle Time | 2.5 Sec (Full Power) | | Flash Ready Indicator | Audio, Visual | | Reflector | 7.0" / 17.8 cm Changeable | | Accessory Fitting Type | Bowens S Type | | | | Type | Tungsten | | Wattage | 100 W | | | | Sync Type | Optical | | Interface | PC Sync (3.5 mm) | | | | AC Input Voltage | 110to120 VAC, 60 Hz | | | | Display | None | | Auto Dump | Yes | | Fan Cooled | No | | Weight | 3.7 lb / 1.7 kg | | | | Package Weight | 54.0 lb | | Box Dimensions (LxWxH) | 37.0 x 17.0 x 16.0" |
