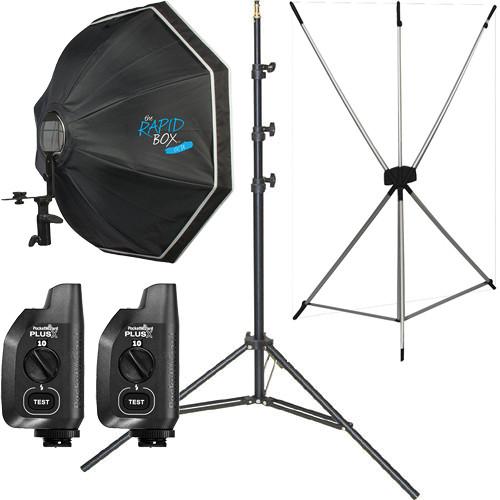

User Manual for Westcott Terry White Travel Portrait Lighting Kit

• Product category: Softboxes Westcott
• Brand: Westcott
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Westcott Softboxes

Product description

• Westcott Rapid Box - 26" Octa Softbox
  • Product Demo
  The Westcott Rapid Box - 26" Octa Softbox lives up to its name by providing a soft quality of light for your shoe-mount flash and by setting up and breaking down in a fraction of the time as most competitors. The box comes complete with a tilting 5/8" receiver stand mount/shoe mount/speed ring combo that disengages quickly from the box allowing it to close like an umbrella. The 1.0 stop diffusion front face is removable revealing a highly reflective, high-output silver interior. You can soften the light further and defeat hotspots with the separate purchase of the optional 2030-DP Deflector Plate (BH # WE2030DP).
  Robust and Durable
  • The Rapid Box's poles and speed ring are constructed from solid aluminum to minimize weight yet retain durability.
  Quick Setup and Tear Down
  • The Rapid Box opens and closes like an umbrella. No support rods or adapter ring needed. Everything is compact and easy to use.
  Sleek and Compact
  • With a shallow depth, the Rapid Box works in virtually any lighting situation. No matter which box you choose. The Rapid Box series is always compact.
  Soft Even Lighting
  • A screw-in reflector plate will minimize any hot spot. The front diffusion material is the same quality as found on Westcott's current high-quality soft boxes.
  Fully Adjustable Stand Bracket
  • The height and depth are adjustable and compatible with virtually all shoe-mounted flashes.
  Utilize Your Speedlite Without the Need for Radio Triggers
  • External speedlight placement allows firing via built-in slaves and/or IR line-of-site.
  Carry Case Included
  • Durable carry case with shoulder strap is included for simple transportation and storage.
  UPC: 817967003612
• Westcott X-Drop Kit (5 x 7', White)
  • Product Demo
  The 5 x 7' white X-Drop Background System from Westcott is a lightweight package that is good for travel. This kit can be used for headshots, product photography, weddings or general commercial photography in the studio or on location. The 100% polyester fabric comes with grommet holes on the top and bottom, making for easy hanging and eliminating the need to establish a top or bottom orientation. When it gets dirty, it's readily machine washable in cold water and tumble dried on "low".The background support stand contains telescoping arms and legs and is characterized by quick setup and tear down capability. It's lightweight and will hold the fabric taut. The expandable carrying case is capable of holding the X-Drop System as well as up to three backdrops.
  • Telescopic arms and legs on the stand make it easy to set up and tear down
  • The included expandable carrying case holds the X-Drop System and up to three backdrops
  • The wrinkle-resistant, 100% polyester fabric is easy to use and hangs tautly
  • Fabric is machine washable in cold water and can be tumble-dried on "low"
  • Grommets on top and bottom make for rapid hanging and eliminate the need for worrying about orientation
  UPC: 817967002172
• Impact Air-Cushioned Light Stand (Black, 8')
  • Product Demo
  This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
  Air Cushioned
  • Protects equipment from impact damage.
  Compact Design
  • Will fit easily into most location cases.
  Accepts Casters
  • Eases positioning of heavy lights.
  • Available as accessories.
  UPC: 847628012349
• 2 x PocketWizard PlusX Transceiver
  • Product Demo
  The PocketWizard PlusX Transceiver is a versatile radio trigger that features a wealth of functionality within a simple-to-use and intuitive design. This transceiver offers 10 standard channels from which to use, and navigation between these channels is easily controlled by a backlit channel dial. These 10 channels are fully backward-compatible with all other PocketWizard radios and PocketWizard-enabled devices for maximum efficiency with existing radio setups. Contributing to its functional abilities, the PlusX also features intelligent Auto-Sensing technology, which allows the device to instantly fluctuate between transmitter and receiver duties. Auto-relay is also supported in order to promote a completely remote workflow.

  The PlusX design revolves around an internal antenna and side-profile design that contribute to overall durability and a streamlined appearance. This minimal design aesthetic is also benefitted by the simplified connection strategies that allow the radio to be fully functional when attached to a camera's hot shoe, without any cabled connections required. For attaching to remotes and external lights, a 3.5mm miniphone socket is available and three cables are included to offer an array of popular connection types.
  10 Standard Channels
  • The PlusX features 10 standard channels for use to provide greater availability when working amongst other photographers or for greater control over complex lighting situations. These channels are compatible with all other PocketWizard of the same frequency.
  Backlit Channel Dial and Status Indicator
  • An analog dial is used to quickly and easily switch between the 10 available channels. A full-time amber backlight is used to illuminate the selected channel for convenience and greater visibility when working in dimly-lit conditions. A tri-color LED is also incorporated into the design and provides a visual means for gauging the PlusX battery life when it is sending or receiving a transmission.
  Internal Antenna
  • The internal antenna provides greater durability and eliminates the possibility or bending or breaking it during use. It also produces a more streamlined appearance when in use, and corresponds well to the side-profile design to create an overall visually unobtrusive look.
  Simplified Connectivity
  • The transceiver is easily attached to most cameras through the hot shoe, with no extraneous cables required. For attaching to remotes and lights, there is an all-in-one sync port for wide compatibility. Cables are included for attaching from miniphone-to-miniphone, miniphone-to-phono, and miniphone-to-PC sync for cameras without a hot shoe. It is also compatible with all PocketWizard transmitters and receivers (of the same frequency) as well as PocketWizard-enabled lighting and metering equipment.
  Auto-Sensing Transceiver
  • The PlusX is automatically set to intelligently and instantly switch between transmitter and receiver modes for the greatest amount of flexibility. You can also manually override this function and choose to have it act as a dedicated transmitter only, which will cancel its ability to receive or relay signals.
  Auto-Relay Mode
  • When using three PocketWizard radios, you can remotely trigger a camera to fire and trigger a flash simultaneously. Utilizing the Auto-Sensing technology, the transceiver mounted to the camera can instantly receive a signal from an auxiliary transceiver, and then instantly convey the transmission to a remote flash. This provides a simple and highly efficient remote workflow.
  Range and Sync Speed
  • When used in ideal conditions, this transceiver is capable of producing and receiving a signal up to 1600' away. It supports sync speeds up to 1/250 sec. with focal plane shutters and 1/500 sec. with leaf shutters with a maximum triggering speed up to 14.5fps.
  Important Information
  • Units sold in USA use 344.0 MHz for channels 1-16, and 346.5-354.0 MHz for channels 17-32
  • Units sold in Europe use 433.62 MHz for channels 1-16, and 434.22 for channels 17-32
  • USA and Euro models cannot converse with each other
  • USA models may interfere with devices in Europe
  UPC: 893577001958

• Rapid Box - 26" Octa Softbox ssvuwdwwdyxyeyvca
• Rapid Box Skin
• Diffusion Panel (1 Stop)
• Adjustable Shoe Mount Tilter and Swivel Bracket
• Compact Carry Case
• Limited 1-Year Warranty

• X-Drop Kit (5 x 7', White)

• Impact - Air-Cushioned Light Stand (Black, 8')

• 2 x PocketWizard - PlusX Transceiver

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Westcott Rapid Box - 26" Octa Softbox

  Shape	Octagon
  Interior	Silver
  Requires Speed Ring	Yes, Included
  Accepts Grids	No
  Removable Front Face	Yes
  Removable Interior Baffle	No
