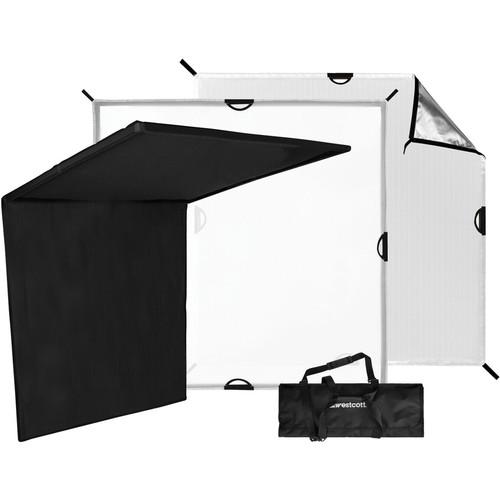

Product description A versatile light modification kit designed for multiple purposes and portability, Westcott's theC47 DP Kit includes the framework to construct a 4 x 4' Scrim Jim Cine frame and three fabrics to block, flag, diffuse, and bounce various light sources. Created in collaboration with Jem Schofield, founder of the popular filmmaking educational site, theC47, this kit is designed for run-and-gun filmmakers and other on-the-go cinematographers as a portable, yet customizable light control setup. - Scrim Jim Cine Frame Tube (22") The integral component within a modular system, this 22" long Scrim Jim Cine Frame Tube from Westcott is used to construct customized panels in sizes ranging from 1 x 1' to 8 x 8'. When paired with optional fabrics, such as silks or diffusers, frame tubes form the rigid support from which fabrics are attached to create flags, diffusion panels, book lights, v-flats, or numerous other light controlling tools.

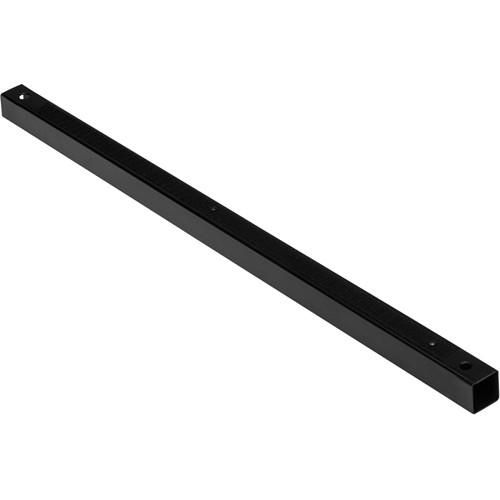

This tube is constructed from anodized aluminum alloy and heavy-duty hook-and-loop tape is riveted to two sides of the tube for attaching fabrics. A 3/8"-16 threaded mount is incorporated into the tube for mounting atop stands and additional dedicated self-locking connectors are used to combine several pieces of tube to create flat 2D frames or dynamic 3D light shaping tools. - Tube measures 22" long and can be added to additional tubes through the use of dedicated, self-locking connectors.
- Anodized aluminum-alloy construction and self-locking connectors both help to maintain rigid, reliable frame configurations in various sizes up to 8 x 8'.
- Hook-and-loop tape is riveted onto two sides of the tube and is used for attaching a variety of fabric types to the frame system.
- A 3/8"-16 mount is incorporated into the tube's design for mounting to stands or other accessories.

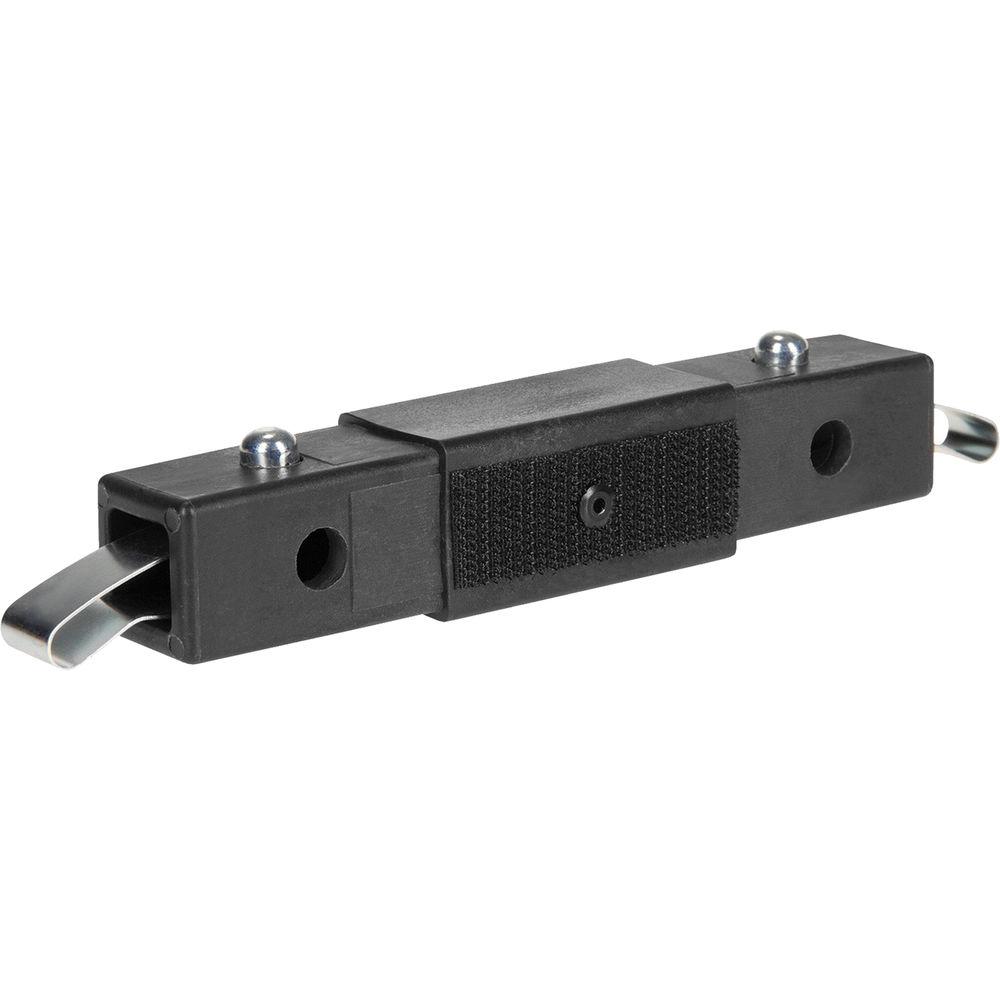

UPC: 817967011884 - Scrim Jim Cine 2" Straight Frame Connector Integral to the versatile and modular system design, this Scrim Jim Cine 2" Straight Frame Connector from Westcott is used to connect any two Scrim Jim Cine frame tubes for creating a longer straight frame tube segment. A built-in positive locking button ensures a secure connection with the frame tube and its durable construction helps to maintain rigidity throughout long shoots and day-to-day use. UPC: 817967011907

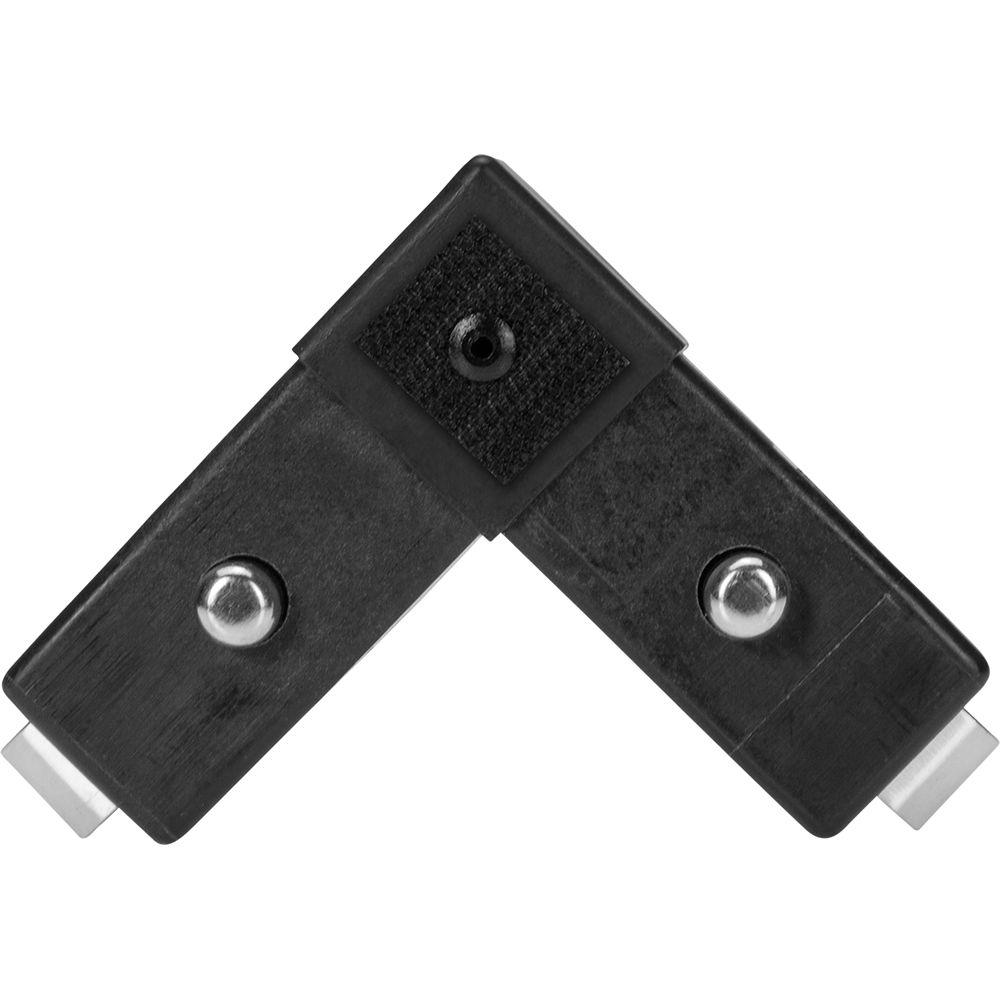

- Scrim Jim Cine 2D Corner Frame Connector Integral to the versatile and modular system design, this Scrim Jim Cine 2D Corner Frame Connector from Westcott is used to connect any two Scrim Jim Cine frame tubes at a corner for making a 2D panel, reflector, flag, or other flat light modifier. A built-in positive locking button ensures a secure connection with the frame tube and its durable construction helps to maintain rigidity throughout long shoots and day-to-day use. UPC: 817967011914

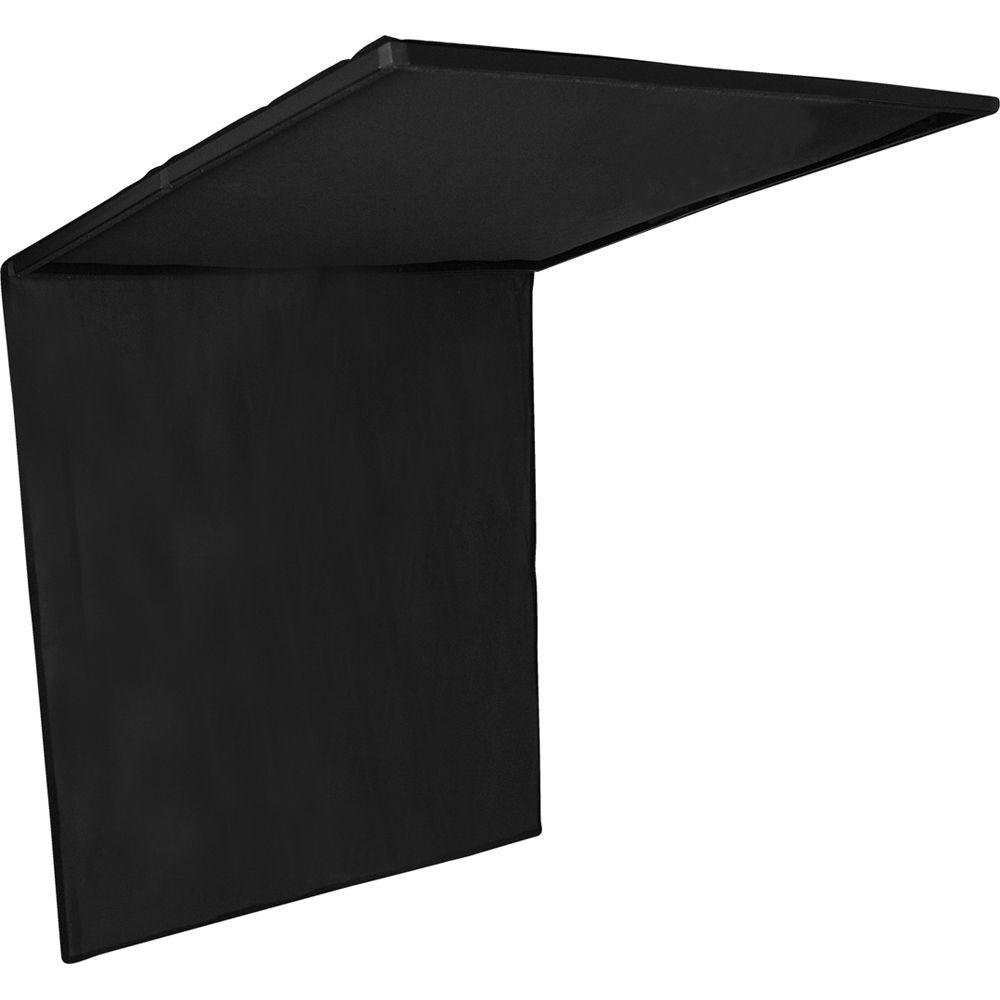

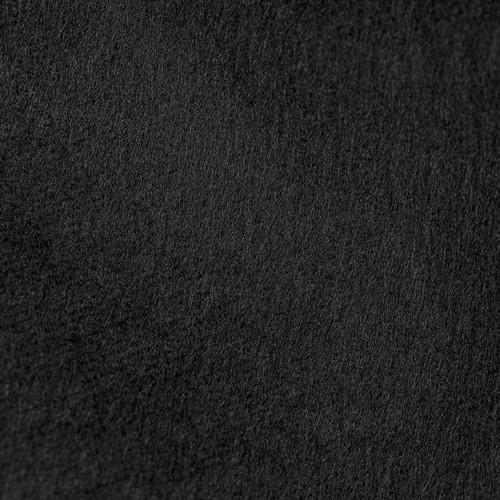

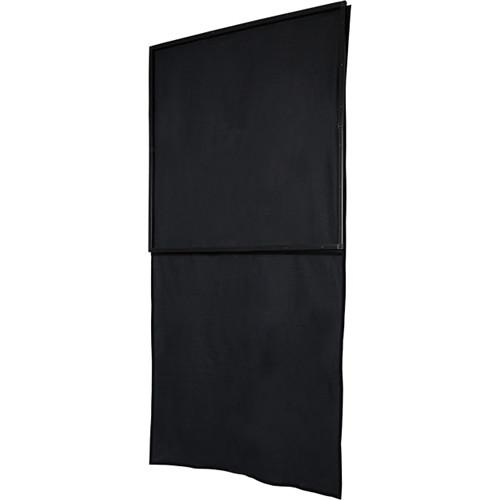

- Scrim Jim Cine Floppy Cutter Fabric (4 x 8') A versatile tool for controlling, directing, and blocking light, the Scrim Jim Cine Floppy Cutter Fabric from Westcott is compatible with 4 x 4' Scrim Jim Cine frames and features a double-layered construction that unfolds to an overall 4 x 8' size. A heavy-duty touch fastener allows for quick setup and installation with the frame, and also allows you to secure the loose fabric when using as a 4 x 4' flag. The opaque, nearly reflection-free black surface can be used to block ambient light in order to create shadows on your scene or subject. It is also suitable for flagging artificial lighting, preventing light spill, and can be used as a barndoor for larger light sources.
- Opaque matte black fabric helps to control light, prevent light spill, and create shadows on a scene or subject.
- Suitable for use as a flag or barndoor for larger light sources.
- Double-layered design can be unfolded to reveal a 4 x 8' fabric, with 4 x 4' of loose fabric, or folded and secured for use as a 4 x 4' flag.
- Touch fastener lining secures loose fabric and permits quick installation and removal from 4 x 4' Scrim Jim Cine frames.
- Duvetyn fabric is also fire-resistant.

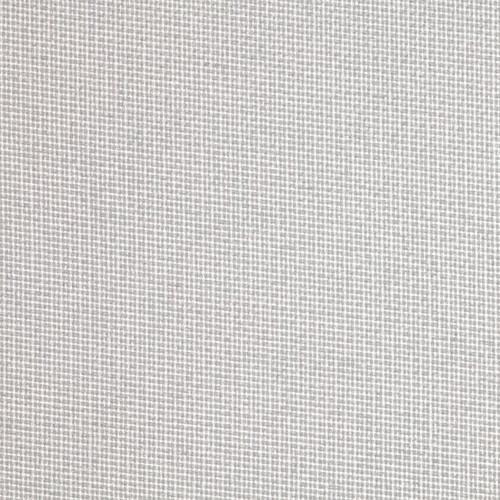

UPC: 817967012607 - Scrim Jim Cine Full-Stop Diffuser Fabric (4 x 4') Allowing you to soften ambient and artificial light sources, this Scrim Jim Cine Full-Stop Diffuser Fabric from Westcott is compatible with 4 x 4' Scrim Jim Cine frames and features a heavy-duty touch fastener lining for quick setup and convenient portability. Constructed from nylon and silk fabrics, this diffusion does not affect the color temperature of light sources and helps to maintain natural-looking skin tones. As part of a modular system, this fabric is an ideal light control tool for a variety of both studio and on-location applications.
- This plain diffuser cloth is suitable for both artificial and ambient light sources and is ideal for overhead use, to soften harsh sunlight, or to place in front of a main light source for broad diffusion.
- Provides a full stop reduction in light output.
- Touch fastener lining permits quick installation and removal from 4 x 4' Scrim Jim Cine frames.

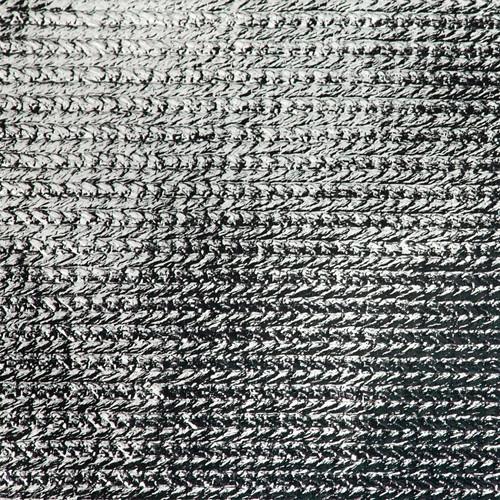

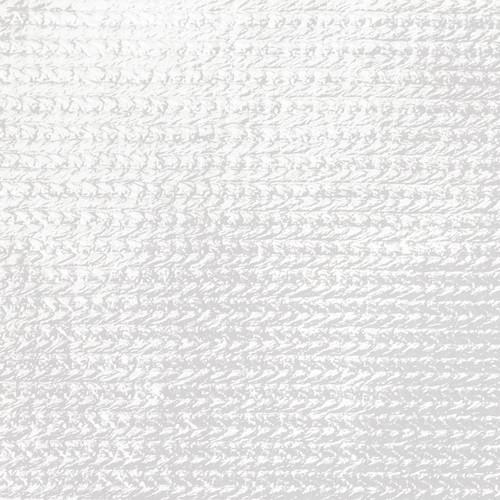

UPC: 817967012119 - Scrim Jim Cine Silver/White Bounce Fabric (4 x 4') A versatile two-sided reflective fabric, the Scrim Jim Cine Silver/White Bounce Fabric from Westcott is compatible with 4 x 4' Scrim Jim Cine frames and features a heavy-duty touch fastener lining for quick setup and convenient portability. This reversible fabric has both bright, cool silver and neutral white reflective sides, allowing you to quickly switch between applications. The silver bounce side adds bright, specular highlights and an overall cooling quality while the white side produces soft, natural looking highlights.
- Reversible fabric features a reflective silver side and a neutral white side.
- Silver side produces cool, bright highlights with a distinct specular quality.
- White side offers natural color rendition with bright, clean highlights.
- Touch fastener lining permits quick installation and removal from 4 x 4' Scrim Jim Cine frames.
UPC: 817967012515 In the Box Bundle Items 8 x Scrim Jim Cine Frame Tube (22") crxvrudydycatweu 4 x Scrim Jim Cine 2" Straight Frame Connector 4 x Scrim Jim Cine 2D Corner Frame Connector Scrim Jim Cine Floppy Cutter Fabric (4 x 8') Scrim Jim Cine Full-Stop Diffuser Fabric (4 x 4') Scrim Jim Cine Silver/White Bounce Fabric (4 x 4')
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Westcott theC47 DP Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Scrim Jim Cine Frame Tube (22")
| Construction | Anodized aluminum, hook-and-loop tape on two sides | | Attachment Method | Integrated 3/8"-16 threaded mount
Compatible with self-locking connectors for building complete frame | | Dimensions | 22 x 1 x 1" / 55.9 x 2.5 x 2.5 cm | | Weight | 7.1 oz / 200 g | | | | Box Dimensions (LxWxH) | 21.6 x 1.4 x 1.2" | - Scrim Jim Cine 2" Straight Frame Connector
| Dimensions | 5.1 x 1 x 1" / 12.9 x 2.5 x 2.5 cm | | Weight | 3.5 oz / 100 g | | | | Box Dimensions (LxWxH) | 8.2 x 3.55 x 2.25" | - Scrim Jim Cine 2D Corner Frame Connector
| Dimensions | 2.75 x 2.75 x 1.1" / 7.0 x 7.0 x 2.9 cm | | Weight | 1.6 oz / 45.4 g | | | | Box Dimensions (LxWxH) | 8.7 x 1.25 x 1.2" | - Scrim Jim Cine Floppy Cutter Fabric (4 x 8')
| Type | Solid matte black blocking fabric | | Material | Duvetyn fabric | | Care & Cleaning | Spot clean by hand with non-bleach laundry detergent | | Dimensions | 4 x 8' / 1.2 x 2.4 m | | Weight | 1.5 lb / 700 g | | | | Box Dimensions (LxWxH) | 14.65 x 12.95 x 4.35" | - Scrim Jim Cine Full-Stop Diffuser Fabric (4 x 4')
| Type | Plain diffusion | | Diffusion Strength | Full-Stop | | Material | Nylon and silk fabrics | | Care & Cleaning | Spot clean by hand with non-bleach laundry detergent | | Dimensions | 4 x 4' / 1.2 x 1.2 m | | Weight | 7.1 oz / 200 g | | | | Box Dimensions (LxWxH) | 10.95 x 9.25 x 1.6" | - Scrim Jim Cine Silver/White Bounce Fabric (4 x 4')
| Type | Reversible; silver and white sides | | Material | Double-laminated cloth | | Care & Cleaning | Spot clean by hand with non-bleach laundry detergent | | Dimensions | 4 x 4' / 1.2 x 1.2 m | | Weight | 3.5 oz / 100 g | | | | Box Dimensions (LxWxH) | 10.9 x 9.2 x 1.3" |
