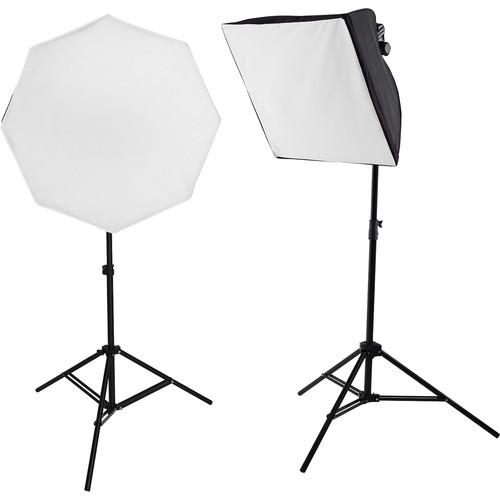

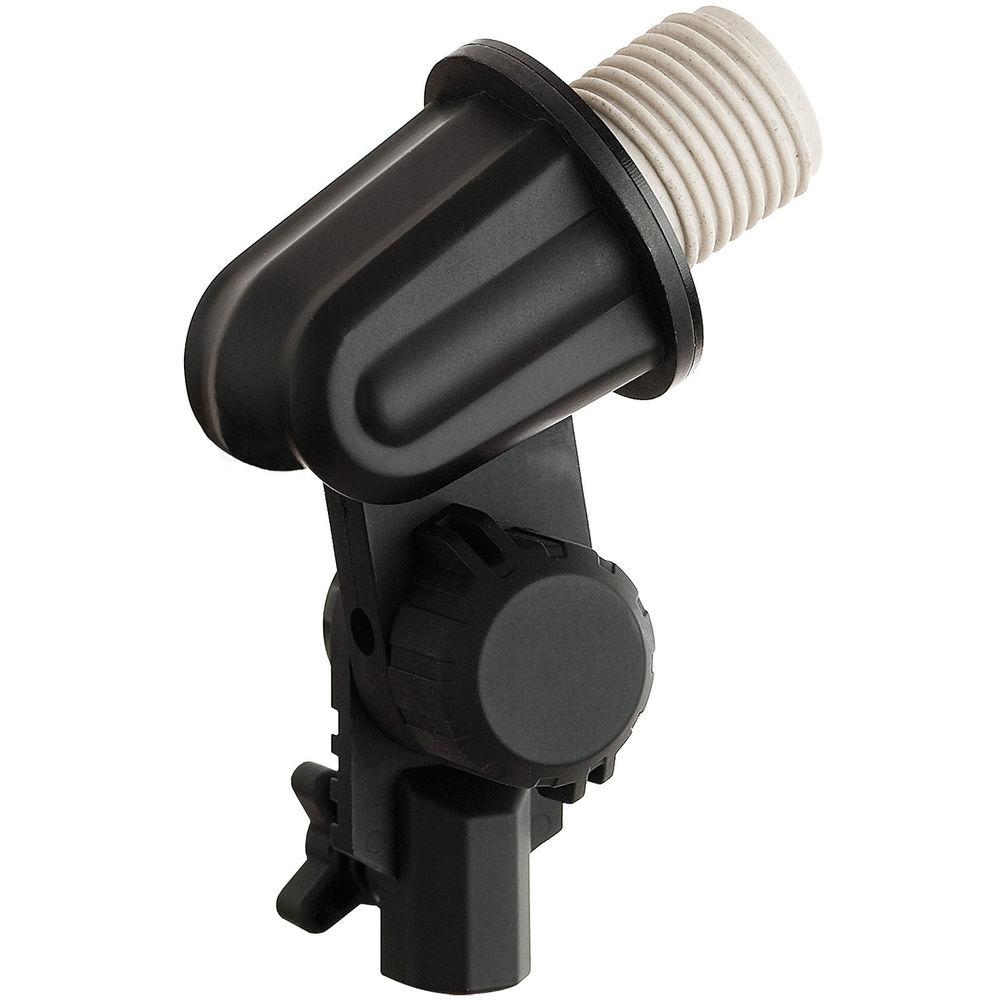

Product description Get the lighting you need to shoot beautiful portraits with this uLite LED 2-Light Collapsible Softbox Kit from Westcott. It bundles in two uLite 500W Edison-style fixtures with two 35W daylight LED bulbs with tungsten covers to provide highly accurate and efficient illumination for your models. Users can choose between both a 20 x 20" collapsible softbox or 26" collapsible octabox to get the exact look they desire. Additionally, two 6.5' light stands are included for support. - uLite Constant Light Fixture Only (120 VAC) The Westcott uLite Fixture is the basis for several Westcott Kits that add light shapers such as reflectors and softboxes. It is a basic ceramic Edison socket, swivel mount with a Baby (5/8") receptor for a light stand, and a 120 VAC power cord with switch. UPC: 817967010146

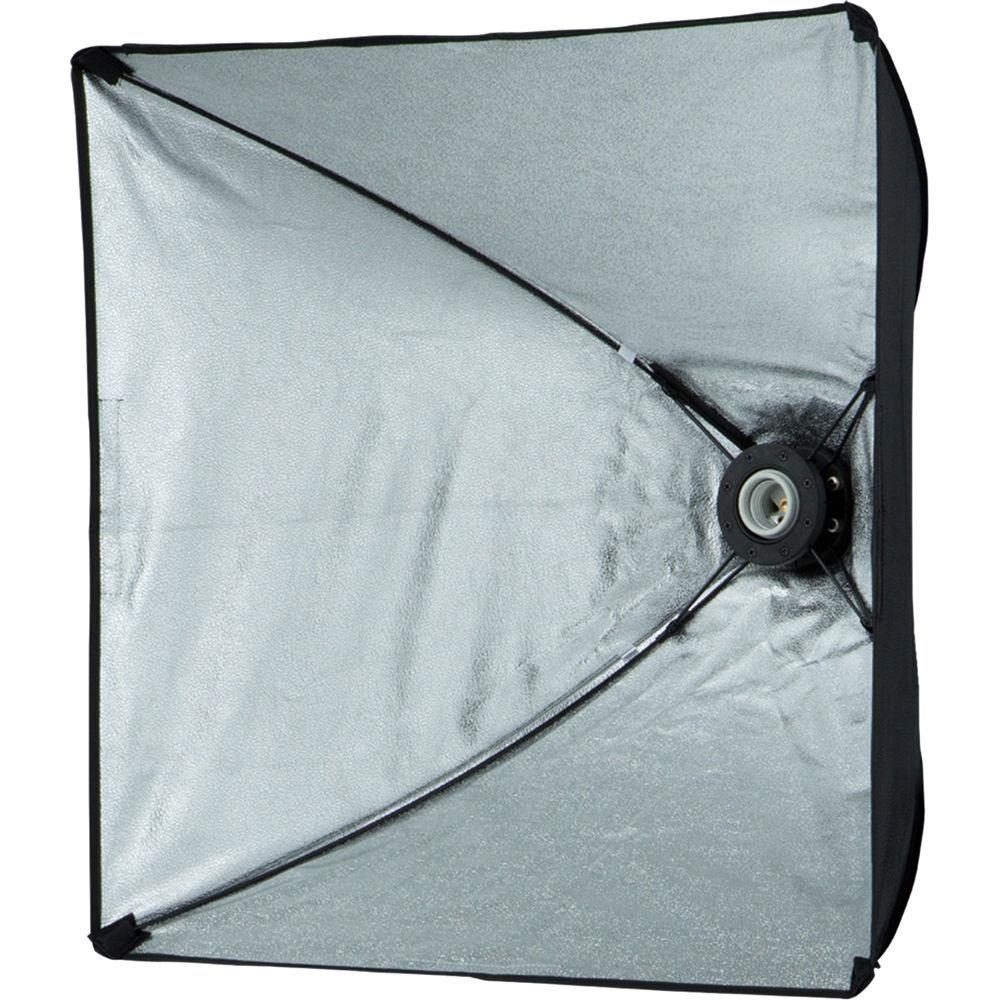

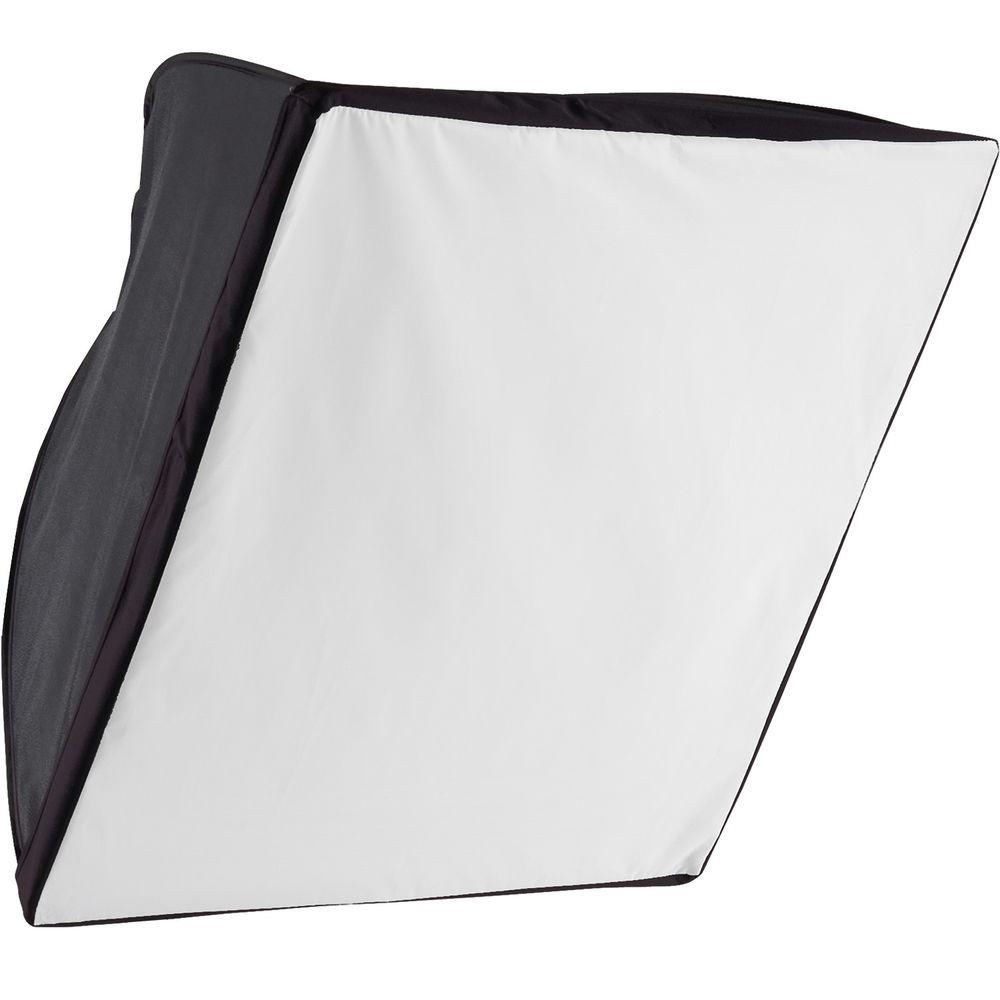

- uLite 20" Square Softbox (120VAC) This is a Westcott PhotoBasics uLite 20" Softbox. This 20" square collapsible softbox is designed specifically for the uLite fixture (available separately). It sets up in seconds.
- Provides pleasing soft light for portraits when used with the uLite (250 watts maximum)

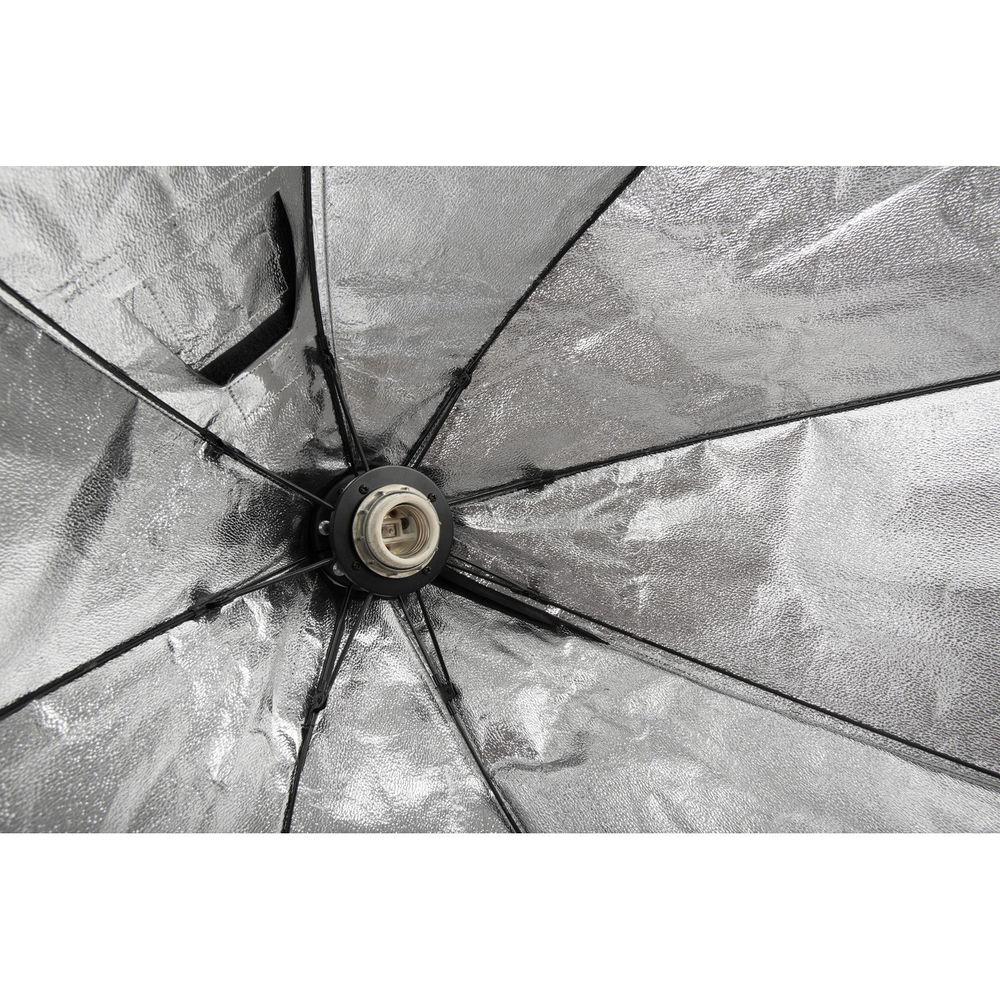

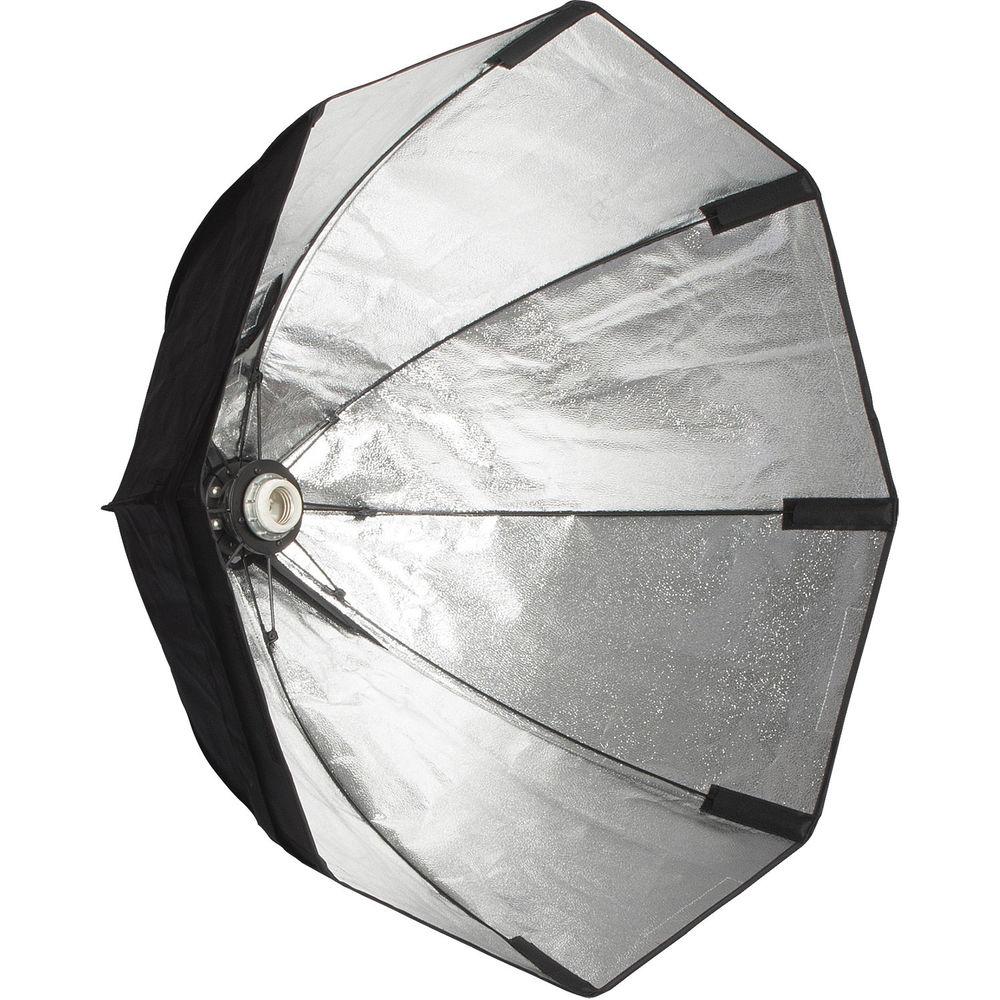

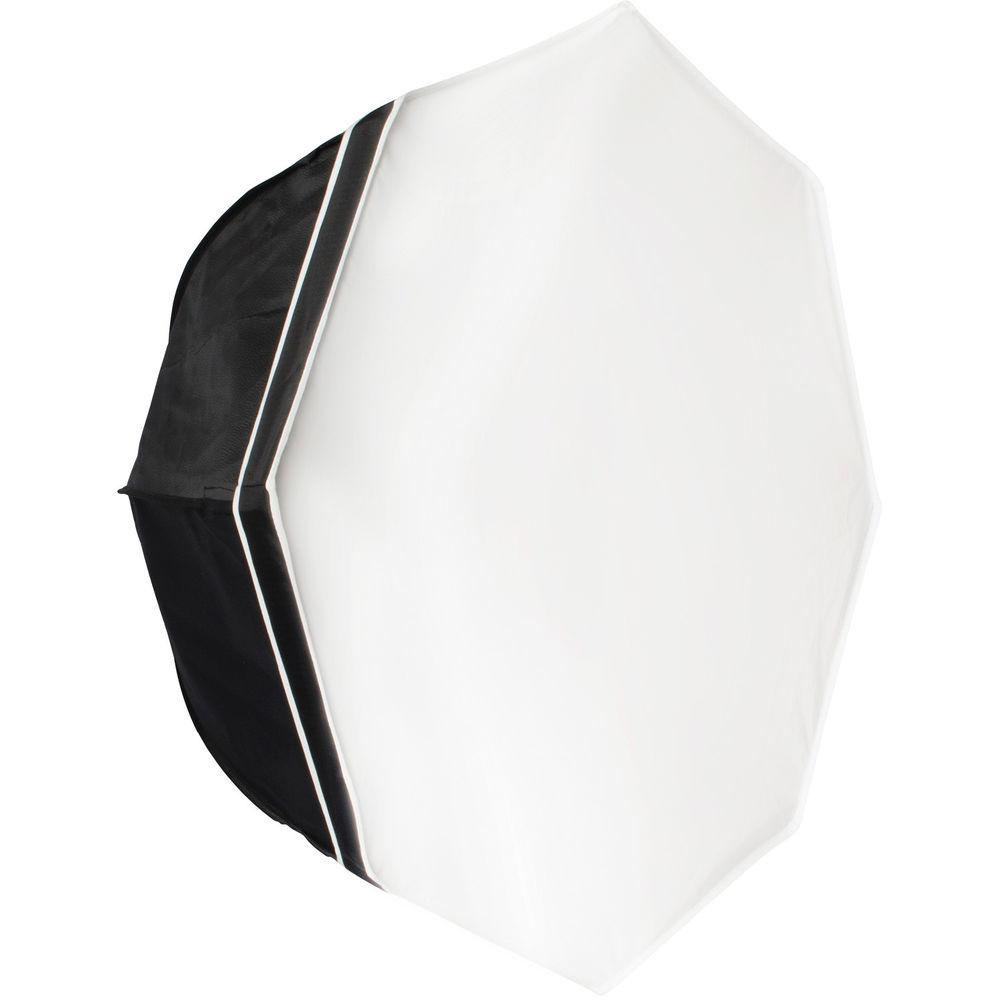

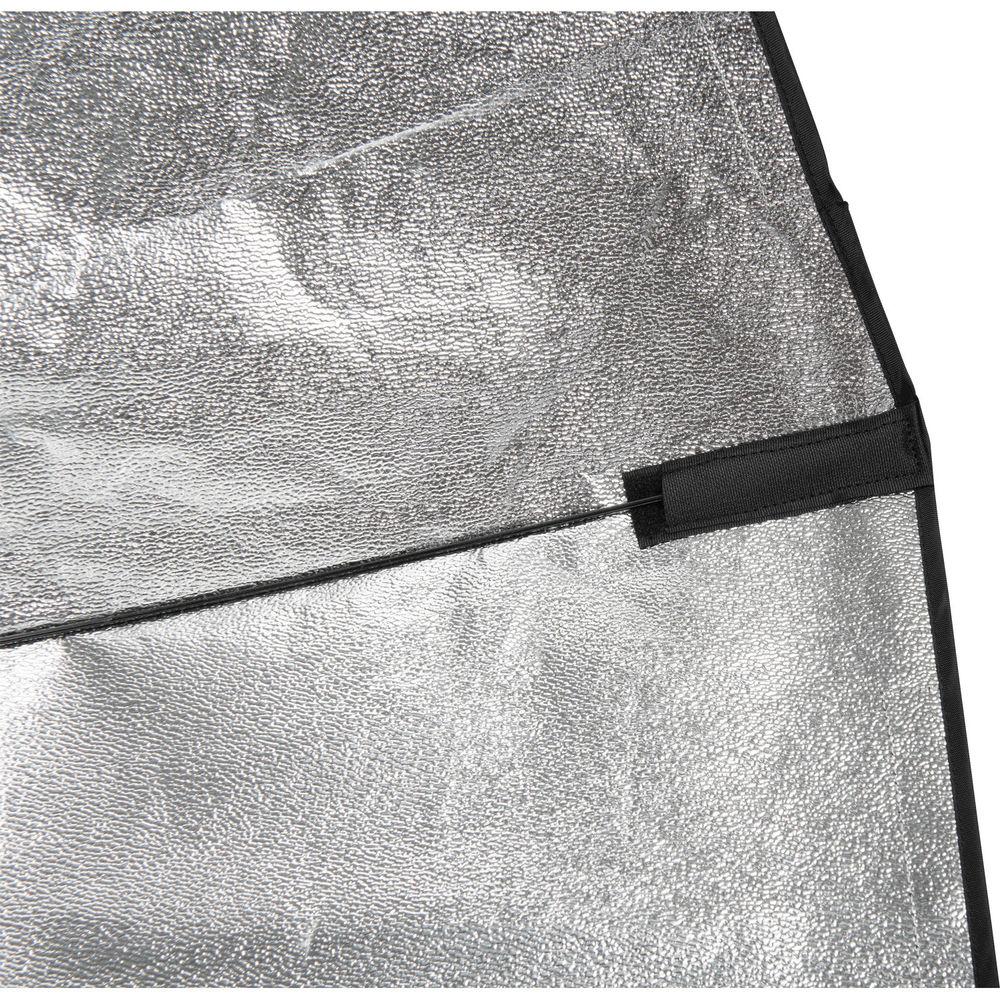

- uLite 26" Octabox For use with the Westcott Basics uLite, this uLite 26" Octobox produces a soft and evenly diffused light output. It sets up and tears down quickly for convenience. Featuring a reflective silver interior, this octobox's deep profile creates a large light spread and a round catchlight in your subject's eyes. The uLite Octabox is rated for use up to 500-watts and includes an easy-to-use diffusion front.

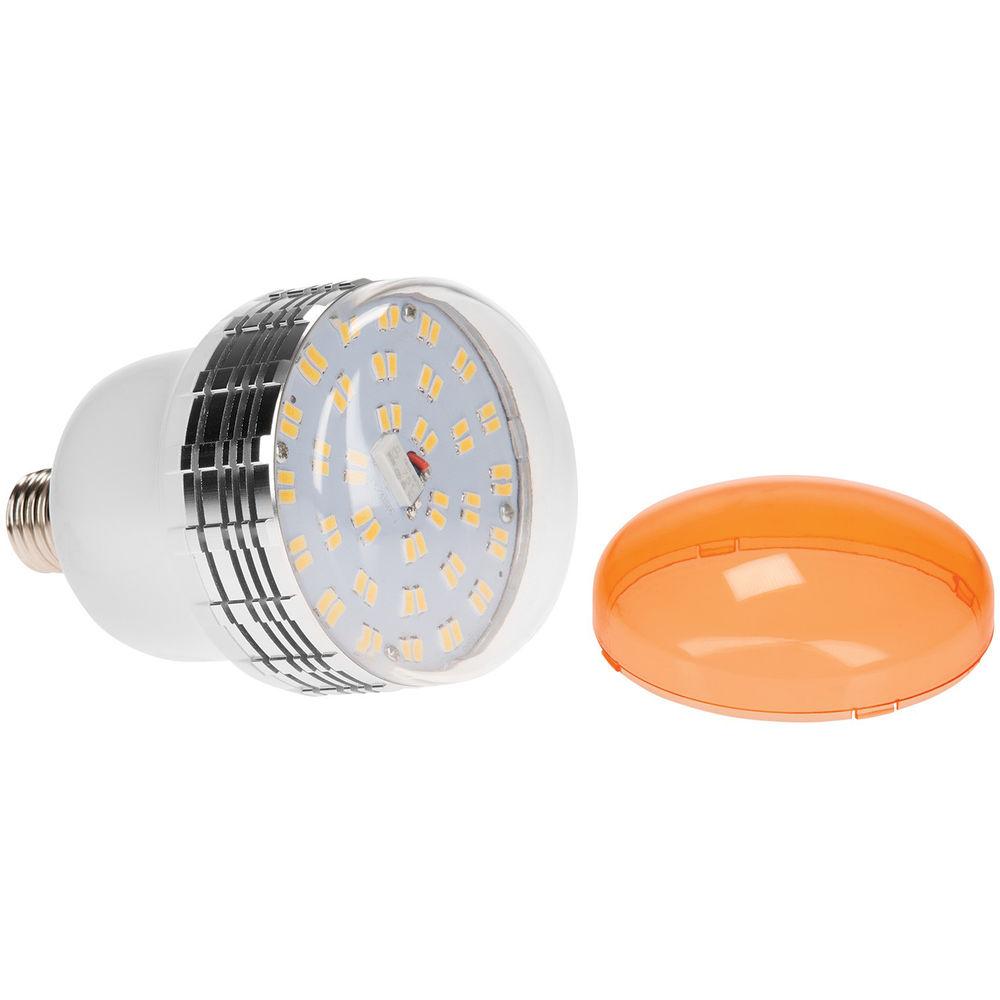

- Daylight LED Lamp with Tungsten Cap (35W) The 35W Daylight LED Lamp with Tungsten Cap from Westcott is an Edison-based light source with 64 LEDs that render colors faithfully, earning their high CRI rating of 95 and TLCI rating of 91. The lamp comes with a removable cap that instantly converts it to tungsten balance.
- Quality Daylight LED
- The lamp is made up of 64 bright light emitting diodes rated for over 20,000 hours of use. It's able to render accurate skin tones with a 95 CRI rating and, although daylight-balanced, can be changed to warm tungsten balance with the included snap-on cap.

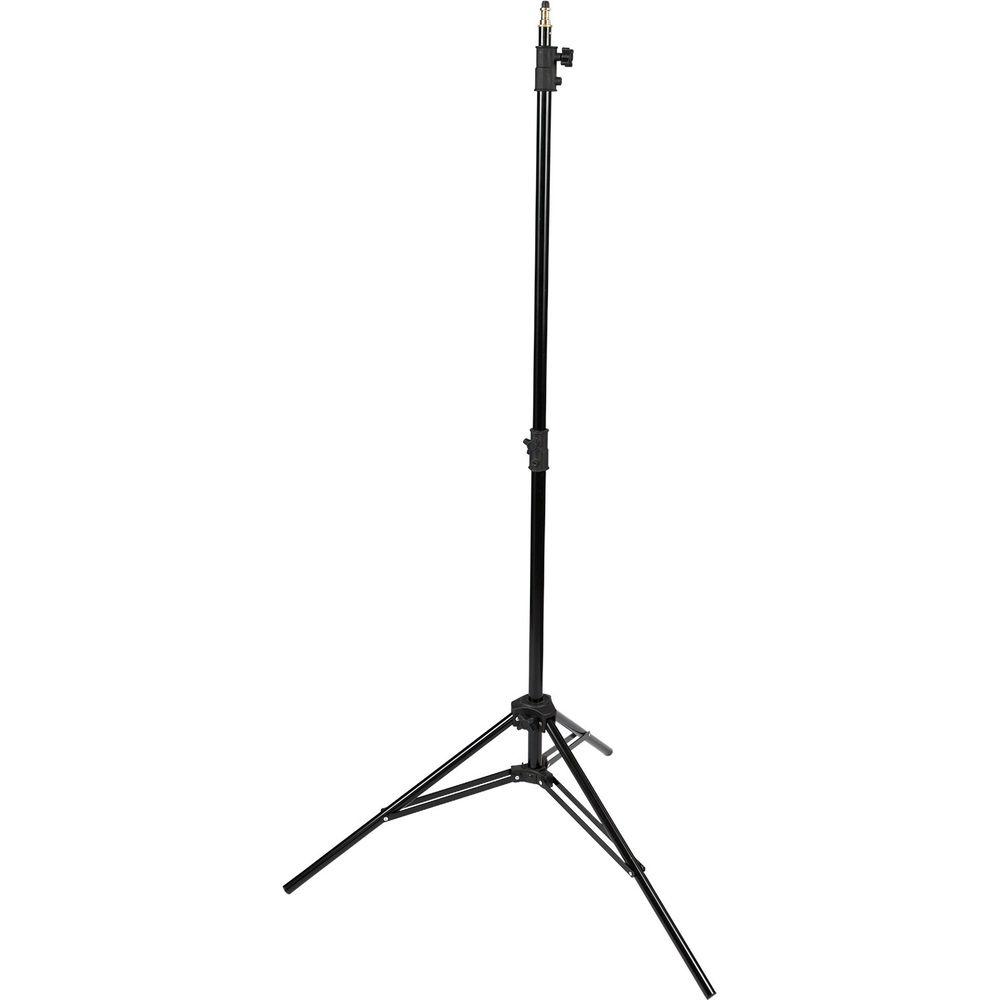

UPC: 812735025063 - Light Stand (6.5') This 6.5' Westcott Light Stand is usually sold as part of a Photo Basics or Spiderlite lighting kit.
- Black aluminum, with standard Baby (5/8") top
- Rises to a maximum height of 6.5' (1.9 m)
UPC: 017967007508 In the Box Bundle Items 2 x uLite Constant Light Fixture Only (120 VAC) cacubtqcyywvasxcwtvytubq uLite 20" Square Softbox (120VAC) uLite 26" Octabox 2 x Daylight LED Lamp with Tungsten Cap (35W) 2 x Light Stand (6.5') Table of Contents
|
Upload User Manual
Have you got an user manual for the Westcott uLite LED 2-Light Collapsible Softbox Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - uLite Constant Light Fixture Only (120 VAC)
| Rating | 500 W max | | Socket (Lampholder) | Ceramic, E26 standard Edison base | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Not included: 6" reflector available separately (#415) | | Mounting | Standard 5/8" | | Yoke | Tilter bracket | | Cable | 12' 120 VAC 3-prong | | Focusing | Not Applicable | | Weight | Not Specified by Manufacturer | | Dimensions | Not Specified by Manufacturer | | | | Box Dimensions (LxWxH) | 8.2 x 4.8 x 4.1" | - uLite 20" Square Softbox (120VAC)
| Size | 20 x 20" (50.8 x 50.8cm) | | Shape | Square | | Compatibility | uLite | | Removable Front Face | Yes | | Removable Interior Baffle | No | | Accepts Grids | No | | Requires Speed Ring | Included for uLite | | | | Box Dimensions (LxWxH) | 19.0 x 5.0 x 5.0" | - uLite 26" Octabox
| Size | 26 x 26 x 17" (66.0 x 66.0 x 43.2 cm) | | Shape | Octogonal | | Compatibility | uLite | | Removable Front Face | Yes | | Removable Interior Baffle | No | | Accepts Grids | No | | Requires Speed Ring | No | | Weight | 1.6 lb (0.7 kg) | | | | Box Dimensions (LxWxH) | 9.5 x 8.0 x 2.0" | - Daylight LED Lamp with Tungsten Cap (35W)
| Light Source | 64 x 35 W LEDs
Lamp Life: 20,000 hours | | Color Temperature | Daylight-balanced (5600K) | | CRI / TLCI | 95 / 91 | | Base | Edison | | Photometrics | @ 3.4' (1.0 m): 950 lux / 88 fc
@ 9.8' (3.0 m): 120 lux / 11 fc
@ 16.4' (5.0 m): 45 lux / 4 fc | | Lumens | 3,200 | | Voltage | 100–240 VAC, 50/60 Hz | | Dimensions | Length: 5.8" (14.6 cm)
Diameter: 3.8" (9.5 cm) | | | | Box Dimensions (LxWxH) | 6.85 x 3.85 x 3.85" | - Light Stand (6.5')
| Load Capacity | 6.6 lb / 3 kg | | Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Maximum Working Height | 6.5' / 1.9 m | | Minimum Working Height | 29" / 73.5 cm | | Collapsed Height | 29" / 73.5 cm | | Footprint Diameter | 25" / 63.5 cm | | Accepts Wheels | No | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 2.2 lb / 1.0 kg | | | | Box Dimensions (LxWxH) | 28.2 x 3.55 x 3.15" |
