User Manual for Westcott uLite LED 3-Light Collapsible Softbox Kit Click to enlarge the picture
Contents of the user manual for the Westcott uLite LED 3-Light Collapsible Softbox
- Product category: LED Lights Westcott
- Brand: Westcott
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Westcott LED Lights
 |
User manual for the Westcott uLite LED 3-Light Collapsible Softbox contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Westcott product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Westcott user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Westcott product will considerably shorten its lifespan!
|

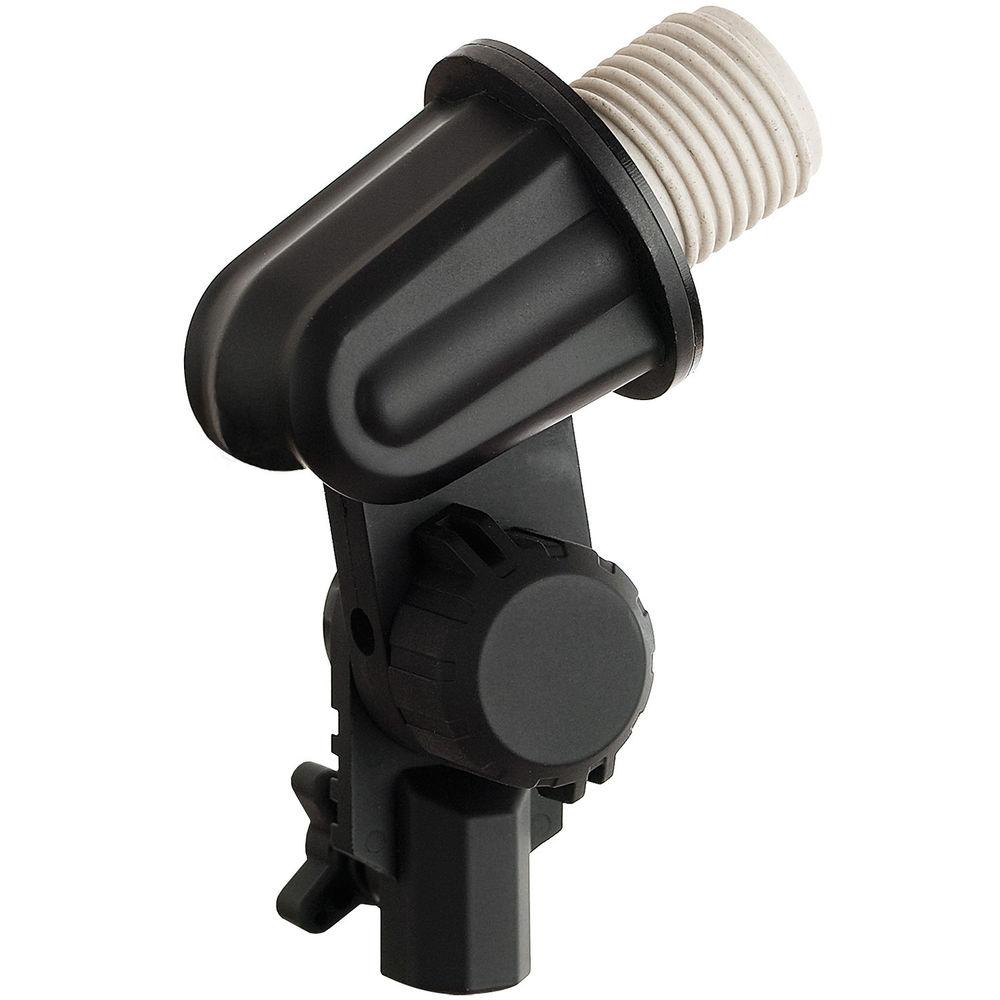

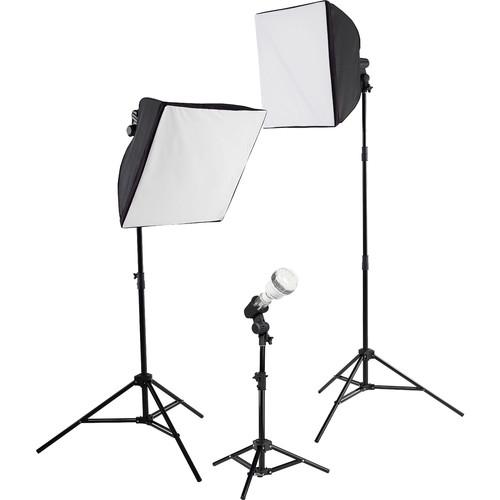

Product description Light up your subject and shoot stills or video with equal ease by picking up the uLite LED 3-Light Collapsible Softbox Kit from Westcott. Almost immediately get a three-point lighting setup up and running with the three uLite Edison-style fixtures and three daylight LED bulbs, which come with tungsten caps for additional color control. For controlling the look of the fixtures, this kit comes with two 20 x 20" collapsible softboxes for a diffused, flattering light, as well as a uLite Reflector that can function as a harder accent light. Additionally, the kit offers two 500W tungsten photoflood bulbs for more traditional lighting, as well as two 6.5' light stands and a 3' backlight stand. - uLite Constant Light Fixture Only (120 VAC) The Westcott uLite Fixture is the basis for several Westcott Kits that add light shapers such as reflectors and softboxes. It is a basic ceramic Edison socket, swivel mount with a Baby (5/8") receptor for a light stand, and a 120 VAC power cord with switch. UPC: 817967010146

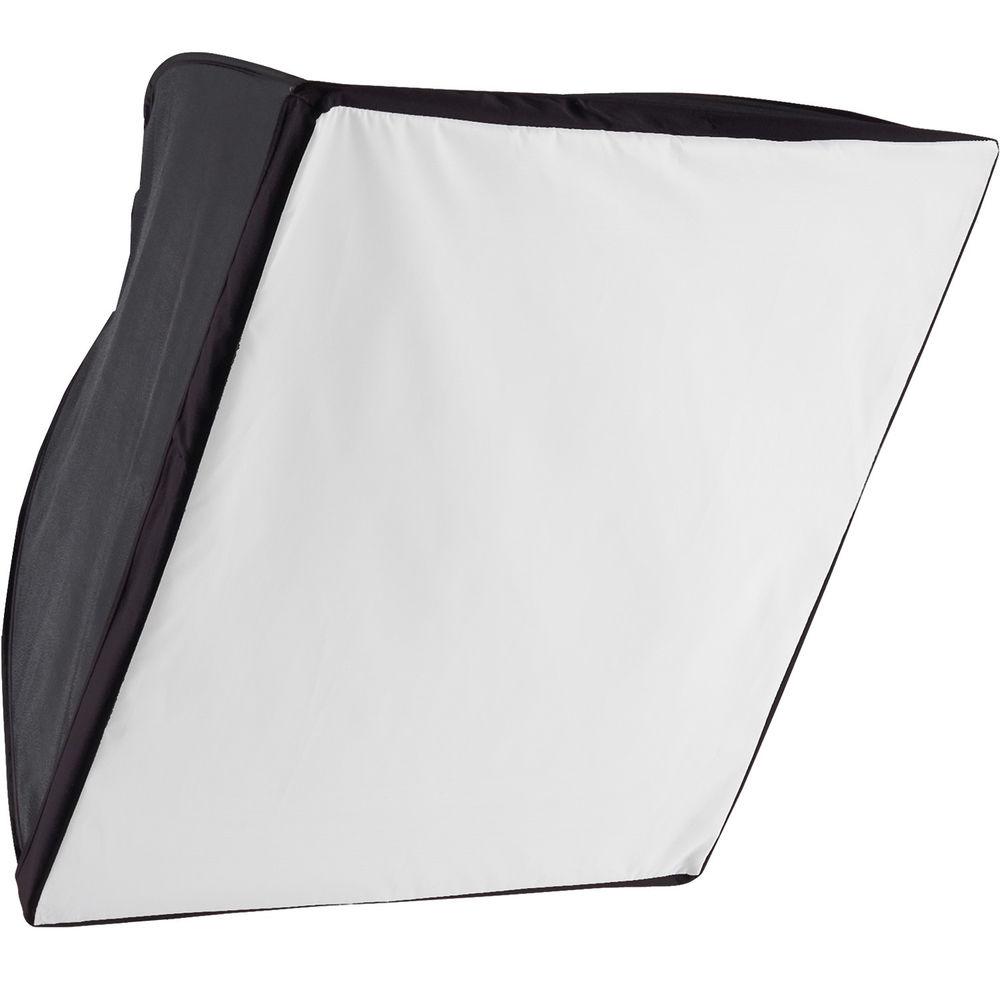

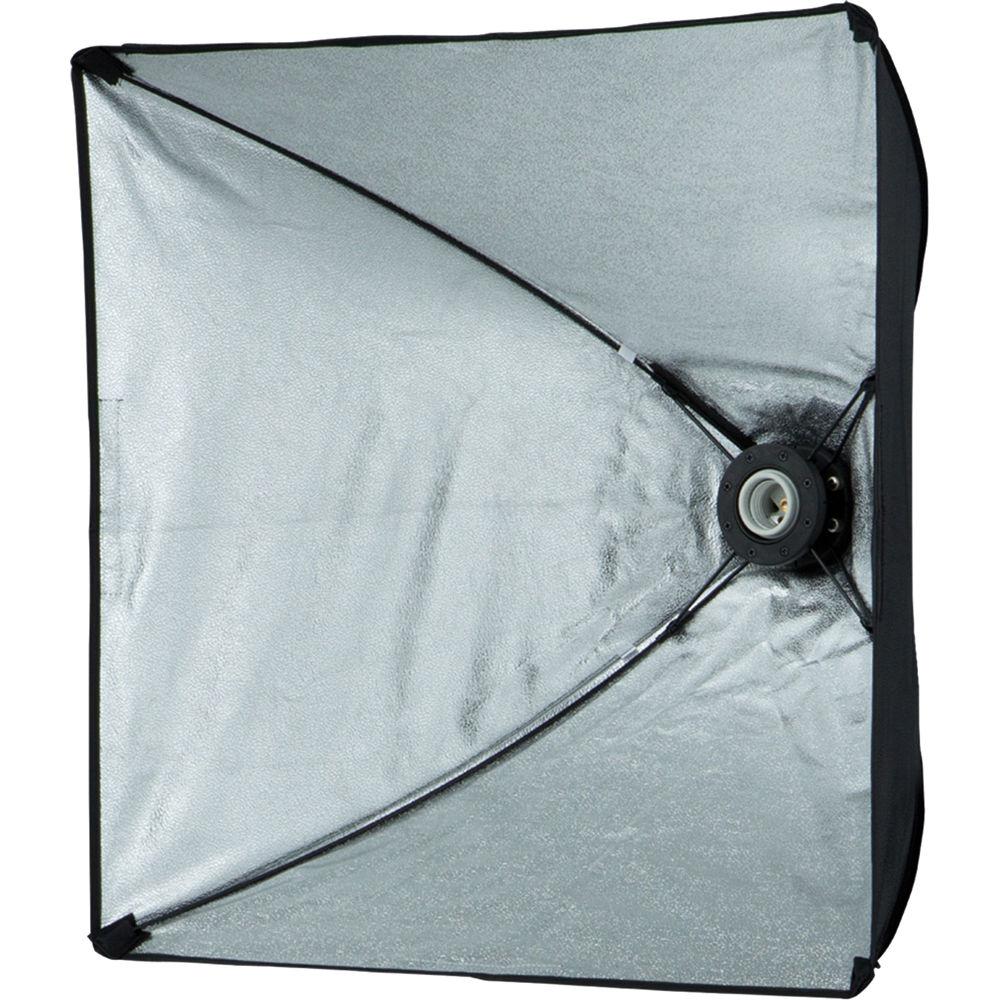

- uLite 20" Square Softbox (120VAC) This is a Westcott PhotoBasics uLite 20" Softbox. This 20" square collapsible softbox is designed specifically for the uLite fixture (available separately). It sets up in seconds.
- Provides pleasing soft light for portraits when used with the uLite (250 watts maximum)
- Reflector for uLite - 6" This Westcott PhotoBasics 6" Reflector is designed specifically for the uLite. Made of aluminum, it provides a 60° beam spread and can tolerate up to 250 watts when mounted on your uLite fixture. (Fixture purchased separately) UPC: 817967004152

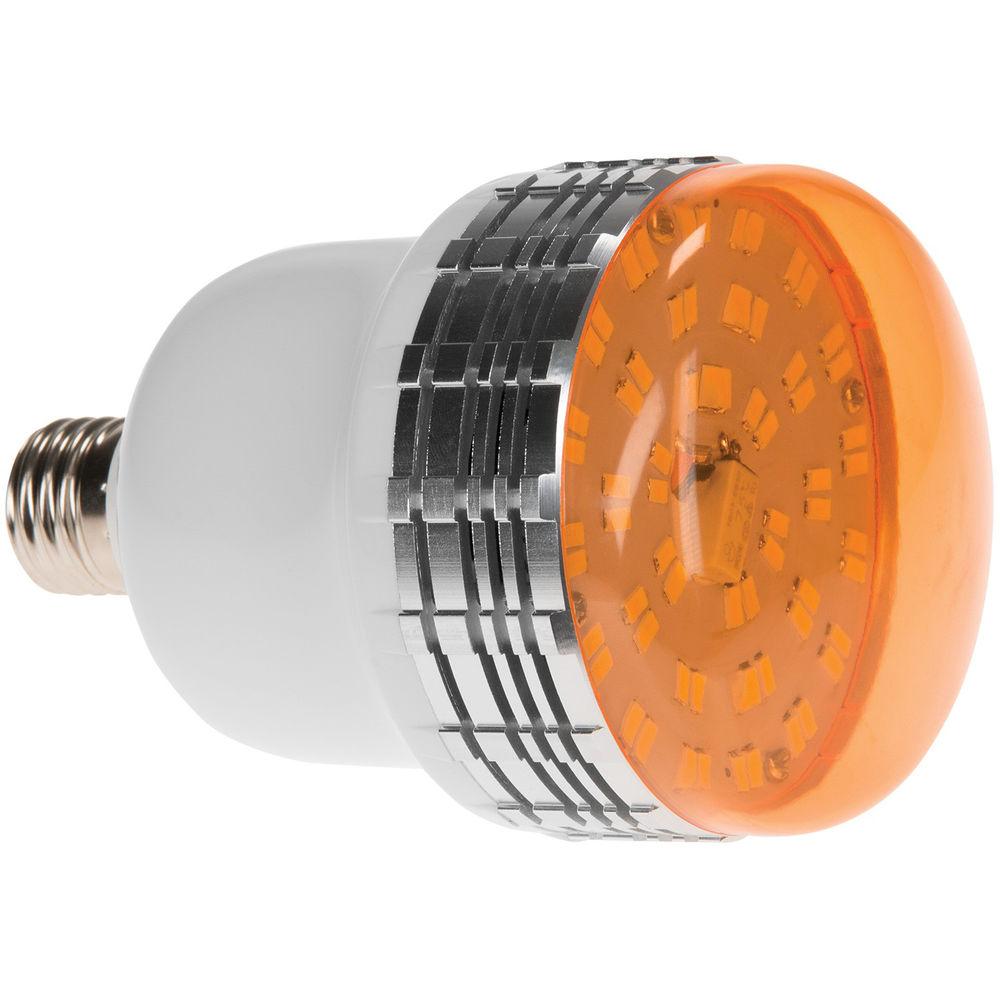

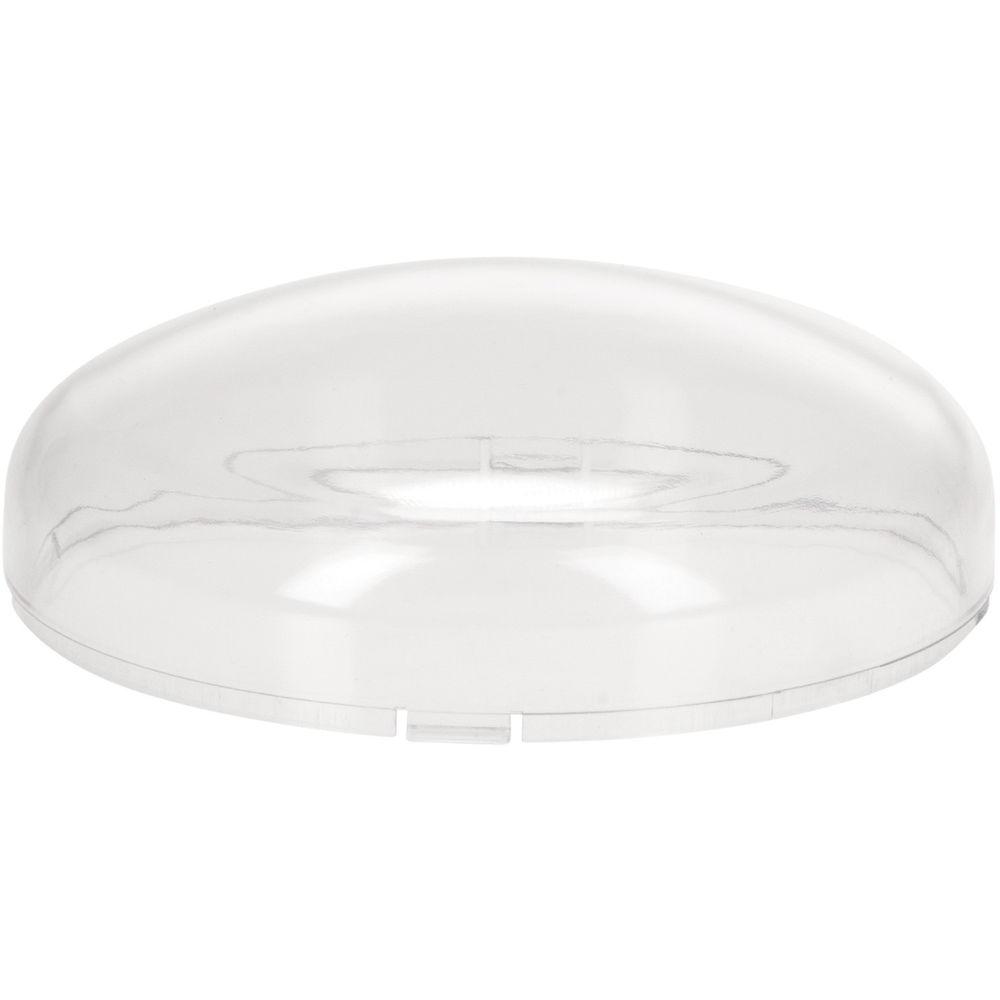

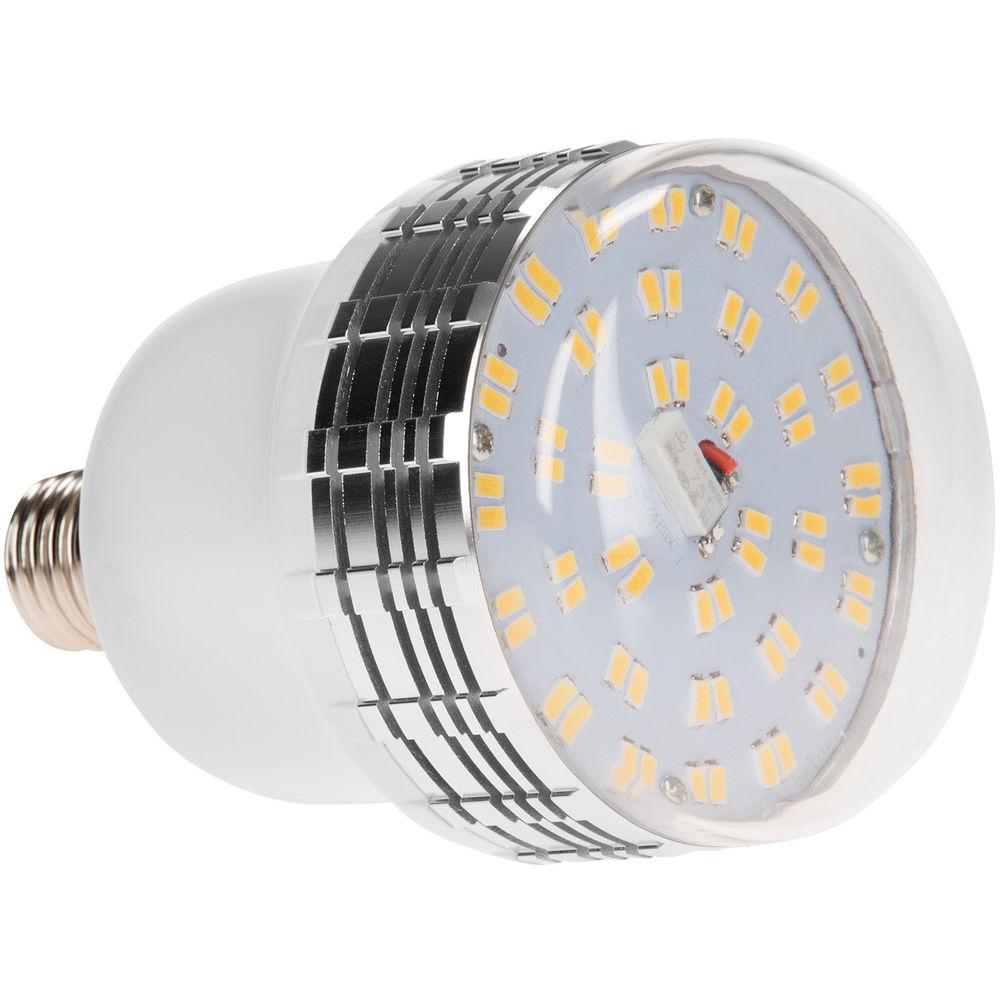

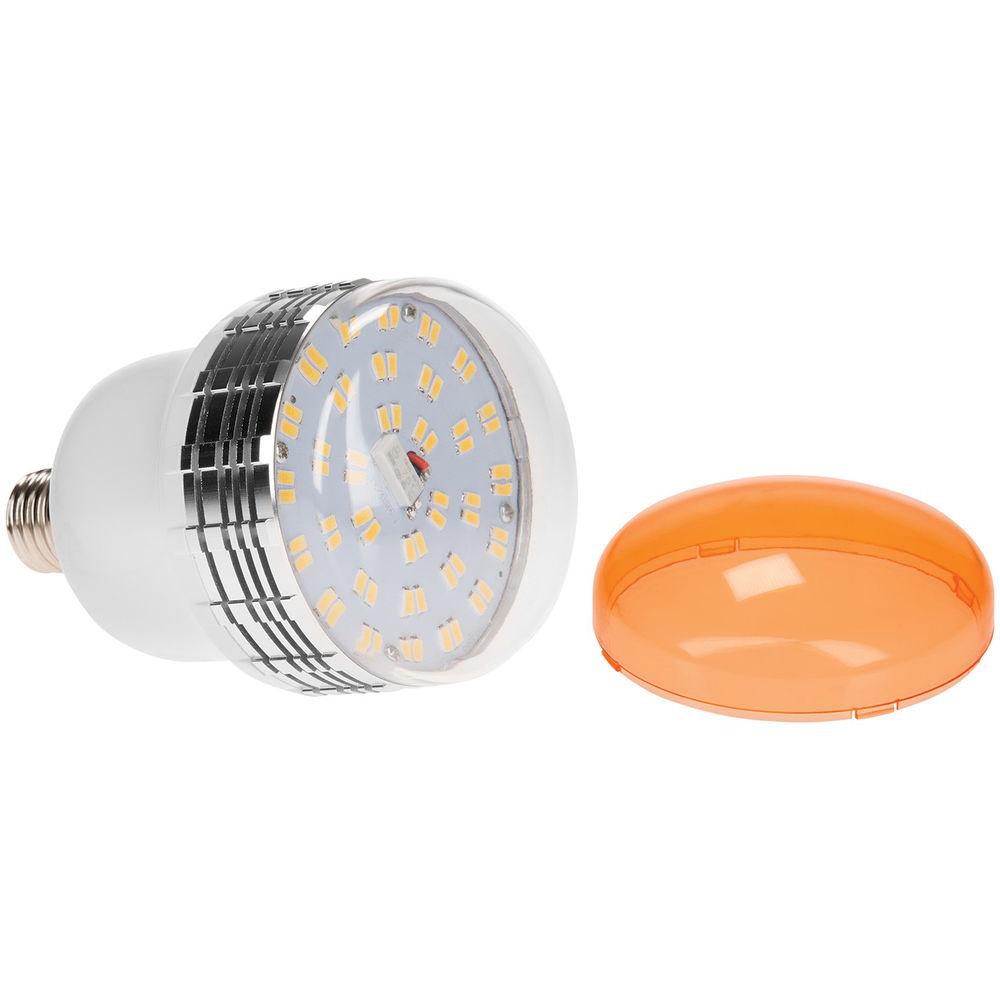

- Daylight LED Lamp with Tungsten Cap (35W) The 35W Daylight LED Lamp with Tungsten Cap from Westcott is an Edison-based light source with 64 LEDs that render colors faithfully, earning their high CRI rating of 95 and TLCI rating of 91. The lamp comes with a removable cap that instantly converts it to tungsten balance.
- Quality Daylight LED
- The lamp is made up of 64 bright light emitting diodes rated for over 20,000 hours of use. It's able to render accurate skin tones with a 95 CRI rating and, although daylight-balanced, can be changed to warm tungsten balance with the included snap-on cap.

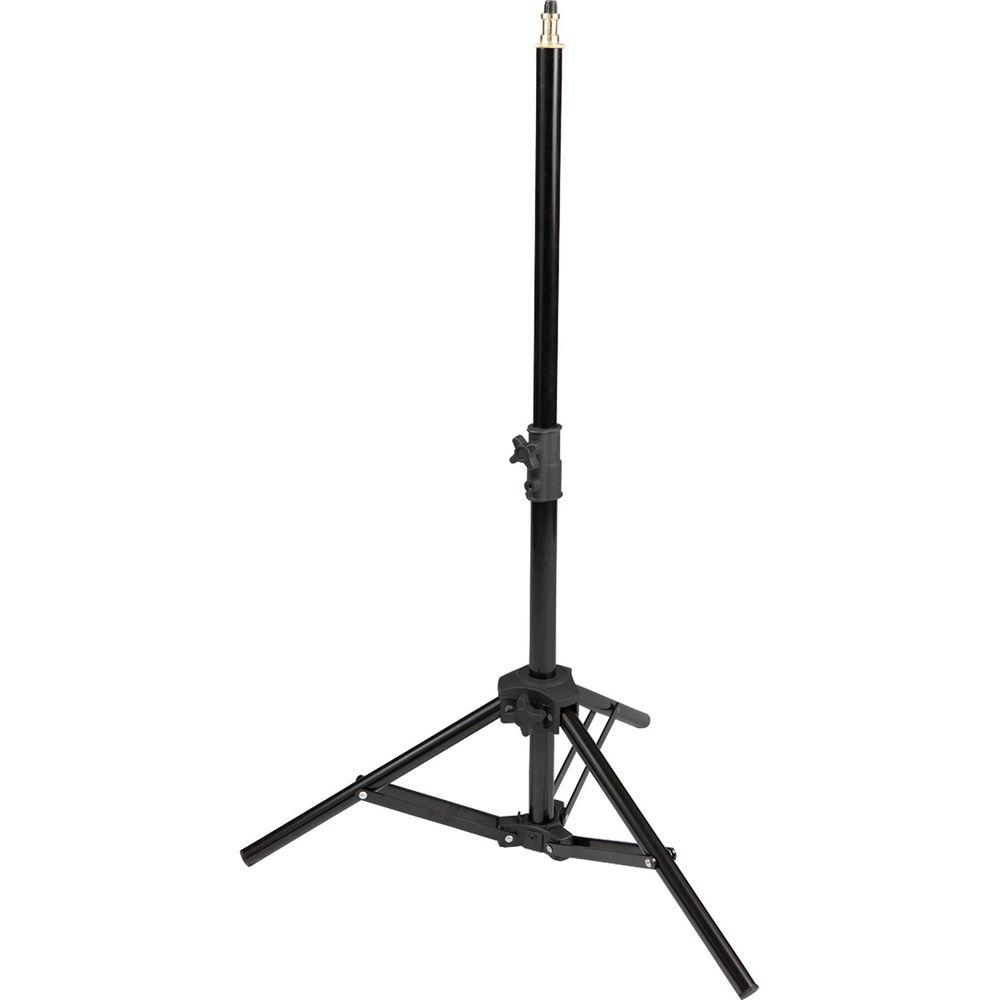

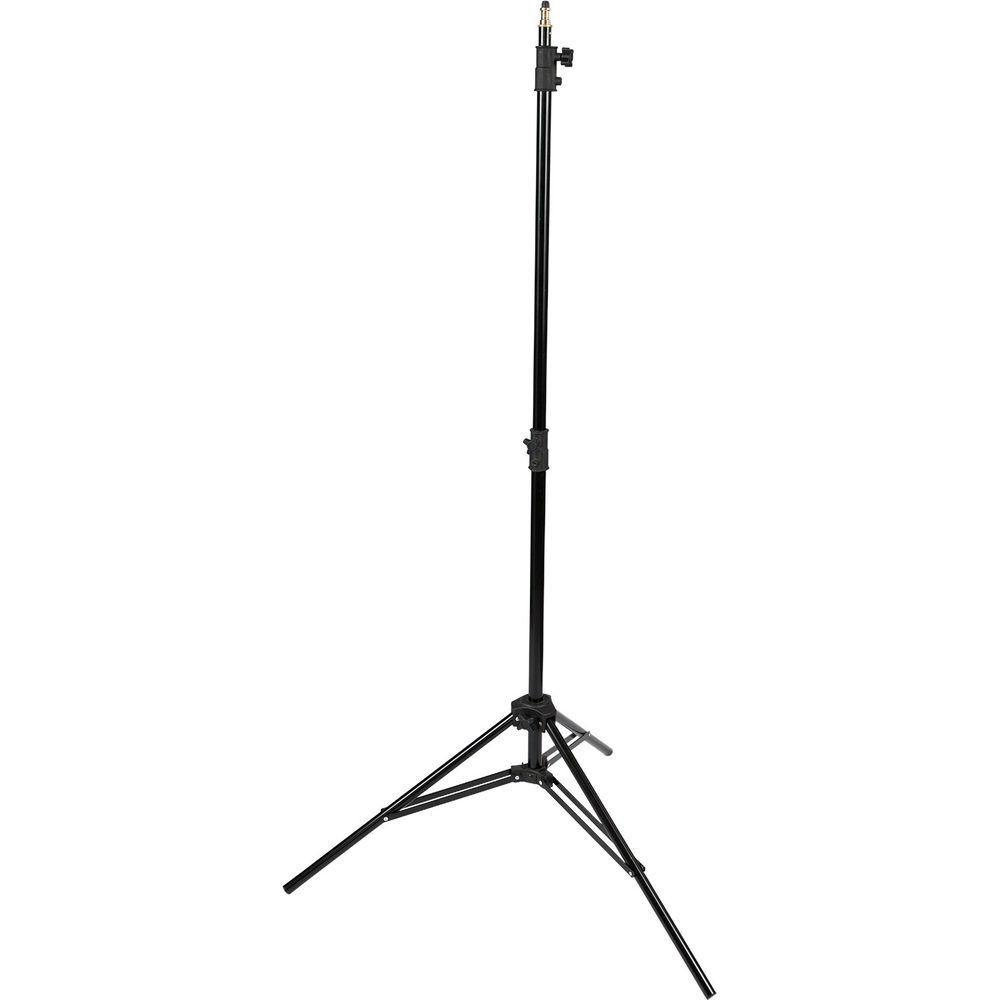

UPC: 812735025063 - Light Stand (6.5') This 6.5' Westcott Light Stand is usually sold as part of a Photo Basics or Spiderlite lighting kit.
- Black aluminum, with standard Baby (5/8") top
- Rises to a maximum height of 6.5' (1.9 m)
UPC: 017967007508 In the Box Bundle Items 3 x uLite Constant Light Fixture Only (120 VAC) dcazqafw 2 x uLite 20" Square Softbox (120VAC) Reflector for uLite - 6" 3 x Daylight LED Lamp with Tungsten Cap (35W) 2 x Light Stand (6.5')
Also Includes - 2 x 500W Tungsten Photoflood Bulbs
- 3' Backlight Stand
Table of Contents
|
Upload User Manual
Have you got an user manual for the Westcott uLite LED 3-Light Collapsible Softbox Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - uLite Constant Light Fixture Only (120 VAC)
| Rating | 500 W max | | Socket (Lampholder) | Ceramic, E26 standard Edison base | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Not included: 6" reflector available separately (#415) | | Mounting | Standard 5/8" | | Yoke | Tilter bracket | | Cable | 12' 120 VAC 3-prong | | Focusing | Not Applicable | | Weight | Not Specified by Manufacturer | | Dimensions | Not Specified by Manufacturer | | | | Box Dimensions (LxWxH) | 8.2 x 4.8 x 4.1" | - uLite 20" Square Softbox (120VAC)
| Size | 20 x 20" (50.8 x 50.8cm) | | Shape | Square | | Compatibility | uLite | | Removable Front Face | Yes | | Removable Interior Baffle | No | | Accepts Grids | No | | Requires Speed Ring | Included for uLite | | | | Box Dimensions (LxWxH) | 19.0 x 5.0 x 5.0" | - Reflector for uLite - 6"
| | | Box Dimensions (LxWxH) | 8.6 x 8.5 x 8.4" | - Daylight LED Lamp with Tungsten Cap (35W)
| Light Source | 64 x 35 W LEDs
Lamp Life: 20,000 hours | | Color Temperature | Daylight-balanced (5600K) | | CRI / TLCI | 95 / 91 | | Base | Edison | | Photometrics | @ 3.4' (1.0 m): 950 lux / 88 fc
@ 9.8' (3.0 m): 120 lux / 11 fc
@ 16.4' (5.0 m): 45 lux / 4 fc | | Lumens | 3,200 | | Voltage | 100–240 VAC, 50/60 Hz | | Dimensions | Length: 5.8" (14.6 cm)
Diameter: 3.8" (9.5 cm) | | | | Box Dimensions (LxWxH) | 6.85 x 3.85 x 3.85" | - Light Stand (6.5')
| Load Capacity | 6.6 lb / 3 kg | | Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Maximum Working Height | 6.5' / 1.9 m | | Minimum Working Height | 29" / 73.5 cm | | Collapsed Height | 29" / 73.5 cm | | Footprint Diameter | 25" / 63.5 cm | | Accepts Wheels | No | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 2.2 lb / 1.0 kg | | | | Box Dimensions (LxWxH) | 28.2 x 3.55 x 3.15" |
