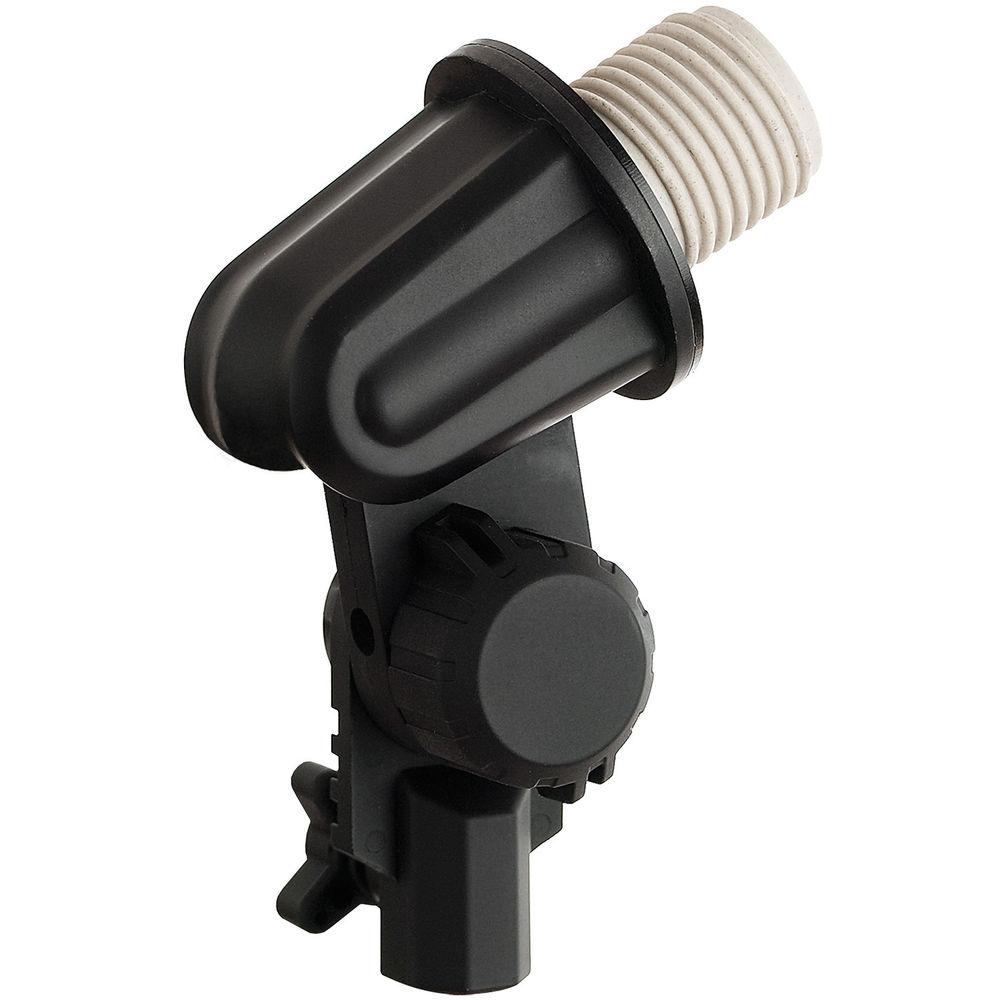

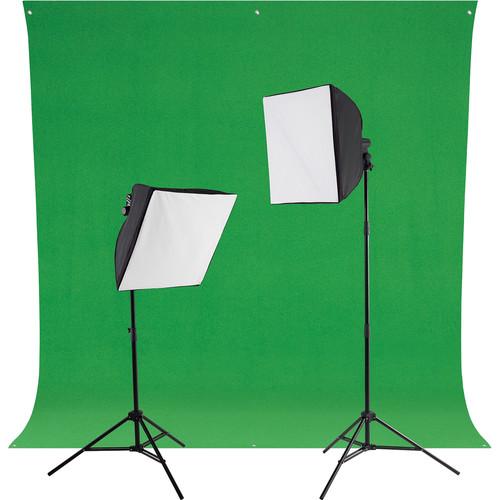

Product description With everything you need to shoot and edit green screen photos, the uLite LED Green Screen Photo Lighting Kit from Westcott is a complete solution for aspiring photographers who wish to expand their current tool set. The stars are the uLite 500W Edison-style fixtures which accept the 35W daylight LED bulbs to produce bright, highly color-accurate light with a CRI of 95 for illuminating your subject. These bulbs also come supplied with tungsten covers to transform quickly from daylight to tungsten balance, and can be used in the two included 20 x 20" collapsible softboxes for a softer, more flattering look. Working behind the scenes is a 9 x 10' wrinkle-resistant chroma-key green backdrop that works with the PhotoKey Lite software package to make it quick and easy to replace the background with a variety of alternative imagery and locations. And, there are two 6.5' light stands included for setting up the fixtures. - uLite Constant Light Fixture Only (120 VAC) The Westcott uLite Fixture is the basis for several Westcott Kits that add light shapers such as reflectors and softboxes. It is a basic ceramic Edison socket, swivel mount with a Baby (5/8") receptor for a light stand, and a 120 VAC power cord with switch. UPC: 817967010146

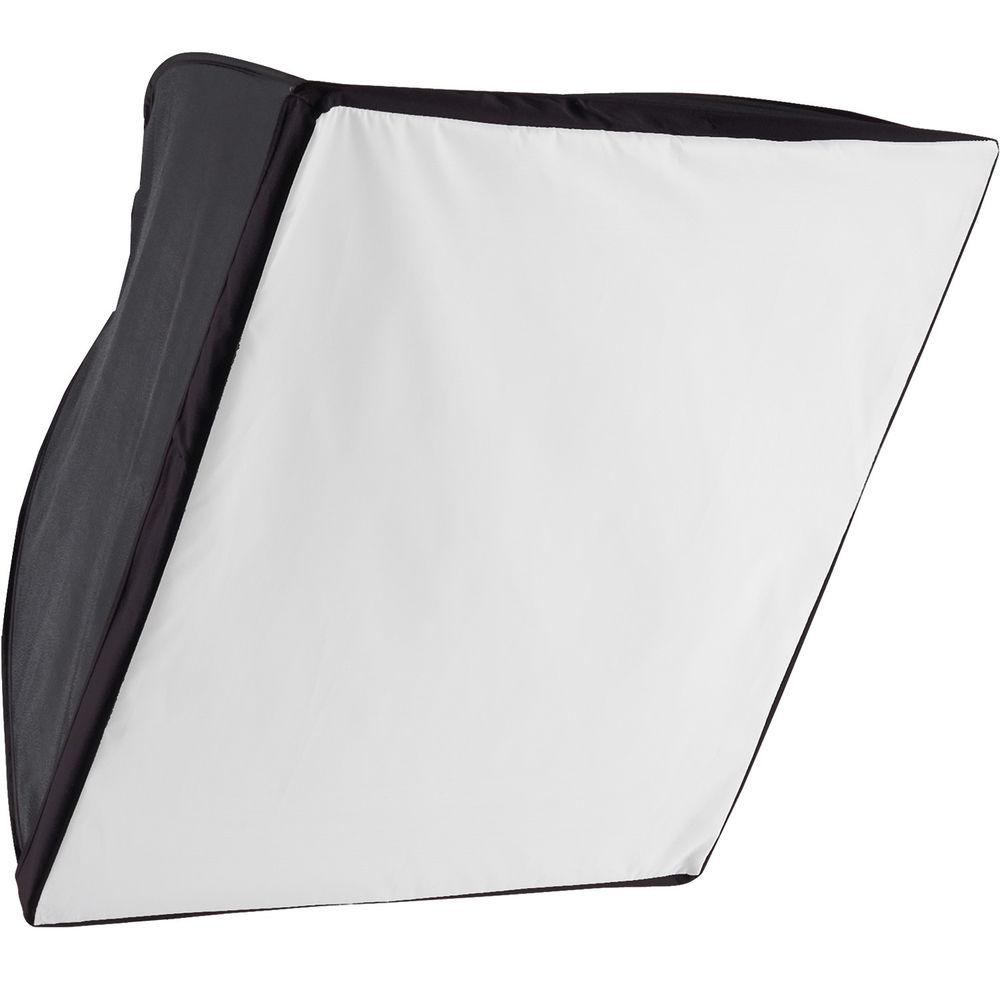

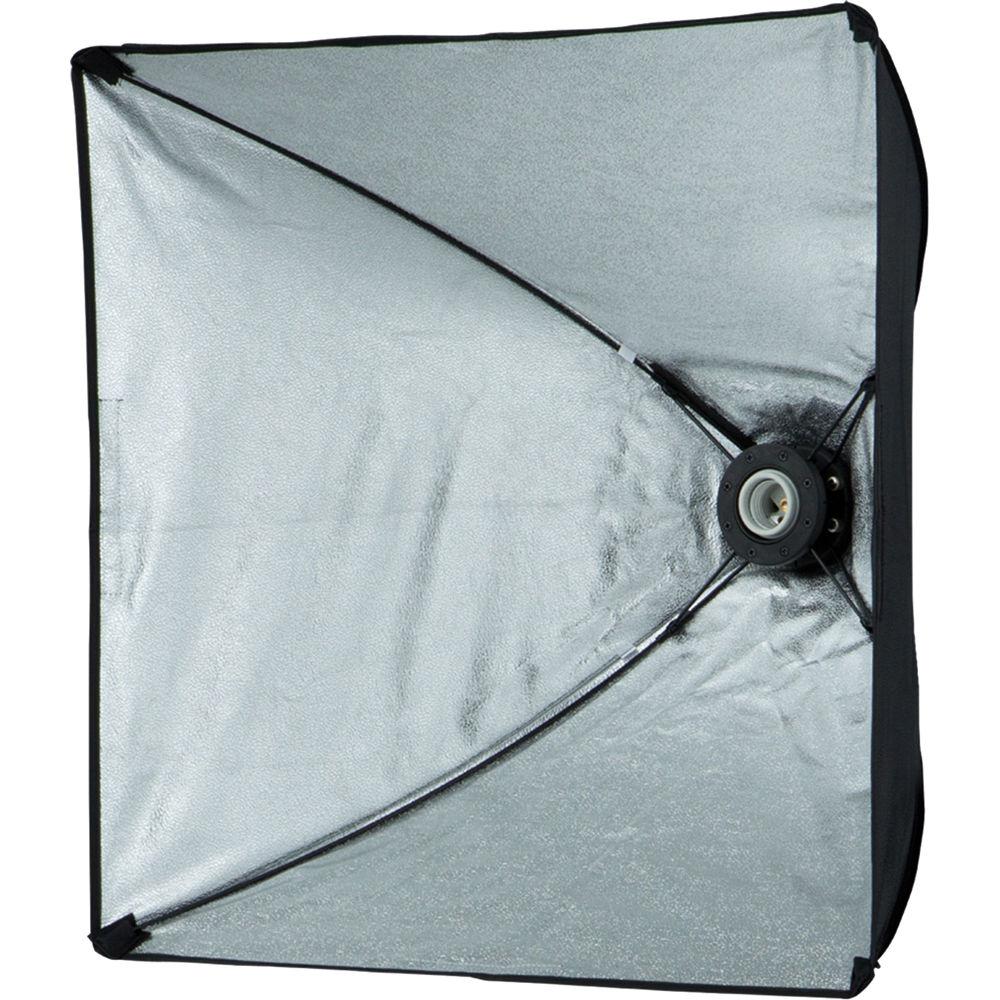

- uLite 20" Square Softbox (120VAC) This is a Westcott PhotoBasics uLite 20" Softbox. This 20" square collapsible softbox is designed specifically for the uLite fixture (available separately). It sets up in seconds.
- Provides pleasing soft light for portraits when used with the uLite (250 watts maximum)

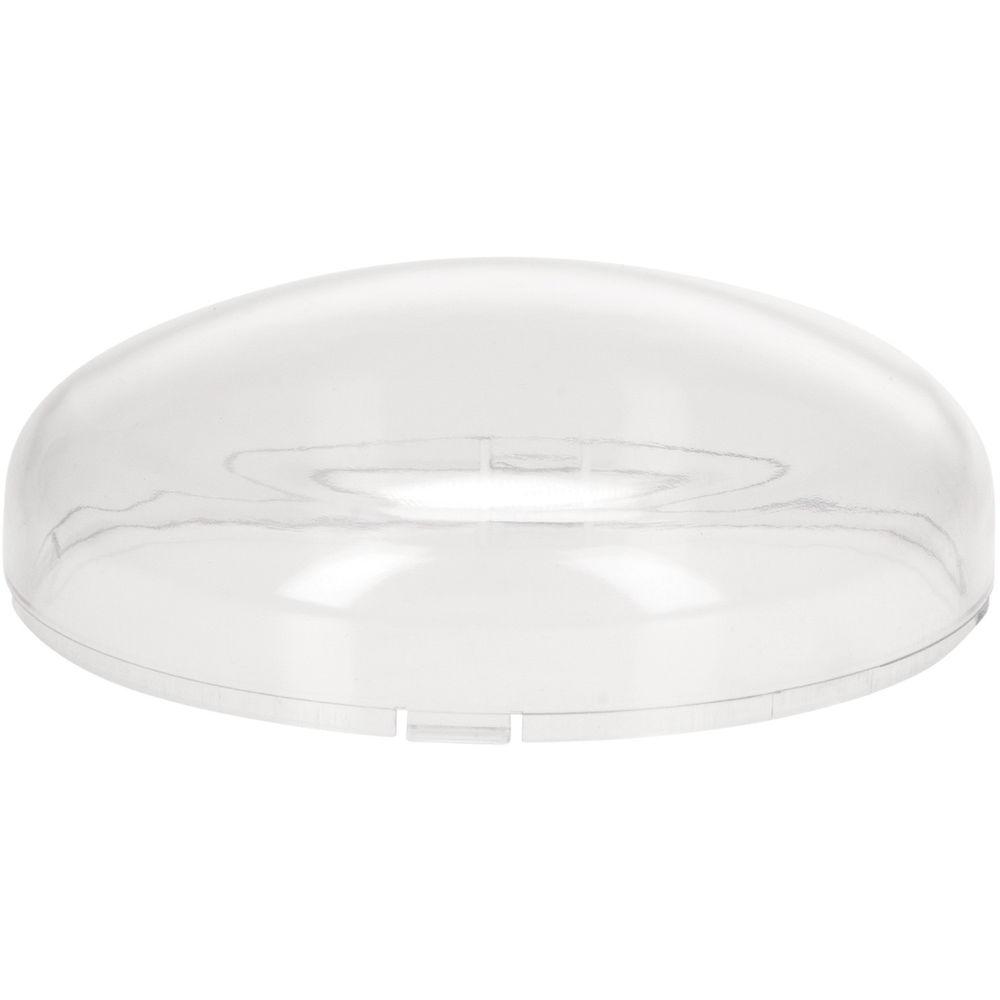

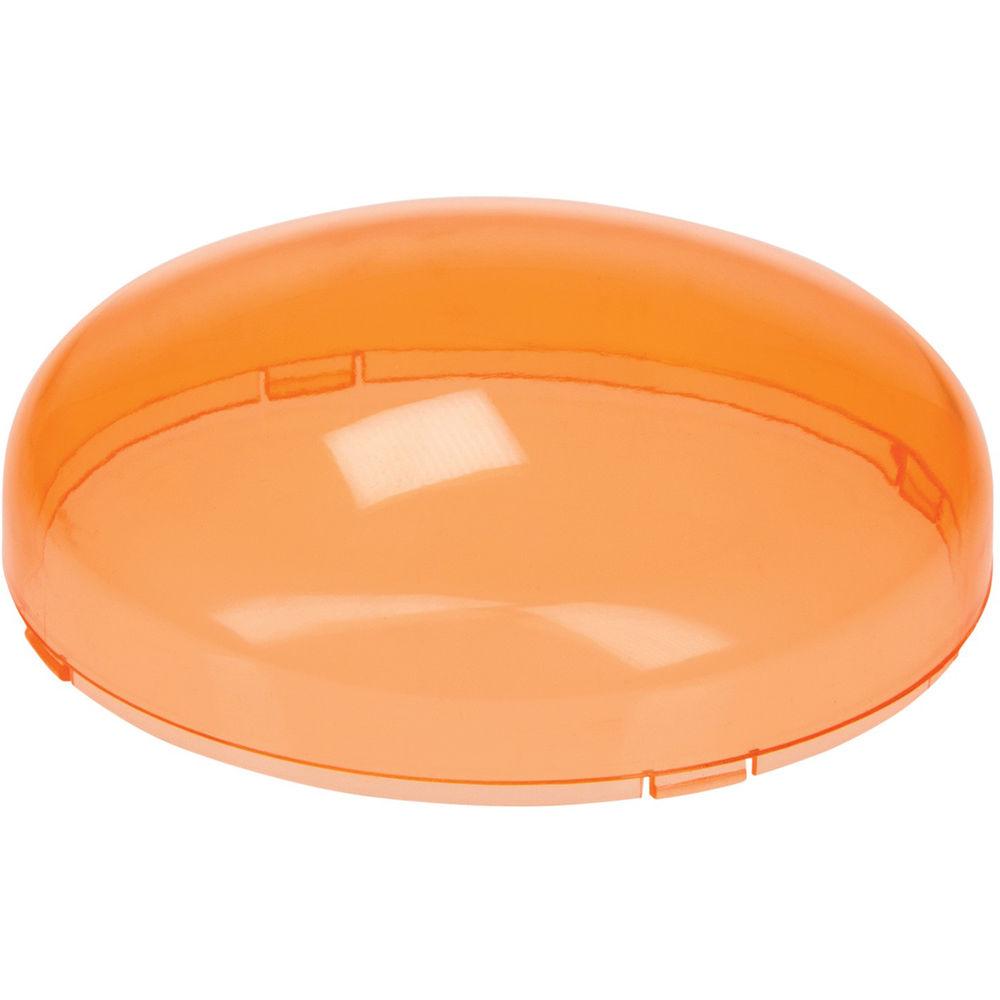

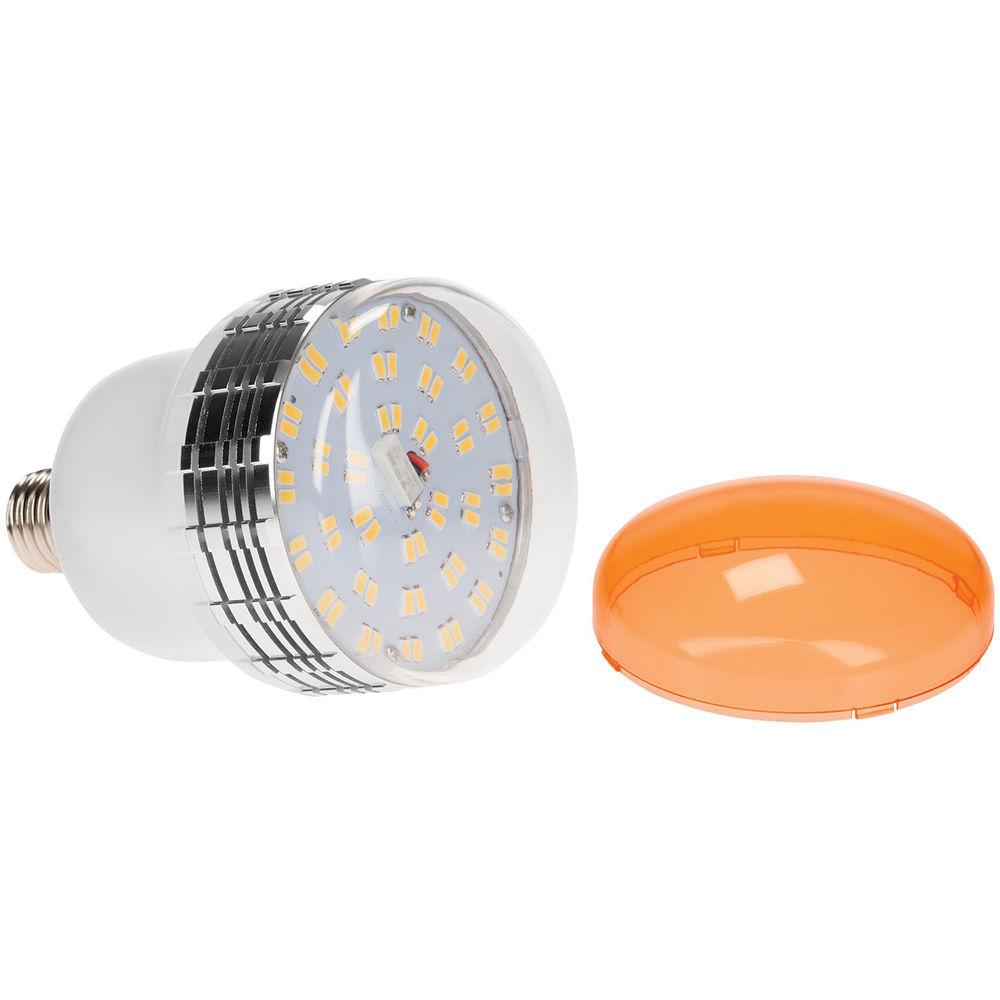

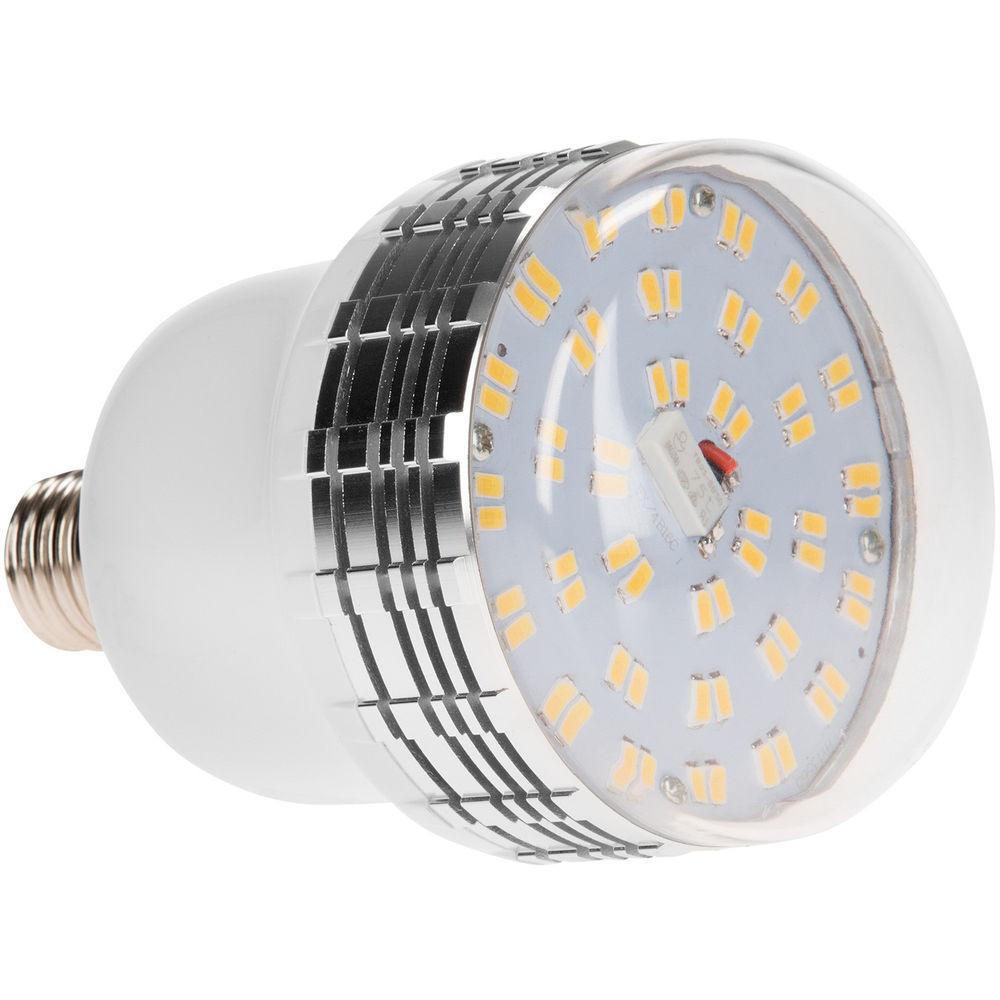

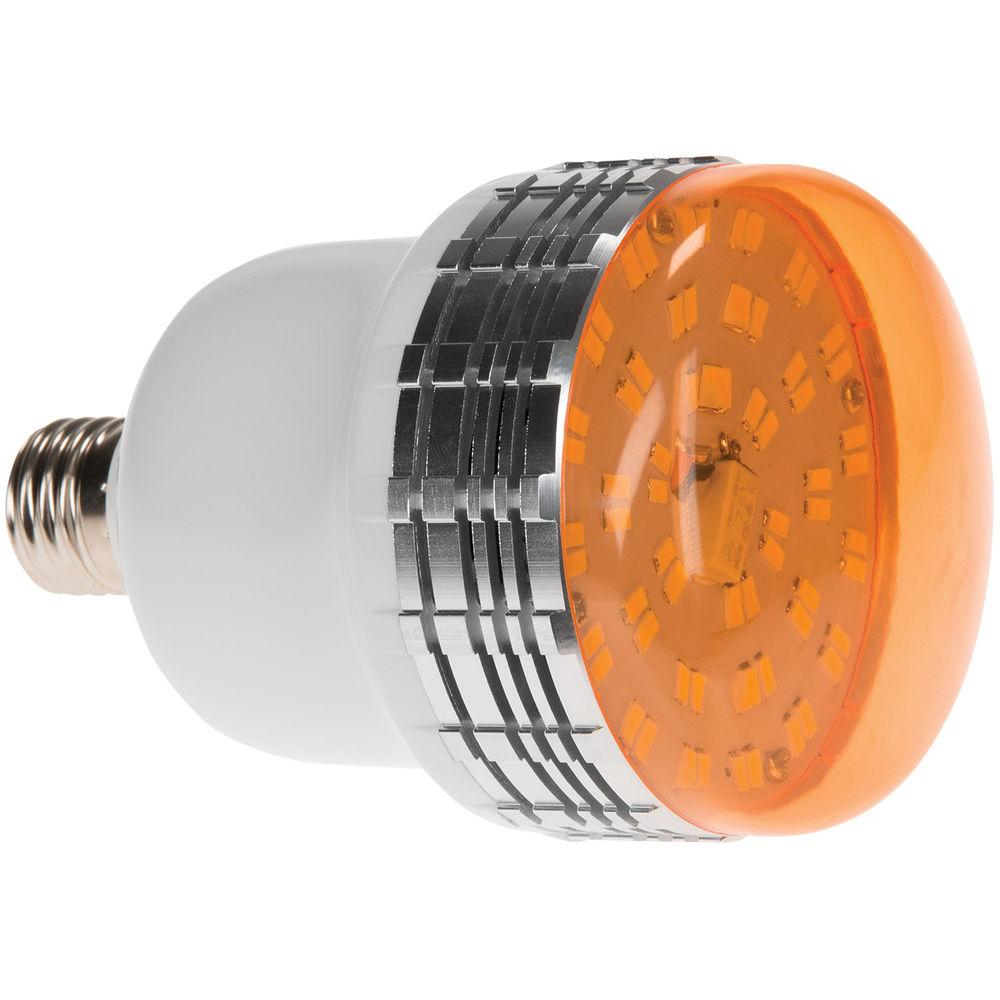

- Daylight LED Lamp with Tungsten Cap (35W) The 35W Daylight LED Lamp with Tungsten Cap from Westcott is an Edison-based light source with 64 LEDs that render colors faithfully, earning their high CRI rating of 95 and TLCI rating of 91. The lamp comes with a removable cap that instantly converts it to tungsten balance.
- Quality Daylight LED
- The lamp is made up of 64 bright light emitting diodes rated for over 20,000 hours of use. It's able to render accurate skin tones with a 95 CRI rating and, although daylight-balanced, can be changed to warm tungsten balance with the included snap-on cap.
UPC: 812735025063 - 130 Wrinkle-Resistant Chroma-Key Backdrop (9 x 10', Green Screen) Use the 9 x 10' Green Screen Wrinkle-Resistant Chroma-Key Backdrop from Westcott in the studio or on location. The backdrop has a pole pocket and grommets for easy hanging. The matte fabric helps reduce reflected light and is machine washable for easy maintenance. Note: This background is non-reversible
- Wash in cold/delicate cycle

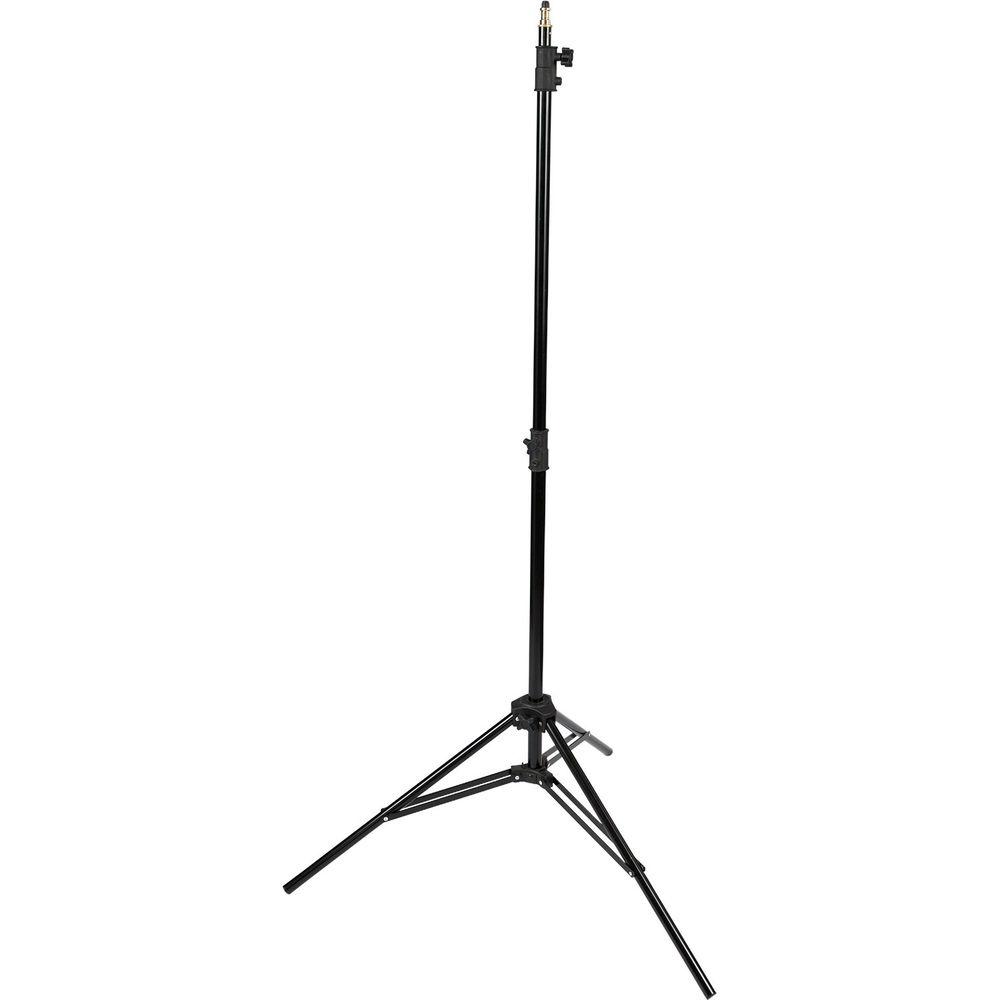

UPC: 817967001304 - Light Stand (6.5') This 6.5' Westcott Light Stand is usually sold as part of a Photo Basics or Spiderlite lighting kit.
- Black aluminum, with standard Baby (5/8") top
- Rises to a maximum height of 6.5' (1.9 m)
UPC: 017967007508 In the Box Bundle Items 2 x uLite Constant Light Fixture Only (120 VAC) dcazqafw 2 x uLite 20" Square Softbox (120VAC) 2 x Daylight LED Lamp with Tungsten Cap (35W) 130 Wrinkle-Resistant Chroma-Key Backdrop (9 x 10', Green Screen) - Limited One-Year Warranty
2 x Light Stand (6.5')
Also Includes - PhotoKey Lite Software (DVD)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Westcott uLite LED Green Screen Photo Lighting Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - uLite Constant Light Fixture Only (120 VAC)
| Rating | 500 W max | | Socket (Lampholder) | Ceramic, E26 standard Edison base | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Not included: 6" reflector available separately (#415) | | Mounting | Standard 5/8" | | Yoke | Tilter bracket | | Cable | 12' 120 VAC 3-prong | | Focusing | Not Applicable | | Weight | Not Specified by Manufacturer | | Dimensions | Not Specified by Manufacturer | | | | Box Dimensions (LxWxH) | 8.2 x 4.8 x 4.1" | - uLite 20" Square Softbox (120VAC)
| Size | 20 x 20" (50.8 x 50.8cm) | | Shape | Square | | Compatibility | uLite | | Removable Front Face | Yes | | Removable Interior Baffle | No | | Accepts Grids | No | | Requires Speed Ring | Included for uLite | | | | Box Dimensions (LxWxH) | 19.0 x 5.0 x 5.0" | - Daylight LED Lamp with Tungsten Cap (35W)
| Light Source | 64 x 35 W LEDs
Lamp Life: 20,000 hours | | Color Temperature | Daylight-balanced (5600K) | | CRI / TLCI | 95 / 91 | | Base | Edison | | Photometrics | @ 3.4' (1.0 m): 950 lux / 88 fc
@ 9.8' (3.0 m): 120 lux / 11 fc
@ 16.4' (5.0 m): 45 lux / 4 fc | | Lumens | 3,200 | | Voltage | 100–240 VAC, 50/60 Hz | | Dimensions | Length: 5.8" (14.6 cm)
Diameter: 3.8" (9.5 cm) | | | | Box Dimensions (LxWxH) | 6.85 x 3.85 x 3.85" | - 130 Wrinkle-Resistant Chroma-Key Backdrop (9 x 10', Green Screen)
| Color | Green Screen | | Size | 9 x 10' (2.7 x 3 m) | | | | Box Dimensions (LxWxH) | 23.0 x 17.0 x 7.0" | - Light Stand (6.5')
| Load Capacity | 6.6 lb / 3 kg | | Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Maximum Working Height | 6.5' / 1.9 m | | Minimum Working Height | 29" / 73.5 cm | | Collapsed Height | 29" / 73.5 cm | | Footprint Diameter | 25" / 63.5 cm | | Accepts Wheels | No | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 2.2 lb / 1.0 kg | | | | Box Dimensions (LxWxH) | 28.2 x 3.55 x 3.15" |
