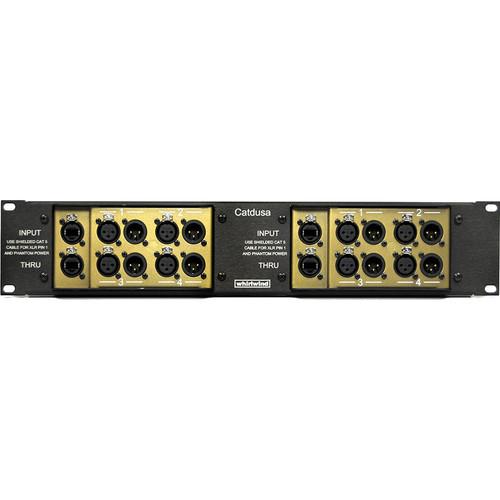

User Manual for Whirlwind Catdusa Rack 2 RU 8-Channel Snake Box Click to enlarge the picture
Contents of the user manual for the Whirlwind Catdusa Rack 2 RU 8-Channel
- Product category: Mounts & Brackets Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Mounts & Brackets
|
User manual for the Whirlwind Catdusa Rack 2 RU 8-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|
Product description The Whirlwind Catdusa Rack is a rack-mountable, eight-channel snake box designed to enable simple transmission of analog audio, AES/EBU digital audio, or DMX signals over Ethernet for lighting designers and audio engineers in clubs, concert venues, theatrical productions, and houses of worship. The sturdy aluminum enclosure occupies 2 RU and houses two Catdusa units.Each Catdusa features an RJ45 input, an RJ45 thru port, and eight XLR connectors—four female and four male. Resultantly, you can use the Catdusas for daisy-chaining and bidirectional signal flow. Passage of phantom power is possible via use of shielded Cat5 or Cat6 cabling. - 2 RU rack-mountable snake box handles analog audio, AES/EBU digital audio, or DMX lighting control
- Two RJ45 inputs and two RJ45 thru ports
- Pass phantom power via shielded Ethernet cabling
- Eight XLR 3-pin female connectors and eight XLR 3-pin male connectors for flexible input and output configurations
- Tour-ready sturdy aluminum enclosure
UPC: 692465026635 In the Box Whirlwind Catdusa Rack 2 RU 8-Channel Snake Box 2 x Catdusa 4-Channel Analog over Single CAT5 Snake Box zdwvfyccsdaatqzwwzrs Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind Catdusa Rack 2 RU 8-Channel Snake Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind CATDUSA-2-2R Specs | Rack Height | 2 RU | | Inputs | 2 x RJ45 Ethernet
8 x XLR 3-pin female | | Outputs | 2 x RJ45 Ethernet (thru)
8 x XLR 3-pin male | | Construction Material | 1/8" / 3.5 mm aluminum | | Dimensions (W x H x D) | 19.0 x 3.5 x 1.8" / 482.6 x 88.9 x 44.5 mm | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 2.07 lb | | Box Dimensions (LxWxH) | 19.0 x 2.0 x 2.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
