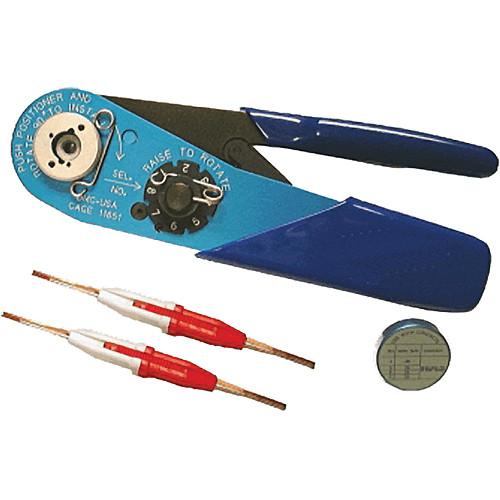

Product description The Crimp Tool Kit from Whirlwind is a MASS and multipin type connector that attaches MASS pins and sockets to wire ends. The ends of the tool are color coded to assist in both extraction and insertion-red for insertion, white for extraction. This tool is designed to facilitate assembly processes. - Crimp tool and locator easily attaches MASS pins and sockets to the wire ends
- Contacts load into rear of MASS contact blocks
- Extraction tool spreads the spring fingers of the retention clip for easier removal from MASS contact blocks
In the Box Whirlwind Crimp Tool Kit Crimper Locator 2 x 91067- 2 Insert/Extract Tool M1RPIN Crimp Type Male (pin) Contact M1RSKT Crimp Type Female (pin) Contact Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind Crimp Tool Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind M1R-TOOL KIT Specs | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 7.5 x 2.5 x 1.5" |
