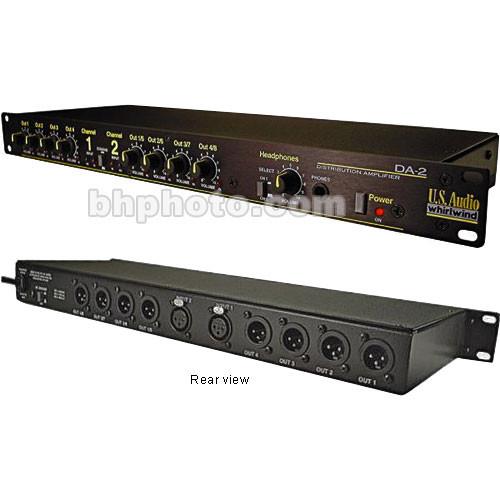

Product description The U.S.Audio/Whirlwind DA-2 is a 2-channel audio distribution amplifier featuring switchable 2 x 4 or 1 x 8 configurations, electronically balanced XLR outputs and active XLR inputs. This high-headroom, high-output unit is equipped with individual level controls and LED indicators for each output, and a separate headphone output with a dedicated volume control. The DA-2 is a high-performance distribution amplifier, built with quality components, and available at a surprisingly moderate price point. - 2-Channel rackmount distribution amplifier with 2-in/4-out configuration or mono-summed 1-in/8-out using Combine mode switch
- XLR electronically balanced line-level inputs and outputs with separate output level control knobs
- Headphone output with dedicated volume control
- Instrumentation grade input differential amplifiers with high 90dB Common Mode Rejection; tunable input impedance
- Individual red clip LED's with warning illumination at 3dB below clipping, green signal present indication
- 22dB headroom at unity gain, better than 74dB of isolation between outputs
- Rear panel ground lift switch
UPC: 692465000765 In the Box Whirlwind DA-2 - 2-Channel 2-In/4-Out Audio Distribution Amplifier with Headphone Output and Individual Volume Controls Owner's Manual 5 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind DA-2 - 2-Channel 2-In 4-Out Audio Distribution Amplifier with Headphone Output and Individual Volume Controls in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind DA2 Specs | Frequency Response | 20 Hz - 20 kHz, +/-.3dBm
3 Hz - 140 kHz, +/-3dBm | | THD & Noise | .004% @1 kHz
<.005%, 20 Hz - 20 kHz | | Input Connectors | 2 x 3-pin XLR Female | | Output Connectors | 8 x 3-pin XLR Male
1 x 1/4" TRS Headphone Out | | Input Sensitivity/Impedance | Impedance: 1Meg Ohm, Balanced | | Maximum Input Level | +23dBm, Unbalanced
+28dBm, Balanced | | Maximum Output Level | +22dBm, Unbalanced
+28dBm, Balanced | | Signal-to-Noise Ratio | 97 dBm,+10 input, output level
89 dBm, 0 input, +10 output level
85 dBm @Unity Gain | | Power Supply | 120VAC | | Power Consumption | .15 Amps max. @120VAC
.15 Amps max. @230VAC | | Dimensions | 19 x 6 x 1.75" (482.6 x 152.4 x 44.45mm) | | Weight | 6.5 lb (2.95 kg) | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 21.0 x 9.5 x 4.5" |
