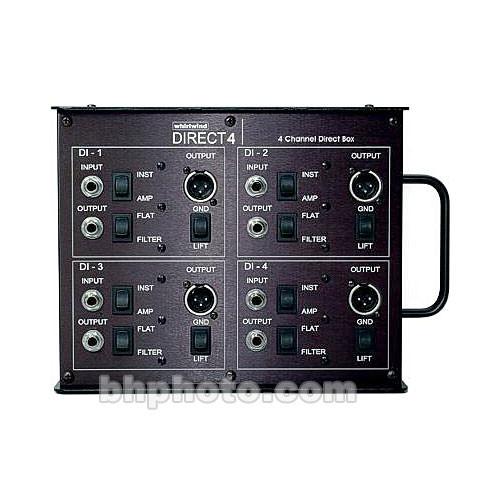

Product description The DIRECT4 is a four channel, passive direct box from Whirlwind that converts unbalanced line, instrument or speaker level signals to low impedance balanced microphone levels, which are then suitable for imputing to a console or microphone preamp. The unit is a passive device and therefore requires no external power supply. Each channel features a ground lift switch and a 20dB pad for selecting between line/instrument or speaker level signals. The input and output grounds of each section are isolated from each other. This allows the DIRECT4 to be used as if it were four completely separate DIs without fear of creating ground loop interaction. - 1/4" parallel wired in/out jacks
- 20dB pad switches for selecting between line/instrument or speaker level input signals
- Ground Lift switches to help eliminate hum and buzz
- Filter switch to help reduce amplifier noise and hiss
UPC: 692465015530 In the Box Whirlwind DIRECT4 - Passive, Four Channel Direct Box Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind DIRECT4 - Passive, Four Channel Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind DIRECT4 Specs | Input Connections | 4 x 1/4" TS phone | | Output Connectors | 4 x XLR
4 x 1/4" TS phone Thru | | Input Level | Not specified by manufacturer | | Output Level | 20dB below input level | | Frequency Response | 20Hz to 20kHz, +/-1dB | | Noise | Not specified by manufacturer | | Power | Passive | | Specialties | Uses Whirlwind's TRHL-M transformer with metal shield | | | | Package Weight | 7.35 lb | | Box Dimensions (LxWxH) | 12.4 x 12.1 x 4.4" |
