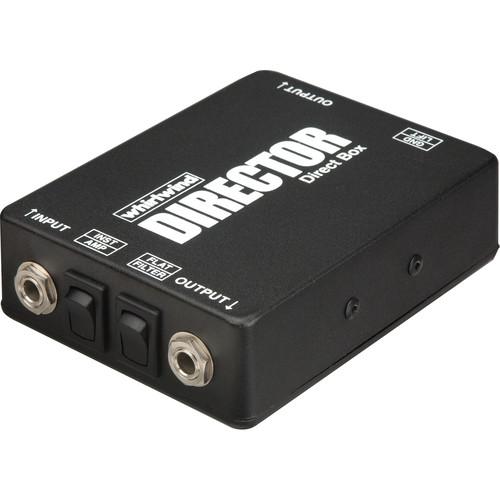

User Manual for Whirlwind DIRECTOR - Studio or PA Direct Box with 30 dB Pad and High Cut Filter Switches Click to enlarge the picture
Contents of the user manual for the Whirlwind DIRECTOR - Studio or PA
- Product category: Direct Boxes Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Direct Boxes
|
User manual for the Whirlwind DIRECTOR - Studio or PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|
Product description The Director direct box from Whirlwind converts an unbalanced line, instrument or speaker level signal to low impedance balanced microphone level, which is then suitable for imputing to a console or microphone preamp. The unit is a passive device and therefore requires no external power supply. The unit features a ground lift switch and a 30 dB pad for selecting between line/instrument or speaker level signals. - 1/4" parallel wired in/out jacks
- 30 dB pad switch for selecting between line/instrument or speaker level input signals
- Ground Lift switch to help eliminate hum and buzz
- Switchable high cut filter to eliminate amplifier noise
UPC: 692465000772 In the Box Whirlwind DIRECTOR - Studio or PA Direct Box with 30 dB Pad and High Cut Filter Switches One (1) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind DIRECTOR - Studio or PA Direct Box with 30 dB Pad and High Cut Filter Switches in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind DIR Specs | Input Connections | 1 x 1/4" TS phone | | Output Connectors | 1 x 1/4" TS phone
1 x XLR | | Input Level | Not specified by manufacturer | | Output Level | 20 dB below input level | | Frequency Response | 20 Hz to 20 kHz, +/-1 dB | | Noise | Not specified by manufacturer | | Power | Passive | | Dimensions (WxDxH) | 3.5 x 4.5 x 1.4" (89 x 114 x 36 mm) | | Weight | Not specified by manufacturer | | Specialties | Uses Whirlwind's TRHL-M transformer with metal shield | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 7.1 x 6.9 x 1.95" |
