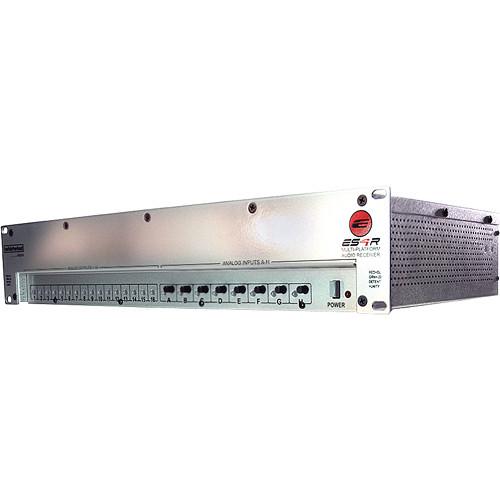

Product description The Whirlwind ES4R Digital Snake Receiver for Cobranet has 16 line level outputs and 8 line level inputs. When used in conjunction with the transmitter, this receiver offers 16 channels of American made, professional quality microphone preamplification and 8 line level return channels via a choice of digital transport formats.The ES4R receiver is configured for Cobranet format. The exceptional performance, ease of use, and extreme flexibility make this receiver a great I/O device for any digital audio network. All inputs have variable gain controls and LED level monitoring. - Multi-platform audio transport system
UPC: 692465022859 In the Box Whirlwind ES4R Digital Snake Receiver for Cobranet Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind ES4R Digital Snake Receiver for Cobranet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind ES4RC Specs | Frequency Response | Input (Line/Mic): ±0.5 dBV 20 Hz to 20 kHz
Control in detent position
Output: ±0.1 dBV 20 Hz to 20 kHz | | THD + N | Input Line Mode: <0.0012% 20 Hz to 20 kHz
Output: <0.0024% 20 Hz to 20 kHz | | Range of Level Pot | -20 to 20 dBV | | Common Mode Rejection | >60 dB | | Maximum Input Level | 19 dBV | | Input Impedance | 20 kΩ balanced | | Noise | At unity gain (potentiometer at center)
Line: -105 dBfs
Noise Output: -95 dBV | | Isolation | Between Input Channels: 122 dB @ 1 kHz
Between Output Channels: 124 dB | | Digital Conversion | 24 bit / 48 kHz | | Maximum Output Level | 12 dBV balanced | | Output Impedance | 200 Ω balanced | | LED | LED Thresholds
Red LED: -2 dBfs; ± 1 dBfs, Green LED: -30 dBfs; ± 3 dBfs | | Power Consumption | 0.47 A at 120 VAC maximum
0.26 A at 120 VAC minimum | | Power Requirement | 100 to 240 VAC 50/60 Hz | | Fuse | Internal Mains: 2 A slow blow type 3AG | | Voltage | AC Dropout Voltage: 90 VAC | | Dimensions (H x W x D) | 3.5 x 19.0 x 12.5" (8.9 x 48.3 x 31.7 cm) | | Weight | 9.5 lb (4.3 kg) | | | | Package Weight | 11.55 lb | | Box Dimensions (LxWxH) | 22.9 x 21.4 x 7.9" |
