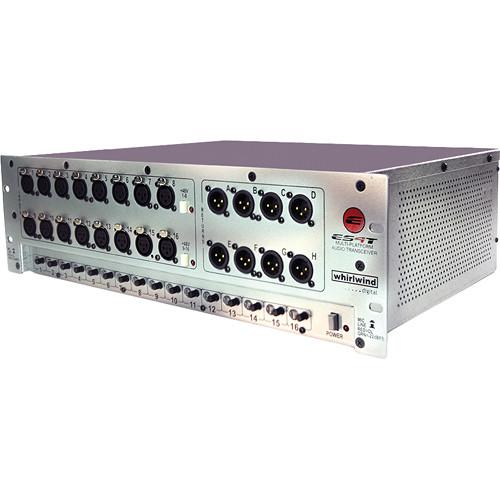

Product description The Whirlwind ES4T Digital Snake Transmitter for Cobranet has 16 balanced mic/line inputs and 8 line level outputs. When used in conjunction with the receiver, this transmitter offers 16 channels of American made, professional quality microphone preamplification and 8 line level return channels via a choice of digital transport formats.The ES4T transmitter is configured for Cobranet format. Great performance, ease of use, and flexibility make this transmitter an apt I/O device for any digital audio network. All inputs have variable gain controls and LED level monitoring. - Multi-platform audio transport system
UPC: 692465022811 In the Box Whirlwind ES4T Digital Snake Transmitter for Cobranet Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind ES4T Digital Snake Transmitter for Cobranet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind ES4TC Specs | Frequency Response | Input (Line/Mic): ±0.2 dBV 20 Hz to 20 kHz
Control in detent position
Output: ±0.23 dBV 20 Hz to 20 kHz | | THD + N | Input Line/Mic Mode: <0.0015% 20 Hz to 20 kHz, Mic Mode: <0.0022% 20 Hz to 20 kHz
Output: <0.0025% 20 Hz to 20 kHz | | Gain | Total: 50 dBV
Microphone Preamp: Mic/Line switch (in) 30 dBV | | Range of Level Pot | -40 to 20 dBV | | Common Mode Rejection | >60 dB | | Maximum Input Level | Line: 19 dBV
Mic: -10 dBV | | Input Impedance | Mic and Line: 2 kΩ balanced | | Noise | At unity gain (potentiometer at center)
Line: -101 dBfs
Mic (30 dBV gain): -95 dBfs
Noise Output: -89 dBV
Mic Mode Equivalent Input Noise: -124.3 dBV | | Isolation | Between Input Channels: Line: 126 dB @ 1 kHz, Mic (40 dBV gain) 110 dB @ 1 kHz
Between Output Channels: 124 dB | | Digital Conversion | 24 bit / 48 kHz | | Maximum Output Level | 20 dBV balanced | | Output Impedance | 200 Ω balanced | | LED | LED Thresholds
Red LED: -2 dBfs; ± 1 dBfs, Green LED: -30 dBfs; ± 3 dBfs | | Phantom Power | 48 VDC | | Power Consumption | 0.8 A at 120 VAC maximum
0.31 A at 120 VAC minimum | | Power Requirement | 100 to 240 VAC 50/60 Hz | | Fuse | Internal Mains: 2 A slow blow type 3AG | | Voltage | AC Dropout Voltage: 90 VAC | | Dimensions (H x W x D) | 5.25 x 19.00 x 12.50" (13.33 x 48.26 x 31.75 cm) | | Weight | 12.0 lb (5.4 kg) | | | | Package Weight | 13.85 lb | | Box Dimensions (LxWxH) | 21.3 x 14.9 x 8.0" |
