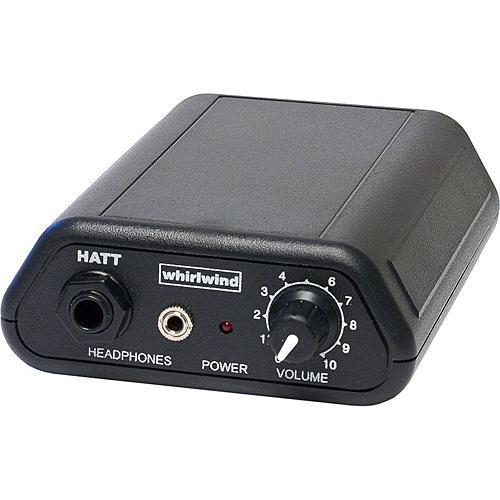

User Manual for Whirlwind HATT - Active Table-Top Stereo Headphone Control Box Click to enlarge the picture
Contents of the user manual for the Whirlwind HATT - Active Table-Top Stereo
- Product category: Headphone Amplifiers Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Headphone Amplifiers
|
User manual for the Whirlwind HATT - Active Table-Top Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|
Product description The Whirlwind HATT Active Table-Top Stereo Headphone Control Box is a rugged and easy to use unit that provides both, 1/4" and 1/8" headphone outputs to audio rigs that require them. The active electronics means that it's self amplified and provides clean sound with low noise. There are 1/8" and 1/4" phone connections for input and through routing; allowing the HATT to be used inline as a headphone tap in studios, production suites, etc. - Handles headphones from 8 to 600 Ohms with low distortion and wide frequency response
- 1/4" and 1/8" headphone jacks and volume control are provided on the front panel
- Two 1/4" TRS (stereo) and one 1/8" TRS jacks on the rear for input / through connections
- Powered with 24 VDC adapter (included)
UPC: 692465018531 In the Box Whirlwind HATT - Active Table-Top Stereo Headphone Control Box 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind HATT - Active Table-Top Stereo Headphone Control Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind HATT Specs | Number of Channels | Stereo | | Input Connections | 1/8" (3.5mm) and 1/4" x2 | | Output Connectors | 1/8" (3.5mm) and 1/4" | | Maximum Output Level | 19.4 dBv with no load
7.4 dBv with 30 ohm load 1.5 dBv with 8 ohm load | | Function Controls | Volume Control | | Frequency Response | 20Hz to 20kHz | | THD + N | +/- .002% into 30 ohm phones @ 1kHz, 0dBV, in -10dBV out | | Noise | -96dBV with 0dBV in, -10dBV out, 30 ohm phones | | Display | None | | Dimensions | Not Specified By Manufacturer | | Weight | Not Specified By Manufacturer | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 9.7 x 4.4 x 2.4" |
