User Manual for Whirlwind HATT-AES Tabletop Active Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the Whirlwind HATT-AES Tabletop Active Headphone Amplifier
- Product category: Headphone Amplifiers Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Headphone Amplifiers
 |
User manual for the Whirlwind HATT-AES Tabletop Active Headphone Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|

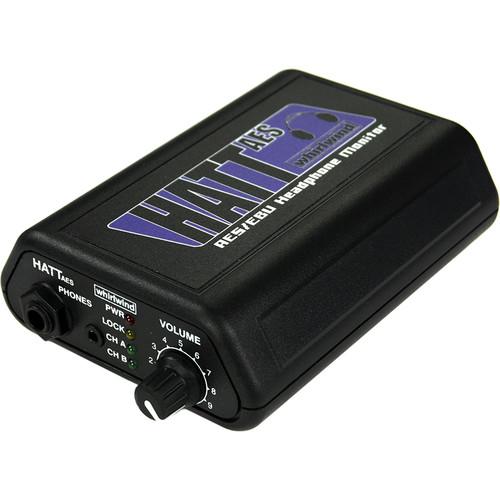

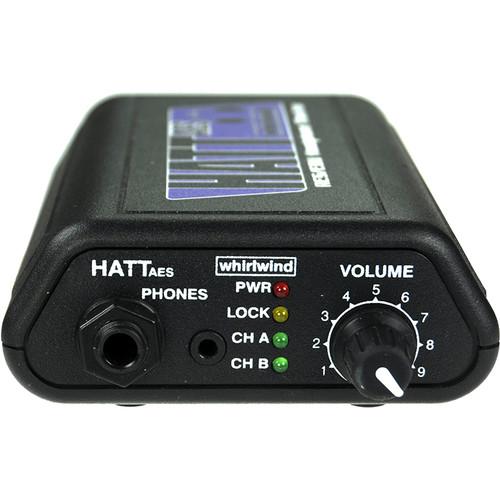

Product description The HATT-AES Tabletop Active Headphone Amplifier from Whirlwind converts a digital AES3 stream into a high-fidelity, low-distortion stereo headphone signal optimized for 32 Ohms headphones. Sample rates from 32 kHz to 192 KHz are recognized by the HATT-AES D/A converters. The amplifier features an analog 3.5mm TRS stereo input jack, analog signal present LEDs, and a buffered AES loop-thru output. The headphone output can also be used as an unbalanced stereo line driver.The HATT-AES is powered by an included model #PS6 powert supply. Both 1/4” TRS and 3.5mm TRS headphone jacks are provided and the volume control adjusts the listening level. It is housed in a durable ABS box for placement anywhere a high-quality headphone driver is required. Front Panel - The single volume control adjusts the level delivered to both left and right earpieces. The PWR LED indicates operational status, the LOCK LED shows connection with a valid AES3 stream (32 kHz to 192 KHz sample rates), and the CHA and CHB LEDs display analog audio presence at the output of the D/A converters.

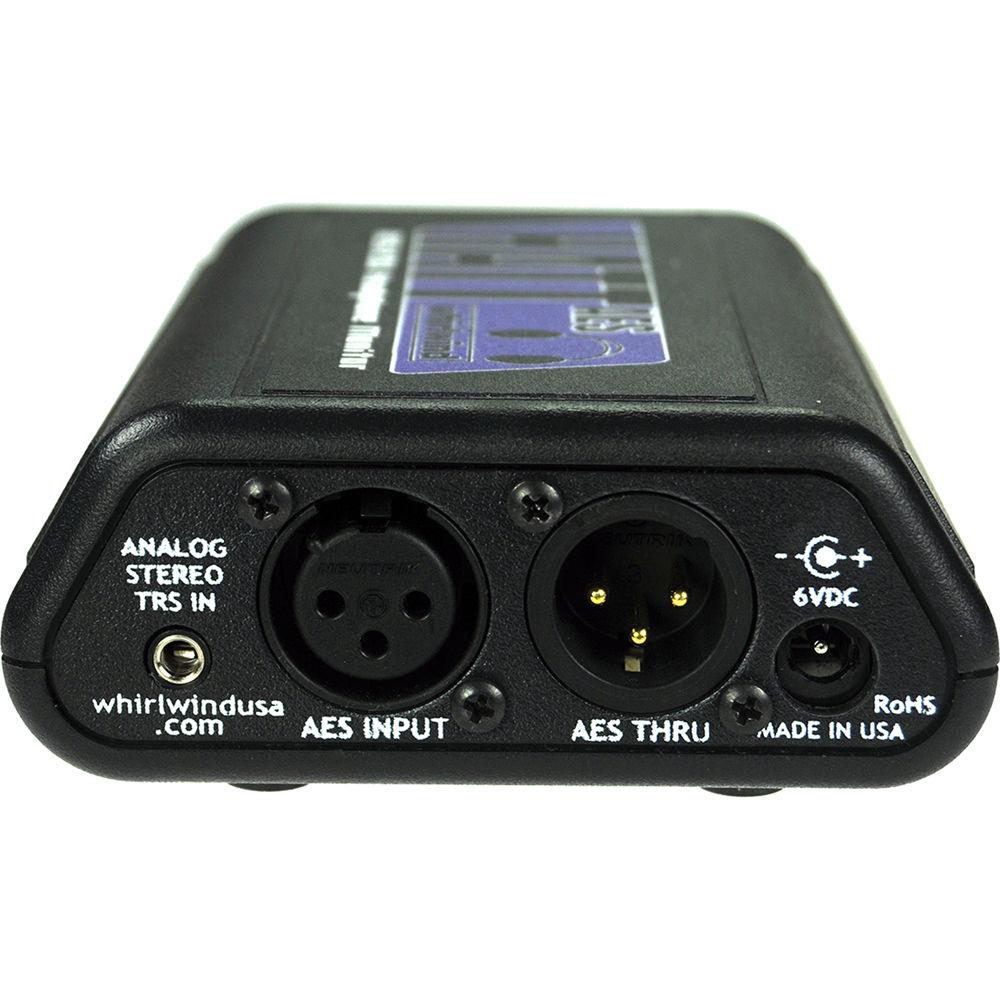

Note: Although 1/4" TRS and 3.5mm TRS headphone jacks are included for convenience, only one jack should be used at a time. Rear Panel - A 3.5mm stereo TRS jack is provided for injection of unbalanced stereo signals. The AES3 input is a female XLR. Both AES3 digital and 3.5mm analog inputs can be used together if required. The AES thru XLR male jack provides a buffered, latency free, output of the input signal for daisy-chaining several units together with the same AES3 stream. The 2.1mm power input jack is for connection to the model #PS6 6 VDC power supply.
UPC: 692465025508 In the Box Whirlwind HATT-AES Tabletop Active Headphone Amplifier #PS6 6 VDC Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind HATT-AES Tabletop Active Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind HATT-AES Specs | Number of Channels | 2 | | Input Connections | 1 x 3.5 mm stereo TRS jack
1 x AES female XLR
1 x AES loop-thru XLR male jack
2.1 mm power input jack | | Output Connectors | 1/4" TRS
3.5 mm TRS | | Maximum Output Level | +4 dBV | | Function Controls | Volume knob | | Frequency Response | +/- 0.8 dB, 20 Hz to 20 kHz (30 Ohms load)
+/- 0.2 dB, 20 Hz to 16 kHz (10 kOhms load) | | THD + N | < 0.05%, 20 Hz to 20 kHz (30 Ohms load)
< 0.004%, 20 Hz to 20 kHz (10 kOhms load) | | Noise | < -98 dBV at unity gain | | Maximum Input Level | +0 dBfs (5 V p-p) AES
+3 dBV analog | | Total Gain | 20 dB | | Input Impedance | 100 kOhms AES
10 kOhms analog | | Headphone Impedance | 32 Ohms recommended | | Power Requirements | 6 VDC @ 300 mA | | Short Circuit Protection | Withstands shorted output at full level indefinitely | | Dimensions | Not specified by the manufacturer | | Weight | 1.25 lb (0.56 kg) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 9.7 x 4.3 x 2.4" |
