Whirlwind HATTXL Tabletop Mono Active Headphone

Search your instruction manual in PDF to download

User Manual for Whirlwind HATTXL Tabletop Mono Active Headphone Amplifier

Click to enlarge the picture
Whirlwind HATTXL Tabletop Mono Active Headphone Amplifier Contents of the user manual for the Whirlwind HATTXL Tabletop Mono Active Headphone
  • Product category: Headphone Amplifiers Whirlwind
  • Brand: Whirlwind
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Whirlwind Headphone Amplifiers

Whirlwind HATTXL Tabletop Mono Active Headphone Amplifier Whirlwind HATTXL Tabletop Mono Active Headphone Amplifier
User manual for the Whirlwind HATTXL Tabletop Mono Active Headphone contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Whirlwind product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!



Product description

The HATTXL Tabletop Mono Active Headphone Amplifier from Whirlwind provides headphone volume control for broadcast applications, recording studios, and language labs. It can drive any impedance headphones, including 8 Ohm in-ear monitors. This mono headphone amplifier uses a mono balanced input via XLR connectors and sends the same signal to both the left and right earpieces. It also features an unbalanced 3.5mm TRS stereo input jack with the left and right summed to mono.The control box is powered by an included PS242.1 wall wart supply. Both 1/4" TRS and 3.5mm TRS headphone jacks are provided and a volume control adjusts the listening levels. The amplifier is enclosed in a durable ABS box.

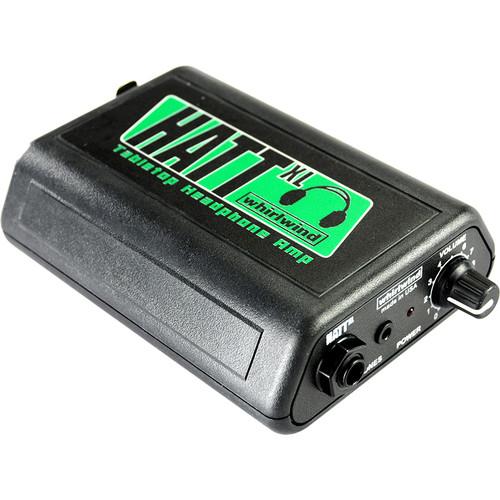

Front Panel

  • The single volume control adjusts the level delivered to both left and right earpieces. The power LED indicates operational status. Although 1/4" TRS and 3.5mm TRS headphone jacks are included for convenience, only one jack should be used at a time.

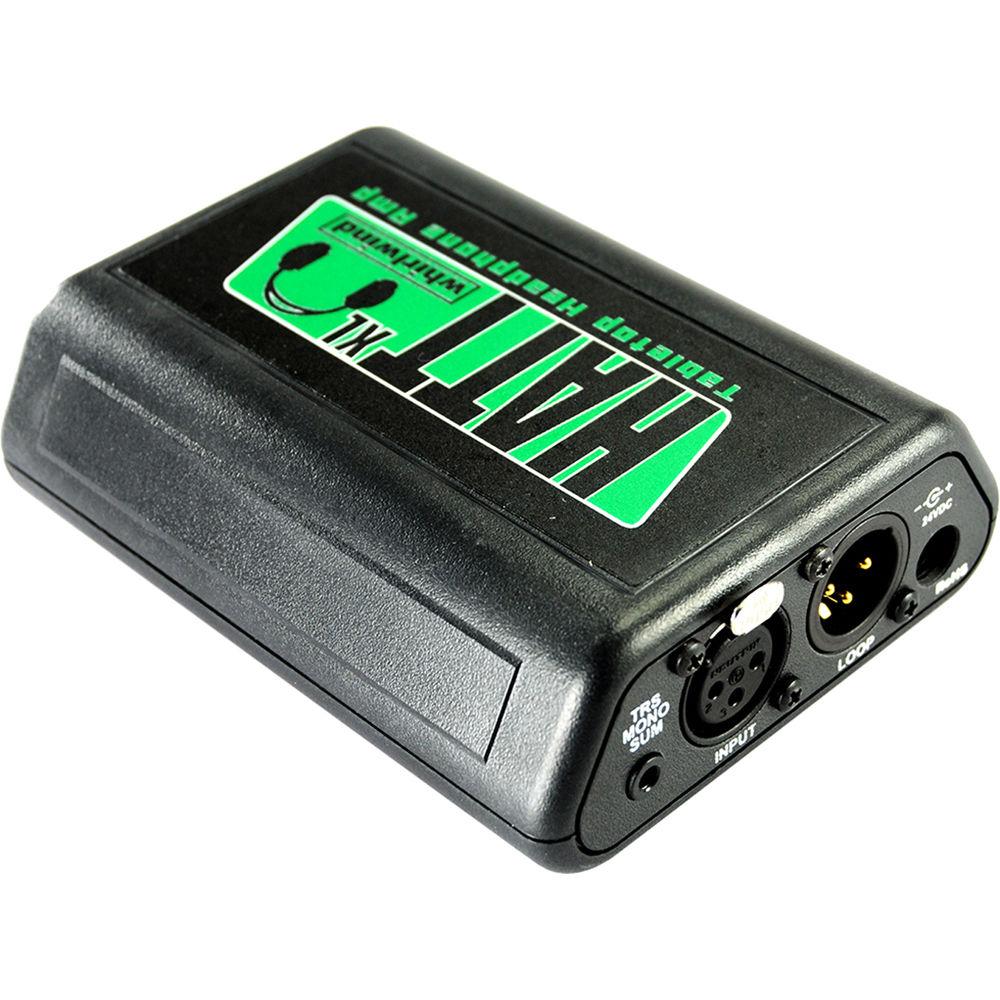

Rear Panel

  • Female and male XLR connectors are paralleled for looping the mono balanced line level input signal. As many as 25 units can be daisy-chained together with a single feed line. Pin 2 is positive, pin 3 is negative, and pin 1 is shield. A separate 3.5mm stereo TRS jack is provided for injection of unbalanced stereo signals. The left and right are summed and delivered to the headphone outputs in mono. Both XLR and 3.5mm inputs can be used together if required. The 2.1mm power input jack is for connection to the 24 VDC/200mA power supply.
In the Box Whirlwind HATTXL Tabletop Mono Active Headphone Amplifier

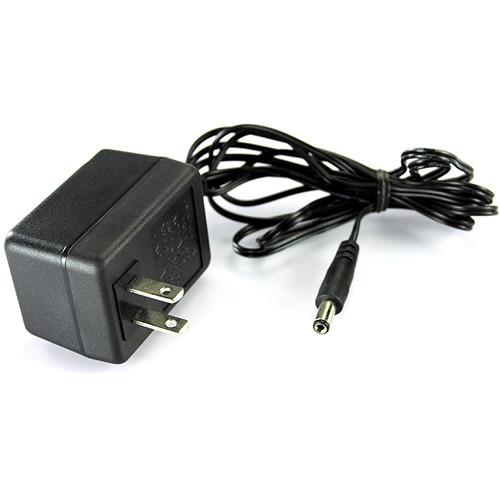

  • 24 VDC Adapter
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Whirlwind HATTXL Tabletop Mono Active Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Whirlwind HATTXL Specs

    Number of Channels 1
    Input Connections 2.1mm power input
    1 x XLR
    1 x 1/8" TRS
    Output Connectors 1 x 1/4" headphone jack
    1 x 1/8" headphone jack
    1 x XLR loop-through
    Total Gain 23 dBV
    Input Impedance 100 kOhms
    Headphone Impedance 8 to 600 Ohms
    Maximum Output Level 2 dBV at 8 Ohms
    9.5 dBV at 30 Ohms
    Function Controls 1 x volume knob
    Frequency Response +/- 0.23 dBV, 60 Hz to 20 kHz
    THD + N < 0.04%, 63 Hz to 20 kHz
    Noise At Unity Gain: -95 dBV, 8 Ohms
    Power Consumption 180 mA DC full clean power, 8 Ohms
    Power Output Drive Power: 1.1 VAC RMS into 8.25 Ohms: 151 mW
    2.97 VAC RMS into 30 Ohms: 294 mW
    Dimensions Not specified by the manufacturer
    Weight 1.25 lb (0.56 kg)
