User Manual for Whirlwind HAUCXL Active Mono Headphone Control Box Click to enlarge the picture
Contents of the user manual for the Whirlwind HAUCXL Active Mono Headphone Control
- Product category: Headphone Amplifiers Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Headphone Amplifiers
|
User manual for the Whirlwind HAUCXL Active Mono Headphone Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|

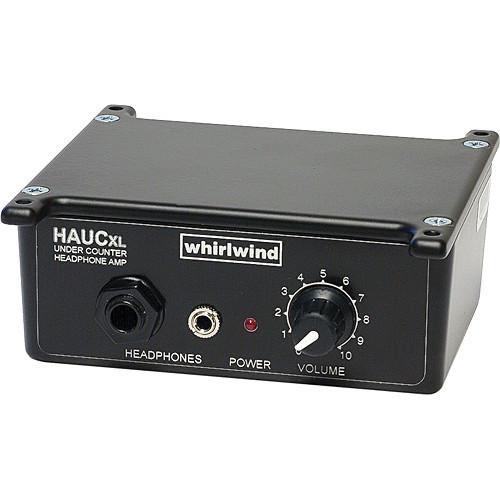

Product description The HAUCXL from Whirlwind is a compact under-desk active mono headphone amplifier that provides clean power and volume control for a variety of headphones. The rounded housing fits neatly on the underside of a table or desk and is easy on knees and clothes.
The rear panel features XLR and 3.5mm mono inputs, as well as an XLR loop thru jack. The front panel offers 1/4" and 3.5mm headphone jacks, allowing you to plug in your favorite set of cans. The unit can handle headphones with impedances from 8-600 Ohms, and offers an easy-to-use rotary volume control knob. The HAUCXL operates via 24VDC power, and a power adapter is included. - Rounded housing fits neatly on the underside of a table or desk and is easy on knees and clothes
- XLR and 3.5mm mono inputs
- 1/4" and 3.5mm headphone jacks
- Accepts headphones with impedances from 8-600 Ohms
- Easy-to-use rotary volume control knob
- 24VDC power adapter included
UPC: 692465018562 In the Box Whirlwind HAUCXL Active Mono Headphone Control Box Power Supply 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind HAUCXL Active Mono Headphone Control Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind HAUCXL Specs | Number of Channels | 1 | | Input Connectors | 1 x 3.5mm Input
1 x XLR Input | | Output Connectors | 1 x 1/4" Headphone Jack
1 x 3.5mm Headphone Jack
1 x XLR Loop Thru Connector | | Maximum Output Level | 19.4dBv (No Load)
7.4dBv (30 Ohm Load)
1.5dBv (8 Ohm Load) | | Function Controls | 1 x Volume Knob | | Frequency Response | 20Hz - 20kHz | | THD + N | 0.002% | | Noise | -96dBv (0dBv In, -10dBv Out, 30 Ohm Phones)
-103dBv (0dBv In, 0dBv Out, 8 Ohm Phones) | | Display | No | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 7.2 x 5.0 x 2.7" |
