User Manual for Whirlwind LBS - 1x2 Line Balancer and Splitter Click to enlarge the picture
Contents of the user manual for the Whirlwind LBS - 1x2 Line Balancer
- Product category: Splitters & Combiners Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Splitters & Combiners
|
User manual for the Whirlwind LBS - 1x2 Line Balancer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|

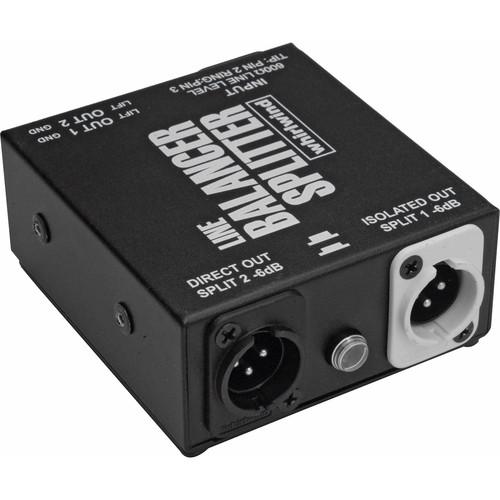

Product description The Whirlwind LBS is a versatile, ruggedly built in-line device that balances and isolates a single line level signal, or allows a line level signal to feed two destinations. Transformer balancing and isolation is available for one or both of the outputs. The balancing provides the necessary noise rejection when in use with equipment having unbalanced outputs, feeding equipment with balanced inputs.
The transformer isolation built into the LBS helps eliminate the unwanted hum and buzz caused by power line and grounding problems. In ISO mode, the signal is passed directly through to one output, and transformer-isolated to the second output. In SPLIT mode, the signal is transformer-isolated to both outputs, with a resulting 6dB drop in level at each output. The unit is equipped with a ground lift switch for each output. - Balncer/Splitter
- The LBS includes an in-line balancer and splitter box with 1-in, 2-out configuration, dual ISO and SPLIT mode operation.
- Built Tough
- Rugged, all-metal construction gives years of service.
- Quality Circuitry
- Transformer balancing, transformer isolation, and a ground lift switch are provided for each output.
- Extensive Connectivity
- Standard, recessed XLR output connectors, XLR and 1/4" TRS input connectors make the LBS easy to use.
UPC: 692465001489 In the Box Whirlwind LBS - 1x2 Line Balancer and Splitter Owner's Manual 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind LBS - 1x2 Line Balancer and Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind LBS Specs | Frequency Response | 20 Hz - 20 kHz +/-1 dB | | Input Impedance | 600 Ohms | | Output Impedance | 600 Ohms(ISO Mode)
2 x 150 Ohms(SPLIT Mode) | | Connectors | Inputs:
1 x 3-pin XLR female
1 x 1/4" TRS phone
Outputs
2 x 3-pin XLR male | | Operating Level | Input: -10 dBm to +26 dBm(ISO Mode)
-16 dBm to +20 dBm(SPLIT Mode) | | Dimensions | 4.5 x 3.6 x 1.25" (114.3 x 76.2 x 31.75mm) | | Weight | 2 lbs (0.9 kg)(shipping weight) | | | | Package Weight | 1.095 lb | | Box Dimensions (LxWxH) | 7.1 x 6.9 x 2.15" |
