User Manual for Whirlwind LM2B - 2-Channel Unbalanced to Balanced Line Level Converter Click to enlarge the picture
Contents of the user manual for the Whirlwind LM2B - 2-Channel Unbalanced to
- Product category: Level Matching Transformers Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Level Matching Transformers
|
User manual for the Whirlwind LM2B - 2-Channel Unbalanced to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|

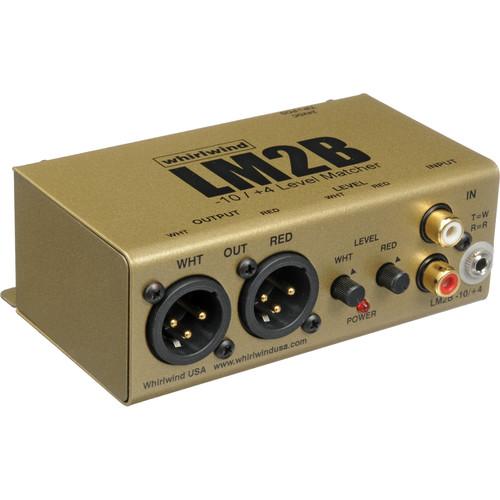

Product description A Fun and Good-Humored Attempt at Demystifying -10 dBV and +4 dBu Read More The LM2B from Whirlwind is a two-channel, level matching device, housed in a compact and robust enclosure. The unit provides high quality conversion of analog audio levels and impedances between -10dBV "consumer/semi-pro" unbalanced equipment, and +4dBm balanced professional equipment. The LM2B can amplify an unbalanced signal by up to 14dB, and sports dual, adjustable gain controls, on the front panel. Both controls are marked with positions that represent nominal conversion gain settings. The unit is powered by an included external 24VDC power supply. - Two-channel, unbalanced to balanced audio line level converter
- Unbalanced connections include gold plated RCAs and a stereo, 3.5mm mini connector
- Balanced connectors include gold-plated XLRs
- Individual gain controls for fine-tuning levels
- Active circuitry, powered by an included external power supply
UPC: 692465016261 In the Box Whirlwind LM2B - 2-Channel Unbalanced to Balanced Line Level Converter External Power Supply Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind LM2B - 2-Channel Unbalanced to Balanced Line Level Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind LM2B Specs | Frequency Response | 20Hz to 20kHz, +/-0.17dBV @ unity gain | | Noise Level | -100.3dBV, @ unity gain | | Maximum Input Level | +18dBV | | Maximum Output Level | +23dBV | | Input Connectors | 2 x RCA phono
1 x 1/8" TRS mini-stereo phone | | Output Connectors | 2 x XLR | | Input Impedance | 10kΩ, unbalanced | | Output Impedance | 100Ω, balanced | | Dimensions (WxDxH) | 4.31 x 2.75 x 1.75" (109 x 70 x 45 mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 0.99 lb | | Box Dimensions (LxWxH) | 9.8 x 4.35 x 3.25" |
