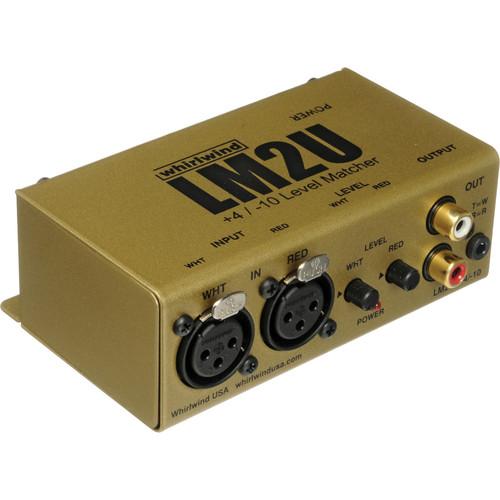

Product description The LM2U from Whirlwind is a two-channel level matching device, housed in a compact and robust enclosure. The unit provides high quality conversion of analog audio levels and impedances, by taking balanced +4dBm professional levels, actively attenuating them and delivering unbalanced -10dBV "consumer/semi-pro" outputs. The LM2U can attenuate a balanced signal by up to 14dB and sports dual, adjustable gain controls on the front panel. The controls are both marked with positions that represent nominal conversion gain settings. The unit is powered by an included external 24VDC power supply. - Two-channel, balanced to unbalanced audio line level converter
- Balanced connectors include gold-plated XLRs
- Unbalanced connections include gold plated RCAs and a stereo, 3.5mm mini connector
- Individual gain controls for fine-tuning levels
- Active circuitry, powered by an included external power supply
UPC: 692465016254 In the Box Whirlwind LM2U - 2-Channel Balanced to Unbalanced Line Level Converter External Power Supply Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind LM2U - 2-Channel Balanced to Unbalanced Line Level Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind LM2U Specs | Frequency Response | 20Hz to 20kHz, +/-0.17dBV @ unity gain | | Noise Level | -103.4dBV, @ unity gain | | Maximum Input Level | +17dBV | | Maximum Output Level | +17dBV | | Input Connectors | 2 x XLR | | Output Connectors | 2 x RCA phono
1 x 1/8" TRS mini-stereo phone | | Input Impedance | 20kΩ, balanced | | Output Impedance | 100Ω, unbalanced | | Dimensions (WxDxH) | 4.31 x 2.75 x 1.75" (109 x 70 x 45 mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 8.7 x 3.7 x 2.7" |
