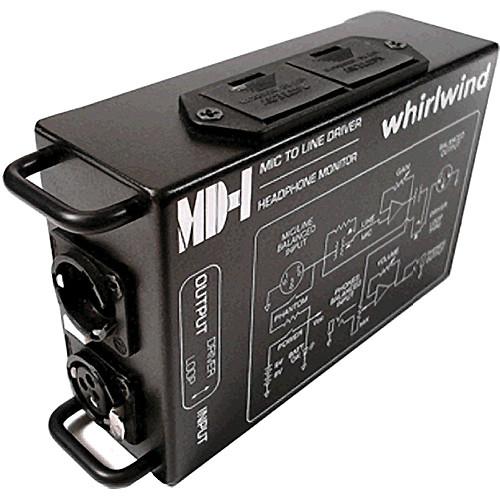

Product description The Whirlwind MD-1 is a portable single channel microphone preamplifier with provisions for line level input and headphone output. The MD-1 features the studio-grade preamplifier found in the Whirlwind MIX-6 mixer. The front panel features a pad and level control that adjust for various mic and line level sources, providing up to 60dB of gain. A 1/4" phone line level input is also available and enables line signal to be looped-thru and monitored via the 1/4" phone headphone output. The MD-1 provides +18V phantom power to condenser microphones. Two 9-volt batteries power the MD-1 and are housed in convenient slide-out trays for easy replacement. Whether amplifying boom pole mounted shotgun microphones, parabolic microphones or functioning as a headphone tap, the rugged yet light weight MD-1 is designed to withstand the demands of the professional field audio engineer. - Studio Grade Preamplifier
- Featuring the same preamplifier circuit found in the Whirlwind Mix-6, the MD-1 is designed to provide a pristine low-noise, studio-grade audio signal on output.
- Line Level Input
- In additional to a 3-pin XLR microphone input, the MD-1 also features a 1/4" phone line level input, allowing the signal to loop-thru and be monitored via the headphone output.
- Headphone Output
- A 1/4" phone headphone output with level control is provided. The output enables monitoring of microphone level and line level input sources.
- Input Level and Pad Control
- The front panel features input level and pad switch controls. The controls adjust input gain and allow integration with most microphone and line level sourced without significant gain loss or signal overload.
- Phantom Power
- The MD-1 provides +18V phantom power to condenser microphones.
- Portable and Battery Powered
- The MD-1 is designed for the field audio engineer and is powered with 2 9-volt alkaline batteries.
UPC: 692465001724 In the Box Whirlwind MD1 - Single Channel Microphone Preamp with Headphone Monitor 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind MD1 - Single Channel Microphone Preamp with Headphone Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind MD1 Specs | Connections | Input: 3-pin XLR male
Output: 3-pin XLR female | | Input Impedance | Mic mode: 1.5k ohms
Line mode: 10k ohms | | Output Impedance | 600 ohms | | Audio Input Signal | Line mode: +18dBm balanced
Mic mode: -4dBm unbalanced | | Frequency Response | +/- 3dBm 6Hz to 25kHz
+/- 1dBm 50Hz to 10kHz -2.0 dBm @ 20kHz | | Maximum Output Level | +12 dBm into a 2k ohm load
+24 dBm into a 10k ohm load +36 dBm into a 100k ohm load | | THD + Noise | < 1 % 100Hz to 20kHz | | Phantom Power | +18 VDC | | Power Requirements | 9-Volt batteries x2 | | Dimensions | 3.88 x 6.25 x 2.25" (98.55 x 158.75 x 57.15cm) (HxWxD) | | Weight | 2 lb | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 6.7 x 4.3 x 2.4" |
