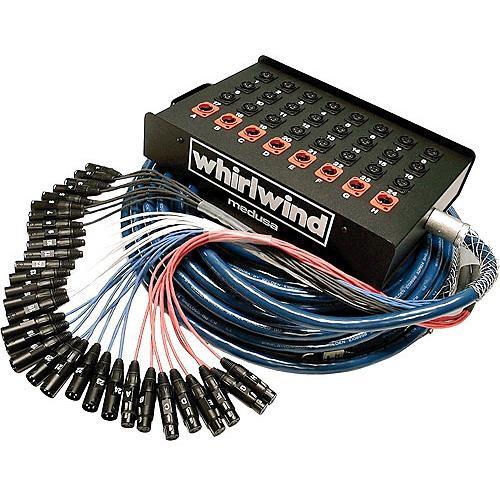

User Manual for Whirlwind Medusa Standard 48x XLR Send 10x XLR Return Stagebox to Fanout Snake Click to enlarge the picture
Contents of the user manual for the Whirlwind Medusa Standard 48x XLR Send
- Product category: Audio Snake Cables Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Audio Snake Cables
|
User manual for the Whirlwind Medusa Standard 48x XLR Send contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|
Product description This Whirlwind Medusa Standard 48x XLR Send/10x XLR Return Stagebox to Fanout Snake (50') is a snake cable with a heavy-duty powder-coated steel stagebox at one end and a fanout at the other end. The cabling consists of heavy-duty, flexible Belden NEC CM-rated multi-pair cable. Each pair contains 2 twisted 24GA 7x32 polyethylene-insulated conductors with 100% foil shielding and 24GA drain wires.
The stagebox has Whirlwind connectors and an integrated handle for convenient transportation. The fanouts also feature Whirlwind connectors with engraved numbers and letters. There are also multiple layers of rugged heat shrink at the most critical points. The snake has a genuine Kellems wire-mesh hanger to support the fanout when connected to a mixing board. There is also genuine Kellems strain relief and a grip with an internal cable clamp. The snake is made in the USA at the Whirlwind factory in Rochester, NY. - The cabling is heavy-duty, flexible Belden NEC CM-rated multi-pair cable. Each pair contains 2 twisted 24GA 7x32 polyethylene-insulated conductors with 100% foil shielding and 24GA drain wires
- Heavy-duty powder-coated steel stagebox with Whirlwind connectors and an integrated handle
- The fanouts have Whirlwind connectors with engraved numbers and letters
- There are multiple layers of rugged heat shrink at the most critical points of the fanouts
- A genuine Kellems wire-mesh hanger supports the fanout at your mixing board
- There is genuine Kellems strain relief and grip with an internal cable clamp
- Made in the USA at the Rochester, NY factory
In the Box Whirlwind Medusa Standard 48x XLR Send/10x XLR Return Stagebox to Fanout Snake (50') Wire-Mesh Hanger Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind Medusa Standard 48x XLR Send 10x XLR Return Stagebox to Fanout Snake in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind MS-48-10-XL-050 Specs | Cable Type | Stagebox to Fanout Snake | | Length | 50' (15.15 m) | | Shielding | 100% Foil Shield | | Connector 1 | 48 x XLR Sends | | Connector 2 | 10 x XLR Returns | | | | Package Weight | 40.0 lb | | Box Dimensions (LxWxH) | 23.0 x 22.0 x 9.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
