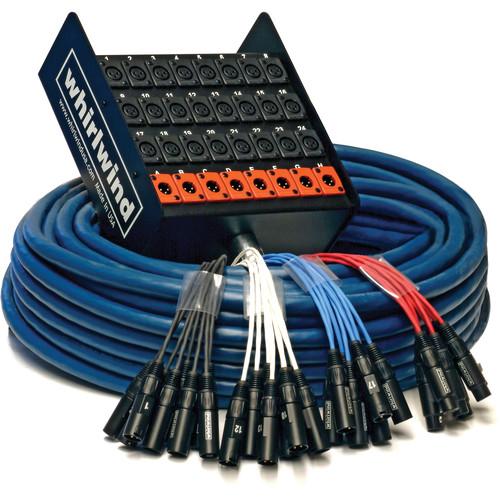

User Manual for Whirlwind MEDUSA Standard Series 24-Channel Box to Fan Snake with 8 Returns Click to enlarge the picture
Contents of the user manual for the Whirlwind MEDUSA Standard Series 24-Channel Box
- Product category: Audio Snake Cables Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Audio Snake Cables
|
User manual for the Whirlwind MEDUSA Standard Series 24-Channel Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|
Product description The Whirlwind MEDUSA Standard Series 24-Channel Box to Fan Snake is intended for small or mid-size sound reinforcement applications for stage and performances. The snake features 24 XLR female input connectors on the stage box, and a 200' (60.96m) long cable and fan with XLR male outputs to the mixer. There are 8 XLR returns for monitoring. Belden NEC CM rated multi-pair cable provide heavy duty, flexible, multi-pair cable that withstands heavy touring and rigorous use. - Heavy duty powder coated steel stagebox with Whirlind connectors and integrated handle.
- Whirlwind by Belden NEC CM rated multipair cable, heavy duty, flexible, multipair cable. Each pair contains two twisted 24GA 7x32 polyethylene insulated conductors with 100% foil shield and 24GA drain wire.
- Fanouts with multiple layers of rugged heat shrink at the most critical points.
- Fanouts feature Whirlwind connectors with engraved numbers and letters.
- Genuine Kellems® wire mesh hanger to support the fanout at the board.
- Genuine Kellems® strain relief and grip with internal cable clamp.
UPC: 692465019569 In the Box Whirlwind MEDUSA Standard Series 24-Channel Box to Fan Snake with 8 Returns (200') (60.96m) 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind MEDUSA Standard Series 24-Channel Box to Fan Snake with 8 Returns in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind MEDUSA Specs | Connections | Stage Box - XLR Female x24
Fan - XLR Male x24 XLR Returns x8 | | Length | 200' (60.96m) | | | | Package Weight | 72.3 lb | | Box Dimensions (LxWxH) | 24.0 x 23.0 x 15.0" |
