User Manual for Whirlwind Medusa Standard Series 24 Channel Stagebox to Fanout Snake - 100' Click to enlarge the picture
Contents of the user manual for the Whirlwind Medusa Standard Series 24 Channel
- Product category: Audio Snake Cables Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Audio Snake Cables
User manual for the Whirlwind Medusa Standard Series 24 Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!

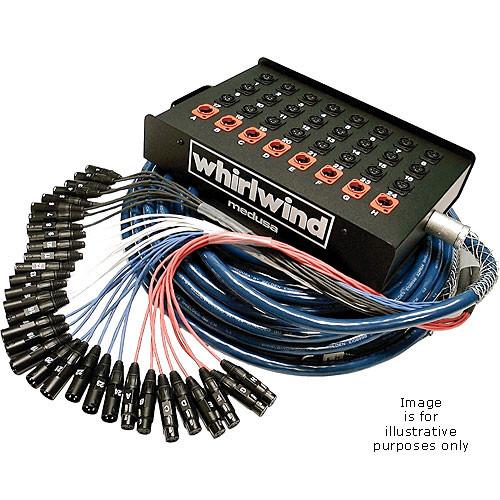

Product description This Whirlwind Medusa Standard Series 24 Channel (4x 1/4" TRS Return) Snake is a snake cable with a heavy-duty steel stagebox at one end and a fanout at the other end. The cabling consists of heavy-duty, flexible Belden CM rated multipair cable. Each pair contains two twisted 24GA 7x32 polyethylene insulated conductors with 100% foil shield and 24GA drain wire. The fanouts feature genuine Whirlwind connectors. Mic channels are numbered and return connectors are lettered by engraving the metal barrel with large, easy to read graphics. Snake cables make it possible to combine several balanced (microphone) cables into one smaller diameter multipair cable, making setup and teardown much faster and easier, with less tangling and clutter than would otherwise be the case.
- Heavy-duty powder coated steel stagebox with Whirlwind connectors.
- Fanouts with multiple layers of rugged heat shrink at the most critical points.
- Fanouts feature Whirlwind connectors with engraved numbers and letters.
- Genuine Kellems wire mesh hanger to support the fanout at the board.
UPC: 692465002554 In the Box Whirlwind Medusa Standard Series 24 Channel (24x XLR Send & 4x 1/4" TRS Return) Stagebox to Fanout Snake - 100' 5-Year Warranty Table of Contents
- Genuine Kellems strain relief and grip with internal cable clamp.
Upload User Manual
Have you got an user manual for the Whirlwind Medusa Standard Series 24 Channel Stagebox to Fanout Snake - 100' in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Whirlwind MS-24-4-SB-100 Specs
| Cable Type || 24 Channel stagebox to fanout snake |
| Length || 100' (30.5 m) |
| Fanout Length || 3' (0.9 m) |
| Shielding || 100% foil shield |
| Connector 1 || Stagebox with 24x XLR female and 4x 1/4" TRS return sockets |
| Connector 2 || 24x XLR male |
4x 1/4" TRS return
| Package Weight || 37.4 lb |
| Box Dimensions (LxWxH) || 19.0 x 18.0 x 9.0" |
