Whirlwind Medusa Standard Series 40 Channel

Search your instruction manual in PDF to download

User Manual for Whirlwind Medusa Standard Series 40 Channel Stagebox to Fanout Snake - 100'

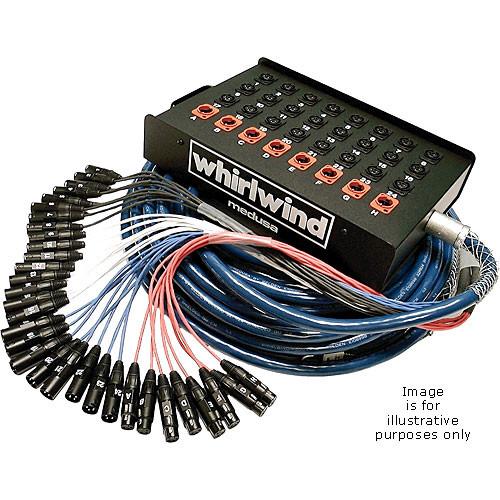

Click to enlarge the picture
Whirlwind Medusa Standard Series 40 Channel Stagebox to Fanout Snake - 100 Contents of the user manual for the Whirlwind Medusa Standard Series 40 Channel
  • Product category: Audio Snake Cables Whirlwind
  • Brand: Whirlwind
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Whirlwind Audio Snake Cables

User manual for the Whirlwind Medusa Standard Series 40 Channel contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Whirlwind product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!



Product description

This Whirlwind Medusa Standard Series 40 Channel (0x Return) Snake is a snake cable with a heavy-duty steel stagebox at one end and a fanout at the other end. The cabling consists of heavy-duty, flexible Belden CM rated multipair cable. Each pair contains two twisted 24GA 7x32 polyethylene insulated conductors with 100% foil shield and 24GA drain wire. The fanouts feature genuine Whirlwind connectors. Mic channels are numbered and return connectors are lettered by engraving the metal barrel with large, easy to read graphics. Snake cables make it possible to combine several balanced (microphone) cables into one smaller diameter multipair cable, making setup and teardown much faster and easier, with less tangling and clutter than would otherwise be the case.
  • Heavy-duty powder coated steel stagebox with Whirlwind connectors.
  • Fanouts with multiple layers of rugged heat shrink at the most critical points.
  • Fanouts feature Whirlwind connectors with engraved numbers and letters.
  • Genuine Kellems wire mesh hanger to support the fanout at the board.
  • Genuine Kellems strain relief and grip with internal cable clamp.
  • Made in the U.S.A.
In the Box Whirlwind Medusa Standard Series 40 Channel (40x XLR Send & 0x Return) Stagebox to Fanout Snake - 100'
  • 5-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Whirlwind Medusa Standard Series 40 Channel Stagebox to Fanout Snake - 100' in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Whirlwind MS-40-0-NR-100 Specs

    Cable Type 40 Channel stagebox to fanout snake
    Length 100' (30.5 m)
    Fanout Length 4' (1.2 m)
    Shielding 100% foil shield
    Connector 1 Stagebox with 40x XLR female and 0x return sockets
    Connector 2 40x XLR male
    0x return
    Package Weight 10.0 lb
    Box Dimensions (LxWxH) 22.0 x 22.0 x 14.0"
