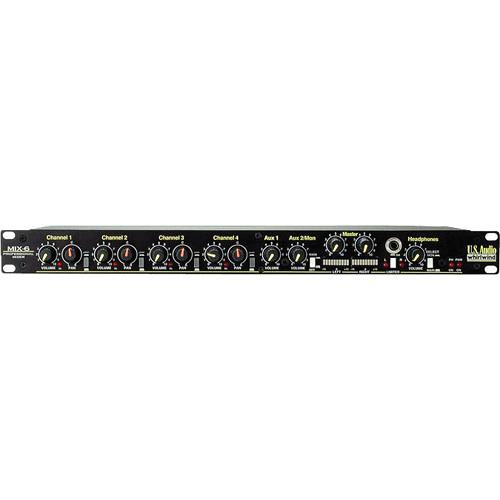

User Manual for Whirlwind MIX-6 Professional 6 Channel Stereo Line Mixer Click to enlarge the picture
Contents of the user manual for the Whirlwind MIX-6 Professional 6 Channel Stereo
- Product category: Install Sound Mixers Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Install Sound Mixers
|
User manual for the Whirlwind MIX-6 Professional 6 Channel Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|
Product description The Whirlwind Mix-6 is a single rack space, professional audio mixer designed for live sound reinforcement, broadcast and any application that requires a high quality audio mic/line mixer. The Mix-6 features a total of 6 inputs. Input channels 1 through 4 feature XLR and 1/4" phone inputs that are mic and line level switchable. Stereo Auxiliary inputs feature L/R RCA phono and 1/4" phone connections for a total of 6 inputs.The Mix-6 features a switchable stereo peak limiter, ideal for controlling noise due to signal over load in broadcast and live sound applications. The front panel features rotary level and pan controls for each channel. All channels feature low-cut filter switches for reducing low frequency noise. The output section features balanced L/R XLR connections and 48V phantom power is available on all 4 microphone inputs. The Mix-6 performs at a level of quality expected of larger studio consoles while remaining in a convenient single rack space enclosure. - 6 Total Inputs
- The Mix-6 features 4 input channels with 1/4" and XLR inputs. The Auxiliary input features stereo 1/4" phone and RCA phono input connectors.
- Mic and Line Level Switchable
- XLR inputs on channels 1 through 4 are microphone and line level switchable.
- Peak Limiter
- An internal peak limiter controls dynamics and eliminates noise and distortion caused by excessive levels.
- Low-Cut Filter
- Low-cut filter switches are located on each channel and eliminate hum and noise at low frequencies.
- Pan Controls
- In addition to rotary level controls, the pan dials provide control over audio placement within the left / right stereo field.
- Switchable Internal Power
- The Mix-6 features a switchable internal power supply capable of 115 or 230VAC operation.
- Phantom Power
- 48V phantom power is available on all microphone inputs.
In the Box Whirlwind MIX-6 Professional 6 Channel Stereo Line Mixer 5 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind MIX-6 Professional 6 Channel Stereo Line Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind MIX-6 Specs | Total # Of Inputs | 4 - XLR & 1/4" Phone | | Mic/Line Inputs | All Inputs Mic/Line Switchable | | Stereo Line Inputs | No | | In-Line Inputs/Returns | No | | AUX Sends | No | | AUX Returns | Aux Inputs: RCA Phono L/R | | Inserts | No | | BUS (Group) Outputs | No | | 2 Trk Master I/O | Main Outputs: (L/R) XLR male & 1/4" Phone | | ALT I/O | No | | Monitor Outputs | Main Outputs Only | | EQ Section | No | | Solo/Mute | No | | Channel Level Control | Rotary Controls (Level and Pan) | | Trim/Gain Control | No | | Phantom Power | 48 VDC | | Metering | L/R Stereo Peak Indicator LEDs | | Frequency Response | 20Hz to 20kHz | | Dynamic | not specified by manufacturer | | Signal-to-Noise Ratio | Line Mode: 0dB input, 0dB gain,=92dB
Mic Mode: -40dB input, 46dB gain,=82dB | | Total Harmonic Distortion (THD) | 0.005% @ 1kHz | | Power Supply | 115/230VAC | | Dimensions | not specified by manufacturer | | Weight | not specified by manufacturer | | | | Package Weight | 7.46 lb | | Box Dimensions (LxWxH) | 21.5 x 9.5 x 5.0" |
