User Manual for Whirlwind Mix 7 Contractor Mixer Click to enlarge the picture
Contents of the user manual for the Whirlwind Mix 7 Contractor Mixer
- Product category: Install Sound Mixers Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Install Sound Mixers
|
User manual for the Whirlwind Mix 7 Contractor Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|

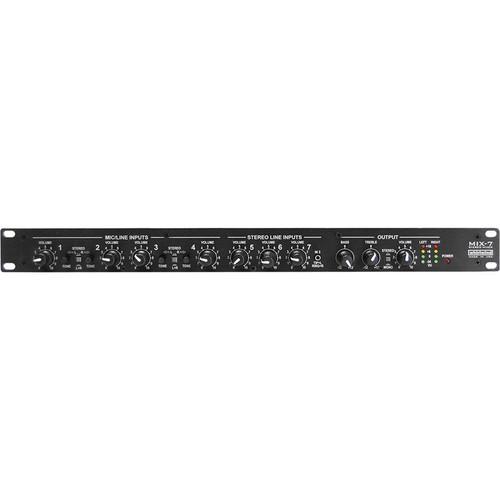

Product description Whirlwind's Mix 7 Contractor Mixer is a versatile stereo mixer, combining four mono mic/line inputs and three stereo line inputs, in a compact, easy to use one rack space package. This mixer provides up to 76 dB of gain, professional quality signal to noise ratio and full frequency response. Designed for use anywhere microphone and music sources need to be combined, the Mix 7 is ideal for use in broadcast production, sports facilities and banquet rooms. Features include stereo/mono switching, a tone control on each of the mic/line inputs, two place master EQ, metering and a stereo/mono switch on the main outputs. - Tone control on each of the microphone/line inputs
- Metering and a stereo/mono switch on the main outputs
UPC: 692465023184 In the Box Whirlwind Mix 7 Contractor Mixer Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind Mix 7 Contractor Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind MIX-7 Specs | Frequency Response | Frequency Response (Line) unity gain: ±.25 dBV 20 Hz - 20 kHz
Frequency Response (Microphone) 40 dB gain: ±.35 dBV 20 Hz - 20 kHz | | THD + N | Line Mode unity gain: <.0035% 20 Hz - 20 kHz
THD + N Mic Mode 40dB gain: <.012% 20 Hz - 20 kHz | | Equivalent Input Noise | -120 dBV | | Rise Time | 4.1 uSec | | Total Gain | Microphone mode full gain: 70 dBV | | Gain | Gain of Microphone Preamp: Microphone/Line switch (in) +32 dBV | | Range | Range of input level pot: -63 to +20 dBV
Range of master level pot: -70to +17 dBV | | Common Mode Rejection | Input (Microphone): >63 dB | | Maximum Input Level | Line +21 dBV; Mic -11 dBV | | Input Impedance | Microphone: 1.3 kOhms
Line: 8.8 kOhms | | Isolation | Between input channels: Line at unity gain; 72 dB @ 1 kHz | | Maximum Output Level | +26 dBV balanced | | Output Impedance | 200 Ohms balanced; 100 Ohms each leg | | Noise | Unity gain: (Line) -88 dBV
40 dB gain (Microphone): -79 dBV | | Dynamic Range | 111 dBV | | Control | Treble Control: ±15 dBV @ 16kHz, shelving
Bass Control: ±15 dBV @ 20 Hz, shelving
Tone Control: ±12 dBV @ 2 kHz, peaking | | LED | Threshold:
+18, 22 dBm bal; 16 dBm unbalanced
+ 8, 12 dBm bal; 6 dBm unbalanced
0, 4 dBm bal; -2 dBm unbalanced
- 24, -20 dBm bal; -26 dBm unbalanced | | Phantom Power | 48 VDC | | Power Consumption | 0.13 Amps AC at 120 VAC maximum
0.09 Amps AC at 120 VAC minimum | | Power Requirement | 120 VAC 60 Hz | | Mains | Internal Mains Fuse: .5 Amp Slo-blo type 3AG | | Voltage | AC Dropout Voltage: 95 VAC | | Inputs | 4 x Mono Microphone/Line 3 x Stereo Line | | Dimensions | 1.75 x 19 x 6" (4.44 x 48.26 x 15.24 cm) | | Weight | 5.3 lb (2.4 kg) | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 21.4 x 9.5 x 4.8" |
