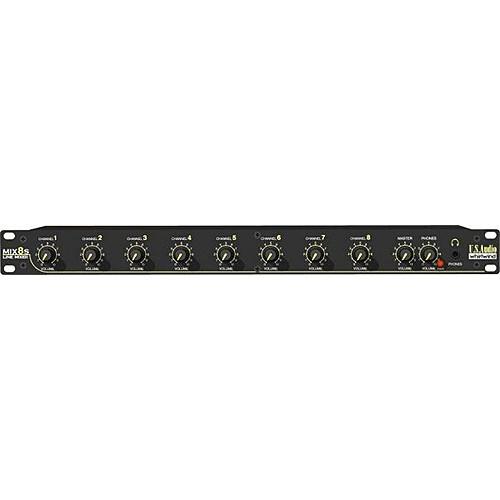

User Manual for Whirlwind MIX-8S - 8 Channel Line Level Stereo Rackmount Mixer Click to enlarge the picture
Contents of the user manual for the Whirlwind MIX-8S - 8 Channel Line
- Product category: Install Sound Mixers Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Install Sound Mixers
|
User manual for the Whirlwind MIX-8S - 8 Channel Line contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|
Product description The Whirlwind Mix-8S is a simple and efficient 8-input line mixer in a compact, 19-inch rackmount frame. The mixer features 8 stereo paired, balanced 1/4" phone inputs for connecting keyboards, player/recorder devices and other stereo sources. Volume controls for each input are located on the front panel. Additional features include balanced/unbalanced switched inputs and Master output. A headphone output with volume control it also provided. The Mix-8S is an ideal solution for keyboard rigs, broadcast, monitor mixing and more. - 8 Stereo Input Channels
- The Mix-8S features 8 stereo paired, balanced 1/4" phone input channels for stereo line level devices. Level controls for each input are provided on the front.
- Balanced / Unbalanced Master Output
- The stereo Master output is capable of balanced or unbalanced output with the use of TS or TRS 1/4" cable.
- Headphone Output
- The headphone output is located on the front and separate level control is also featured.
- Rackmount Frame
- The Mix-8S features a single space, 19-inch rackmount frame.
UPC: 692465001847 In the Box Whirlwind MIX-8S - 8 Channel Line Level Stereo Rackmount Mixer 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind MIX-8S - 8 Channel Line Level Stereo Rackmount Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind MIX-8 Specs | Total # Of Inputs | 8 | | Mic/Line Inputs | Line Only | | Stereo Line Inputs | No | | In-Line Inputs/Returns | No | | AUX Sends | No | | AUX Returns | No | | Inserts | No | | BUS (Group) Outputs | Stereo Output Only | | 2 Trk Master I/O | No | | ALT I/O | No | | Monitor Outputs | Headphone Output | | EQ Section | No | | Solo/Mute | No | | Channel Level Control | Rotary | | Trim/Gain Control | No | | Phantom Power | Not Applicable | | Metering | No | | Frequency Response | 20Hz to 20kHz | | Dynamic Range | Not Specified By Manufacturer | | Signal-to-Noise Ratio | Not Specified By Manufacturer | | Total Harmonic Distortion (THD) | .01% | | Power Supply | .15 Amps Max AC @ 120VAC | | Dimensions (WxHxD) | 19 x 1.75 x 6" (482.6 x 44.45 x 152.4) | | Weight | 7.5 lbs (3.40 kg) | | | | Package Weight | 7.42 lb | | Box Dimensions (LxWxH) | 21.25 x 9.35 x 4.5" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 59 owners. Add your rating and experience with the product.
