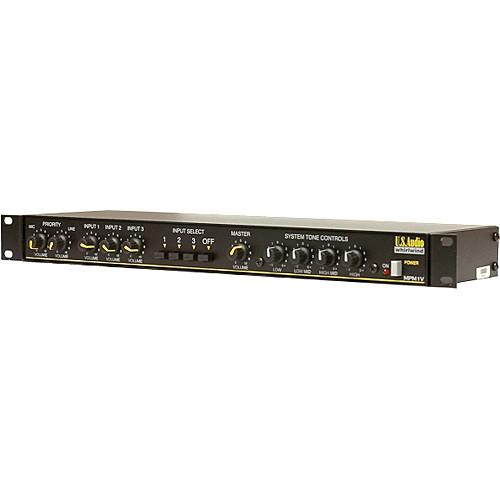

Product description The MPM1 from Whirlwind/U.S. Audio is a high-quality rack mount music and paging mixer that's great for small offices, retail spaces, restaurants, and more. The slim, 1RU unit has three sets of stereo RCA inputs for connecting CD players, cassette decks, or similar audio devices. An XLR connector and pair of 1/4" inputs are also provided for connecting a microphone for paging. The system has automatic ducking, so as soon as a mic signal is detected, the volume level of all other audio sources is lowered to give the microphone top priority.
XLR and RCA jacks are provided for signal output to an amplifier. A remote control jack is also available so you can connect the included MPM1RV wall remote. Front-panel controls include input selector switches, master and individual volume control knobs, mic and line volume control knobs, and four tone control knobs. A stereo/mono output selector switch is provided, along with a ground-lift switch, which may help reduce hum caused by ground loops. - Slim, 1RU housing with removable rack ears
- Three sets of stereo RCA inputs for connecting CD players, tape decks, and more
- XLR and 1/4" inputs for connection a microphone, telephone, or juke box
- A set of stereo RCA buss input jacks insert an audio source directly on the sum buss of the mixer
- Priority ducking automatically lowers music when a mic signal is detected to make sure an announcement is heard. A ducking level selector switch is provided
- RCA and XLR outputs can be selected to send out a mono or stereo signal
- A remote connector is supplied to connect the included wall remote
- A full host of front-panel controls include master and individual volume controls, input selector switches, and system tone controls
- A ground-lift switch helps to reduce hum caused by ground loops
UPC: 692465002233 In the Box Whirlwind MPM1 - 3-Channel Music and Paging Mixer Rack Mounting Kit Wall Panel Remote Control (MPM1RV) User Manual 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind MPM1 - 3-Channel Music and Paging Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind MPM1 Specs | Frequency Response | 20Hz - 20kHz (+0.5/-1.3dBm)
3Hz - 30kHz (-3dBm) | | Input Impedance | RCA: 10 kOhms, Unbalanced
Mic: 1.2 kOhms, Balanced
Priority Line: 20 kOhms, Balanced
Buss: 20 kOhms, Unbalanced | | Maximum Input Level | RCA: +23dB
Mic: -5dB
Priority Line: +23dB
Buss: +23dB | | Output Impedance | RCA: 100 Ohms, Unbalanced
XLR: 100 Ohms, Balanced | | Maximum Output Level | +23dB | | Total Harmonic Distortion (THD) | RCA In/Out: 0.06% @ 1kHz, Unity Gain
Mic In/RCA Out: 0.05% @ 1Khz, 40dB Gain | | Rise Time | 12µs | | Ducking | Priority Mic Threshold: -40dB
Priority Line Threshold: -20dB | | Release Time | Mic Priority: 5 sec
Line Priority: 3 sec (Normal), 30 sec (Slow) | | Common Mode Rejection Ratio | Mic: >50dB @ 50Hz | | Stereo Separation | >60dB | | Signal to Noise Ratio | RCA In/Out: 76dB | | Inputs | 3 x Pairs of Stereo RCA Phono Inputs
1 x XLR Mic Priority Input
1 x Pair of 1/4" Line Priority Inputs
1 x Remote Input
1 x Pair of RCA Buss Inputs | | Outputs | 1 x Pair of RCA Phono Line Outputs
1 x Pair of XLR Line Outputs | | Controls | 1 x Power Switch
4 x Tone Control Knobs (Low, Low Mid, High Mid, High)
1 x Master Volume Control
4 x Input Selector Switches (1, 2, 3, Off)
3 x Individual Input Volume Control Knobs
2 x Priority Volume Control Knobs (Mic, Line)
1 x Ground-Lift Switch
1 x Stereo/Mono Output Selector Switch
1 x Ducking Level Selector Switch | | Dimensions (WxHxD) | 19 x 1.75 x 5.25" (483 x 44 x 133mm) | | Weight | 7.25 lbs (3.3kg) | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 21.8 x 9.5 x 5.0" |
