User Manual for Whirlwind MultiDirector - 4 Channel Studio or PA Direct Box with 20dB Pad Click to enlarge the picture
Contents of the user manual for the Whirlwind MultiDirector - 4 Channel Studio
- Product category: Direct Boxes Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Direct Boxes
 |
User manual for the Whirlwind MultiDirector - 4 Channel Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|

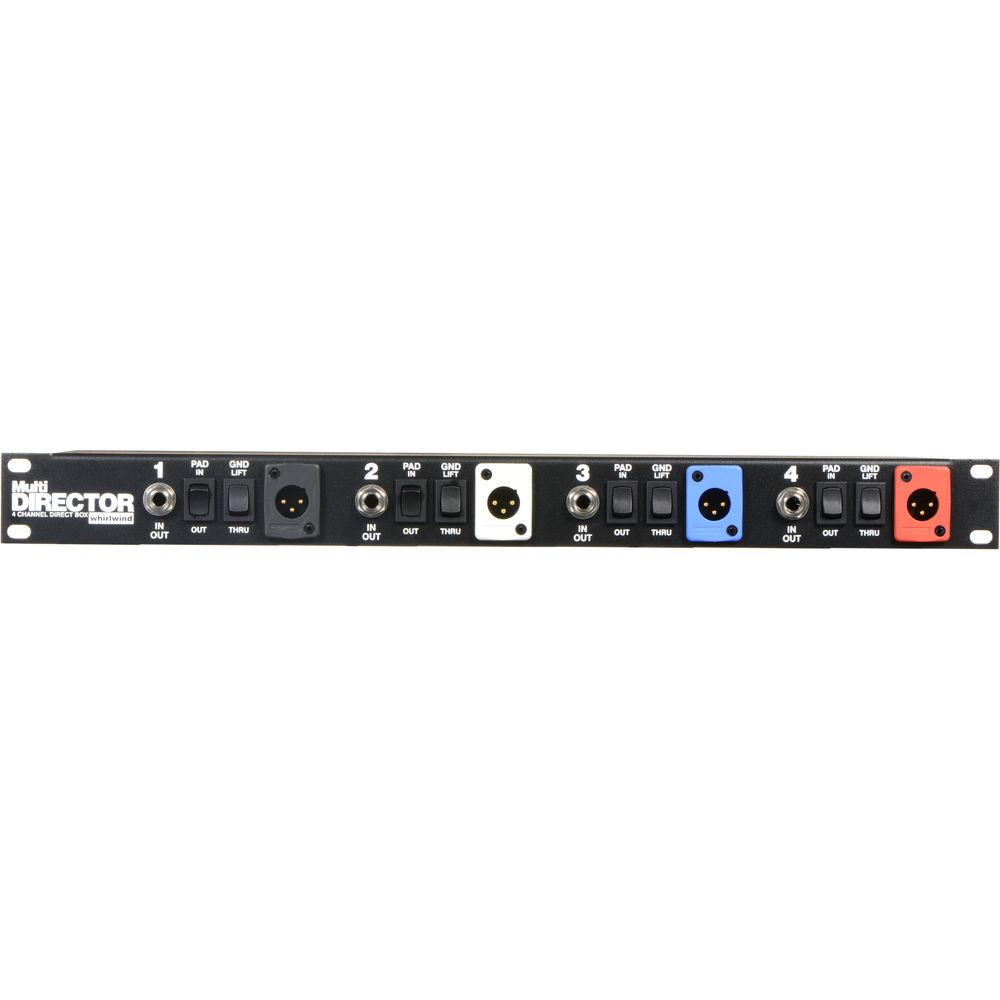

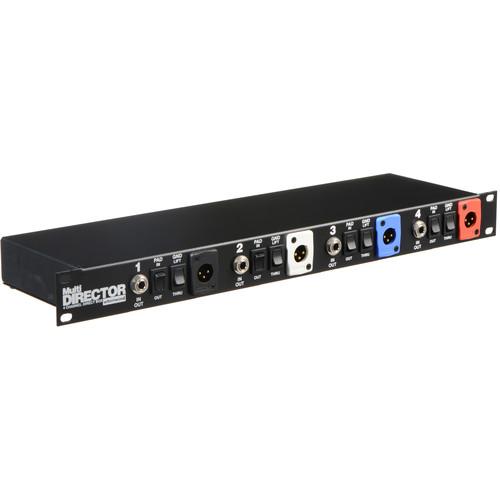

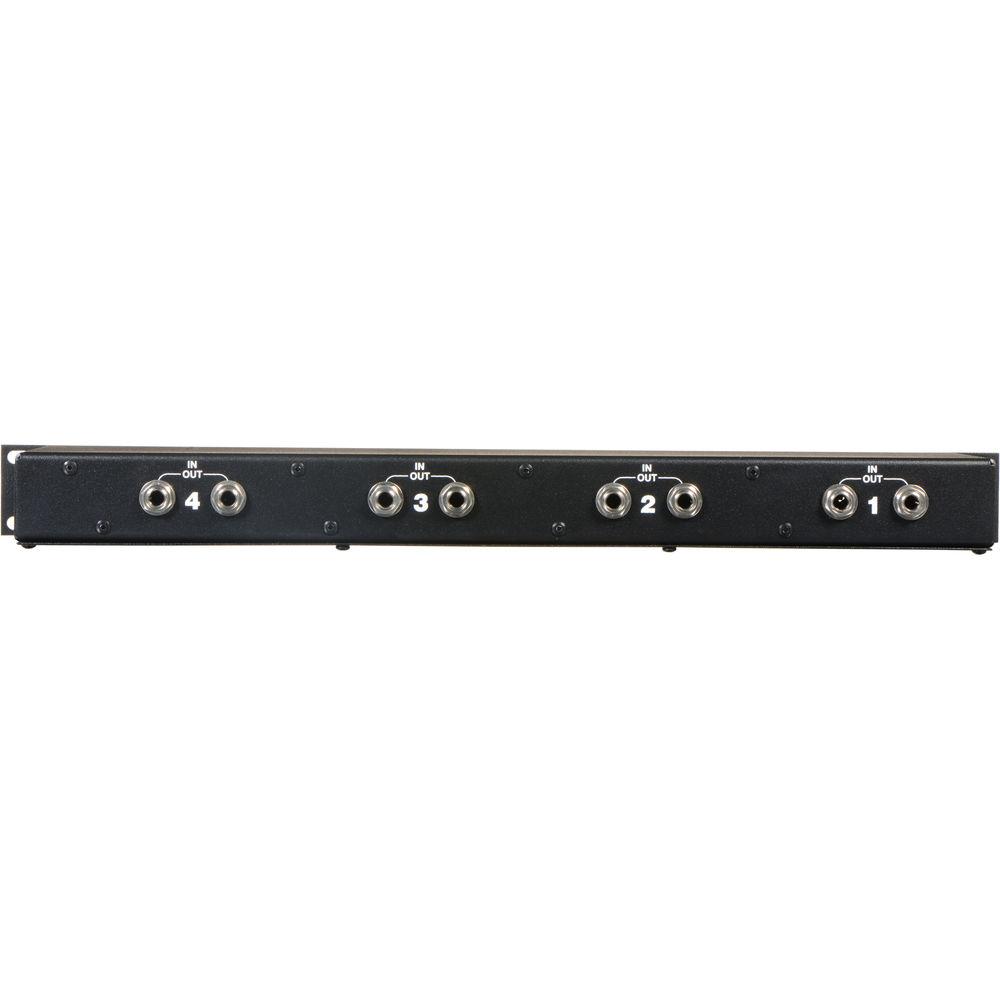

Product description The MultiDirector from Whirlwind is a four channel direct box that converts an unbalanced line, instrument or speaker level signal to low impedance balanced microphone level, which is then suitable for imputing to a console or microphone preamp. Each of the four individual channels has three standard 1/4" unbalanced, high impedance bridging jacks for connection to instruments and amplifiers. All are wired in parallel and can be used in any combination for input and through connections. Two are located on the rear panel with the third on the front. The unit is a passive device and therefore requires no external power supply. The unit features a ground lift switch and a 20dB pad for selecting between line/instrument or speaker level signals. - Four channel passive DI for studio or stage use
- 1/4" parallel wired in/out jacks
- 20dB pad switch for selecting between line/instrument or speaker level input signals
- Ground Lift switch per channel to help eliminate hum and buzz
UPC: 692465002103 In the Box Whirlwind MultiDirector - 4 Channel Studio or PA Direct Box with 20dB Pad Five (5) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind MultiDirector - 4 Channel Studio or PA Direct Box with 20dB Pad in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind MLTDIR Specs | Input Connections | 12 x 1/4" TS phone (shared with outputs) | | Output Connectors | 4 x XLR
12 x 1/4" TS phone (shared with outputs) | | Input Level | Not specified by manufacturer | | Output Level | 20dB below input level (-40dB with pad engaged) | | Frequency Response | 20Hz to 20kHz, +/-1dB | | Noise | Not specified by manufacturer | | Power | Passive | | Dimensions (WxDxH) | 19 x 5-1/4 x 1-3/4" (483 x 133 x 45 mm) | | Weight | 5 lbs (2.3 kg) | | Specialties | Uses Whirlwind's TRHL-M transformer with metal shield | | | | Package Weight | 6.45 lb | | Box Dimensions (LxWxH) | 21.4 x 9.4 x 4.8" |
