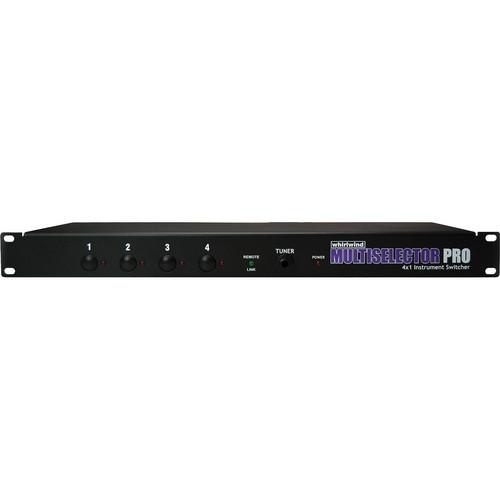

User Manual for Whirlwind MultiSelector PRO 4 x 1 Instrument Switcher Click to enlarge the picture
Contents of the user manual for the Whirlwind MultiSelector PRO 4 x 1
- Product category: Effects Pedal Accessories Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Effects Pedal Accessories
|
User manual for the Whirlwind MultiSelector PRO 4 x 1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|
Product description The MultiSelector PRO 4 x 1 Instrument Switcher from Whirlwind is a unidirectional, 4-to-1 instrument switcher incorporating innovative features. The one rack space MultiSelector PRO Switcher allows selection of any 1 of 4 inputs to a single output. Each of the 4 inputs is electronically buffered with an input impedance of 1 MΩ, delivering pristine frequency response when used with instruments with passive pickups. Signals pass through the unit transparently with no coloration and the digitally controlled optical switching is completely silent. A low noise floor and high channel isolation make the MultiSelector PRO Switcher suitable for most professional applications.
The switcher features 4 momentary switches on the front panel to select between channels, with the active channel identified by a red LED. Activating a channel disconnects the previous selection. A separate, green LED indicates connection of the the MultiSelector MLTSELPRO4XR Remote Foot Controller (sold separately).
The rear panel contains the 4 unbalanced 1/4” input jacks, the 1/4” output jack, and a female XLR connector for connecting the remote footswitch (sold separately). The unit is AC powered for ultimate performance with no external wall wart needed. The MLTSELPRO is set for 120V operation.
The MultiSelector PRO also features an individually buffered tuner output on both the front and rear panels. All 3 non-active inputs are routed to the tuner outputs so a guitar tech can tune any non-active instrument by just turning up its volume. This output is electronically isolated from the main signal path. It is not necessary to unplug the cable or wireless transmitter from the instrument to tune and then plug back in to the instrument. - Professional instrument switcher; any 1 of 4 inputs sent to one output
- Totally silent optical switching
- High impedance inputs provide sonic transparency
- All non-selected inputs are routed to the tuner outputs, allows tuning without unplugging instruments
- Selecting a channel on the rack or remote (sold separately) turns off previous selection
- AC powered for ultimate performance
In the Box Whirlwind MultiSelector PRO 4 x 1 Instrument Switcher Limited 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind MultiSelector PRO 4 x 1 Instrument Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind MLTSELPRO Specs | Insertion Loss | -0.35 dBV | | Frequency Response | Main Output: ±0.1 dBv, 20 to 20 kHz | | THD + N | <0.003%, 20 to 20 kHz | | Noise | Main Output: <-112 dBV | | Attenuation | Off Channel (Main Output): >109 dBV | | Crosstalk (Main Outputs) | >109 dBV at 1 kHz | | Rise Time | 320 ns | | Maximum Input/Output Level | 13.7 dBV | | Input Impedance | 1 MΩ | | Output Impedance | Main and Tuner: 100 Ω | | Power Consumption | 10.1 W, 0.081 A at 120 VAC | | Voltage | AC Dropout: 103 VAC | | Dimensions (W x H x D) | 19.0 x 1.8 x 5.5" (482.6 x 44.5 x 139.7 mm) | | Weight | 7.0 lb (3.2 kg) | | | | Package Weight | 2.444 lb | | Box Dimensions (LxWxH) | 22.0 x 9.5 x 5.0" |
